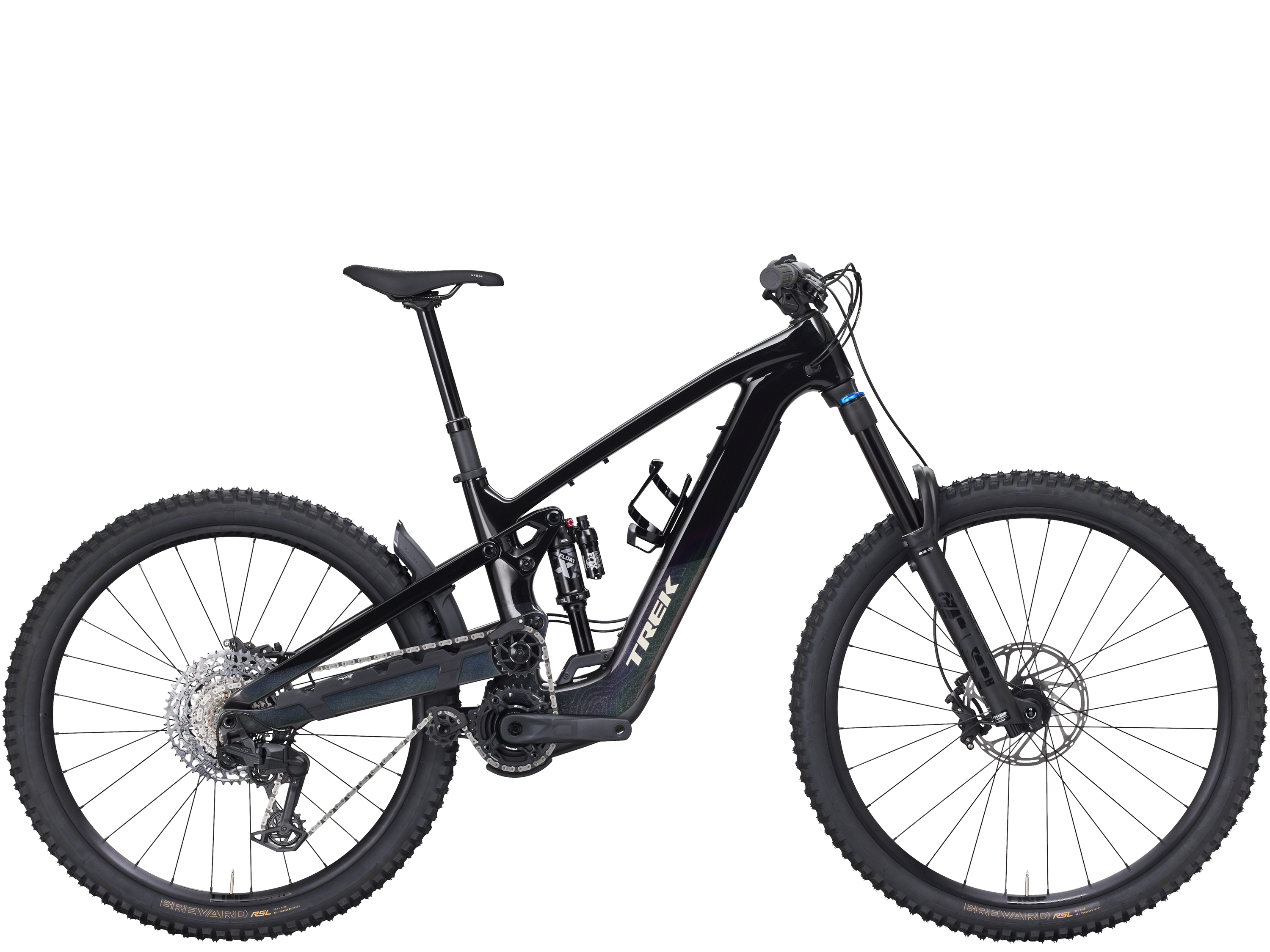

TREK Slash+ 9.7 Trek Black/Dark Prismatic

The Slash+ 9.7 is a capable and rowdy mid-assist e-MTB ready to tackle dicey, wild, and long rides. It delivers smooth support from TQ's HPR 60 motor with a 580 Wh battery for plenty of boost on the climbs without compromising ride feel on the descents. You get a rugged OCLV Mountain Carbon frame decked out with a SRAM Eagle 12-speed transmission and a Fox Performance suspension package for cutting loose when the trail gets spicy.

Design features

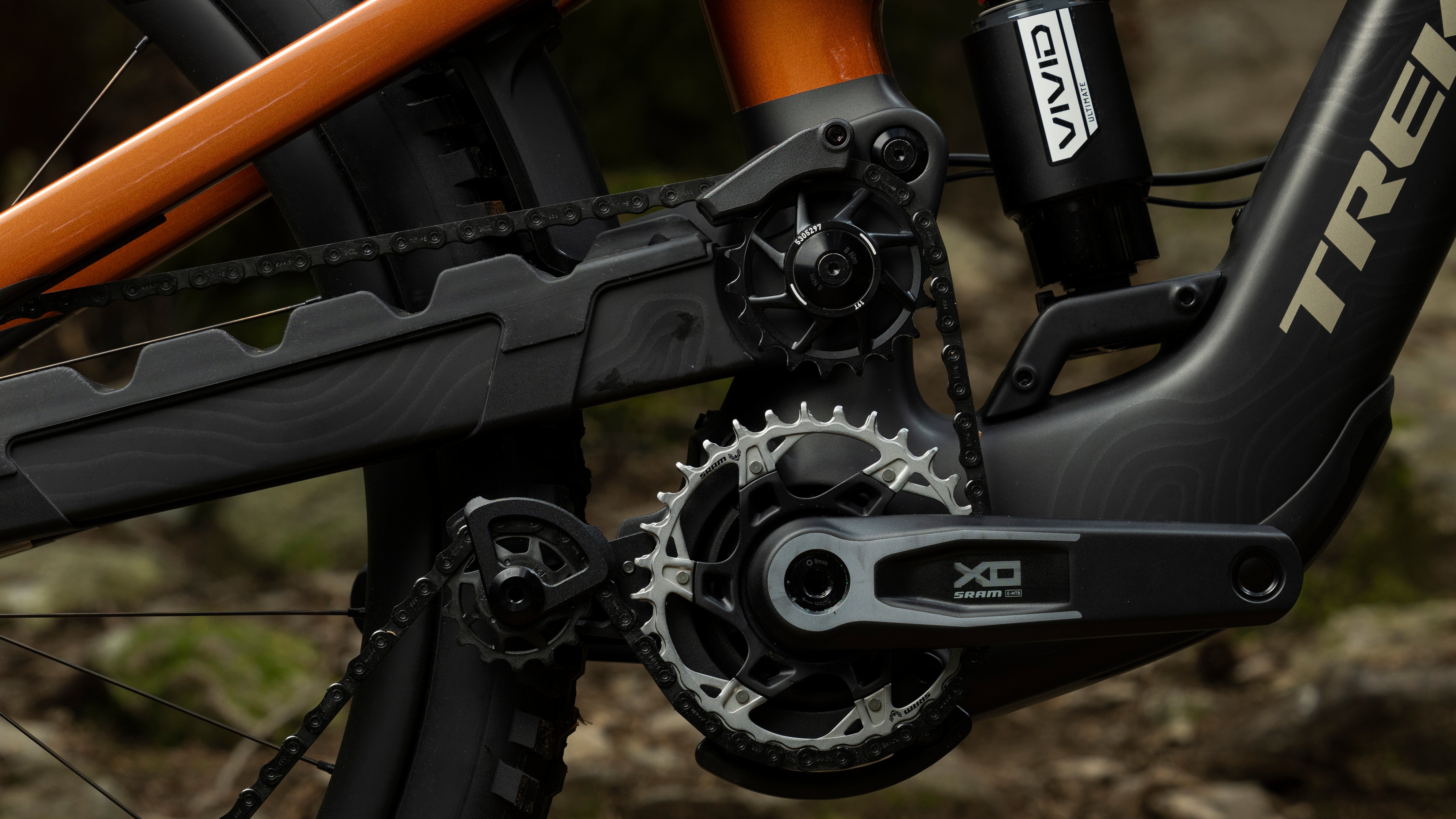

• OCLV Mountain Carbon frame with high main pivot design is built for aggressive e-MTB riding.
• TQ HPR60 motor and 580 Wh battery deliver smooth, natural-feeling assistance for long trail rides.
• 170 mm front travel and 170 mm rear travel provide confident suspension performance for rough terrain.
• SRAM Eagle 70 T-Type drivetrain is built to shift smoothly and reliably under load.
• Trail-ready details like adjustable geometry, integrated frame protection, and a custom mudguard add capability and durability.

Specifications

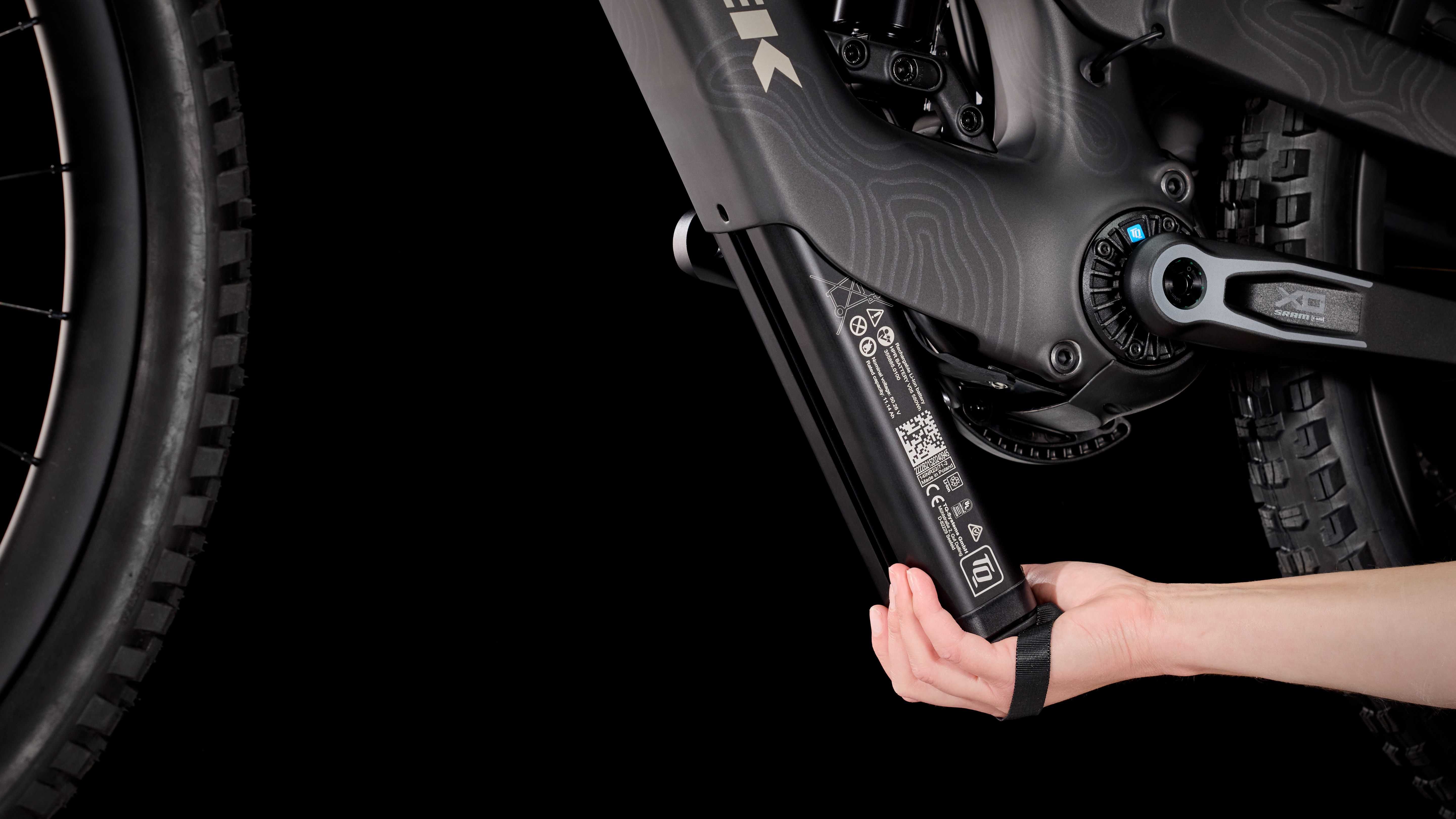

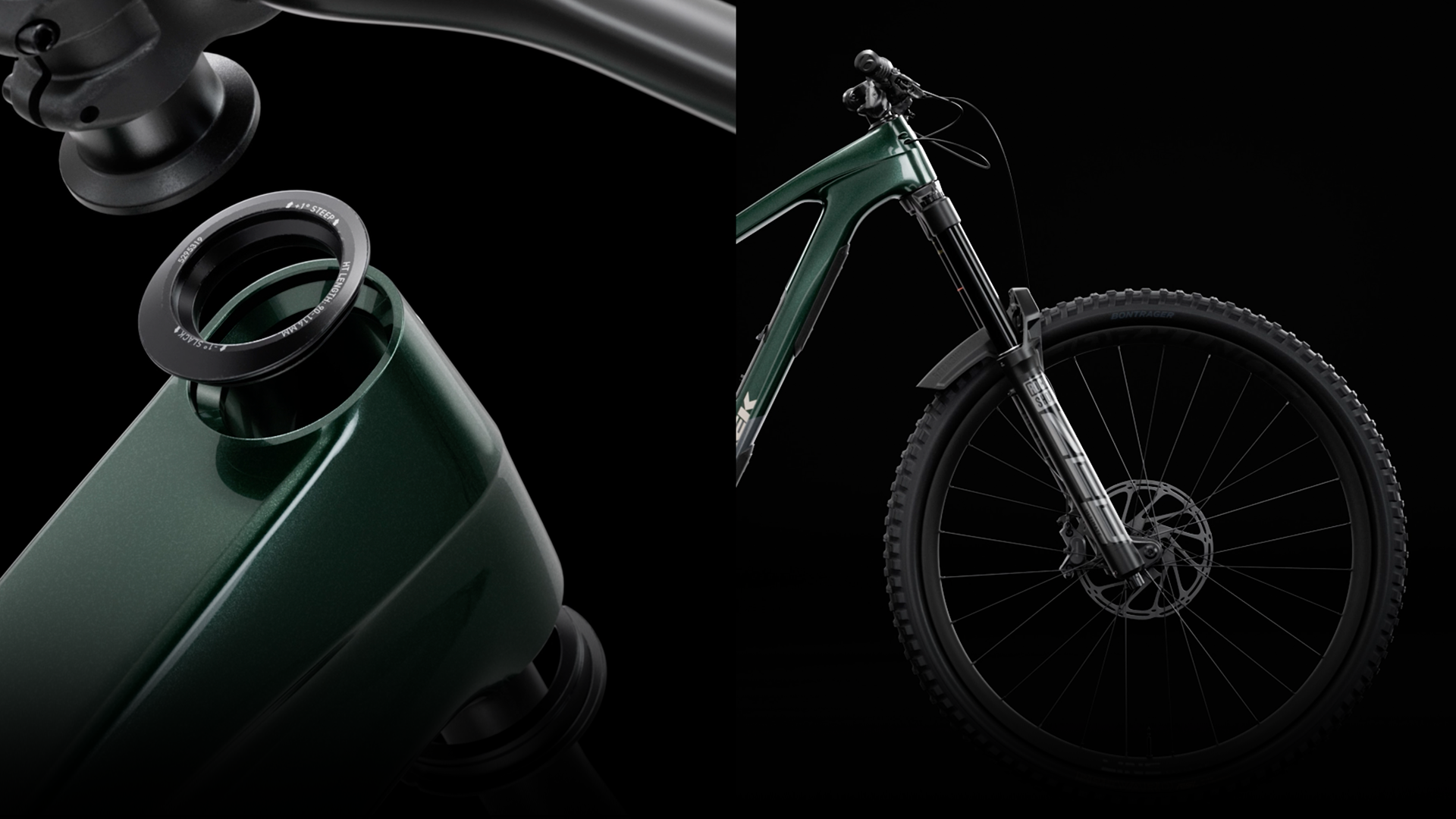

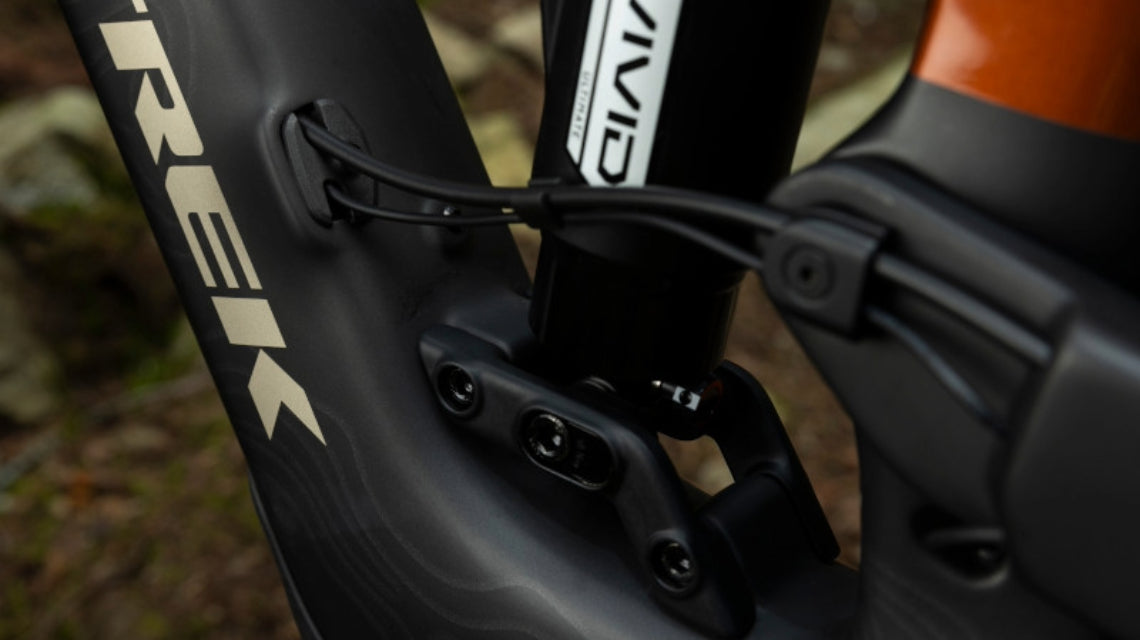

• Frame: OCLV Mountain Carbon, removable battery, high main pivot, idler pulley, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, upper chain guide mount, 55 mm chainline, ABP, UDH, 148x12 mm thru axle, 170 mm travel


• Fork: Fox Rhythm 38, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 170 mm travel


• Shock: Fox Performance Float X, 2-position damper, 230 mm x 65 mm


• Wheel Front: Size S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5"; Size M, L, XL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"


• Wheel Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle, 27.5"


• Skewer Rear: Bontrager Switch thru axle, removable lever


• Tyre: Size S, M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.5"; Size M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.5"


• Tyre Part: Bontrager TLR sealant, 180 ml/6 oz


• Rim Strip: Bontrager TLR


• Max Tyre Size: Frame: 2.50", Fork: See manufacturer


• Battery: TQ 580Wh


• Charger: TQ 4A charger

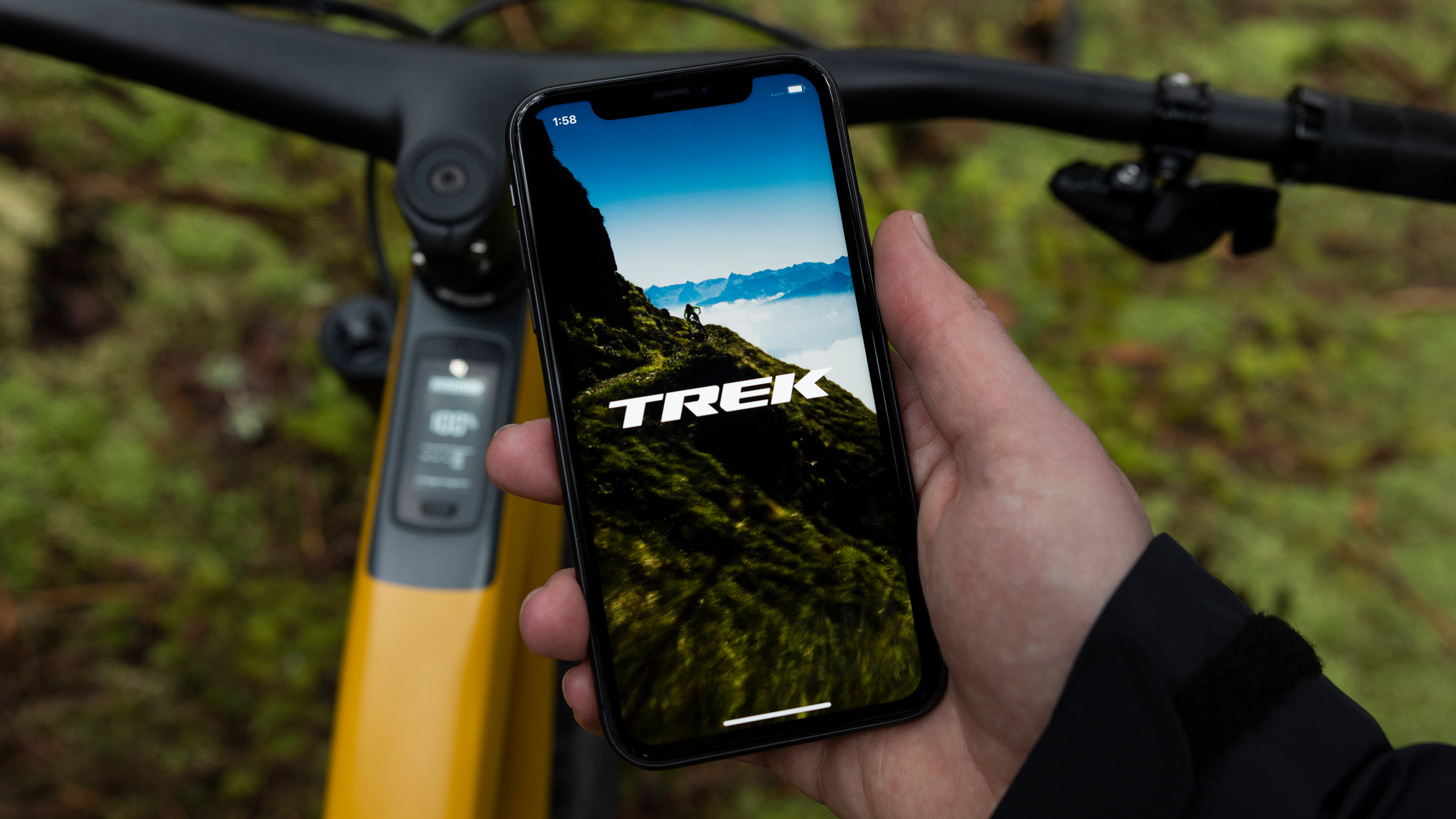

• Computer: TQ LED display with Bluetooth and ANT+ connectivity

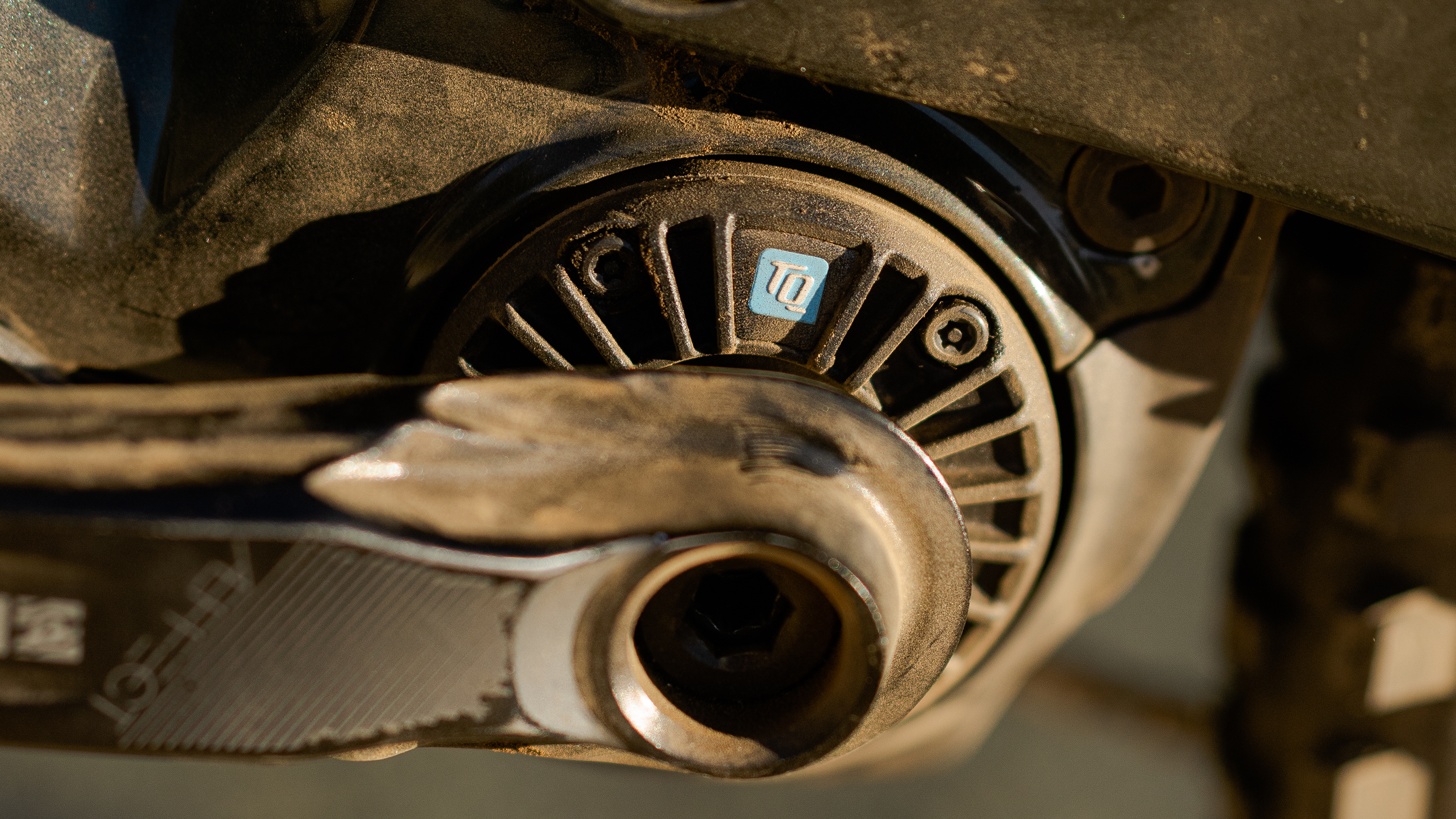

• Motor: TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power


• E-bike Classification: Class 1


• Shifter: SRAM Eagle 70, 12-speed


• Rear Derailleur: SRAM Eagle 70, T-Type


• Crank: SRAM Eagle 70, 160 mm length


• Chainring: SRAM T-Type, 32T, alloy


• Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed


• Max. Chainring Size: Max: 34T (oval - 32T), Min: 28T


• Saddle: Bontrager Verse P3, chromoly rails


• Seatpost: Size S - Bontrager Line Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 310 mm length; Size M - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length; Size L, XL - Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length


• Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width


• Grips: Trek Line Elite, lock-on


• Stem: Bontrager Elite, 35 mm, 0-degree, 35 mm length


• Brake: SRAM DB 8 4-piston hydraulic disc


• Brake Rotor: SRAM CenterLine 2.0, 6-bolt, 200 mm


• Rotor Size: Max brake rotor sizes - Frame: 220 mm, Fork: see fork manufacturer


• Mudguard: Trek 27.5" custom fender


• Weight: M - 21.58 kg / 47.58 lbs (with TLR sealant, no tubes)


• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
