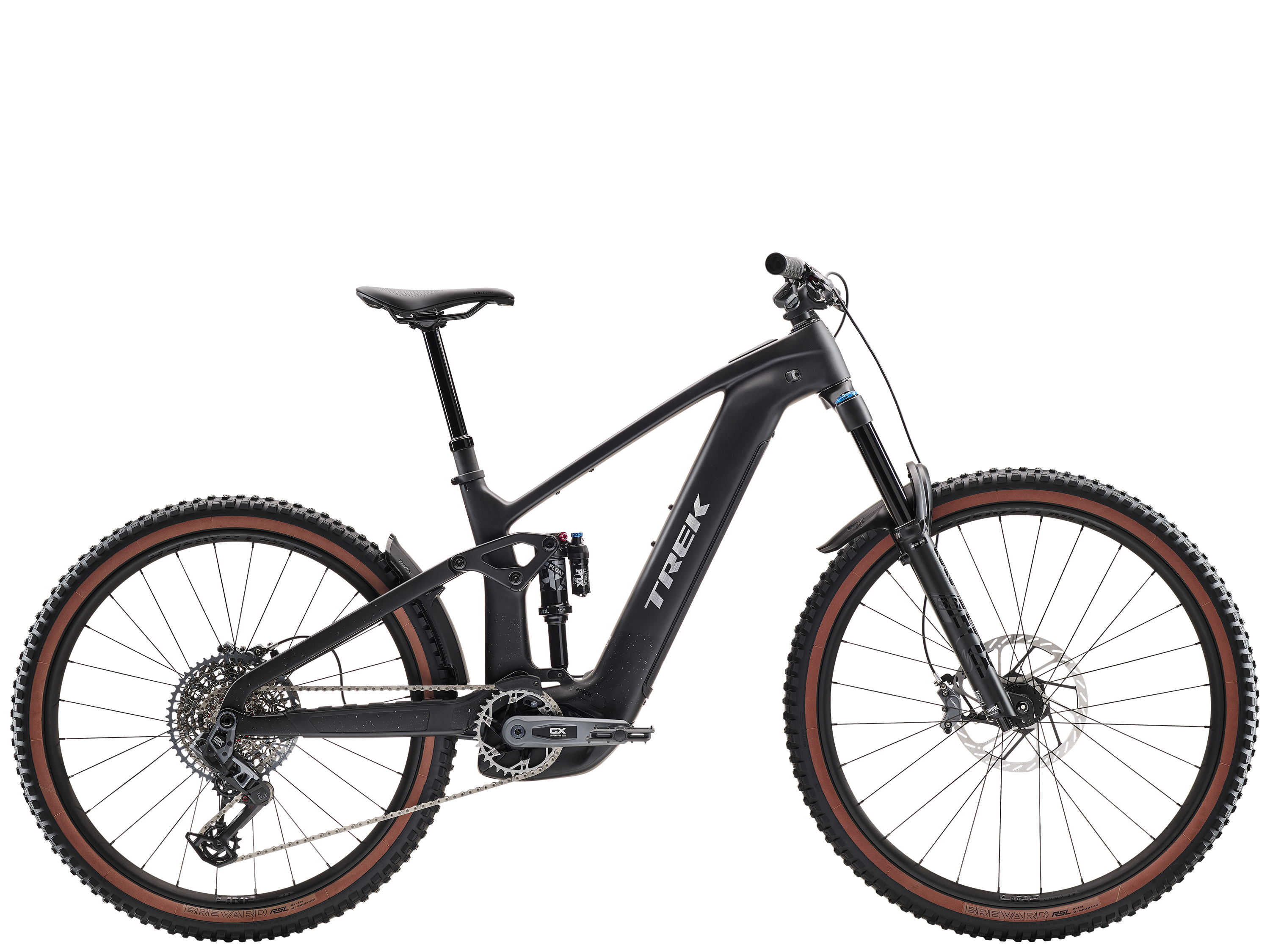

TREK Rail+ 9.8 GX AXS T-Type Gen 5 Deep Smoke

The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. It starts out with a hard-hitting OCLV Mountain Carbon frame that partners with 160 mm of front and rear travel from a Fox Performance Elite suspension package to eat up deep roots and chunky rock lines. A 12-speed wireless SRAM GX Eagle transmission keeps shifting smooth, even under serious load, while SRAM Maven Bronze 4-piston brakes provide the stopping power you need. It's finished off with a Bontrager Line dropper post and Bontrager Line Comp 30 tubeless-ready wheels for charging into anything.

Design features

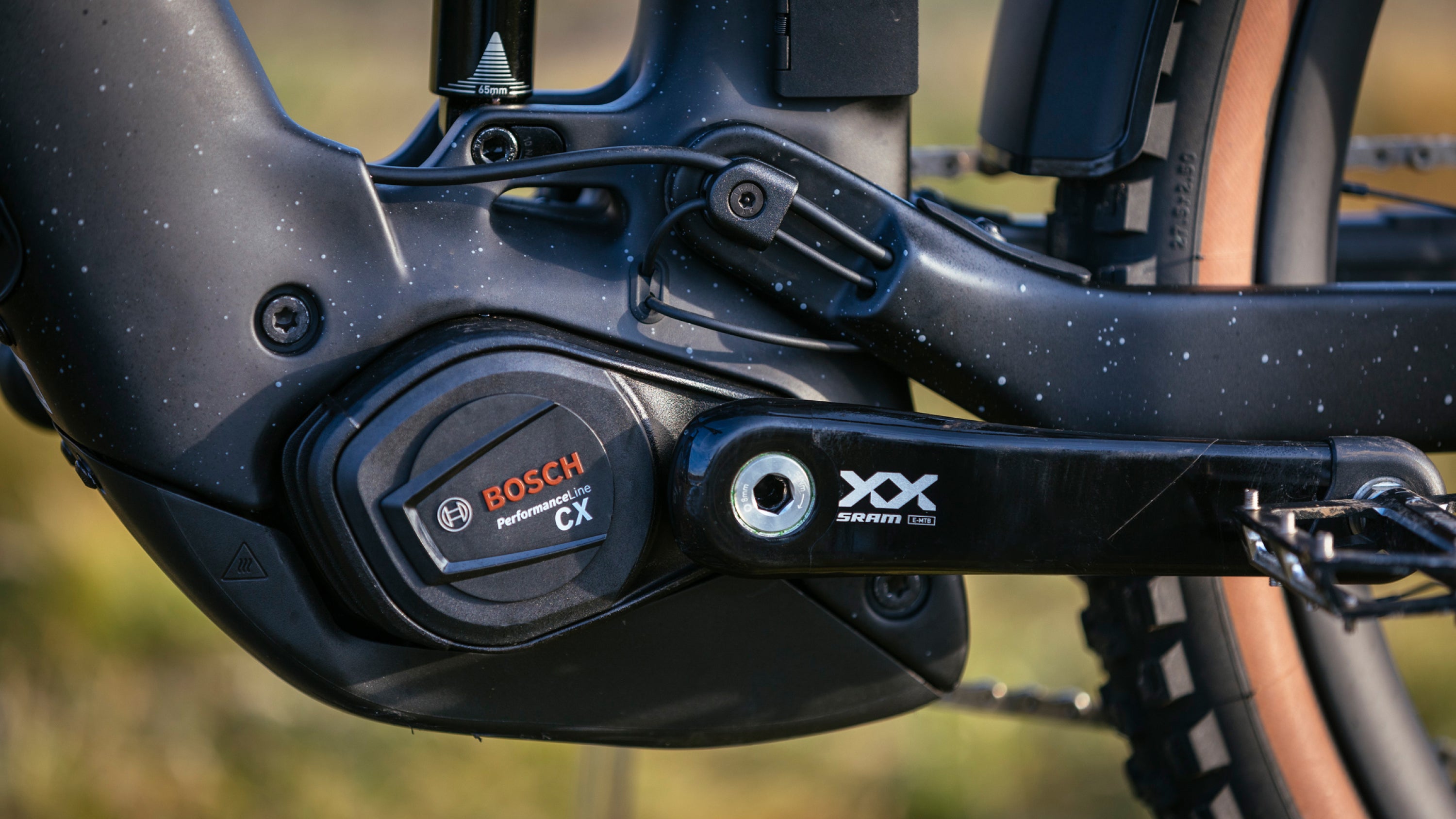

• Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) delivers smooth electric assist for longer rides and steeper climbs
• Bosch PowerTube 800 Wh, smart system helps support extended riding time

Specifications

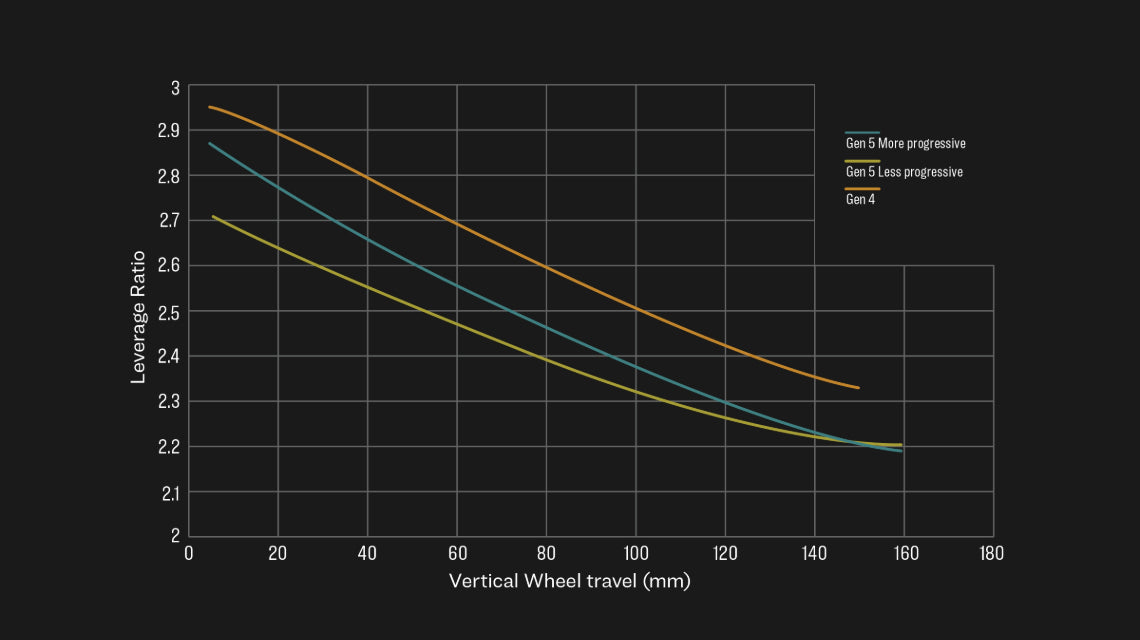

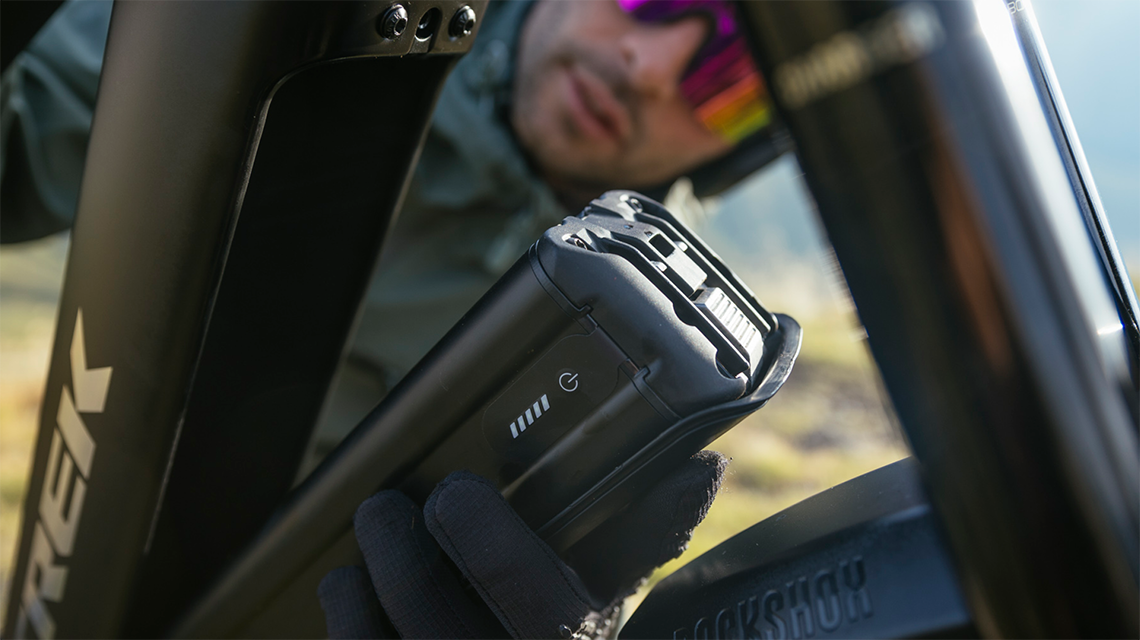

• Frame: OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel


• Fork: Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel


• Shock: Fox Performance Elite Float X, 2-position damper, 205mm x 65mm


• Battery: Bosch PowerTube 800 Wh, smart system


• Charger: Bosch standard 4A, 230V, smart system

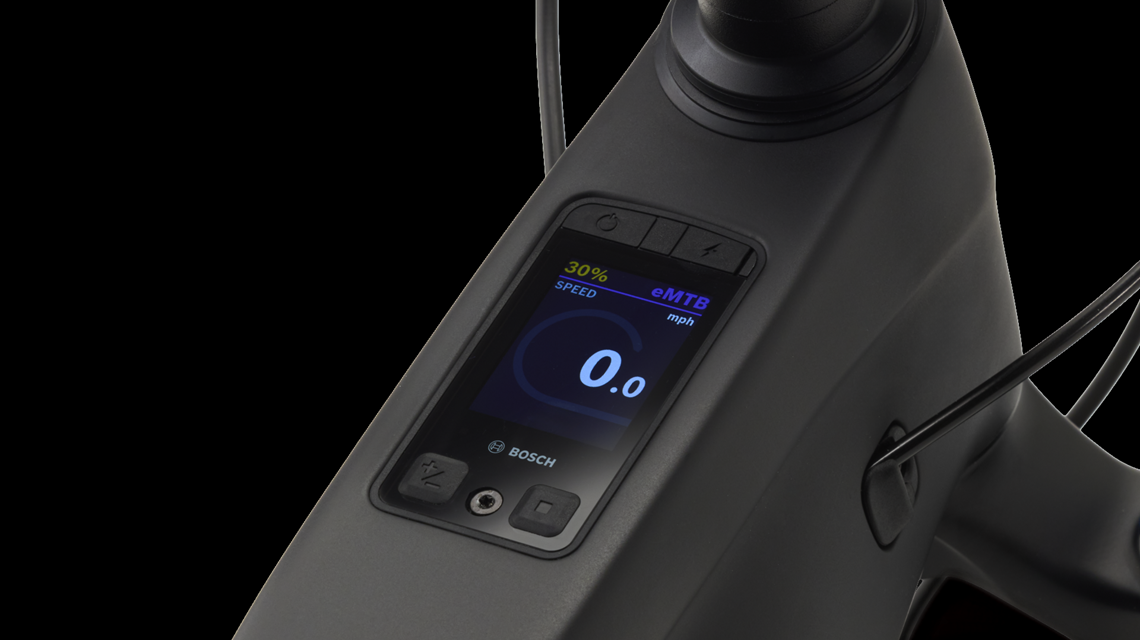

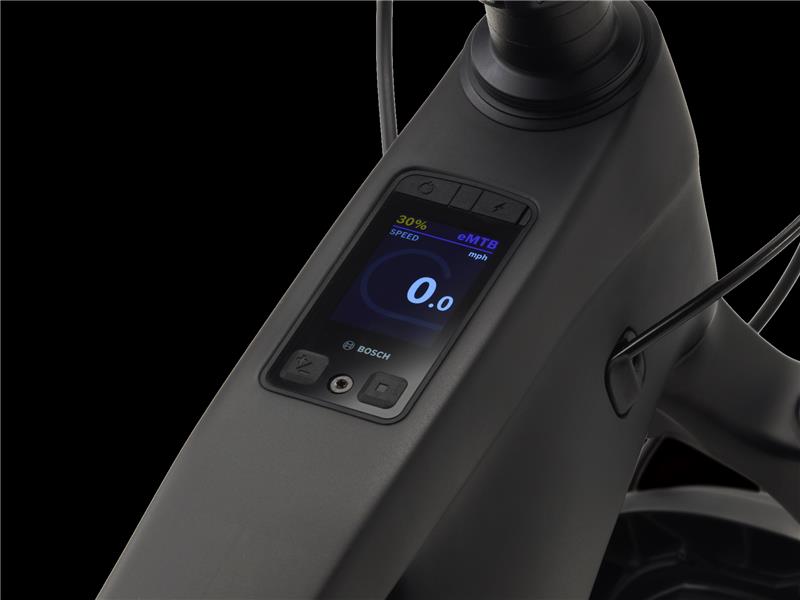

• Controller: Bosch Kiox 400C, mini remote


• Motor: Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)


• E-bike Classification: Class 1

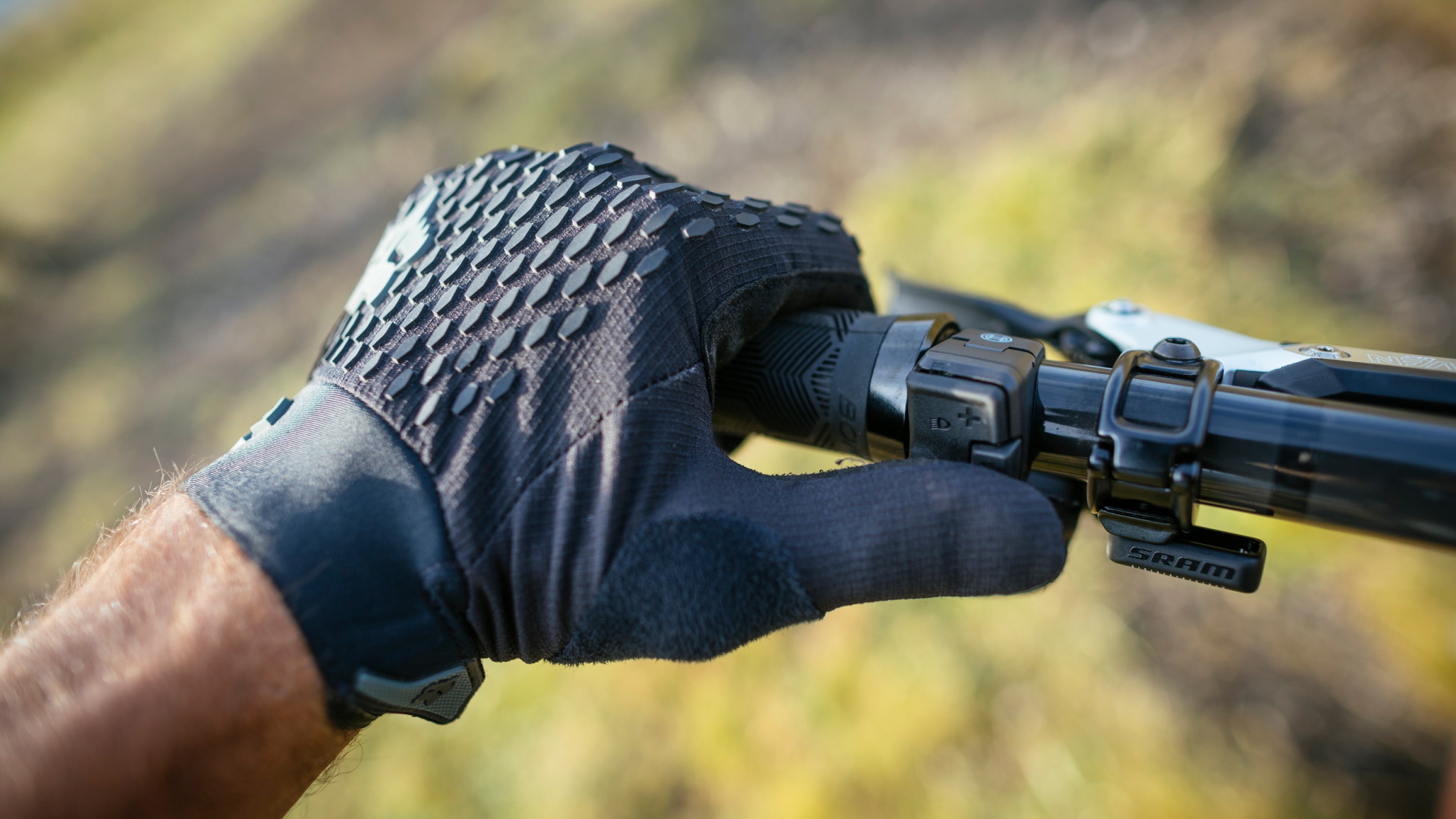

• Shifter: SRAM AXS POD

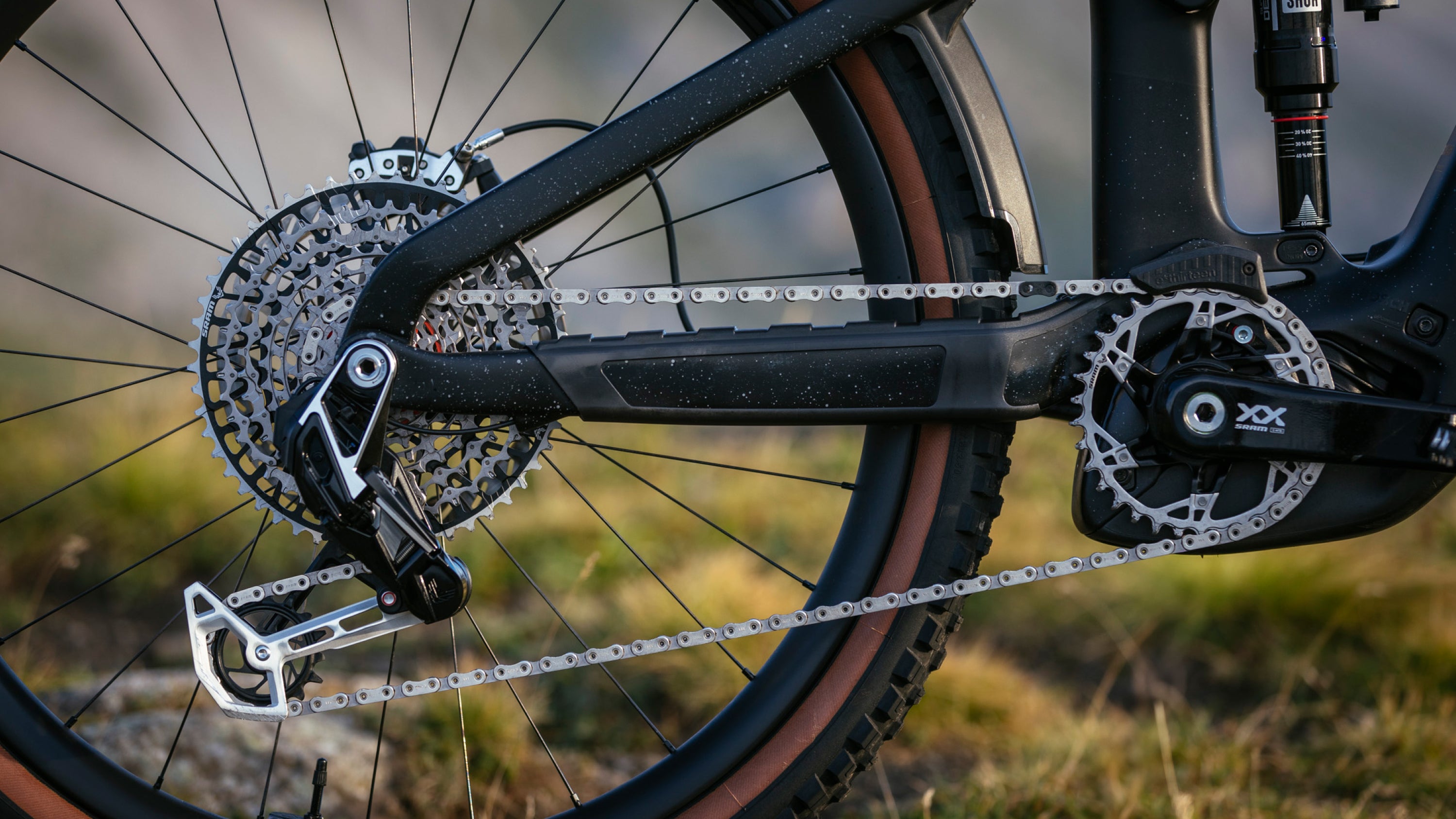

• Rear derailleur: SRAM GX Eagle AXS, T-Type


• Crank: SRAM GX, 160 mm length


• Cassette: SRAM Eagle XS-1275, T-Type,10-52, 12-speed


• Chain: SRAM GX Eagle, T-Type, 12-speed


• Pedal: VP-536 nylon platform


• Saddle: Verse Short Comp, steel rails, 145 mm width


• Seatpost: Size S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length; Size M, L, XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length; Size L, XL - Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length


• Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width


• Grips: Bontrager XR Trail Elite, nylon lock-on


• Stem: Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length


• Headset: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible


• Brake: SRAM Maven Bronze 4-piston hydraulic disc


• Brake rotor: Size S, M, L, XL - SRAM HS2, 6-bolt, 220mm; Size S, M, L, XL - SRAM HS2, 6-bolt, 200mm


• Rotor size: Max brake rotor sizes - Frame: 220 mm, Fork: see fork manufacturer


• Wheel front: Size S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"; Size M, L, XL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"


• Wheel rear: Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5"


• Tyre: Size S, M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"; Size M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"


• Tyre part: Bontrager TLR sealant, 180 ml/6 oz


• Rim strip: Bontrager TLR


• Weight: M - 24.18 kg/53.31 lb (with TLR sealant, no tubes)


• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).


• Skewer rear: Bontrager Switch thru axle, removable lever


• Max tyre size: Frame: 27.5x2.60", Fork: See manufacturer


• Chainring: SRAM T-Type, 34T, steel


• Max. chainring size: 1x: 36T


• Mudguard: Trek custom mudguard
