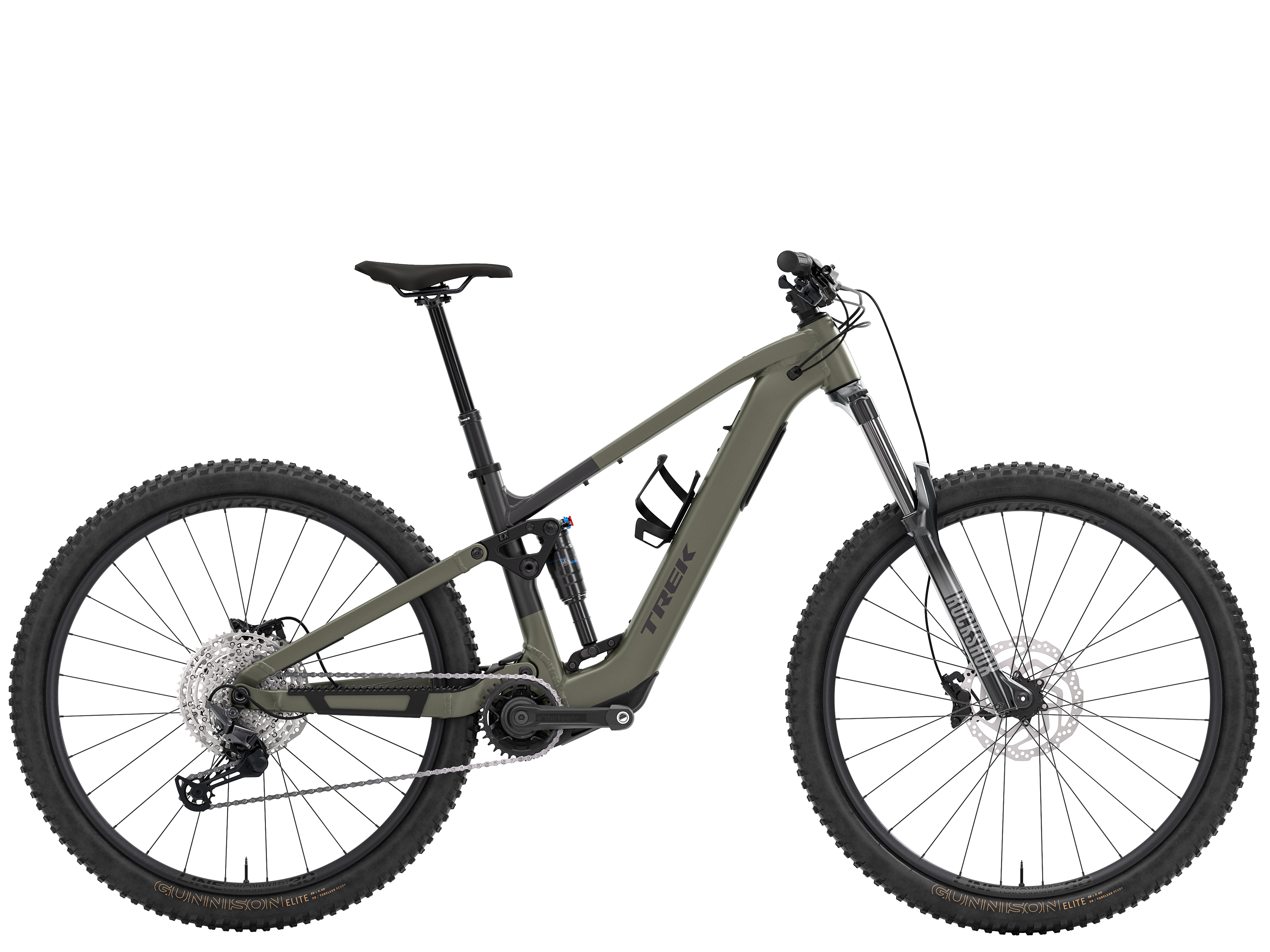

TREK Fuel+ EX 5 Gen 2 Matte Olive Grey/Trek Black

The Fuel+ EX 5 is a quiet and capable electric mountain bike that is ready for any trail, at any time. Its Alpha NEXT Platinum aluminium frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock with 145 mm rear travel and 150 mm front travel provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs, and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.

Design features

• Alpha NEXT Platinum aluminium frame built for capable and versatile e-MTB trail riding.
• TQ HPR-60 motor delivers smooth, quiet pedal assist with a natural ride feel.
• 150 mm RockShox Recon Silver RL fork and X-Fusion Pro 2 rear shock provide confident suspension performance on rough trails.
• Shimano Deore 12-speed drivetrain offers dependable shifting and a wide gear range for steep climbs.
• Removable 580 Wh battery, internal routing, and practical frame storage features make it ready for long rides and everyday use.

Specifications

• Frame: Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm


• Fork: RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

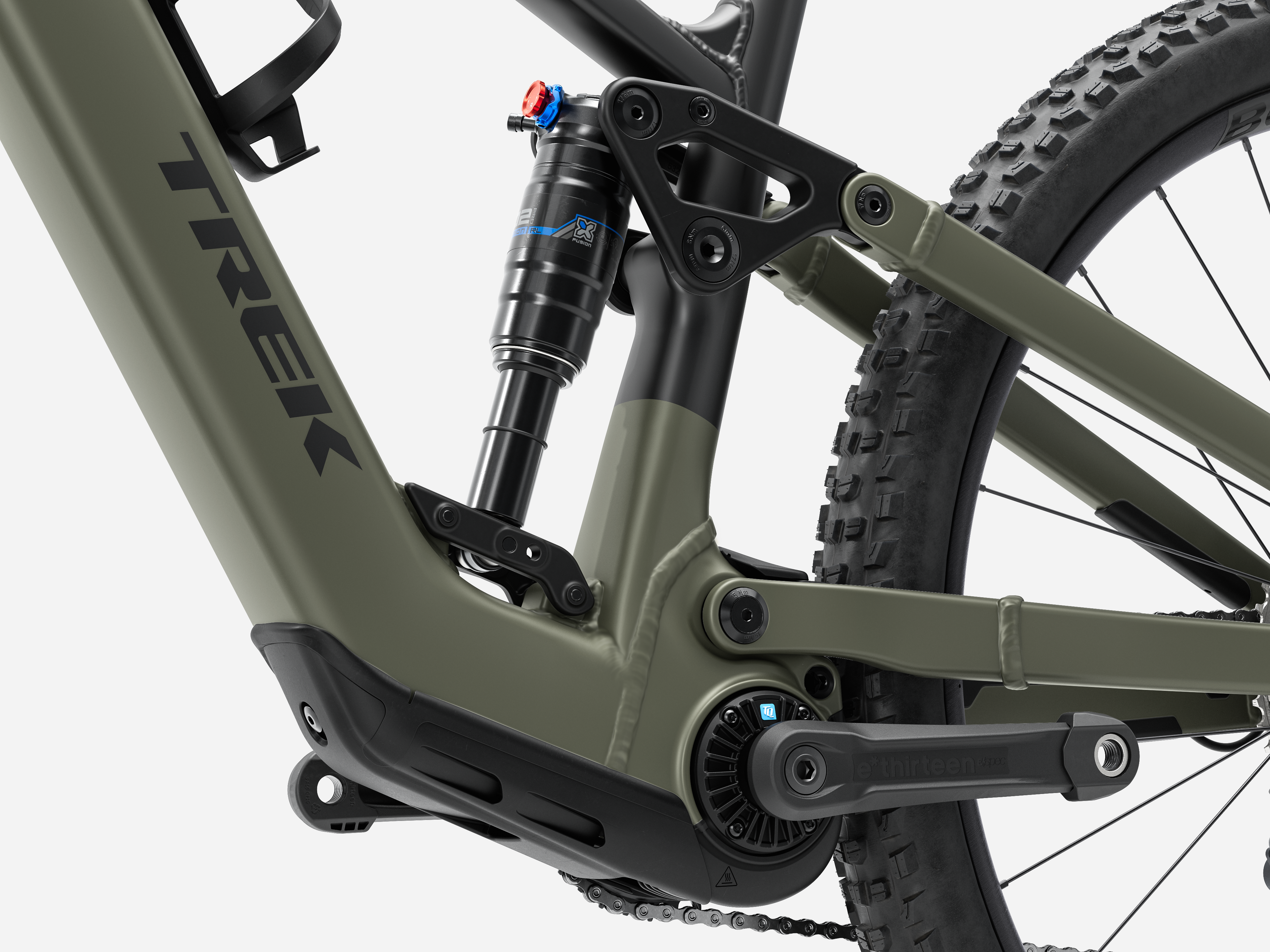

• Shock: X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm


• Hub Front: Shimano TC500 alloy, CenterLock, 110x15 mm thru axle


• Hub Rear: Shimano TC500 alloy, CenterLock, 148x12 mm thru axle


• Skewer Rear: Bontrager Switch thru axle, removable lever


• Rim: Bontrager Line TLR 30, Tubeless Ready, 28-hole or 32-hole, Presta valve


• Tyre: Size S - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"; Size S, M, L, XL - Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"


• Tyre Part: Bontrager TLR sealant, 180 ml/6 oz


• Rim Strip: Bontrager TLR


• Max Tyre Size: Frame: 29x2.50", Fork: See manufacturer


• Battery: TQ 580Wh


• Charger: TQ 2A charger


• Computer: TQ LED display with Bluetooth and ANT+ connectivity

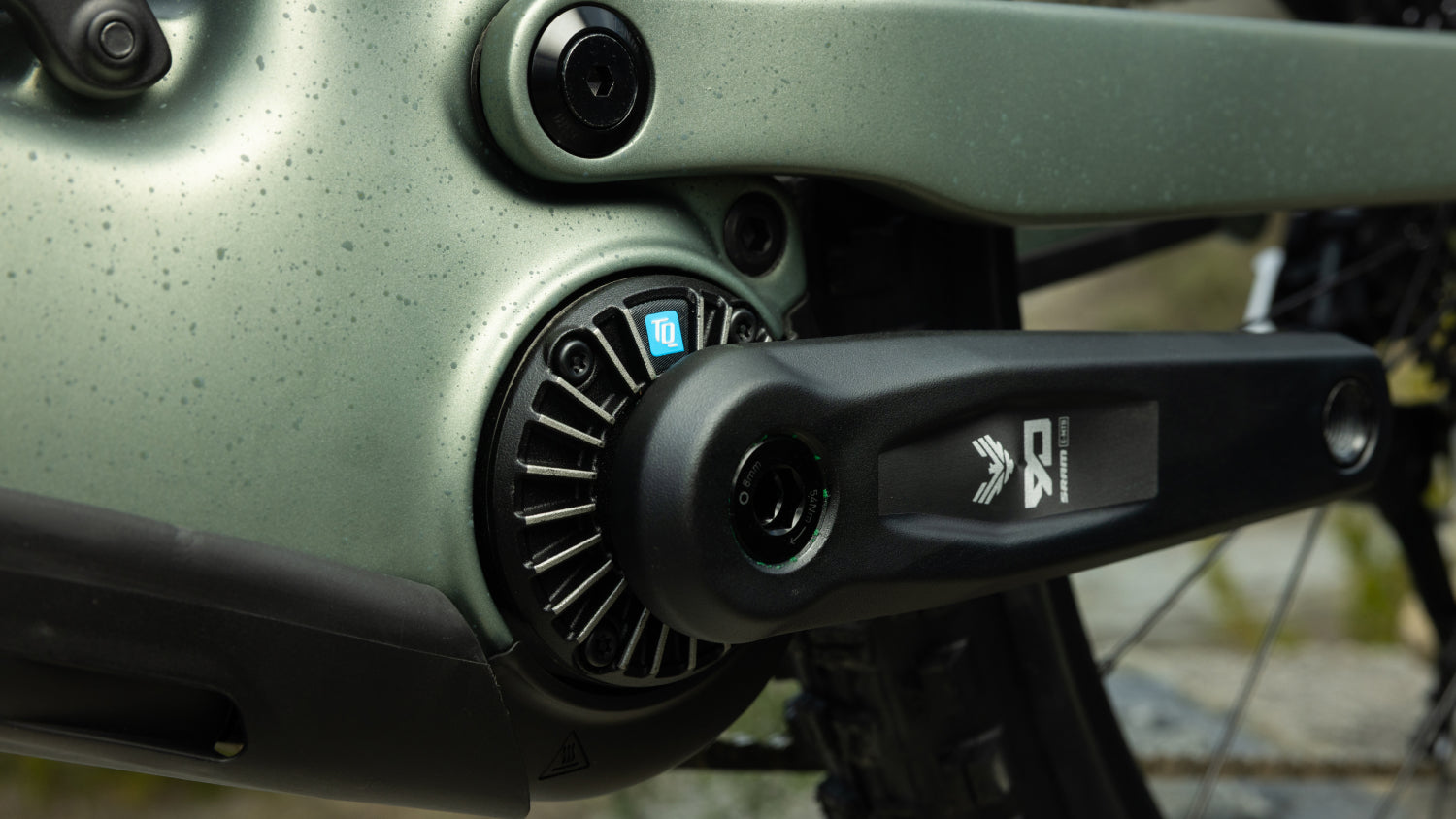

• Motor: TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power


• E-bike Classification: Class 1


• Shifter: Shimano Deore M6100, 12-speed


• Rear Derailleur: Shimano Deore M6100, long cage


• Crank Arm: E*thirteen E*spec Plus, 160 mm length


• Chainring: E*Thirteen Helix Core Steel 32T steel, 55 mm chainline


• Cassette: Shimano Deore M6100, 10-51, 12-speed


• Chain: Shimano Deore M6100, 12-speed


• Max. Chainring Size: 1x: 34T, min 30T


• Saddle: Bontrager Verse Short, stainless steel rails


• Seatpost: Size S - TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm; Size M, L, XL - TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm


• Handlebar: Bontrager Comp, alloy, 31.8 mm, 40 mm rise, 780 mm width


• Grips: Trek Line Comp, nylon lock-on


• Stem: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length


• Headset: FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown


• Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper


• Brake Rotor: Shimano RT64, CenterLock, 203 mm


• Rotor Size: Max brake rotor sizes - Frame: 203 mm, min 180 mm, Fork: see fork manufacturer


• Weight: M - 21.92 kg / 48.33 lbs (with TLR sealant, no tubes)


• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
