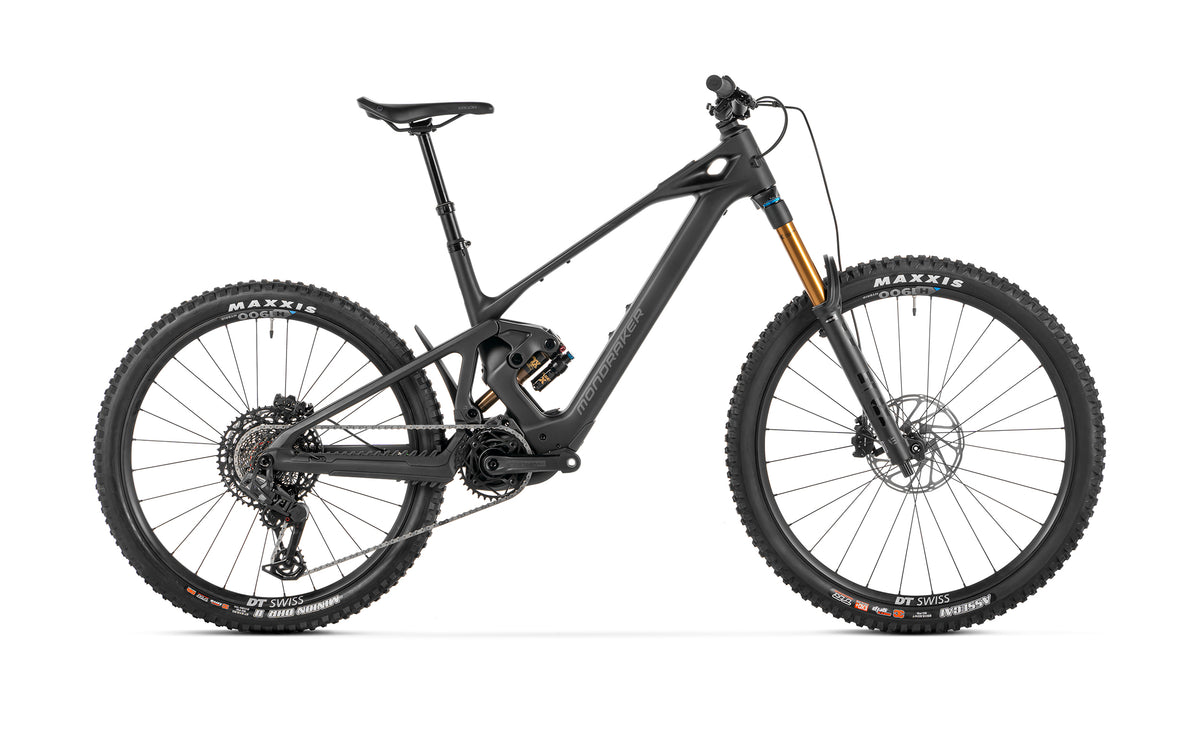

ZENDIT RR Vortex Grey

Take on enduro riding with the Mondraker ZENDIT RR. This carbon-framed bike pairs a dual-suspension setup with Avinox M2S motor assistance. A Fox 38 29 Float GRIP X2 Factory Kashima fork is part of the build, alongside Sram S1000 Eagle AXS shifting.

Specifications

• Category: ENDURO
• Colour: Black
• Wheel Diameter: Mullet
• Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
• Available Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
• Rear Shock: Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• Shock Settings: CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
• Fork: Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
• Saddle: Ergon SM10 E-Mountain Black.
• Front Brake: Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• Rear Brake: Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
• Brake Lever: Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
• Rims: DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
• Spokes: DT Swiss Straightpull spokes, DT Hybrid I, black
• Front Hub: DT Swiss 370, Boost 15x110mm, IS 6 bolts
• Rear Hub: DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
• Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear Tyre: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
• Crankset: e*thirteen Helix Core e*spec alloy. All sizes: 155mm Offset 26.5 mm
• Rings: Sram Eagle 36T T-Type, 104BCD, steel, CL55
• Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
• Rear Derailleur: Sram S1000 Eagle AXS, T-Type, 12s
• Shift Levers: Sram Eagle AXS Pod Controller w/discrete clamp, 12s
• Cassette: Sram XS 1270, 10-52T, T-Type, 12s
• Motor: Avinox M2S
• Battery: Avinox 800Wh Battery / Avinox 4A Charger
• Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
• Other Specifications: Sram AXS Extension Cord
• Bike Weight: 23,95 kg
