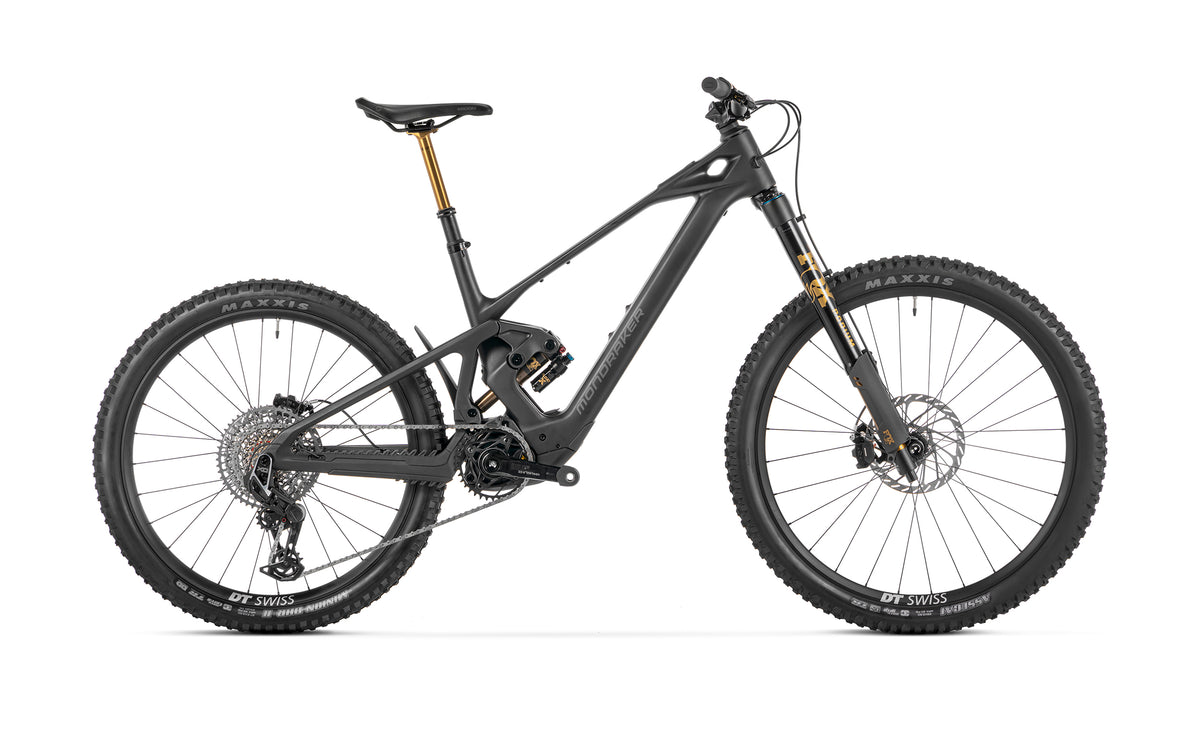

ZENDIT RR S Vortex Grey

Take on enduro riding with the Mondraker ZENDIT RR S. This carbon-framed bike pairs a dual-suspension setup with Avinox M2S motor assistance. A Fox Podium 29 Float GRIP X2 Factory Kashima fork is part of the build, alongside Sram X0 Eagle AXS T-Type shifting.

Specifications

• Category: ENDURO
• Colour: Black
• Wheel Diameter: Mullet
• Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
• Available Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
• Rear Shock: Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
• Shock Settings: CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
• Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
• Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.
• Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
• Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
• Saddle: Ergon SM10 E-Mountain Black.
• Front Brake: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear Brake: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake Lever: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
• Rims: DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes
• Spokes: DT Swiss Straightpull spokes, DT Hybrid III, black
• Front Hub: DT Swiss 350, Boost 20x110mm, IS 6 bolts
• Rear Hub: DT Swiss 350, 12x148mm Boost, Disc IS (6-bolt), Sram XD Steel freehub body, 72T Ratchet DEG System.
• Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
• Rear Tyre: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
• Crankset: e*thirteen Helix Race e*spec alloy. All sizes: 155mm
• Rings: Sram Eagle 36T T-Type, 104BCD, steel, CL55
• Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
• Rear Derailleur: Sram X0 Eagle AXS T-Type, 12s
• Shift Levers: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
• Cassette: Sram XS 1275, 10-52T, T-Type, 12s
• Motor: Avinox M2S
• Battery: Avinox 800Wh Battery / Avinox 4A Charger
• Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
• Other Specifications: Sram AXS Extension Cord
• Bike Weight: 22,8 kg
