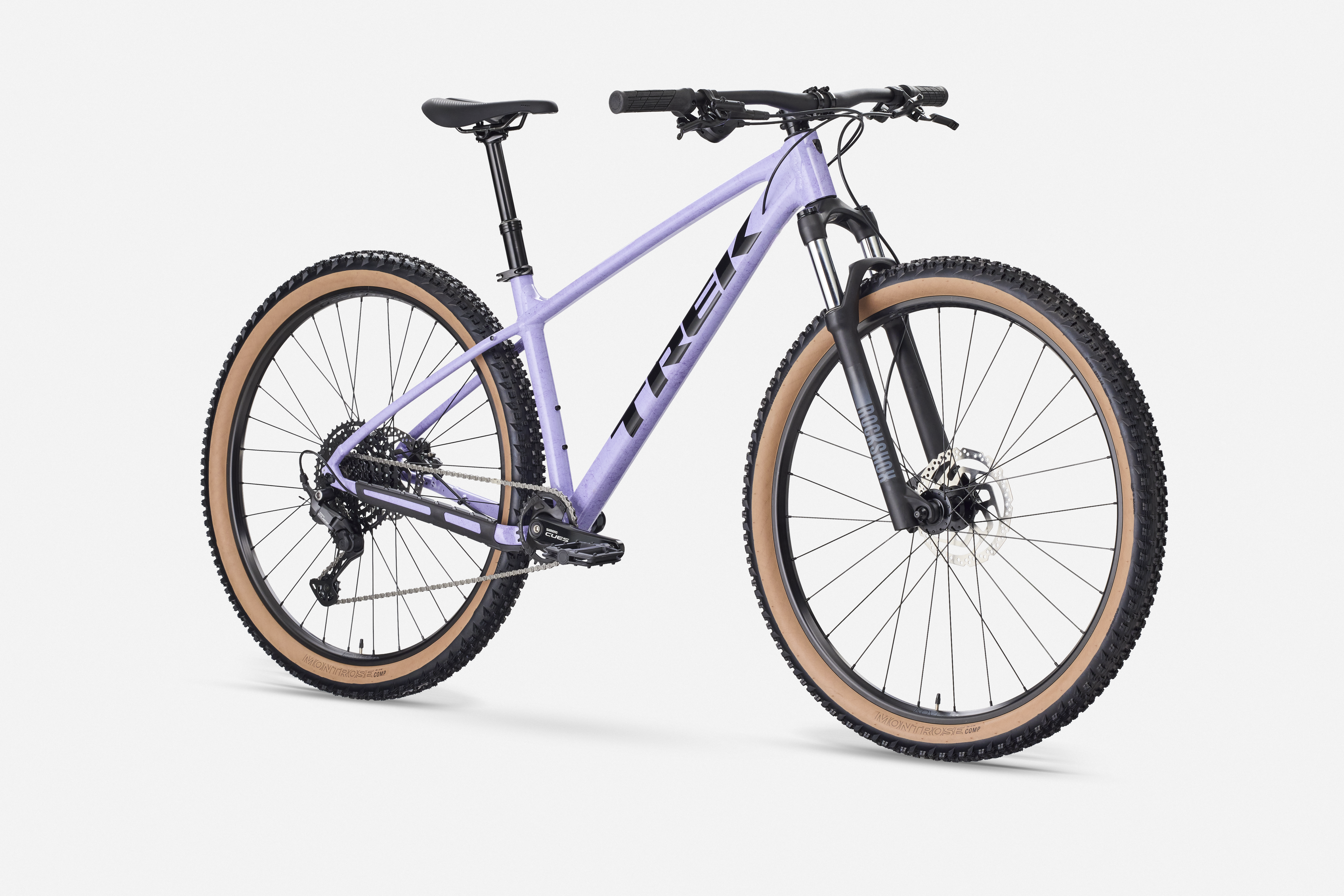

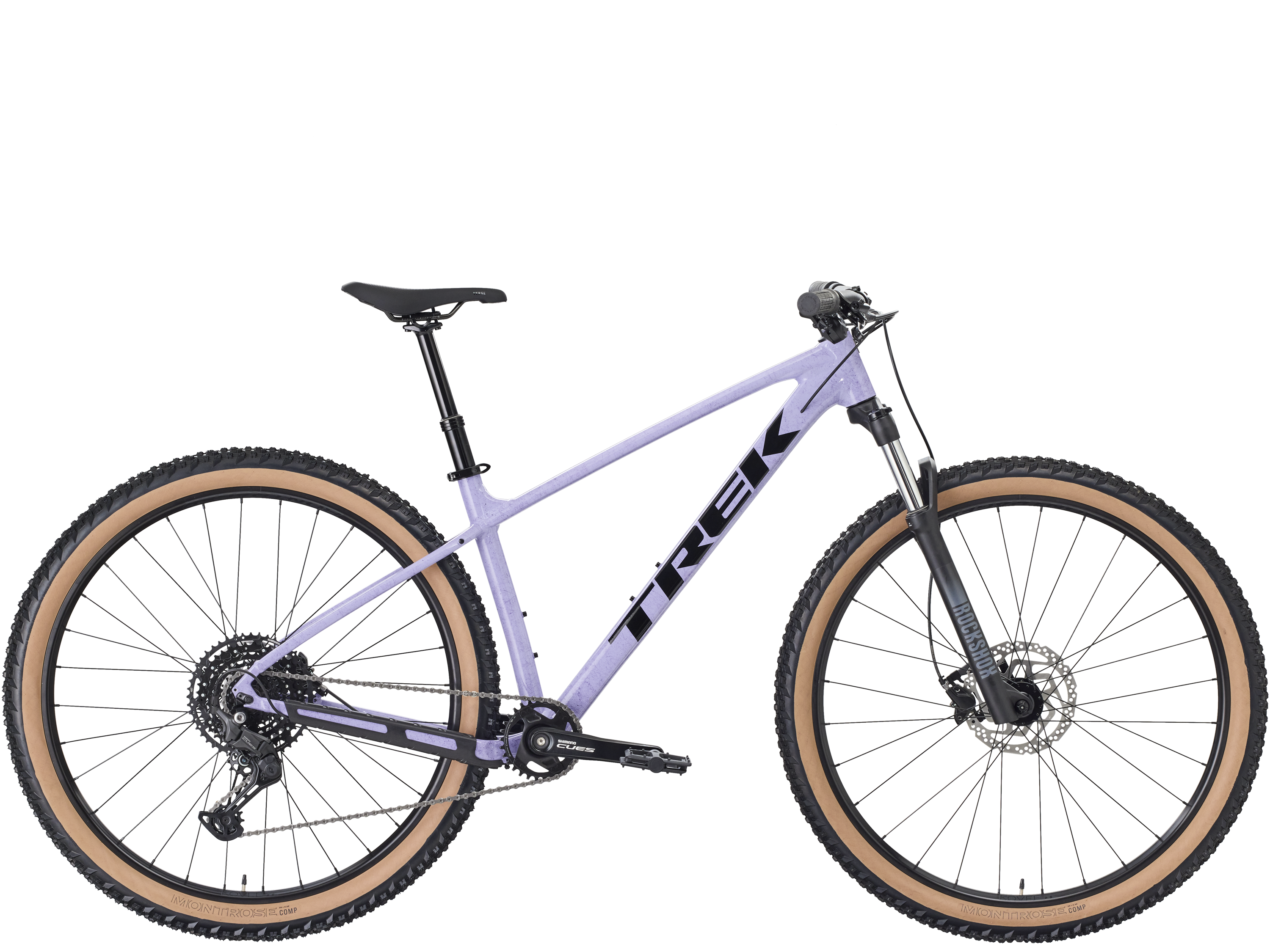

TREK Marlin 6 Gen 3 Gloss Lavender Haze 29

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Key Features

• RockShox Judy suspension fork helps smooth out bumps and rough trail surfaces.
• Integrated rack and kickstand mounts add everyday versatility.
• Shimano CUES 10-speed drivetrain delivers reliable shifting for progressing trail riders.

Specifications

• Frame: Size XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew; Size S, M, ML, L, XL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
• Fork: Size XS, S - RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel; Size M, ML, L, XL - RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
• Hub Front: Formula DC-20, alloy, 6-bolt, 100 mm
• Skewer Front: 116x5 mm QR
• Hub Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
• Skewer Rear: 173x5 mm QR
• Rim: Size XS, S, M, ML, L, XL - Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve; Size M, ML, L, XL - Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23 mm width, Presta valve
• Tyre: Size XS, S - Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"; Size M, ML, L, XL - Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
• Rim Strip: Bontrager TLR
• Shifter: Shimano U6000, 10-speed
• Rear Derailleur: Shimano CUES U6000 GS
• Crank: Size XS, S, M, ML - Shimano U4000, 30T chainring, 170 mm length; Size L, XL - Shimano U4000, 30T chainring, 175 mm length
• Bottom Bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
• Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
• Chain: Shimano LG500
• Pedal: VP-536 nylon platform
• Saddle: Bontrager Verse Short, stainless steel rails
• Seatpost: Size XS, S - TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length; Size M - TranzX JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length; Size ML, L, XL - TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length
• Handlebar: Size XS - Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width; Size S - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width; Size M, ML, L, XL - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Trek Line Comp, nylon lock-on
• Stem: Size XS, S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm length; Size M, ML, L - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length; Size XL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
• Headset: Semi-integrated, 1-1/8"
• Brake: Shimano MT200 hydraulic disc
• Brake Rotor: Size XS, S, M, ML, L, XL - Shimano RT26, 6-bolt, 160 mm; Size M, ML, L, XL - Shimano RT26, 6-bolt, 180 mm
• Brake Set: Shimano MT200 hydraulic disc
• Weight: M - 15.00 kg / 33.07 lbs
• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
