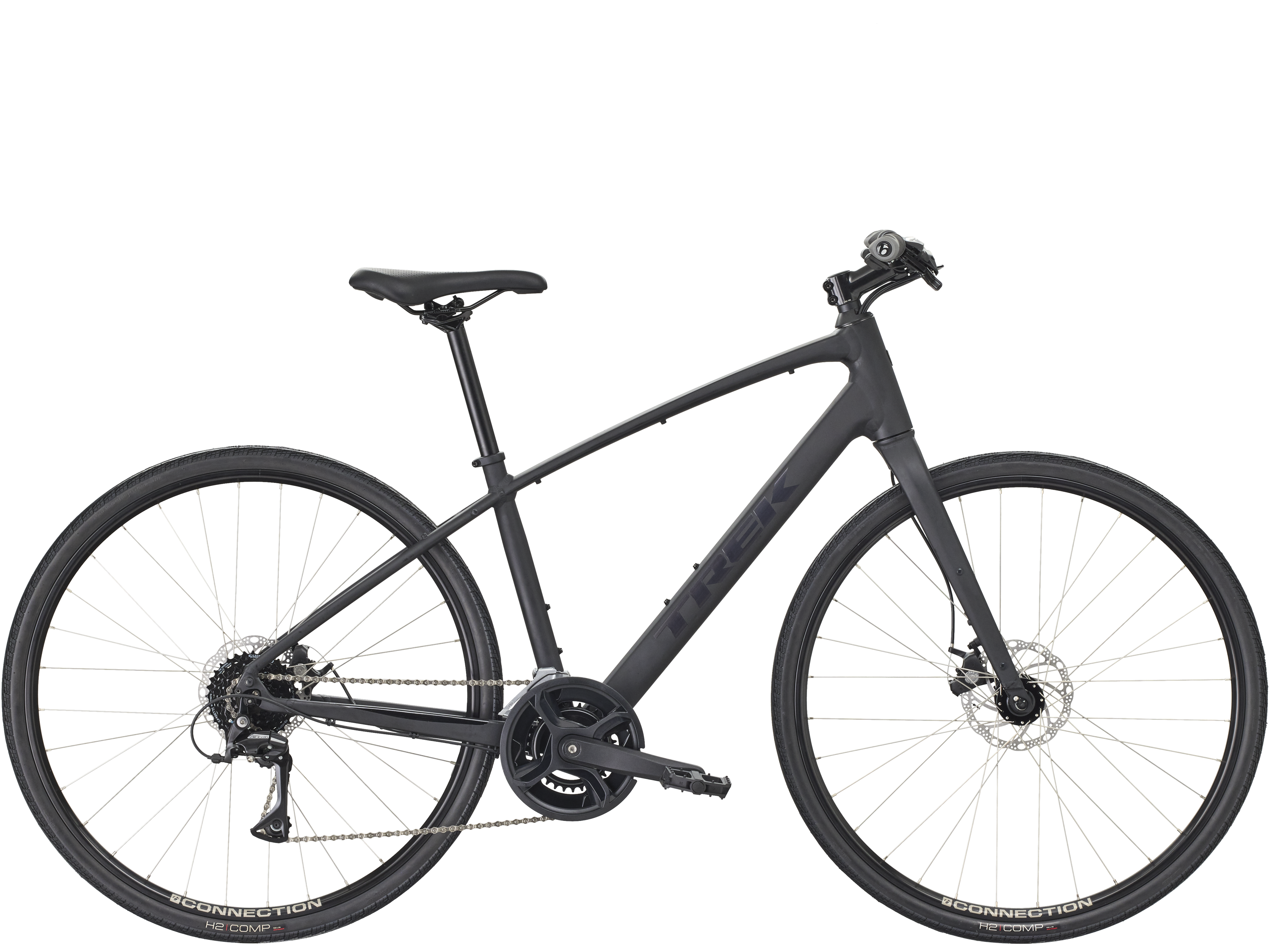

TREK FX 1 Stepover Gen 4 Dark Star

The FX 1 is a versatile and sleek hybrid bike for riding all around town. It's perfect to ride for exercise, commuting or fun. You get price-conscious parts that still deliver a big range of speeds, disc brakes that let you stop on a penny and loads of mounts for accessories.

Key Features

• FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR helps deliver confident handling
• Size XS 8-speed drivetrain delivers reliable shifting across varied terrain

Specifications

• Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
• Fork: FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
• Shifter: Size XS, S, M, L, XL - Shimano EF500, 8-speed; Size XS, S, M, L, XL - Shimano EF500, 2-speed
• Rear derailleur: Shimano Acera M3020-8, 40T max cog
• Crank: Forged alloy, 46/30, 170 mm length
• Bottom bracket: Sealed cartridge, 68 mm
• Cassette: Shimano 8-speed, 12-32T
• Chain: KMC Z8.3
• Pedal: Wellgo nylon platform
• Saddle: Bontrager Sport
• Seatpost: Size XS, S, M - Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length; Size L, XL - Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
• Handlebar: Size XS, S, M, L - Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width; Size XL - Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width
• Grips: Trek Ergonomic Comp, lock-on
• Stem: Size XS, S, M - Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length; Size L, XL - Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length
• Brake: Tektro MD-U310 mechanical disc
• Brake rotor: Tektro wave, 6-bolt, 160 mm
• Hub front: Formula DC-20, alloy, 6-bolt, 100x5 mm
• Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
• Tyre: Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
• Weight: M - 13.00 kg / 28.67 lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
• Skewer front: 139x5 mm bolt-on
• Skewer rear: 152x5 mm QR
• Front derailleur: Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull
