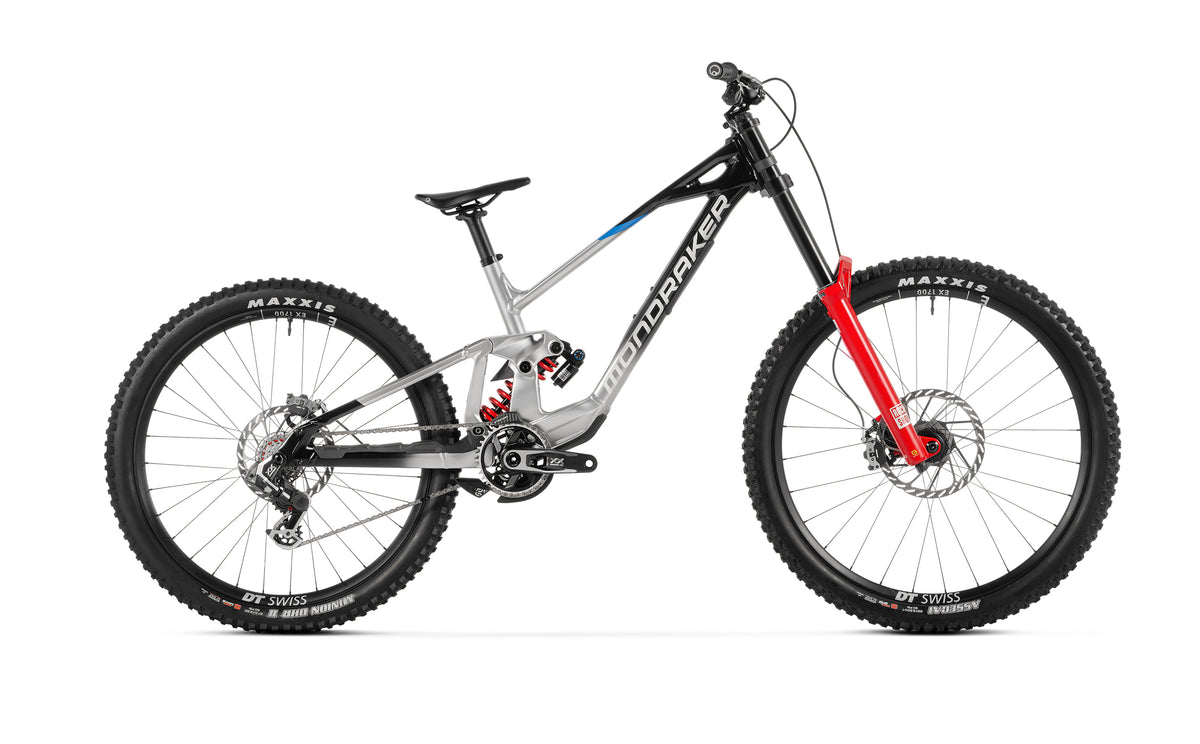

SUMMUM RR Mullet Team Edition

Take on downhill riding with the Mondraker SUMMUM RR. This alloy-framed bike pairs a dual-suspension setup with a mixed-wheel configuration. A RockShox Boxxer Ultimate 29 fork is part of the build, alongside Sram XX DH AXS shifting.

Specifications

• Category: DOWNHILL
• Colour: Alloy/Blue/Black
• Wheel Diameter: Mullet
• Frame: Summum MX 6061 Stealth Alloy Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05.
• Available Sizes: M / L / XL
• Rear Shock: RockShox Vivid Coil Ultimate, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings
• Shock Settings: R55, C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
• Fork: RockShox Boxxer Ultimate 29,Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: High/low-speed compression, rebound, air preload
• Headset: Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º sealed bearings, reach kit cups( +-5 mm)
• Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer
• Handlebar: Onoff S6 1.5 7050 alloy, rise: 35 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
• Saddle: Ergon SM10 DH Black
• Front Brake: Sram Maven Ultimate,18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Rear Brake: Sram Maven Ultimate,18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
• Brake Lever: Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
• Rims: DT Swiss EX 1700 Classic, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear
• Spokes: DT Swiss Competition
• Front Hub: DT Swiss 350, Boost 20x110mm, IS 6 bolts
• Rear Hub: DT Swiss 350 Classic with 72T Ratchet DEG System, 12x157mm, IS 6 bolts, XD freehub
• Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
• Rear Tyre: Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
• Crankset: Sram XX DH T-Type, DUB axle, Direct mount chain ring, 165mm CL 56´5
• Rings: 36T, Aluminium T-Type
• Bottom Bracket: Sram DUB BSA, sealed bearings, 83mm
• Chain: Sram X0 Eagle T-Type, 12s Flattop, Powerlock
• Front Derailleur: E.13 LG1+ Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 36-38T, ISCG 05 adjustable upper slider
• Rear Derailleur: Sram XX DH AXS, T-type, 7s
• Shift Levers: Sram Eagle AXS Pod
• Cassette: Sram XS 797 10-24T, 7s
• Other Specifications: *Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout
• Bike Weight: 17,7 kg
