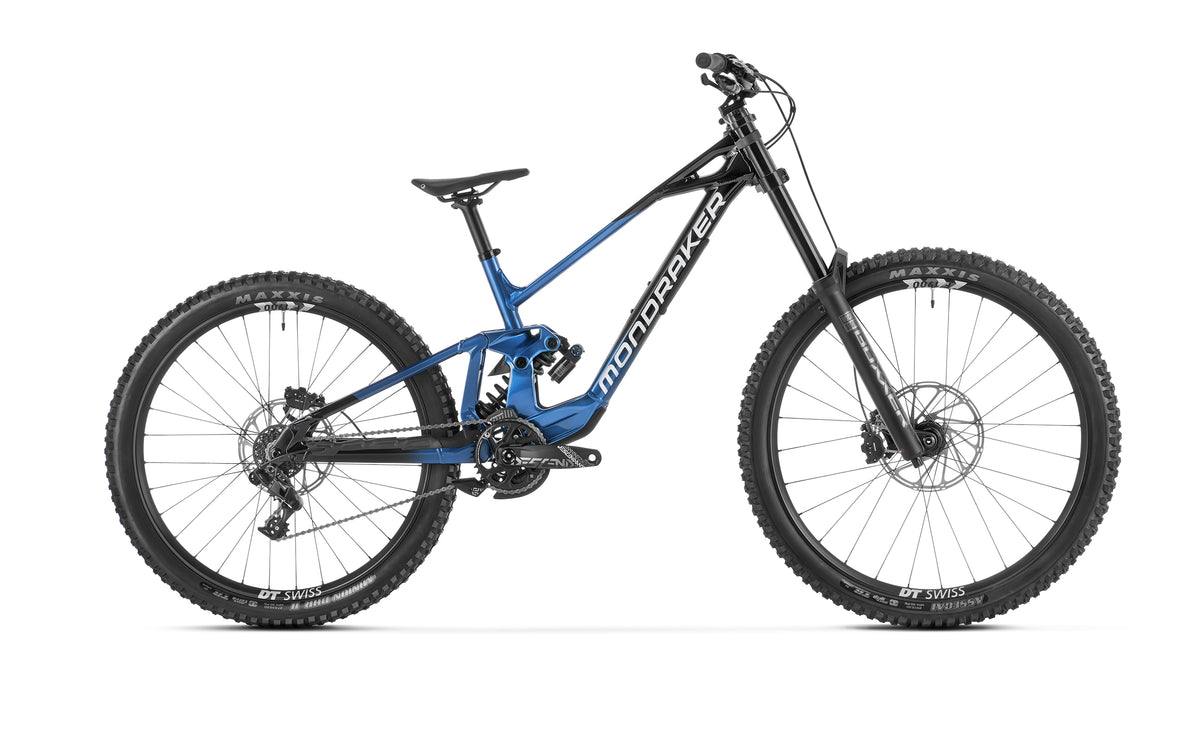

SUMMUM R Mullet Quasar Blue

Take on downhill riding with the Mondraker SUMMUM R. This alloy-framed bike pairs a dual-suspension setup with a mixed-wheel configuration. A Rockshox Boxxer Select RC 29 fork is part of the build, alongside Sram GX DH shifting.

Specifications

• Category: DOWNHILL
• Colour: Blue/Black
• Wheel Diameter: Mullet
• Frame: Summum MX 6061 Stealth Alloy Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05.
• Available Sizes: M / L / XL
• Rear Shock: RockShox Vivid Coil Select+, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings
• Shock Settings: R55, C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
• Fork: Rockshox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload
• Headset: Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º sealed bearings, reach kit cups( +-5 mm)
• Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer
• Handlebar: Onoff S6 1.5 7050 alloy, rise: 35 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
• Saddle: Ergon SM10 DH Black
• Front Brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Rear Brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Brake Lever: Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
• Rims: DT Swiss F 1900 Classic, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear
• Spokes: DT J-bend spokes, DT competition®, black
• Front Hub: DT Swiss 370, Boost 20x110mm, IS 6 bolts
• Rear Hub: DT Swiss 370 Classic with 18T Ratchet LN System, 12x157mm, IS 6 bolts, HG freehub
• Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
• Rear Tyre: Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
• Crankset: Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
• Rings: 36T, aluminum, X-SYNC
• Bottom Bracket: Sram DUB BSA, sealed bearings, 83mm
• Chain: Sram PC1110 11s, Powerlock
• Front Derailleur: E.13 LG1+ Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 36-38T, ISCG 05 adjustable upper slider
• Rear Derailleur: Sram GX DH, 7s, medium cage
• Shift Levers: Sram trigger GX DH 7s, X-actuation 1:1
• Cassette: Sram PG 720 11-25T, 7s
• Derailleur Hanger: Sram UDH
• Other Specifications: *Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout
• Bike Weight: 19,1 kg
