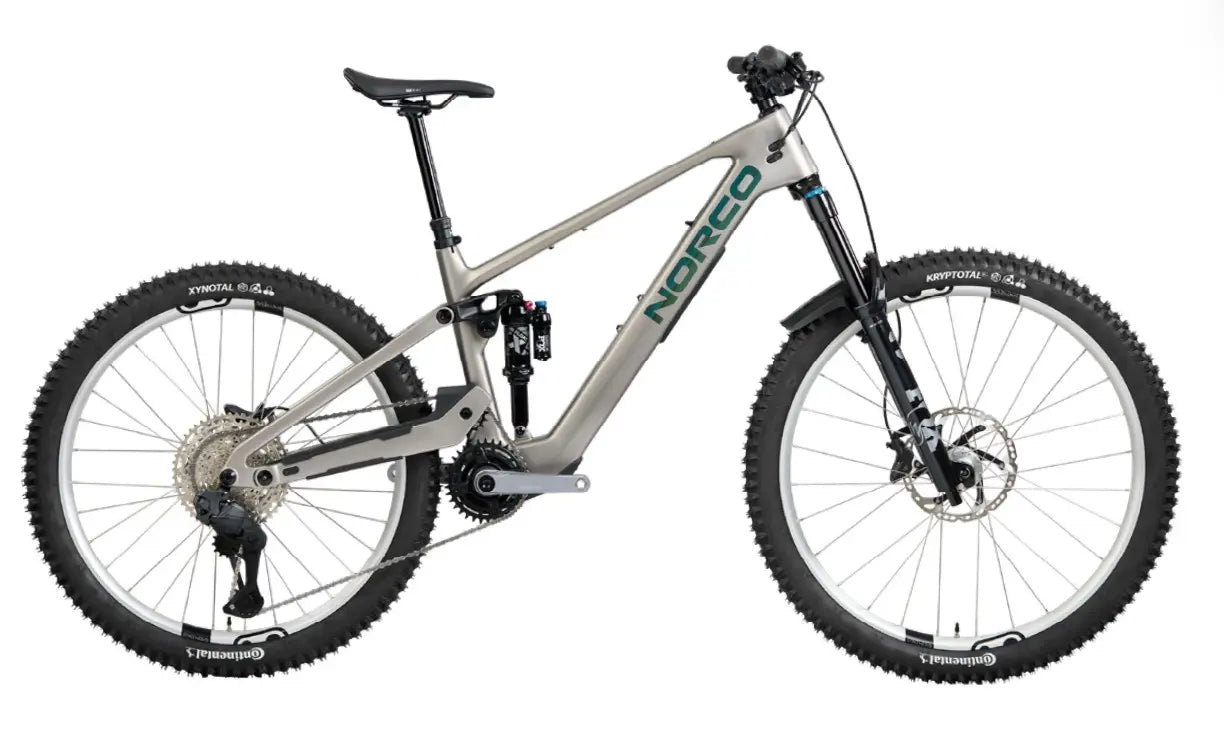

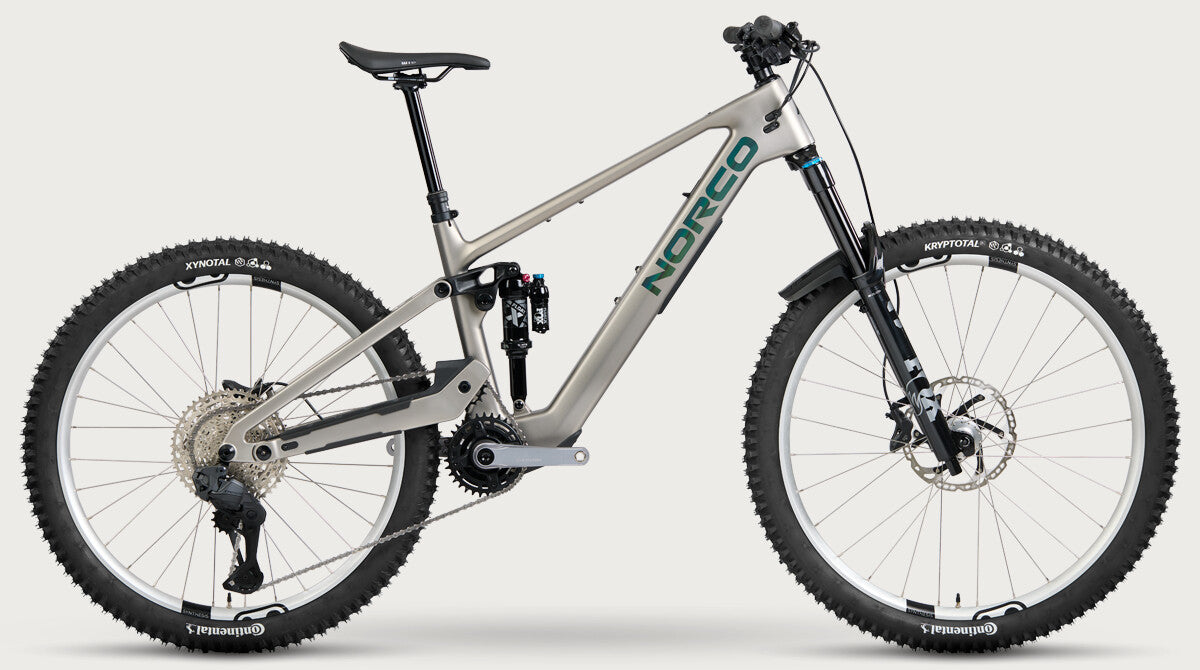

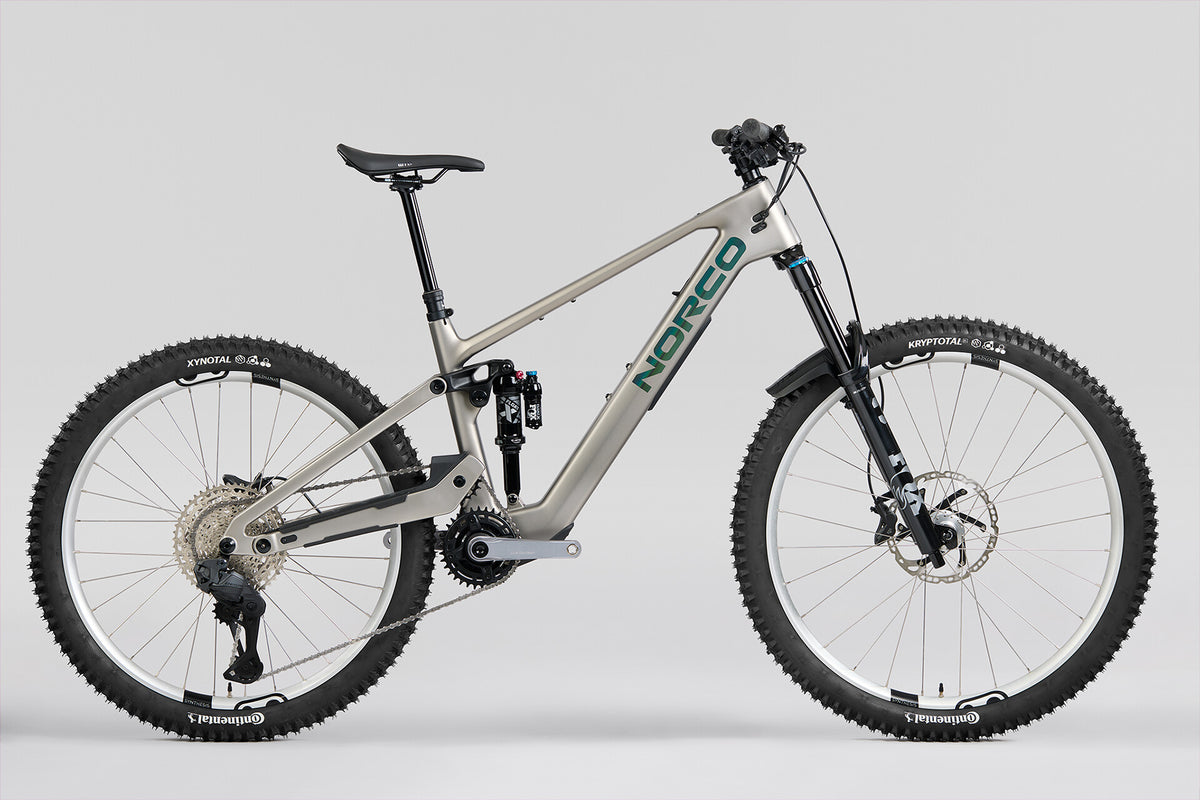

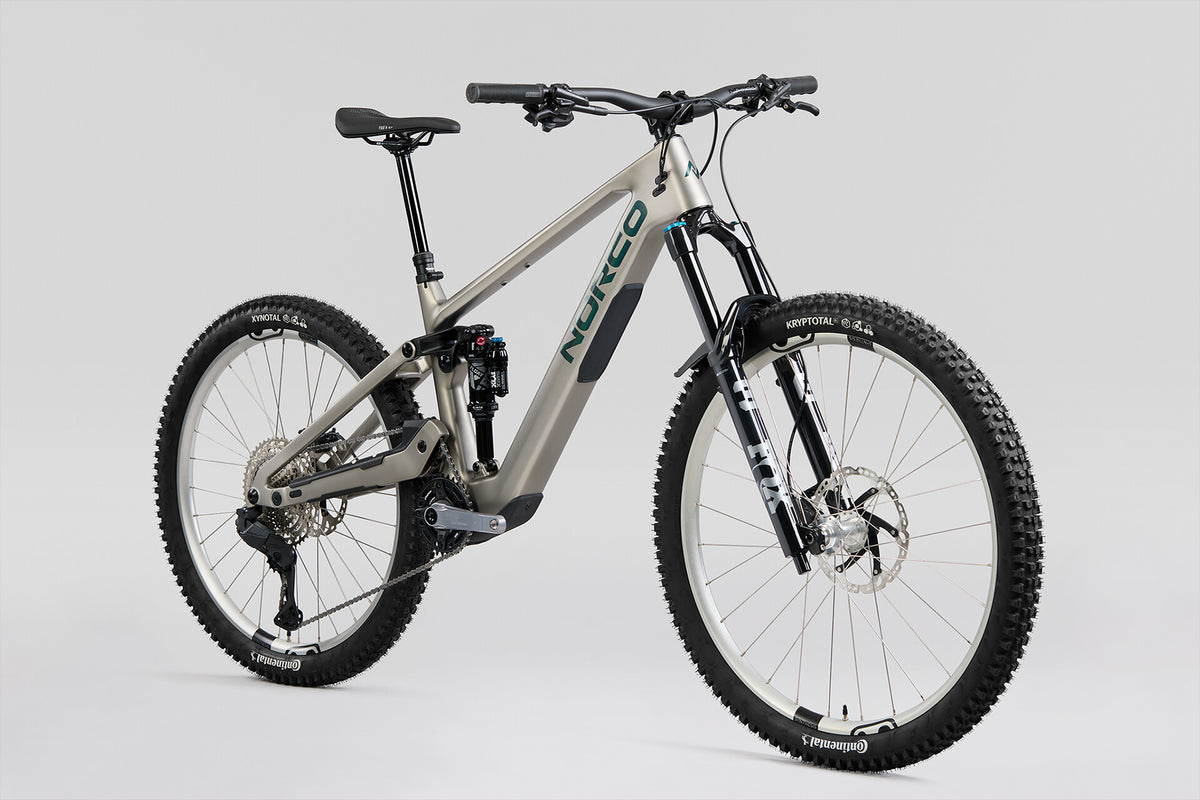

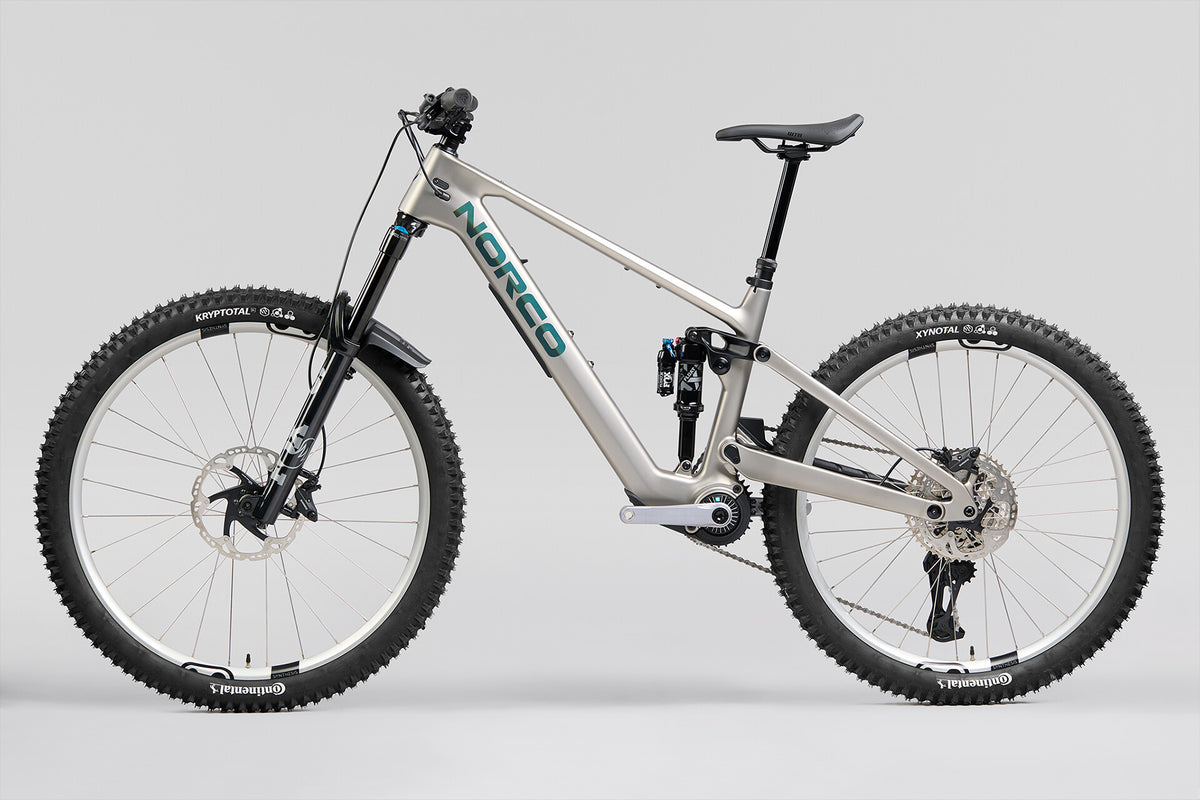

Be the pilot, not the passenger. The Sight VLT TQ has all the rough-terrain confidence of the Sight in Norco's lightest mid-power all-mountain eMTB. It's nimble and natural feeling, looks and rides like a pedal bike, and gives you just enough extra support to go further and charge harder.
At just 1.92kg, the TQ HPR60 drive system is the lightest, quietest and smallest in its class, with 60Nm of torque and a 580Wh battery integrated so neatly you can hardly tell it's there. The C2 build runs a FOX 36 Performance Elite fork and Float X shock, Shimano Deore Di2 12-speed and Shimano 4-piston brakes, and weighs around 20.6kg. Come and see it at Jetty Road Cycles in Rosebud - the team will help you nail the sizing and setup before you roll out the door.
Key Features
- 160mm fork / 150mm rear travel with VPS HP high pivot suspension
- TQ HPR60 motor - 60Nm torque, ultra-light and near silent
- TQ 580Wh integrated battery
- FOX 36 Performance Elite GRIP X2 fork and FOX Float X shock
- Shimano Deore Di2 12-speed
- Shimano 4-piston brakes with metallic pads
- Carbon frame, UDH and SRAM Eagle Transmission compatible
- Weight: approx. 20.6kg
- Marked by the manufacturer as EN 15194 compliant
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-

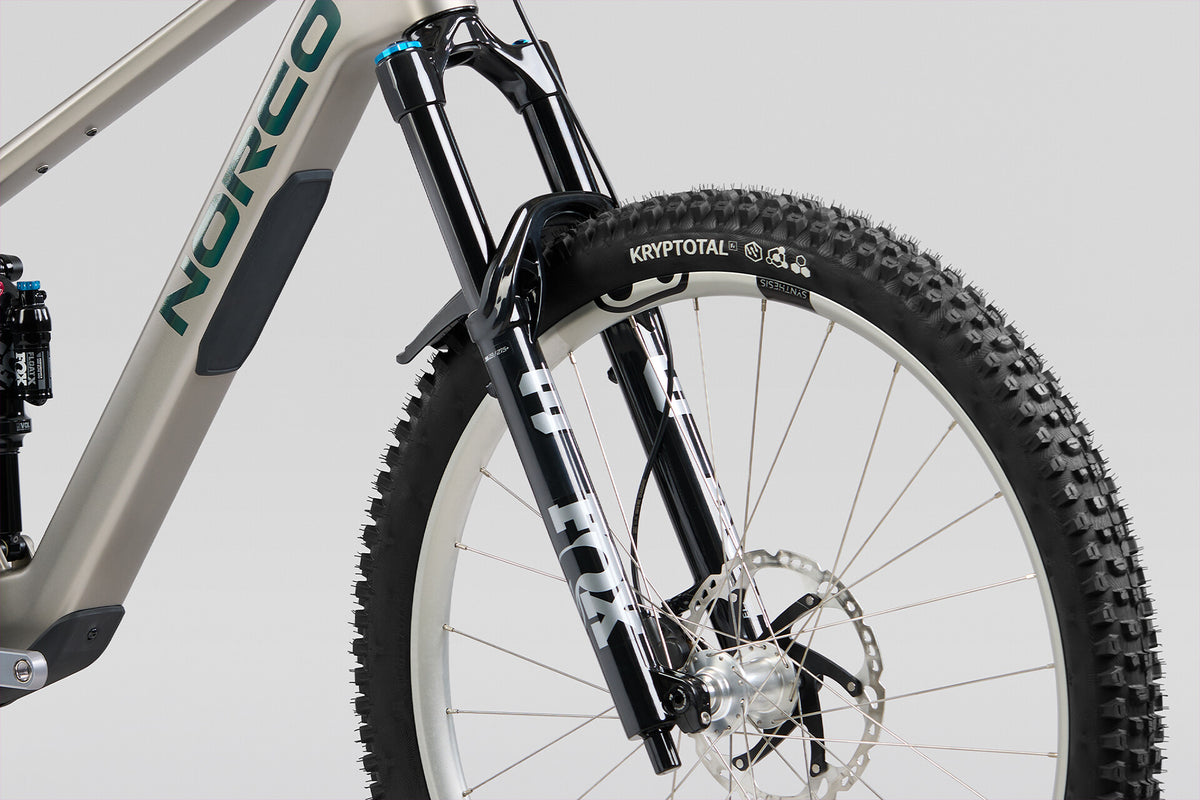

Fork: Fox 36 Performance Elite GripX2, HSC/LSC/HSR/LSR, 160mm, 44mm Offset, Fender Included
-
Rear Shock: Fox Float X Performance, 230x60mm Std, 2 position
-
Rear Shifter: Shimano Deore Di2 SW-M6250-IR, 12sp
-

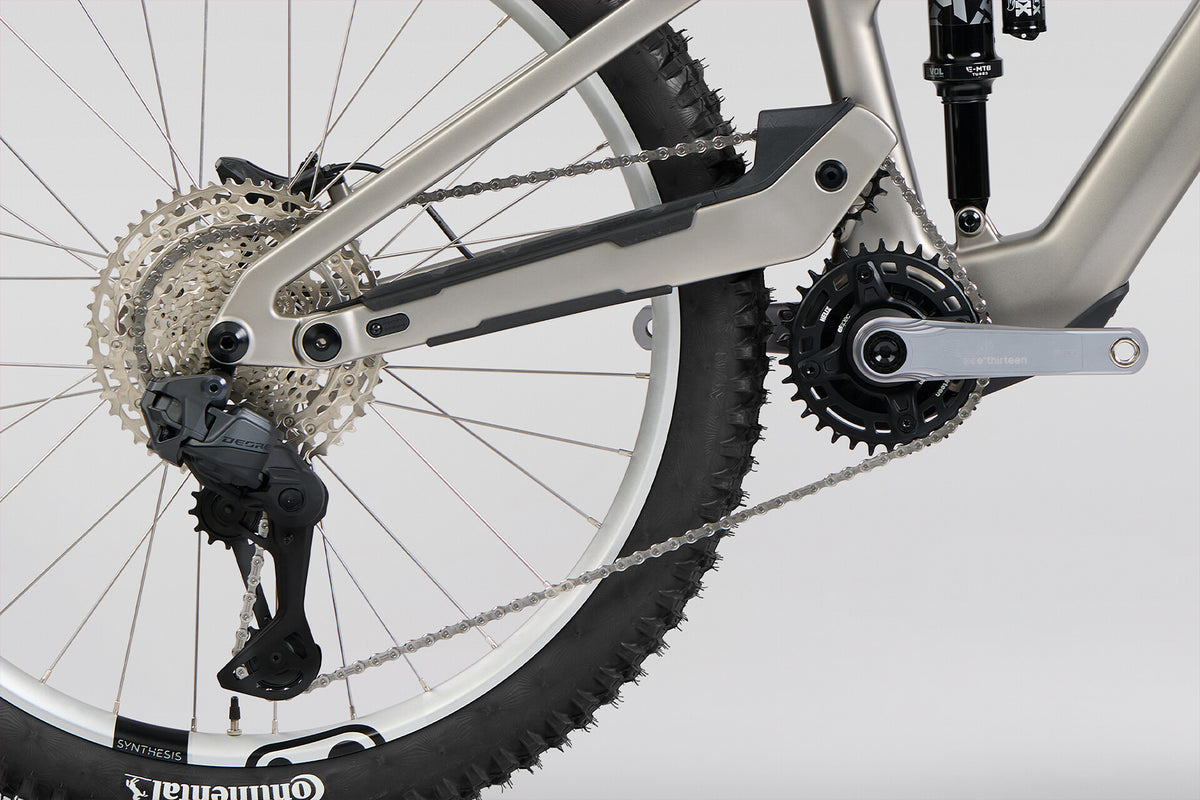

Rear Derailleur: Shimano Deore Di2 RD-M6250, SGS, 12sp
-
Crankset: e*thirteen Helix Race Alloy TQ, 34T, 155mm (S1,S2) - 160mm (S3,S4,S5)
-
Cassette: Shimano Deore CS-M6100-12, 10-51T, 12sp
-
Chain: Shimano Deore CN-M6100, 12sp
-

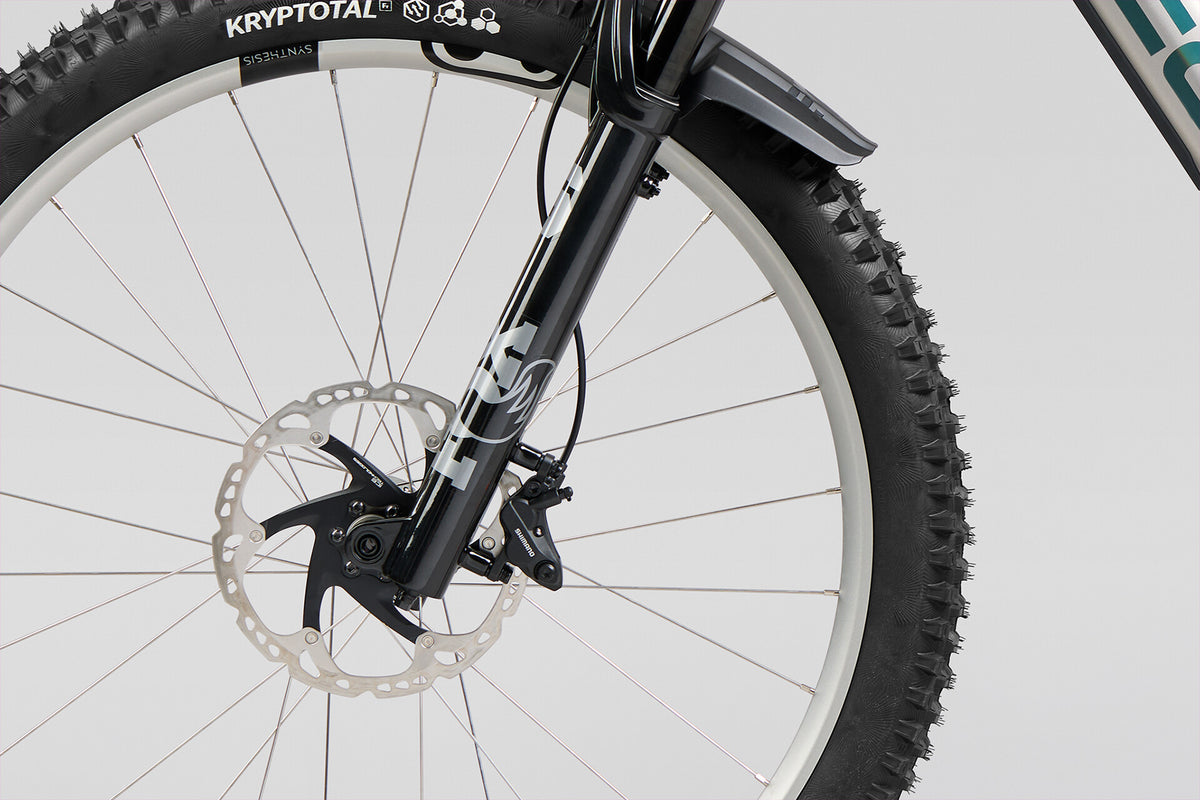

Front Brake: Shimano Deore M6120 4-P, Metallic pads
-
Front Brake Rotor: Shimano SM-RT86, 203mm, 6-Bolt
-
Rear Brake: Shimano Deore M6120 4-P, Metallic pads
-
Rear Brake Rotor: Shimano SM-RT86, 180mm, 6-Bolt
-
Brake Levers: Shimano Deore M6100
-

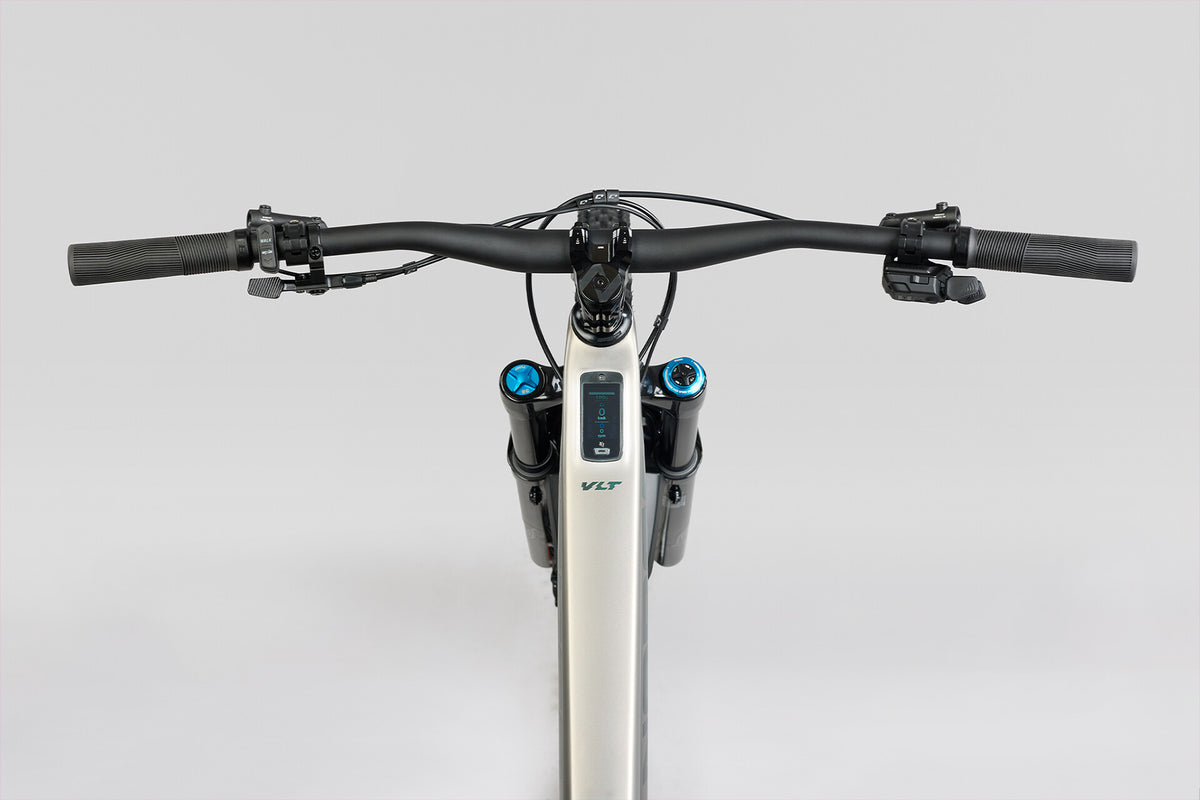

Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise
-
Stem: Norco Alloy, 40mm Length, 35mm Clamp
-
Seatpost: TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
-
Headset: FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
-
Saddle: WTB Rocket Fusion Med, 142x250 mm
-
Grips: WTB Wavelength, 140mm Length
-
Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID
-
Front Hub: Crank Bros. Synthesis, 15x110mm Boost, 32h, 6-Bolt
-
Rear Hub: Crank Bros. Synthesis, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
-
Rims: Crank Bros. Synthesis Alloy Enduro, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5" F/R
-
Front Tyre: Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
-
Rear Tyre: Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
-
Spokes/Nipples: Sapim D-Light (front), Sapim Race (rear)
-

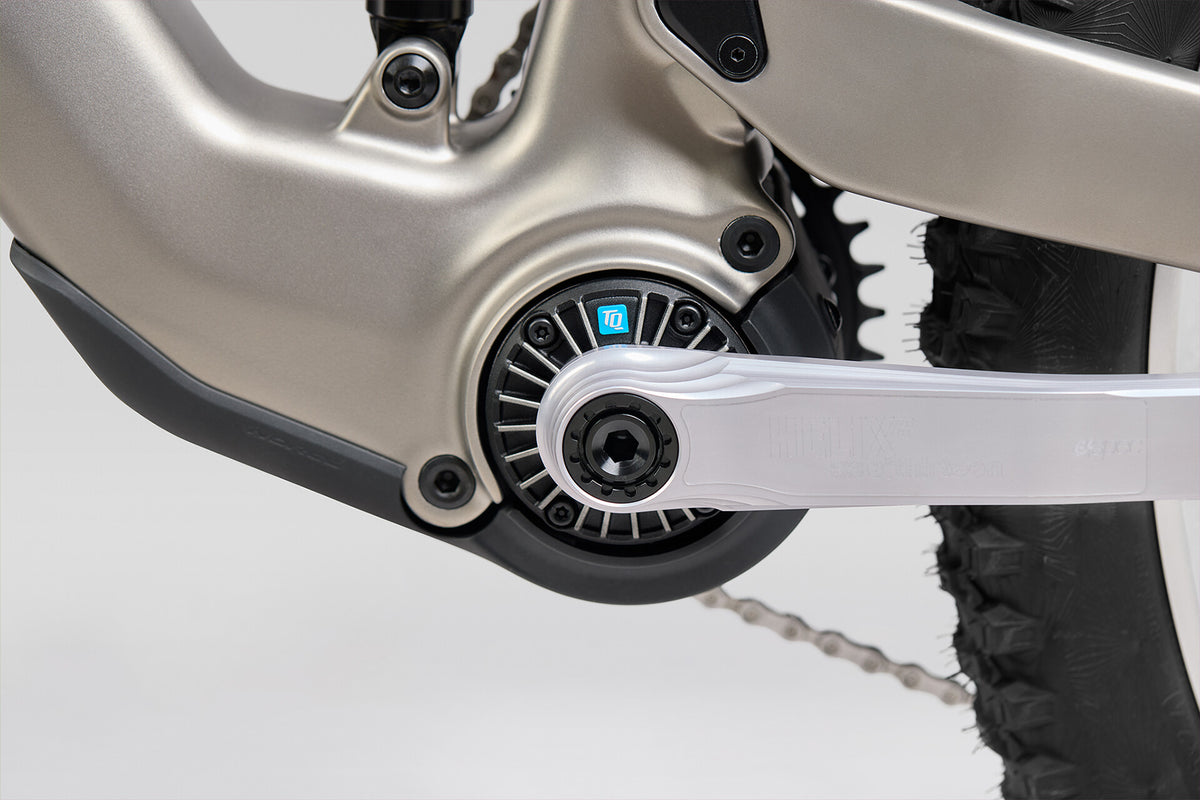

Drive Unit: TQ HPR60, 60 Nm
-
Battery: TQ 580Wh
-
Switch: TQ Remote, V02, 22.2mm
-
Weight: 20.6 kg (45.4 lbs)
-
Weight (Size): S3
-
Sensor: TQ Speed Sensor Rotor Magnet
