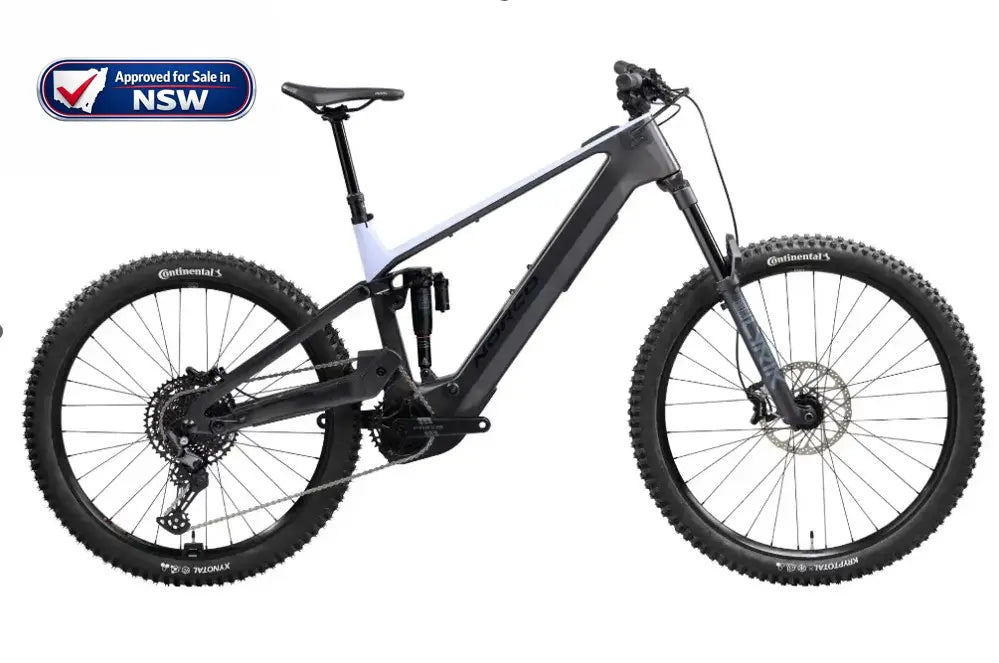

SIGHT VLT CX C3 150

Start fast and finish strong on the new Sight VLT CX. Now equipped with the latest Bosch Performance Line CX motor, itÕs nearly 20% lighter than the previous generation, allowing you to push harder and ride further than ever before. The high-pivot suspension layout with 160mm front and 150mm rear travel delivers smooth, controlled performance through rough terrain, giving the bike exceptional capability without sacrificing its playful ride feel.

Key Features

• Lightweight carbon frame with 150mm high-pivot rear suspension


• New Bosch Performance Line CX motor with Bosch Smart System


• RockShox Lyrik Select fork with 160mm travel


• Shimano Deore 12-speed drivetrain for reliable shifting


• Mixed wheel setup with Continental Enduro tyres for traction and control

Specifications

• Frame: Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª


• Fork: RockShox Lyrik Select, 160mm Travel


• Rear Shock: RockShox Super Deluxe Select, 205x60mm Trunnion


• Rear Shifter: Shimano Deore SL-M6100-R, 12 Speed


• Rear Derailleur: Shimano Deore RD-M6100, 12 Speed


• Crankset: Praxis HD Aluminum Bosch Cranks, 34T, 165mm


• Bottom Bracket: Bosch BDU38


• Cassette: Shimano Deore CS-M6100-12, 10-51T, 12 Speed


• Chain: Shimano Deore CN-M6100, 12 Speed


• Front Brake: TRP Slate EVO, Metallic Pads


• Front Rotor: TRP RS01E, 203mm, 2.3mm Thickness, 6-Bolt


• Rear Brake: TRP Slate EVO, Metallic Pads


• Rear Rotor: TRP RS01E, 180mm, 2.3mm Thickness, 6-Bolt


• Brake Levers: TRP Slate EVO


• Handlebar: Norco 6061 Double Butted Alloy, 800mm Width, 25mm Rise


• Stem: Norco Alloy, 40mm Length, 35mm Clamp


• Seatpost: TranzX YSP23 Dropper Ñ 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4,S5)


• Headset: FSA No.55 Sealed Bearing, Tapered 1-1/8" Ð 1.5" (ZS44/28.6 | ZS56/40)


• Saddle: Fizik Terra Aidon X5


• Grips: WTB Wavelength, 130mm Length


• Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID


• Front Hub: Bear Pawls BMB-013, 15x110 Boost, 32H, 6-Bolt


• Rear Hub: Bear Pawls BMB-007, 12x148 Boost, HG, 32H, 6-Bolt


• Rims: WTB STi30, 30mm Internal Width, 32H, Mixed Wheel (29" Front / 27.5" Rear)


• Front Tyre: Continental Kryptotal-F Enduro Soft, 29x2.4", Foldable


• Rear Tyre: Continental Xynotal Enduro Soft, 27.5x2.4", Foldable


• Spokes/Nipples: Sapim Sprint Double Butted


• Weight: 22.67kg (50lbs)


• Weight Size: S3

eBike System

• Drive Unit: Bosch Performance Line CX (BDU38)


• Battery: Bosch PowerTube 800Wh


• Remote: Bosch BRC 3300 Mini Remote, 22.2mm


• System Controller: Bosch BRC 3100 Top Tube Controller


• Sensor: Bosch Smart System Rim Magnet


• Range Extender: Bosch PowerMore 250Wh Compatible (Not Included)
