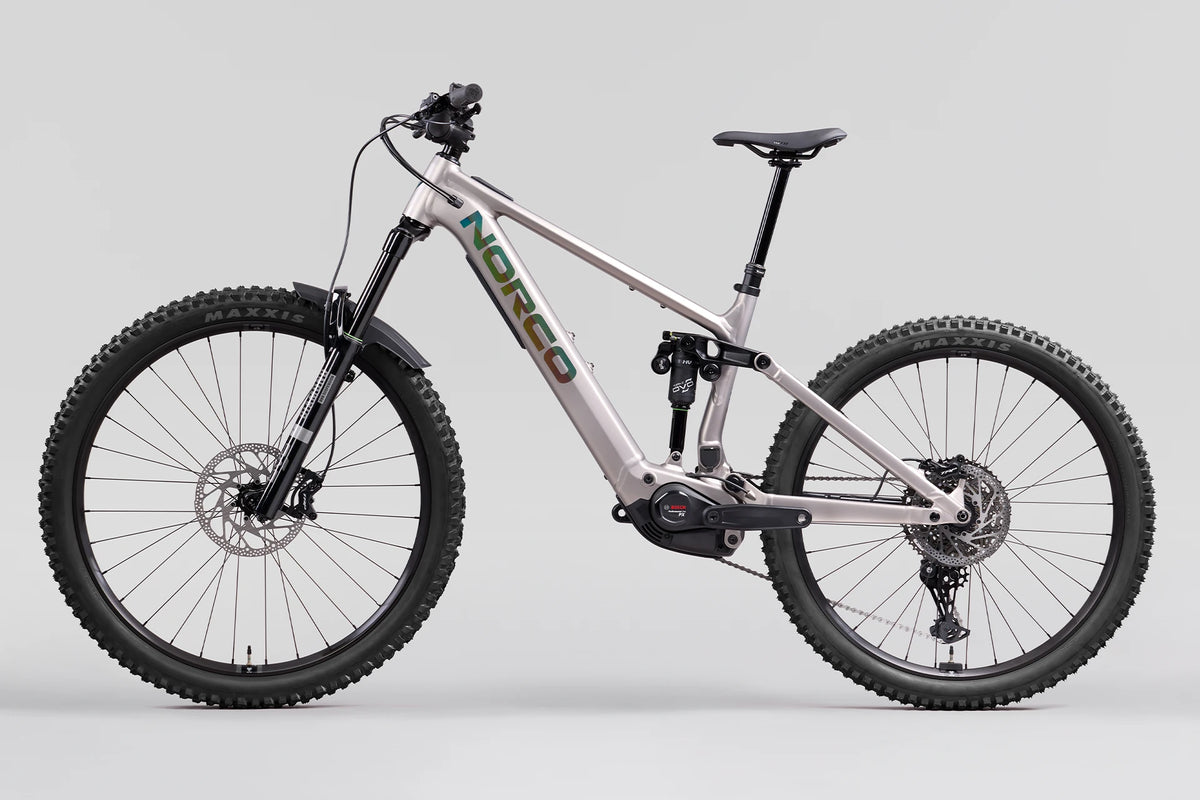

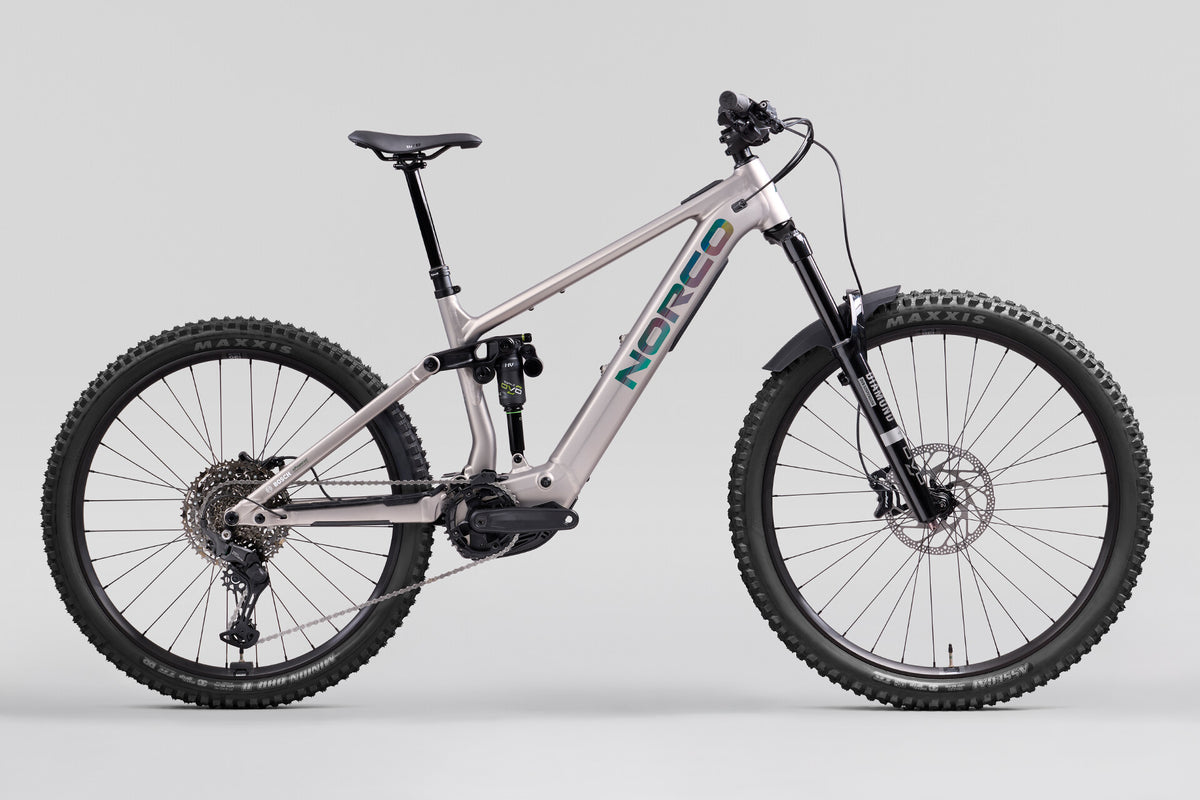

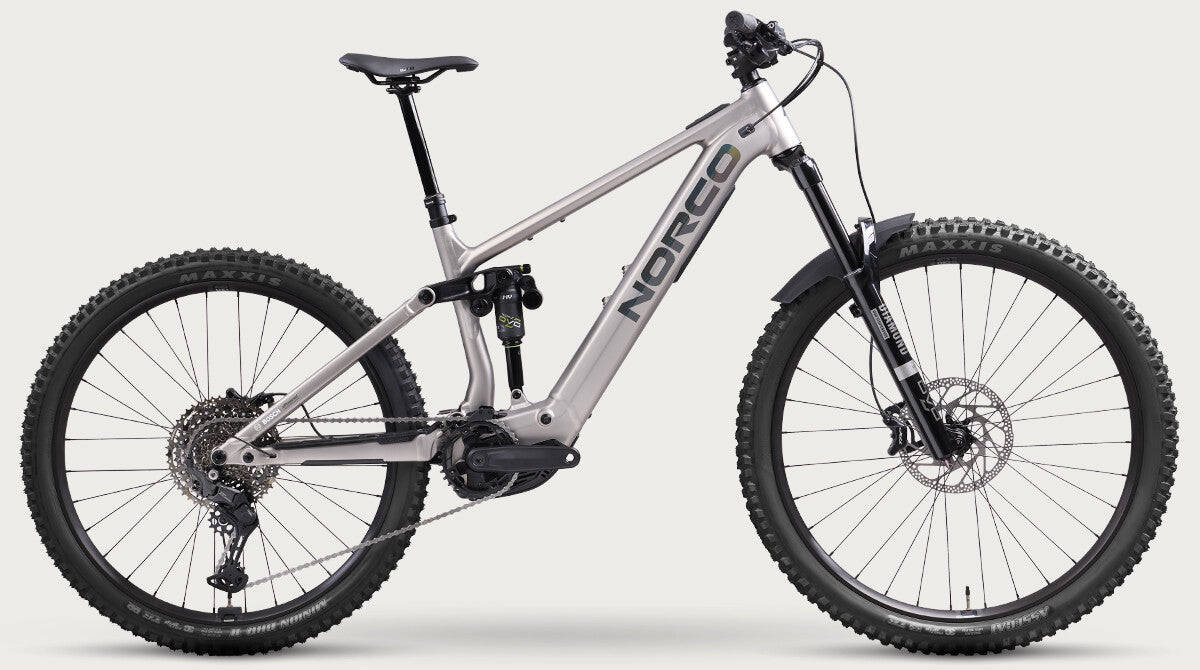

The Sight VLT Bosch delivers full-power eMTB performance where it counts - no fluff, just composure and confidence. Built for all-mountain riding with 160mm up front and 150mm out back on Norco's proven VPS platform, it's designed for easy maintenance and everyday reliability, with full support from Bosch.
The Sight VLT Bosch A3 makes full-power trail riding more accessible, with a DVO Diamond 36 fork and Topaz shock, Shimano CUES 11-speed, TRP Slate EVO 4-piston brakes and Maxxis Assegai tyres. Drop into Jetty Road Cycles in Rosebud to check one out in person, and our workshop will make sure it's dialled for you.
Key Features
- 160mm fork / 150mm rear travel with Norco's VPS suspension
- Bosch Performance Line PX motor - up to 90Nm torque with natural-feeling delivery
- DVO Diamond 36 fork and DVO Topaz shock
- Shimano CUES 11-speed (11-50T)
- TRP Slate EVO 4-piston brakes
- Bosch PowerTube 600Wh battery, range extender compatible (size S3+ or with inline shock)
- Bosch eBike Flow App to personalise your ride
- Aluminium frame, UDH and SRAM Eagle Transmission compatible
- Mixed wheel setup with size-specific geometry for a balanced fit
- Marked by the manufacturer as EN 15194 compliant
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-

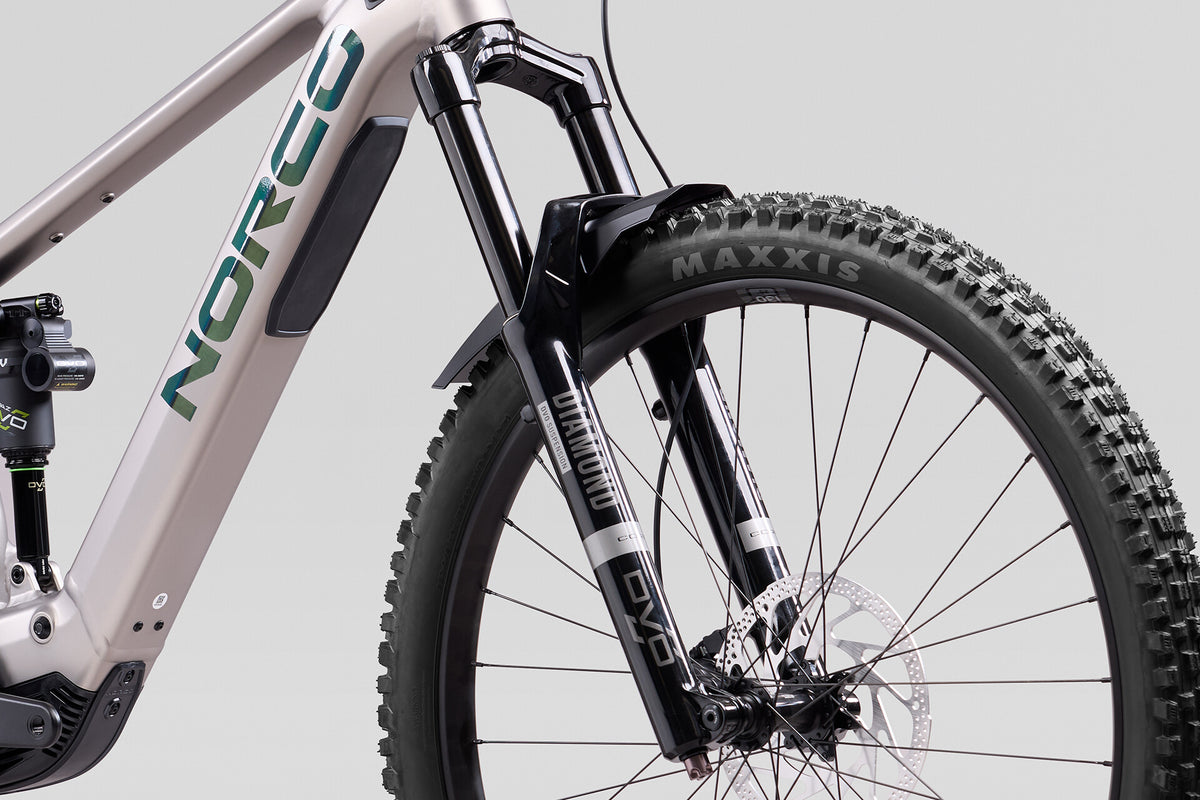

Fork: DVO Diamond 36 Core, Low Speed Compression | Rebound, 160mm, 44mm Offset
-

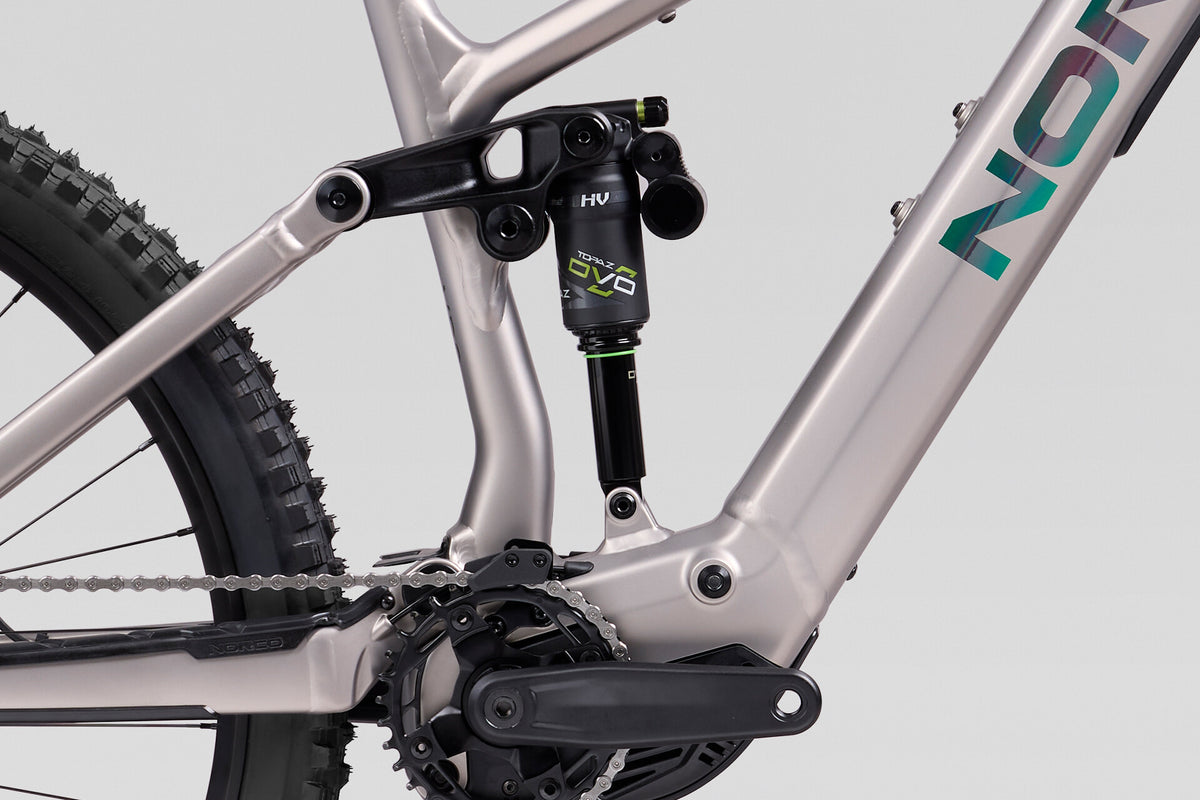

Rear Shock: DVO Topaz Core, 205x60mm TR
-

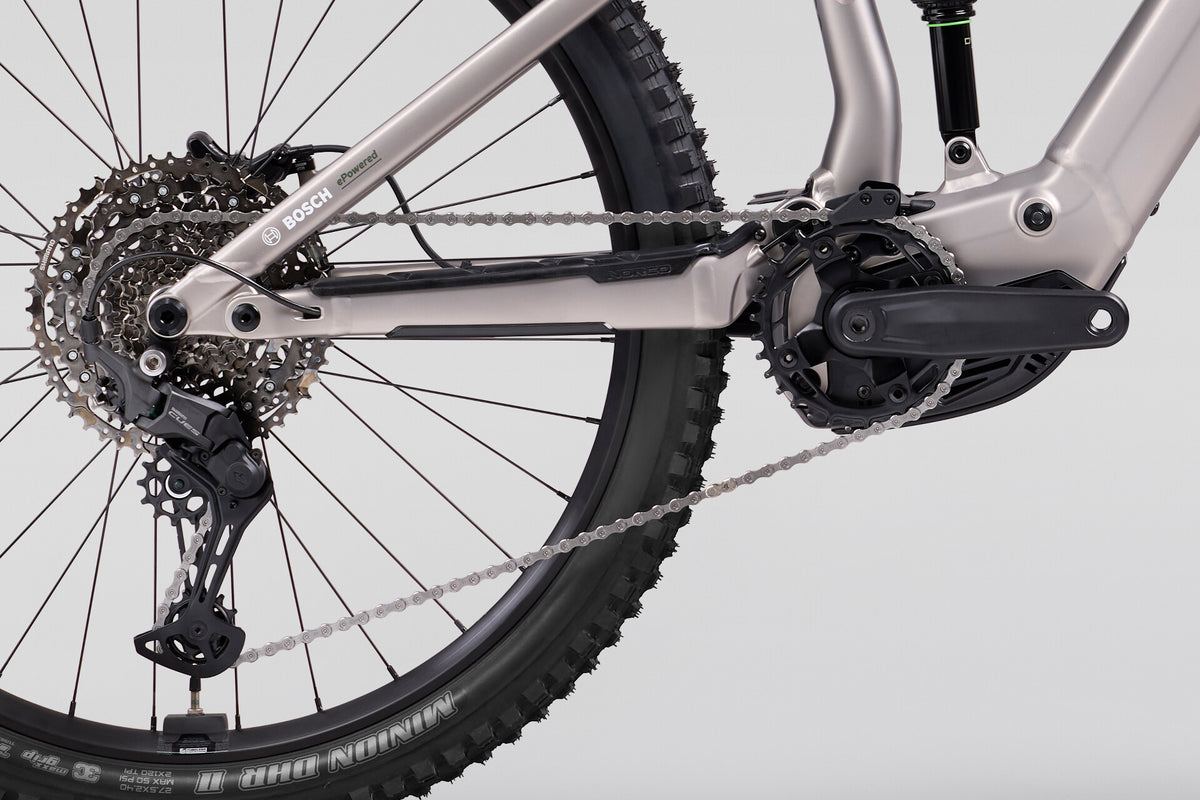

Rear Shifter: Shimano CUES SL-U6000-11R, 11sp
-
Rear Derailleur: Shimano CUES RD-U6000, 11sp, GS
-
Crankset: Prowheel Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
-
Bottom Bracket: Bosch PX
-
Cassette: Shimano CUES CS-LG3400-11, 11-50T, 11sp
-
Chain: Shimano CUES CN-LG500-Q, 11sp
-
Front Brake: TRP Slate EVO, Organic Pads
-
Front Brake Rotor: TRP 203mm, 2.3mm Thickness, Centerlock
-
Rear Brake: TRP Slate EVO, Organic Pads
-
Rear Brake Rotor: TRP RS01E, 180mm, 2.3mm Thickness, Centerlock
-
Brake Levers: TRP Slate EVO
-

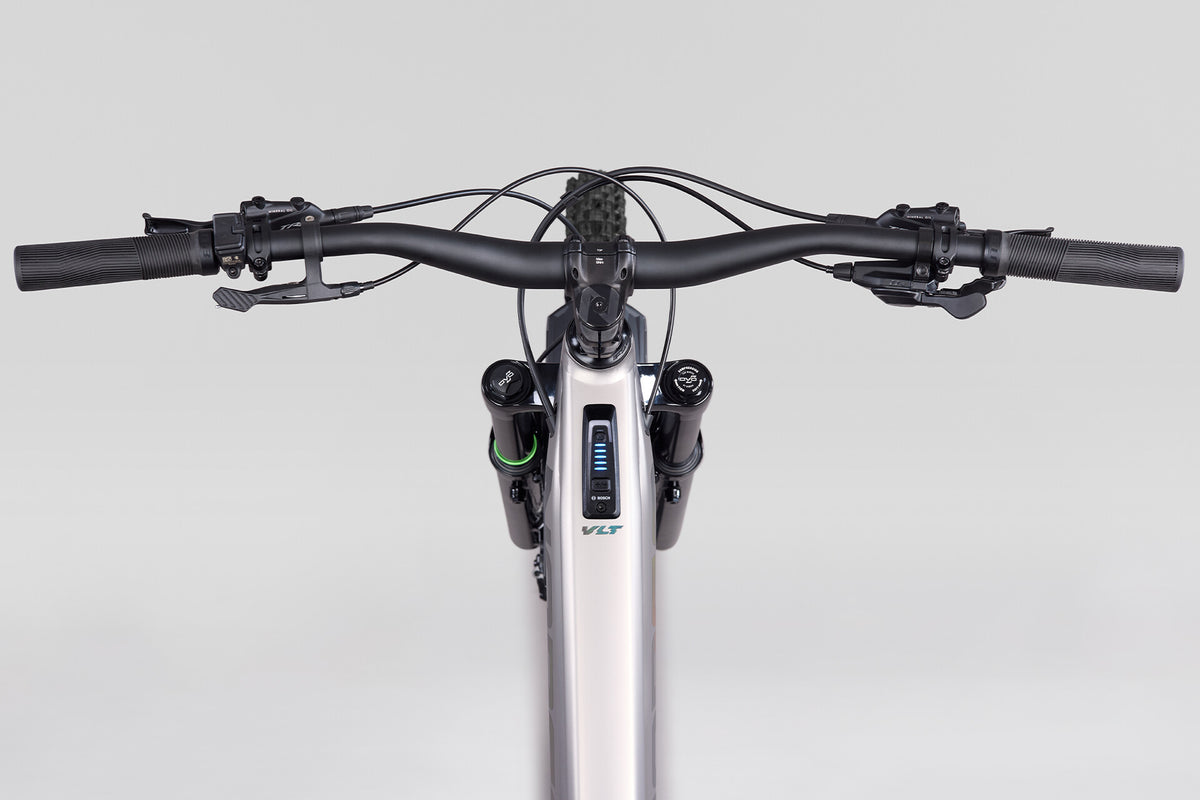

Handlebar: Norco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
-
Stem: Norco 6061, 40mm Length, 35mm Clamp
-
Seatpost: TranzX YSI34QL, 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
-
Headset: FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
-
Saddle: WTB Solano Med, 142x240 mm, Steel Rails
-
Grips: WTB Wavelength, 140mm Length
-
Front Hub: Shimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
-
Rear Hub: Shimano FH-TC500-MS-B, 12x148mm Boost, HG, 32H, C-Lock
-
Rims: WTB ST Tough TCS 2.0,30 mm, 32H, 29"-27.5" F/R
-
Front Tyre: Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
-
Rear Tyre: Maxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
-
Spokes/Nipples: Sapim Sprint DB Spokes 2.0/1.8/2.0,Black stainless steel
-

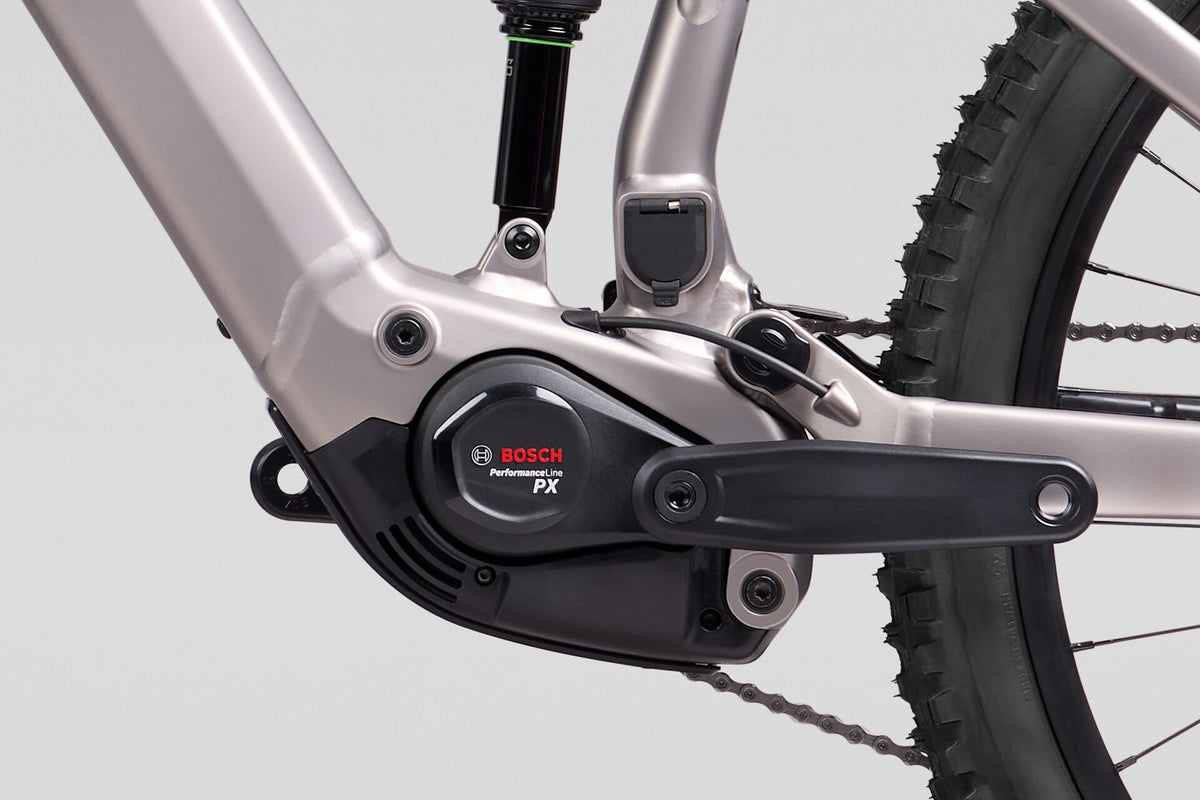

Drive Unit: Bosch Performance Line PX, 90 Nm / 700W
-
Battery: Bosch PowerTube 600 Wh
