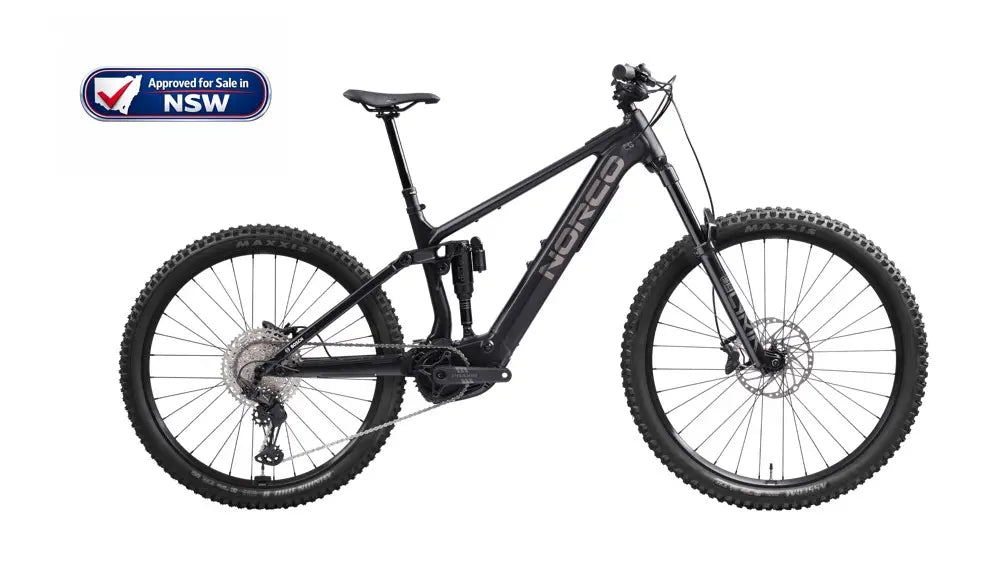

Sight VLT PX delivers full-powered all-mountain performance without compromise. Built around NorcoÕs VPS suspension platform Ñ a refined Horst Link system Ñ this bike combines a durable yet lightweight aluminum frame with the reliability of the Bosch Performance Line PX drive system. ItÕs designed for riders who want strong torque, solid battery capacity, and confident handling across demanding terrain. With 160mm of travel up front and 150mm in the rear, the Sight VLT PX balances playful handling with the confidence needed for aggressive trail riding. The suspension layout is responsive under power while maintaining excellent traction when the trail gets technical, delivering efficiency on climbs and stability on descents. The Bosch Performance Line PX system delivers an impressive combination of power and efficiency. With up to 85Nm torque, 600W max output, and a 600Wh battery, it provides plenty of assistance for long rides while maintaining a natural ride feel with reduced noise and weight. Riders can also extend their range with the optional Bosch PowerMore 250Wh range extender and unlock up to 90Nm torque and 700W max output via the Bosch Flow App. eBike System
Key Features
- Durable aluminum frame with 150mm VPS Horst Link suspension
- RockShox Lyrik Base RC fork with 160mm travel
- Bosch Performance Line PX drive unit with Smart System integration
- Shimano 12-speed drivetrain with wide 10-51T cassette
- Powerful Shimano Deore 4-piston hydraulic disc brakes
- Mixed wheel setup with Maxxis Assegai and Minion DHR II tyres
Specifications
-
Frame:Aluminum Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª
-
Fork:RockShox Lyrik Base RC, 160mm Travel, 44mm Offset, Fender Included
-
Rear Shock:RockShox Super Deluxe Base with HBO, 205x60mm Trunnion
-
Headset:FSA No.55 Sealed Bearing, Tapered 1-1/8" Ð 1.8" (ZS44/28.6 | ZS56/40)
-
Grips:WTB Wavelength, 140mm Length
-
Handlebar:Norco 6061 Double Butted Alloy, 800mm Width, 25mm Rise (S1,S2) / 35mm Rise (S3,S4,S5)
-
Stem:Norco 6061 Alloy, 40mm Length, 35mm Clamp
-
Seatpost:TranzX YSI160 RAD+ Dropper Ñ 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4,S5)
-
Saddle:WTB Solano Medium, 142x240mm, Steel Rails
-
Front Brake:Shimano Deore M6120 4-Piston, Metallic Pads
-
Front Rotor:Shimano RT-64, 203mm, Centerlock
-
Rear Brake:Shimano Deore M6120 4-Piston, Metallic Pads
-
Rear Rotor:Shimano RT-64, 180mm, Centerlock
-
Brake Levers:Shimano Deore M6100
-
Rear Shifter:Shimano Deore SL-M6100-R, 12 Speed
-
Rear Derailleur:Shimano XT RD-M8100, SGS, 12 Speed
-
Cassette:Shimano Deore CS-M6100-12, 10-51T, 12 Speed
-
Chain:Shimano Deore CN-M6100, 12 Speed
-
Crankset:Praxis HD Aluminum Bosch Cranks, 34T Ñ 155mm (S1,S2,S3) / 160mm (S4,S5)
-
Front Hub:Shimano HB-MTC500-15-B, 15x110mm Boost, 32H, Centerlock
-
Rear Hub:Shimano FH-TC500-MS-B, 12x148mm Boost, MicroSpline, 32H, Centerlock
-
Spokes:Sapim Sprint Double Butted 2.0/1.8/2.0mm, Black Stainless Steel
-
Rims:WTB KOM Trail i30 TCS 2.0, 30mm Internal Width, 32H, Mixed Wheel (29" Front / 27.5" Rear)
-
Front Tyre:Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
-
Rear Tyre:Maxxis Minion DHR II, 3C MaxxGrip DD, 27.5x2.4", Folding
-
Drive Unit:Bosch Performance Line PX, up to 90Nm / 700W
-
Battery:Bosch PowerTube 600Wh
-
Range Extender:Bosch PowerMore 250Wh Compatible (Optional)
