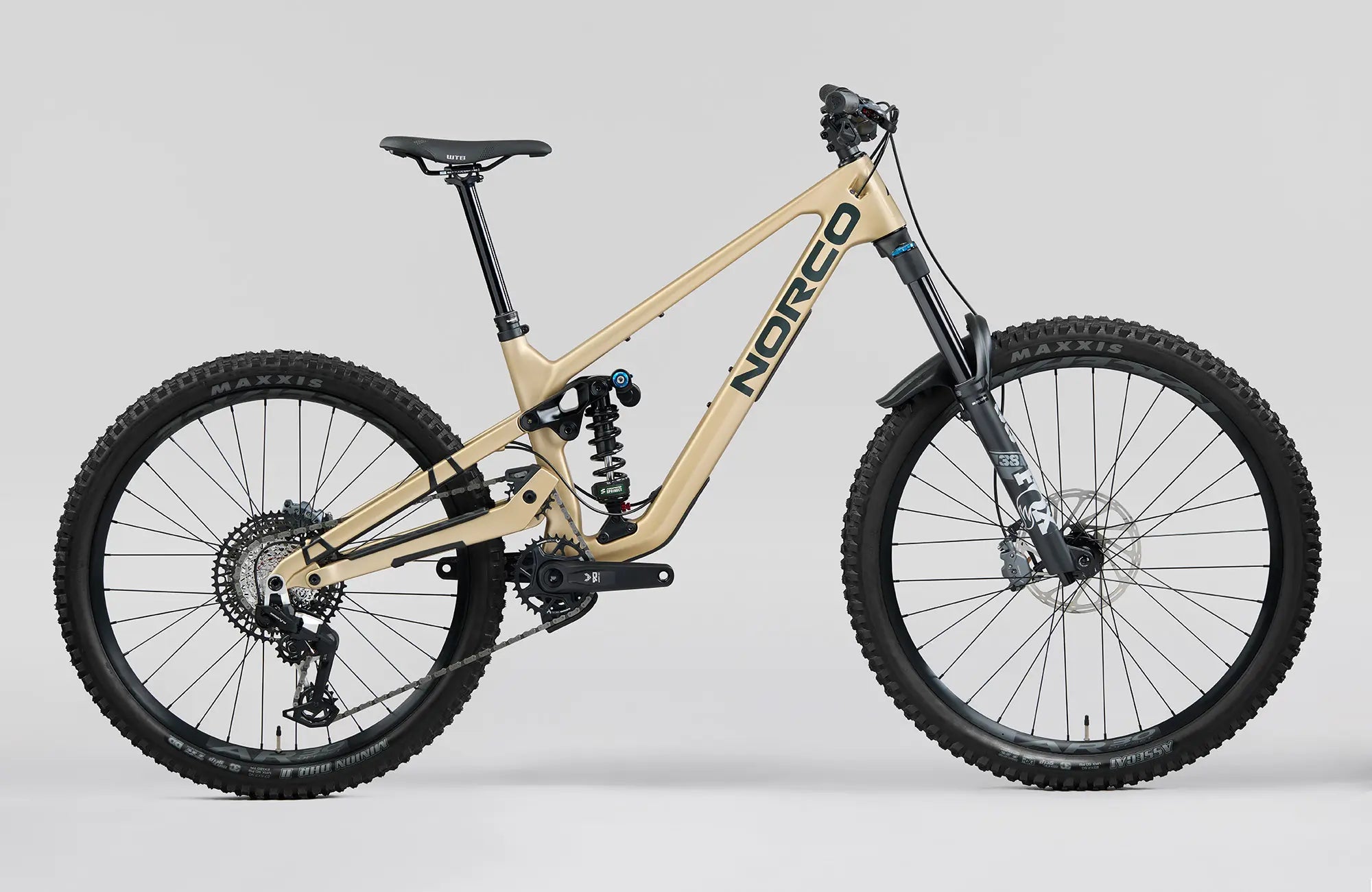

The Sight 160 is next level Ñ big travel, big spec, and built for serious mountain riding. Whether you're racing enduro or charging technical trails at speed, this bike is designed to smash through the roughest terrain with confidence. Inspired by the toughest trails in British Columbia, the Sight 160 is built for riders who demand more from their bike when the terrain pushes back. With a 170mm fork paired to 160mm rear travel via a longer 65mm stroke shock, the Sight 160 delivers exceptional capability on steep, rough terrain. Updated geometry includes stabilized rear centres and size-specific seat tube angles to maintain balanced rider positioning across all frame sizes. Shorter seat tubes allow for longer dropper posts, keeping the saddle out of the way on aggressive descents. A slacker head tube angle and slightly taller bottom bracket than the standard Sight geometry provide the clearance and stability needed to push harder through technical sections, making the Sight 160 a true big-mountain machine ready for demanding terrain.
Key Features
- Carbon frame with 160mm rear travel and Ride Alignedª geometry
- Fox 38 Performance fork with 170mm travel and Grip X2 damper
- Fox DHX2 coil rear shock for consistent performance on rough terrain
- SRAM Eagle T-Type 12-speed drivetrain
- Powerful SRAM Maven hydraulic disc brakes
- Mullet wheel setup with Maxxis Assegai and Minion DHR II tyres
Specifications
-
Frame:Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª
-
Fork:Fox 38 Performance Float, Grip X2, 170mm Travel, 44mm Offset, Fender Included
-
Rear Shock:Fox DHX2 Performance, 205x65mm Trunnion, Steel Spring
-
Crankset:SRAM Eagle 90, 32T, CL55 Ñ 165mm (S1,S2) / 170mm (S3,S4,S5)
-
Bottom Bracket:SRAM DUB, BSA 73mm, MTB Wide
-
Cassette:SRAM 1275 Eagle T-Type, 10-52T, 12 Speed
-
Chain:SRAM Eagle T-Type, 12 Speed
-
Rear Derailleur:SRAM Eagle 90 T-Type, 12 Speed
-
Rear Shifter:SRAM Eagle 90 T-Type, 12 Speed
-
Chainguide:Norco Idler Guide and Lower Guide
-
Front Brake:SRAM Maven Base, Metallic Pads
-
Front Rotor:SRAM Centerline S2, 200mm, 1.8mm Thickness, 6-Bolt
-
Rear Brake:SRAM Maven Base, Metallic Pads
-
Rear Rotor:SRAM Centerline S2, 180mm, 1.8mm Thickness, 6-Bolt
-
Handlebar:OneUp Aluminum Ñ 760mm / 20mm Rise (S1), 780mm / 20mm Rise (S2), 800mm / 35mm Rise (S3-S5)
-
Stem:OneUp Alloy, 42mm Length, 35mm Clamp
-
Grips:WTB Waffle, 140mm Length
-
Headset:FSA No.57 ZS Sealed Bearing, Tapered 1-1/8" Ð 1.5" (ZS44/28.6 | ZS56/40)
-
Saddle:WTB Silverado Medium, 142x265mm, Steel Rails
-
Seatpost:TranzX YSI160 RAD+ Dropper Ñ 34.9mm, 150mm (S1), 170mm (S2), 200mm (S3,S4), 230mm (S5)
-
Seatpost Clamp:Norco Alloy Nutted Clamp, 38.5mm ID
-
Front Hub:SRAM MTH 716, 15x110mm Boost, 6-Bolt
-
Rear Hub:SRAM MTH 756, 12x148mm Boost, HG, 6-Bolt
-
Axle:148mm x 12mm TA, L174, TL13, M12x1.3
-
Rims:Race Face AR30, 32H, 30mm Internal Width, Mixed Wheel (29" Front / 27.5" Rear)
-
Front Tyre:Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
-
Rear Tyre:Maxxis Minion DHR II, 3C MaxxGrip DD, 27.5x2.4", Folding
-
Spokes:DT Competition Butted, 1.8/1.6/1.8 Black Stainless Steel
