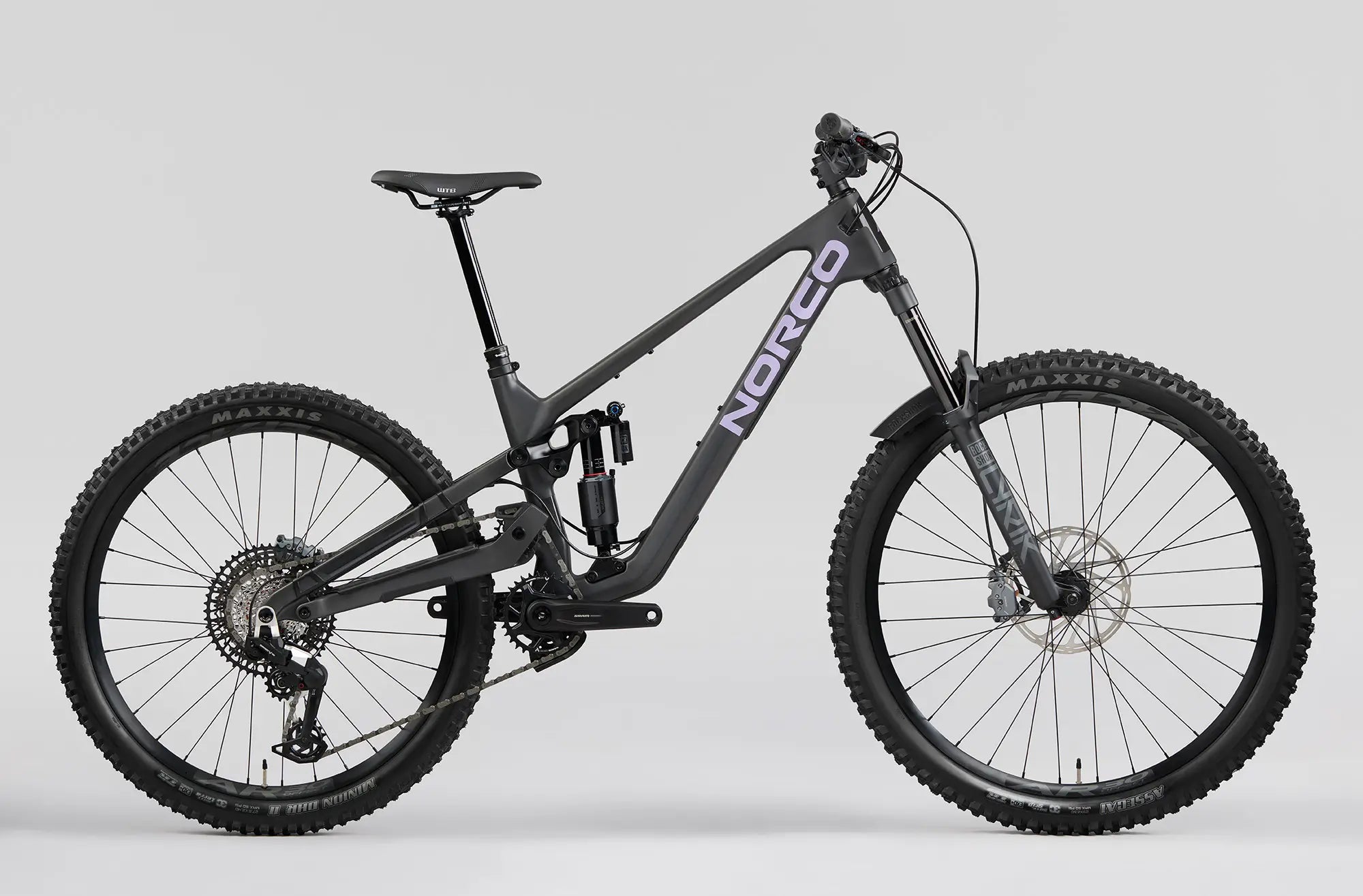

Whether youÕre carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, the Sight delivers. With increased rearward axle path, an idler pulley, and the innovative VPSHP suspension layout, this platform offers next-level confidence and capability both climbing and descending. Available in either carbon fibre composite or hydroformed aluminum with identical geometry, kinematics, and frame features, riders can choose the build that best suits their priorities. Rear centre lengths and seat tube angles are tailored by frame size to ensure balanced rider weight distribution, while shorter seat tubes paired with long dropper posts keep the saddle out of the way on technical descents.
Key Features
- Carbon frame with 150mm VPSHP suspension and Ride Alignedª geometry
- RockShox Lyrik Select+ fork with Charger 3.1 damper and 160mm travel
- RockShox Vivid 2 Select+ air rear shock
- SRAM Eagle T-Type 12-speed drivetrain
- Powerful SRAM Maven Bronze hydraulic disc brakes
- Mullet wheel setup with Maxxis Assegai and Minion DHR II tyres
Specifications
-
Frame:Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª
-
Fork:RockShox Lyrik Select+ Charger 3.1, 160mm Travel, 44mm Offset, Fender Included
-
Rear Shock:RockShox Vivid 2 Select+ Air, 205x60mm Trunnion
-
Crankset:SRAM Eagle S1000, 32T, CL55 Ñ 165mm (S1,S2) / 170mm (S3,S4,S5)
-
Bottom Bracket:SRAM DUB, BSA 73mm, MTB Wide
-
Cassette:SRAM 1275 Eagle T-Type, 10-52T, 12 Speed
-
Chain:SRAM Eagle T-Type, 12 Speed
-
Rear Derailleur:SRAM Eagle 90 T-Type, 12 Speed
-
Rear Shifter:SRAM Eagle 70 T-Type, 12 Speed
-
Chain Guide:Norco Idler Guide and Lower Guide
-
Front Brake:SRAM Maven Bronze, Metallic Pads
-
Front Rotor:SRAM HS2, 200mm, 2mm Thickness, 6-Bolt
-
Rear Brake:SRAM Maven Bronze, Metallic Pads
-
Rear Rotor:SRAM HS2, 180mm, 2mm Thickness, 6-Bolt
-
Brake Levers:SRAM Maven Bronze
-
Handlebar:OneUp Aluminum Ñ 760mm / 20mm Rise (S1), 780mm / 20mm Rise (S2), 800mm / 35mm Rise (S3-S5)
-
Stem:OneUp Alloy, 42mm Length, 35mm Clamp
-
Grips:WTB Waffle, 140mm Length
-
Headset:FSA No.57 ZS Sealed Bearing, Tapered 1-1/8" Ð 1.5" (ZS44/28.6 | ZS56/40)
-
Saddle:WTB Solano Medium, 142x240mm
-
Seatpost:TranzX YSI160 RAD+ Dropper Ñ 34.9mm, 150mm (S1), 170mm (S2), 200mm (S3,S4), 230mm (S5)
-
Seatpost Clamp:Norco Alloy Nutted Clamp, 38.5mm ID
-
Front Hub:DT Swiss 370, 15x110mm Boost, 32H, 6-Bolt
-
Rear Hub:DT Swiss 370, 12x148mm Boost, XD Driver, 32H, 6-Bolt
-
Axle:148mm x 12mm TA, L174, TL13, M12x1.2
-
Rims:Race Face AR30, 30mm Internal Width, 32H, Mixed Wheel (29" Front / 27.5" Rear)
-
Front Tyre:Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
-
Rear Tyre:Maxxis Minion DHR II, 3C MaxxTerra EXO+, 27.5x2.4", Folding
-
Spokes:DT Competition Butted 1.8/1.6/1.8 Black Stainless Steel
-
Sealant:StanÕs Tire Sealant, 250ml
