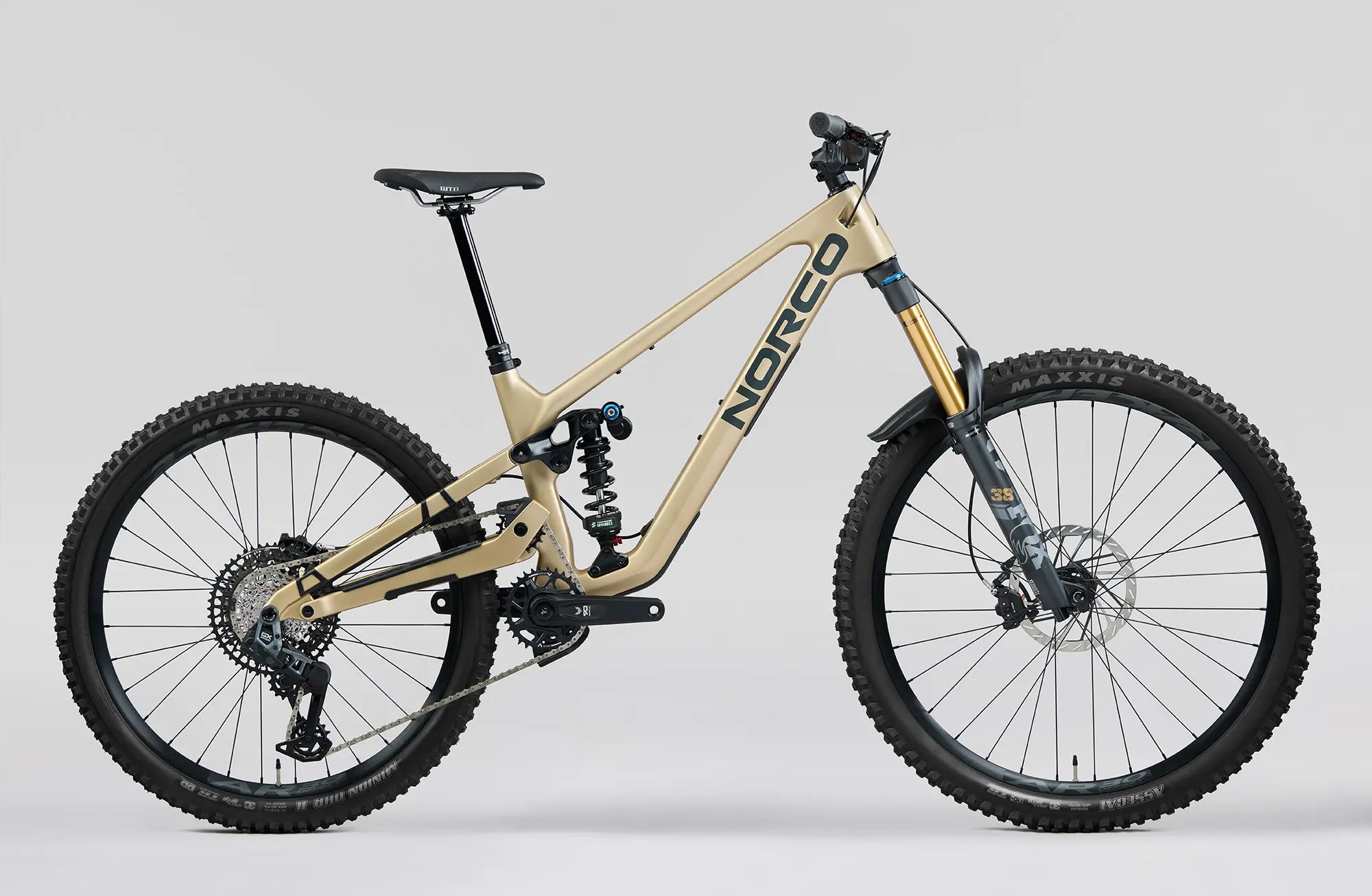

The Sight 160 is next level Ñ big travel, big spec, and built for aggressive big-mountain riding. Whether you're racing an enduro stage or charging technical trails at speed, this bike is designed to smash through rough terrain with confidence. Inspired by the gnarliest trails in the backwoods of British Columbia, the Sight 160 is built for riders who demand more from their bike when the terrain gets serious. With a 170mm fork and 160mm of rear travel driven by a longer 65mm stroke shock, the Sight 160 delivers outstanding capability on steep and technical terrain. Stabilized rear centres and size-specific seat tube angles keep rider weight balanced across all frame sizes, while shorter seat tubes paired with long dropper posts keep the saddle out of the way on aggressive descents. A slacker head tube angle and slightly taller bottom bracket than the standard Sight geometry add extra confidence when pushing through rough sections and larger obstacles, making the Sight 160 a true big-mountain machine.
Key Features
- Carbon frame with 160mm rear travel and Ride Alignedª geometry
- Fox 38 Factory fork with Grip X2 damper and 170mm travel
- Fox DHX2 Factory coil rear shock with Sprindex spring
- Wireless SRAM GX Eagle AXS T-Type 12-speed drivetrain
- Powerful SRAM Maven Silver hydraulic disc brakes
- Mullet wheel setup with Maxxis Assegai and Minion DHR II tyres
Specifications
-
Frame:Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª
-
Fork:Fox 38 Factory Float, Grip X2, 170mm Travel, 44mm Offset, Fender Included
-
Rear Shock:Fox Factory DHX2, 205x65mm Trunnion, HSC/LSC, HSR/LSR, Sprindex Spring
-
Crankset:SRAM Eagle 90, 32T, CL55 Ñ 165mm (S1,S2) / 170mm (S3,S4,S5)
-
Bottom Bracket:SRAM DUB, BSA 73mm, MTB Wide
-
Cassette:SRAM 1275 Eagle T-Type, 10-52T, 12 Speed
-
Chain:SRAM Eagle T-Type, 12 Speed
-
Rear Derailleur:SRAM GX Eagle AXS T-Type, 12 Speed
-
Rear Shifter:SRAM Pod Controller, MMX Bridge
-
Chain Guide:Norco Idler Guide and Lower Guide
-
Front Brake:SRAM Maven Silver, Metallic Pads
-
Front Rotor:SRAM HS2, 200mm, 2mm Thickness, 6-Bolt
-
Rear Brake:SRAM Maven Silver, Metallic Pads
-
Rear Rotor:SRAM HS2, 180mm, 2mm Thickness, 6-Bolt
-
Brake Levers:SRAM Maven Silver
-
Handlebar:OneUp Aluminum Ñ 760mm / 20mm Rise (S1), 780mm / 20mm Rise (S2), 800mm / 35mm Rise (S3-S5)
-
Stem:OneUp Alloy, 42mm Length, 35mm Clamp
-
Grips:WTB Waffle, 140mm Length
-
Headset:FSA No.57 ZS Sealed Bearing, Tapered 1-1/8" Ð 1.5" (ZS44/28.6 | ZS56/40)
-
Saddle:WTB Silverado Medium, 142x265mm, Chromoly Rails
-
Seatpost:TranzX YSI160 RAD+ Dropper Ñ 34.9mm, 150mm (S1), 170mm (S2), 200mm (S3,S4), 230mm (S5)
-
Seatpost Clamp:Norco Alloy Nutted Clamp, 38.5mm ID
-
Front Hub:DT Swiss 350, 15x110mm Boost, 32H, 6-Bolt
-
Rear Hub:DT Swiss 350, 12x148mm Boost, XD Driver, 32H, 6-Bolt
-
Axle:148mm x 12mm TA, L174, TL13, M12x1.1
-
Rims:Race Face AR30, 30mm Internal Width, 32H, Mixed Wheel (29" Front / 27.5" Rear)
-
Front Tyre:Maxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
-
Rear Tyre:Maxxis Minion DHR II, 3C MaxxGrip DoubleDown, 27.5x2.4", Folding
-
Spokes:Sapim Race Butted 2.0/1.8/2.0, 14G Stainless Steel
