The Search Alloy is a progressive, modern gravel bike that's ready for whatever you point it at - dirt roads, singletrack, bike paths or a multi-day bikepacking trip. Norco redesigned it from the ground up to be lighter, with optimised sizing and geometry, plus all the mounts and tyre clearance you need for real adventures.
The Search A1 is the top alloy build, with SRAM Apex XPLR 1x 12-speed and SRAM Apex hydraulic brakes. 1x means simpler shifting and a wide 11-44T range for the climbs - ideal for mixed-surface adventures. Come and see it at Jetty Road Cycles in Rosebud - the team will help you nail the sizing and setup before you roll out the door.
Key Features

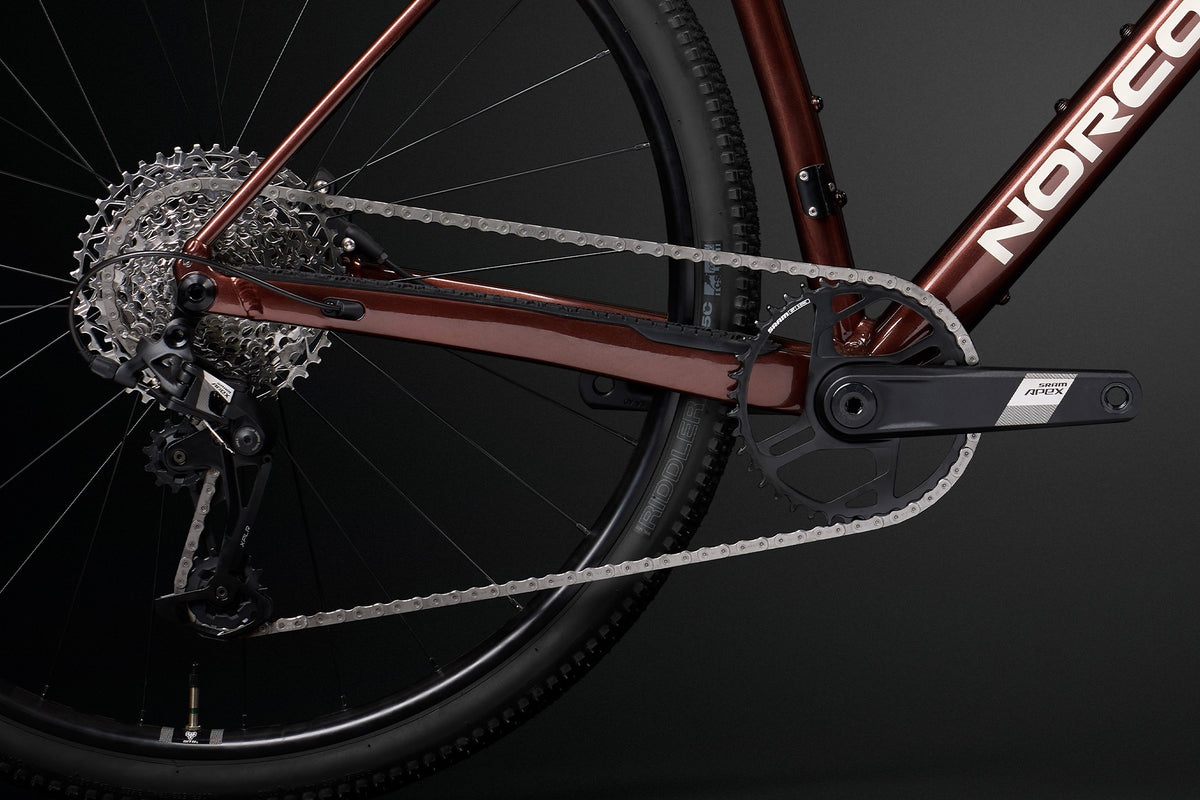

- SRAM Apex XPLR 1x12 drivetrain (11-44T)
- SRAM Apex hydraulic disc brakes
- Norco Super Flare compact alloy bar
- WTB Riddler 700 x 45c tyres
- UDH compatible frame
- Lightweight butted aluminium frame with smooth welds
- Full carbon fork with adventure mounts and 12mm thru-axle
- Modern gravel geometry: taller head tube, slacker head angle, longer reach for stability
- Clearance for up to 700 x 50c tyres
- Mounts for multiple bottles, front and rear fenders, top tube bag and rear rack
- Simplified maintenance with guided cable routing
- Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Search Butted Aluminum w/Smooth Welds
-
Fork: Search Carbon, 51mm Offset, 12x100mm TA
-
Rear Shifter: SRAM Apex HRD Shift-Brake System
-
Rear Derailleur: SRAM Apex XPLR Rear Derailleur, 12sp
-
Front Shifter: SRAM Apex HRD Shift-Brake System
-
Crankset: SRAM Apex D1 40T, 47.5CL, 165mm (S1,S2) - 170mm (S3,S4) -172.5 (S5)
-
Bottom Bracket: SRAM Dub BSA 68 Road Wide
-
Cassette: SRAM XPLR PG-1231, 11-44T, 12sp
-
Chain: SRAM Apex, 118L
-
Front Brake: SRAM Apex HRD Shift-Brake System
-
Front Brake Rotor: SRAM Paceline, 160mm, C-lock
-
Rear Brake: SRAM Apex HRD Shift-Brake System
-
Rear Brake Rotor: SRAM Paceline, 160mm, C-lock
-
Brake Levers: SRAM Apex HRD Shift-Brake System
-
Handlebar: Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
-
Stem: Norco SL Alloy 70mm Length, 31.8mm Clamp
-
Seatpost: Norco Alloy, 27.2mm, 0Deg Offset, 350mm length
-
Headset: Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
-
Saddle: Selle Royale SRX Gravel, 148mm
-
Grips: Griptacular Shockproof Tape 3mm
-
Seatpost Clamp: Norco Aluminum, 31.8mm ID
-
Front Hub: Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
-
Rear Hub: Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H, C-lock
-
Rims: WTB ST i25 2.0, 28h, 25mm ID
-
Front Tyre: WTB Riddler 700x45C, TCS, 60tpi
-
Rear Tyre: WTB Riddler 700x45C, TCS, 60tpi
