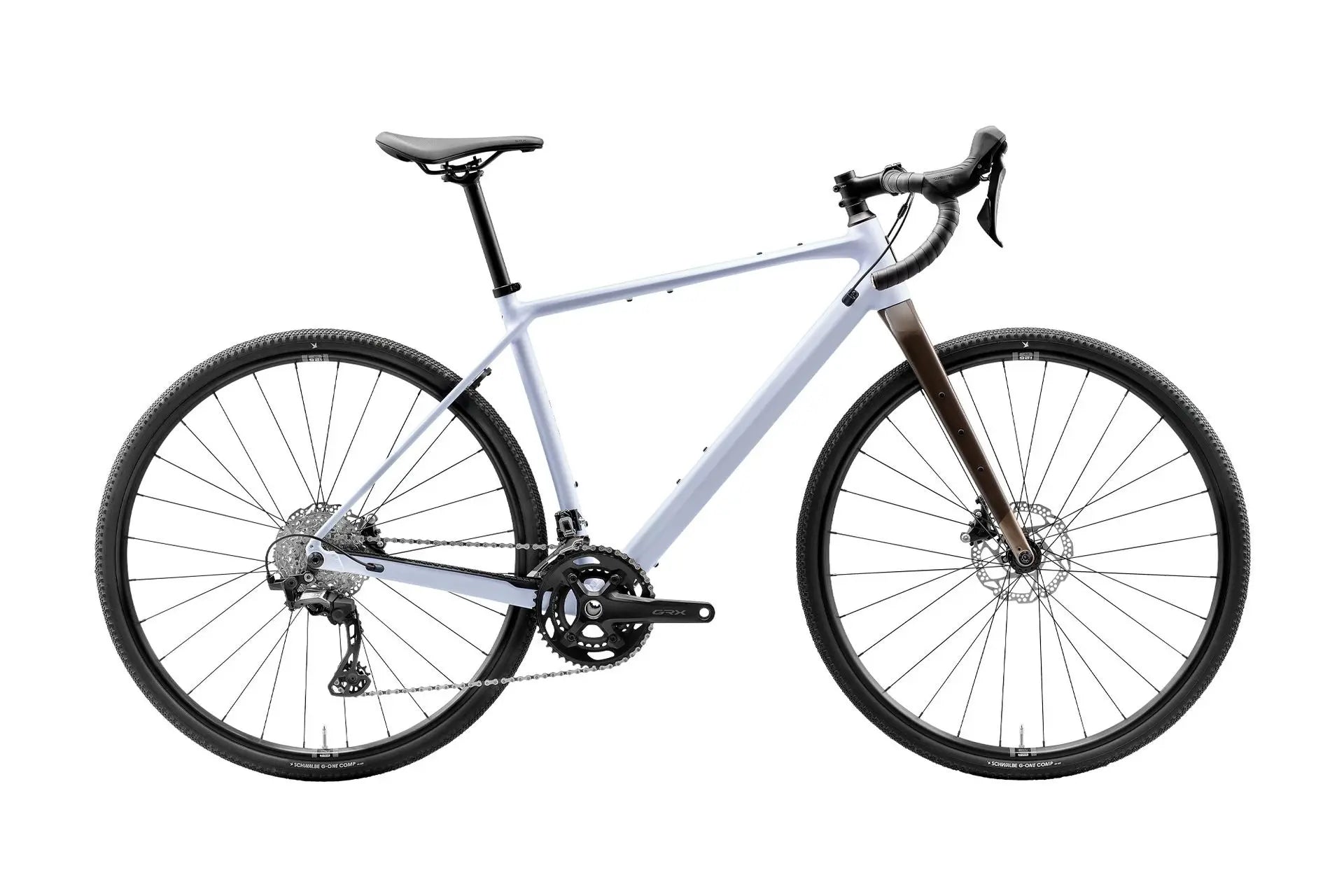

Introducing the all-new Search Alloy Ñ redesigned from the ground up to be lighter, more capable, and more versatile than ever. Built with optimized sizing and modern geometry, this gravel bike is ready for everything from smooth roads to rough backcountry trails. With generous tyre clearance and a wide range of mounting options, the Search Alloy is built to support your next adventure. Modern gravel geometry delivers a fast, lively, and confident ride across any terrain. The frame is also compatible with suspension forks from brands like SRAM and Fox, allowing riders to add extra comfort and capability when tackling rougher routes. The lightweight butted aluminum frame mimics the ride characteristics of a carbon bike, while the full carbon fork adds adventure mounts and includes a custom front fender. With Universal Derailleur Hanger compatibility and support for modern 1x or 2x drivetrains, plus mounts for racks, fenders, and top-tube bags, the Search Alloy is ready for commuting, gravel rides, or fully loaded adventures.
Key Features
- Lightweight butted aluminum gravel frame with smooth weld construction
- Full carbon fork with adventure mounts and custom front fender
- Modern gravel geometry for confident riding on mixed terrain
- Compatible with suspension forks for additional comfort
- Universal Derailleur Hanger compatibility for modern drivetrain systems
- Multiple mounts for racks, fenders, bottles, and top-tube bags
- Clearance for large gravel tyres for improved traction and comfort
Specifications
-
Frame:Search XR Butted Aluminum with Smooth Welds
-
Fork:Search XR Carbon, 51mm Offset, 12x100mm Thru-Axle
-
Headset:FSA Integrated Sealed Bearings No.42, Tapered 1-1/8" Ð 1.5" (IS42/28.6 | IS52/40)
-
Rear Shifter:Shimano GRX ST610, 12 Speed
-
Front Shifter:Shimano GRX ST610, 1x
-
Rear Derailleur:Shimano GRX RD-RX822 GS, 12 Speed
-
Crankset:Shimano GRX FC-RX610, 40T Ñ 165mm (S1,S2), 170mm (S3,S4), 172.5mm (S5)
-
Bottom Bracket:Shimano SM-BBR60, BSA 68mm
-
Cassette:Shimano CS-M7100, 10-45T, 12 Speed
-
Chain:KMC X12
-
Front Brake:Shimano BR-RX400, Resin Pads
-
Front Rotor:Shimano SM-RT64, 160mm, Centerlock
-
Rear Brake:Shimano BR-RX400, Resin Pads
-
Rear Rotor:Shimano SM-RT64, 160mm, Centerlock
-
Brake Levers:Shimano GRX ST610
-
Handlebar:Norco Super Flare Aluminum Compact Ñ 40cm (S1,S2), 42cm (S3), 44cm (S4), 46cm (S5), 16¡ Flare
-
Stem:Norco SL Alloy, 70mm Length, 31.8mm Clamp
-
Seatpost:Norco Alloy, 27.2mm, 12¡ Offset, 300mm Length
-
Saddle:Selle Royale SRX Gravel, 148mm
-
Bar Tape:Griptacular Shockproof Tape, 3mm
-
Seatpost Clamp:Norco Aluminum, 31.8mm ID
-
Front Hub:Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, Centerlock
-
Rear Hub:Shimano FH-TC500 Sealed Bearing, 12x142mm, HG Driver, 28H, Centerlock
-
Rims:WTB ST i25 2.0 Alloy, 25mm Internal Width, 28H
-
Front Tyre:Schwalbe G-One Allround, RaceGuard, 700x45c
-
Rear Tyre:Schwalbe G-One Allround, RaceGuard, 700x45c
-
Spokes/Nipples:Sapim Leader 2.0mm Black with Black Brass Nipples
-
Rim Tape:WTB TCS 2.0 Solid Strip
-
Sealant:WTB TCS Tubeless Tire Sealant, 8oz / 236ml
