The Search Alloy is a progressive, modern gravel bike that's ready for whatever you point it at - dirt roads, singletrack, bike paths or a multi-day bikepacking trip. Norco redesigned it from the ground up to be lighter, with optimised sizing and geometry, plus all the mounts and tyre clearance you need for real adventures.
The Search A Flat Bar gives you all that gravel freedom without the drop bars - perfect if you want a fast, versatile bike for commuting, fitness and exploring. It runs a Shimano CUES 9-speed drivetrain with a wide 11-46T range and Tektro hydraulic disc brakes. Drop into Jetty Road Cycles in Rosebud to check one out in person, and our workshop will make sure it's dialled for you.
Key Features

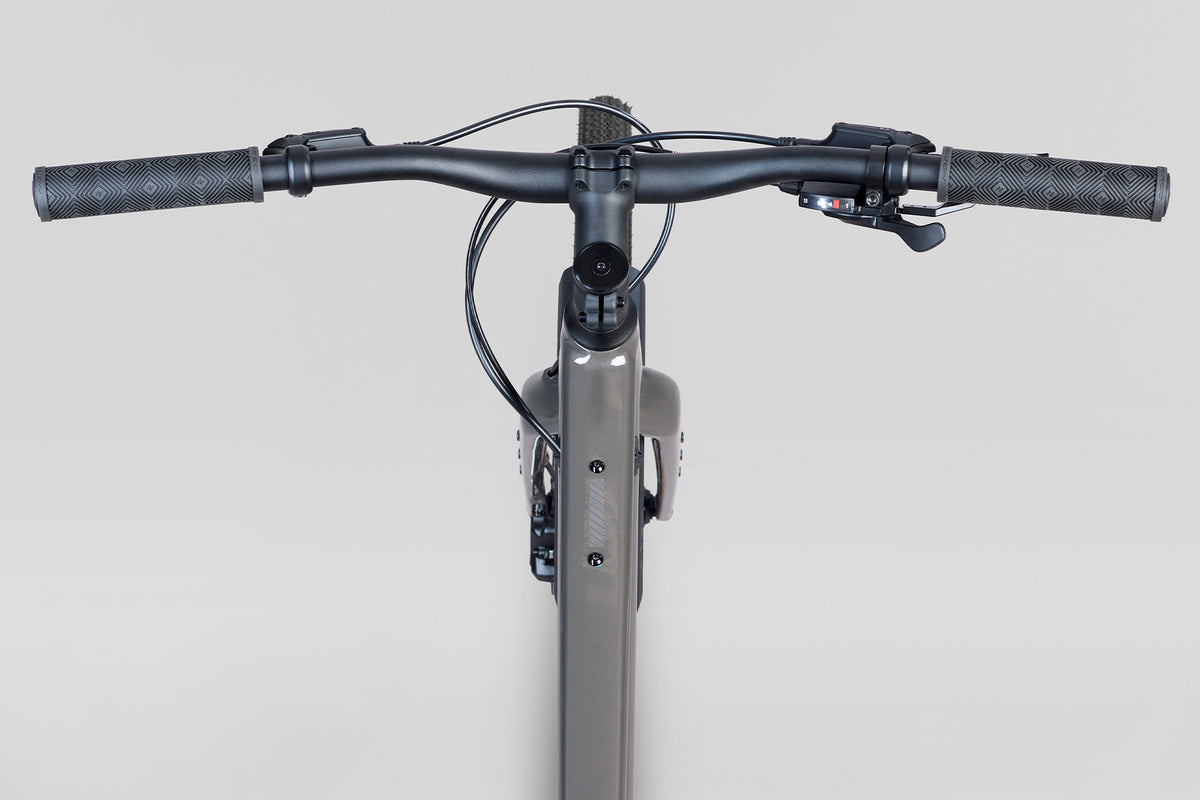

- Flat bar setup for confident, upright control

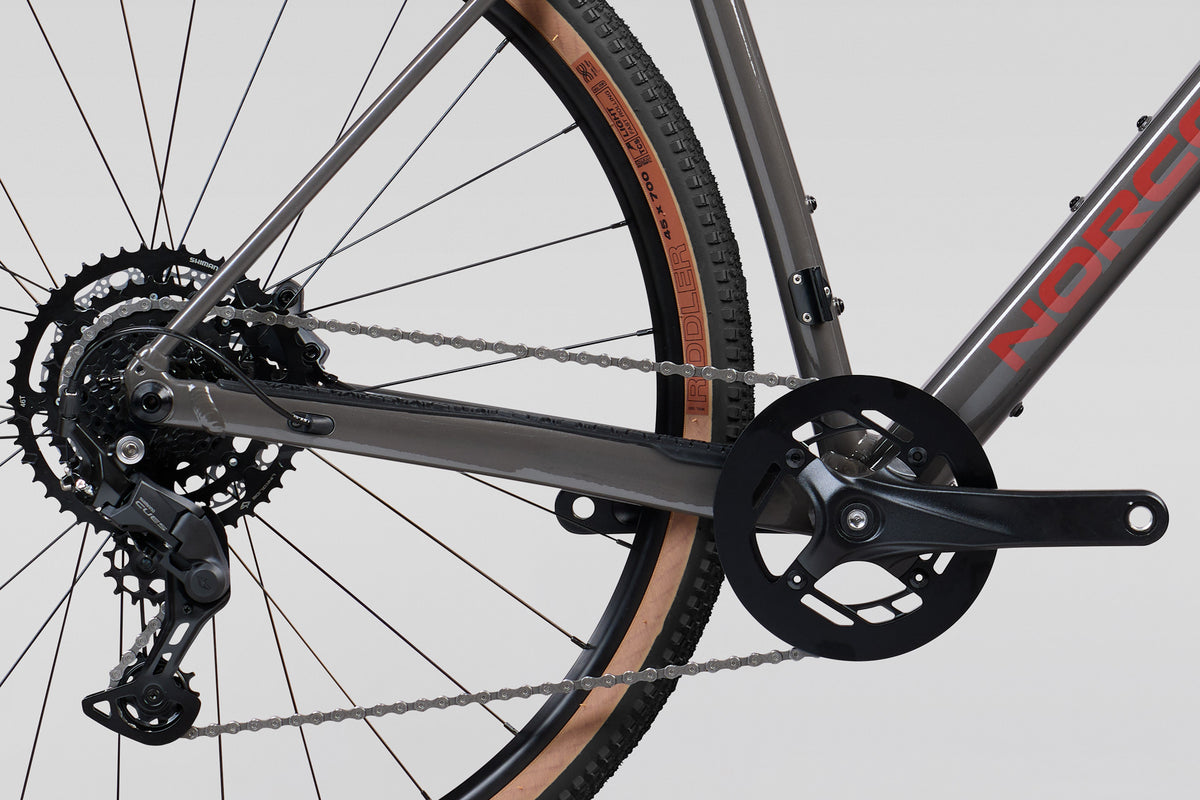

- Shimano CUES 9-speed drivetrain (11-46T)
- Tektro hydraulic disc brakes
- WTB Riddler 700 x 45c tubeless-ready tyres
- Lightweight butted aluminium frame with smooth welds
- Full carbon fork with adventure mounts and 12mm thru-axle
- Modern gravel geometry: taller head tube, slacker head angle, longer reach for stability
- Clearance for up to 700 x 50c tyres
- Mounts for multiple bottles, front and rear fenders, top tube bag and rear rack
- Simplified maintenance with guided cable routing
- Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Search Butted Aluminum w/Smooth Welds
-
Fork: Search Carbon, 51mm Offset, 12x100mm TA
-
Rear Shifter: Shimano CUES SL-U4000-9R, 9sp
-
Rear Derailleur: Shimano CUES 9 RD-U4000, GS, 9sp
-
Front Shifter: Shimano, BSA 73mm
-
Crankset: Prowheel Aluminum 38T, CL44, 165mm (S1,S2,S3,S4) - 170mm (S5)
-
Bottom Bracket: Shimano Cartridge Bearing, 68mm BSA
-
Cassette: Shimano CUES CS-LG300, 11-46T, 9sp
-
Chain: KMC Xglide, 9sp
-
Front Brake: Tektro HD-R280 Hydraulic
-
Front Brake Rotor: Tektro 6-Bolt - 160mm
-
Rear Brake: Tektro HD-R280 Hydraulic
-
Rear Brake Rotor: Tektro 6-Bolt - 160mm
-
Brake Levers: Tektro HD-R280 Hydraulic Hydro 3-Finger Levers w/ Reach Adjust
-
Handlebar: Norco Alloy, 620mm (S1,S2) 640mm (S3,S4,S5), 15mm Rise
-
Stem: Norco Alloy 70mm Length, 31.8mm Clamp
-
Seatpost: Norco Alloy, 27.2mm, 0Deg Offset, 350mm length
-
Headset: Sealed Cartridge Bearings, Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
-
Saddle: Selle Royale SRX Gravel, 148mm
-
Grips: Norco Lock On, 130 length
-
Seatpost Clamp: Norco Aluminum, 31.8mm ID
-
Front Hub: Formula, 12x100mm, 28H, 6-Bolt
-
Rear Hub: Formula, 12x142mm, HG, 28h, 6-Bolt
-
Rims: WTB ST i25 2.0, 28h, 25mm ID
-
Front Tyre: WTB Riddler 700x45C, TCS, 60tpi, Tanwall
