The Search Alloy is a progressive, modern gravel bike that's ready for whatever you point it at - dirt roads, singletrack, bike paths or a multi-day bikepacking trip. Norco redesigned it from the ground up to be lighter, with optimised sizing and geometry, plus all the mounts and tyre clearance you need for real adventures.
The Search A Flat Bar gives you all that gravel freedom without the drop bars - perfect for commuting, fitness and exploring. It runs a Shimano CUES 9-speed drivetrain with a wide 11-46T range and Tektro hydraulic disc brakes, finished in Black Tusk. Pop into the shop in Rosebud and chat to the team - we'll help you find the right size and get it set up just how you like it.
Key Features

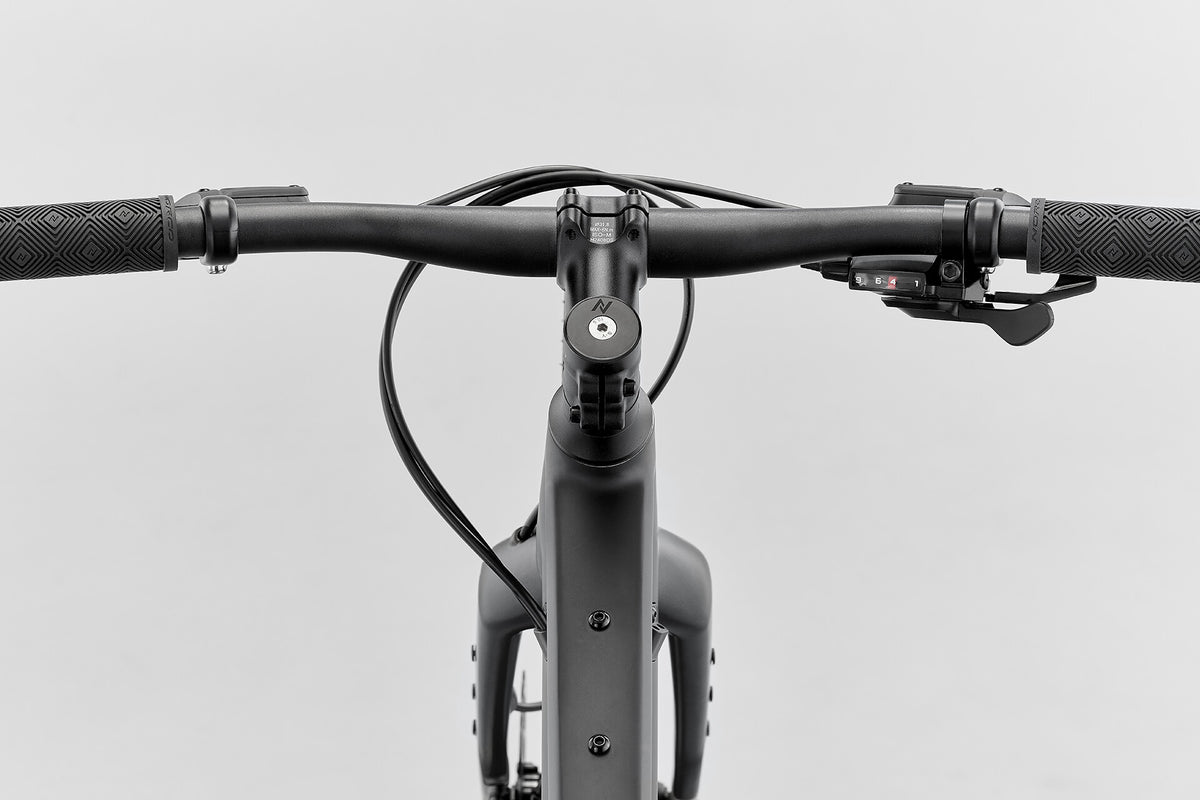

- Flat bar setup for confident, upright control

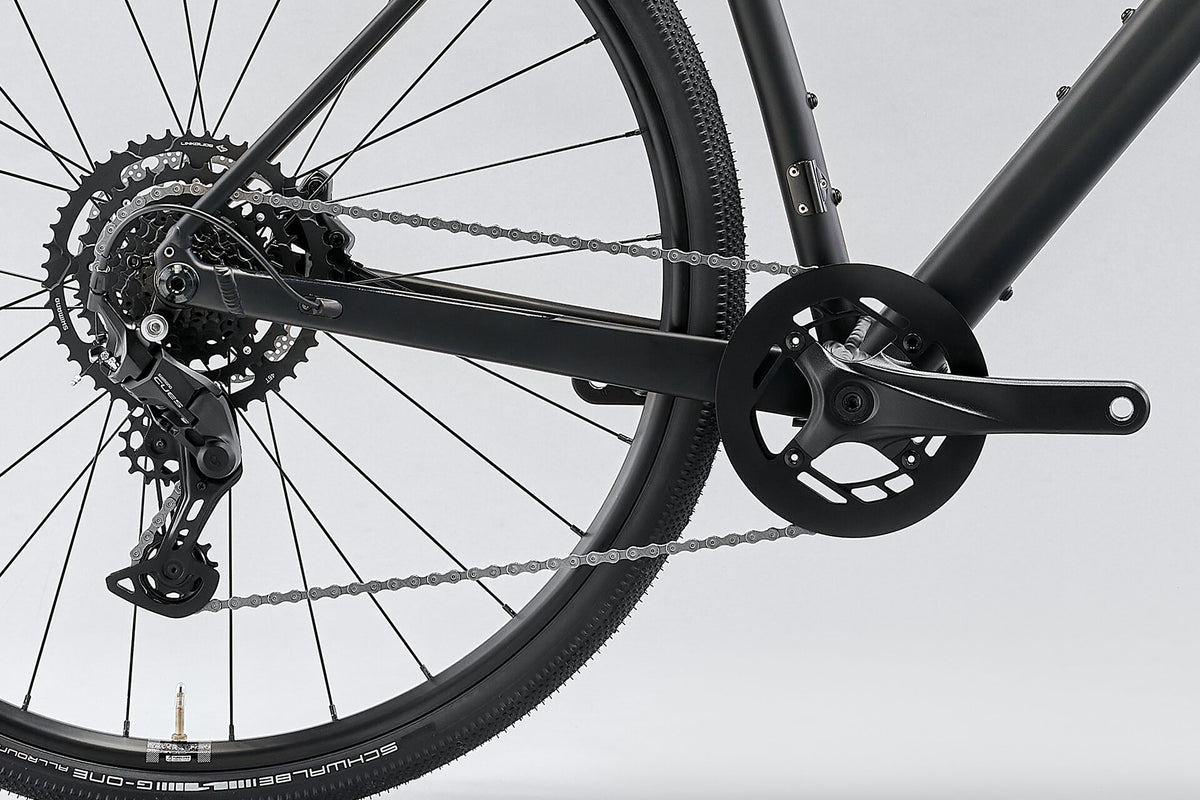

- Shimano CUES 9-speed drivetrain (11-46T)
- Tektro hydraulic disc brakes
- Schwalbe G-One Comp 700 x 40c tyres
- Weight: 12.6kg
- Lightweight butted aluminium frame with smooth welds

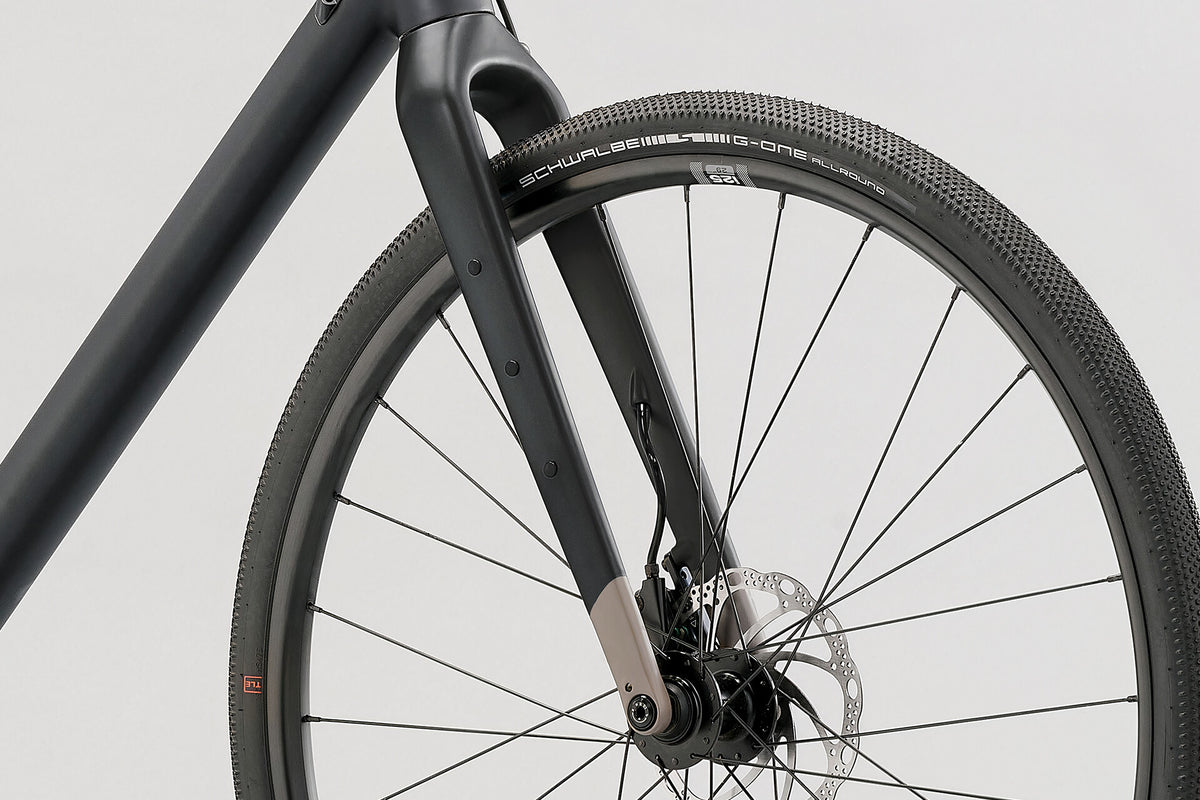

- Full carbon fork with adventure mounts and 12mm thru-axle
- Modern gravel geometry: taller head tube, slacker head angle, longer reach for stability
- Clearance for up to 700 x 50c tyres
- Mounts for multiple bottles, front and rear fenders, top tube bag and rear rack
- Simplified maintenance with guided cable routing
- Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Search Butted Aluminum w/Smooth Welds
-
Fork: Search Carbon, 51mm Offset, 12x100mm TA
-
Rear Shifter: Shimano CUES SL-U4000 Rapid Fire
-
Rear Derailleur: Shimano CUES RD-U4000
-
Crankset: Prowheel, 38T, ST, 170mm (S1,S2,S3,S4) - 172.5mm (S5)
-
Bottom Bracket: Shimano Cartridge Bearing, 68mm BSA
-
Cassette: Shimano CS-LG300, 11-46T, 9sp
-
Chain: KMC Z9
-
Front Brake: Tektro HD-R280 Hydraulic
-
Front Brake Rotor: Tektro 6-Bolt - 160mm
-
Rear Brake: Tektro HD-R280 Hydraulic
-
Rear Brake Rotor: Tektro 6-Bolt - 160mm
-
Brake Levers: Tektro HD-R280 Hydraulic Hydro 3-Finger Levers w/ Reach Adjust
-
Handlebar: Norco Alloy, 620mm (S1,S2) 640mm (S3,S4,S5), 15mm rise
-
Stem: Norco Alloy 70mm Length, 31.8mm Clamp
-
Seatpost: Aluminum 27.2mm
-
Headset: FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
-
Saddle: Selle Royale SRX Gravel, 148mm
-
Grips: Norco Lock On, 130 length
-
Seatpost Clamp: Aluminum Bolted 31.8mm
-
Front Hub: Formula, 12x100mm, 28H, 6-Bolt
-
Rear Hub: Formula, 12x142mm, HG, 28h, 6-Bolt
-
Rims: WTB ST i25 2.0, 28h, 25mm ID
-
Front Tyre: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
-
Rear Tyre: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
-
Spokes/Nipples: Sapim Leader 2.0mm - Black w/Black Brass Nipples
-
Weight: 12.6 kg (27.8 lbs)
-
Weight (Size): S3
