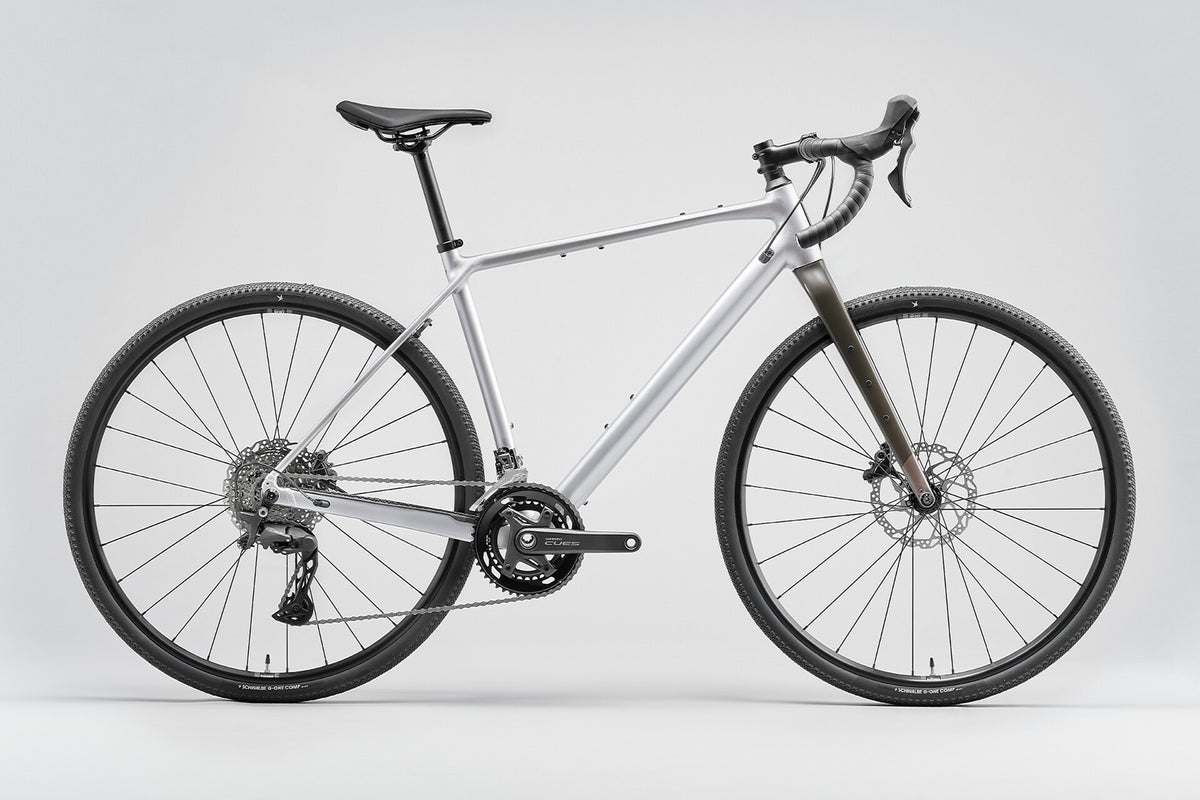

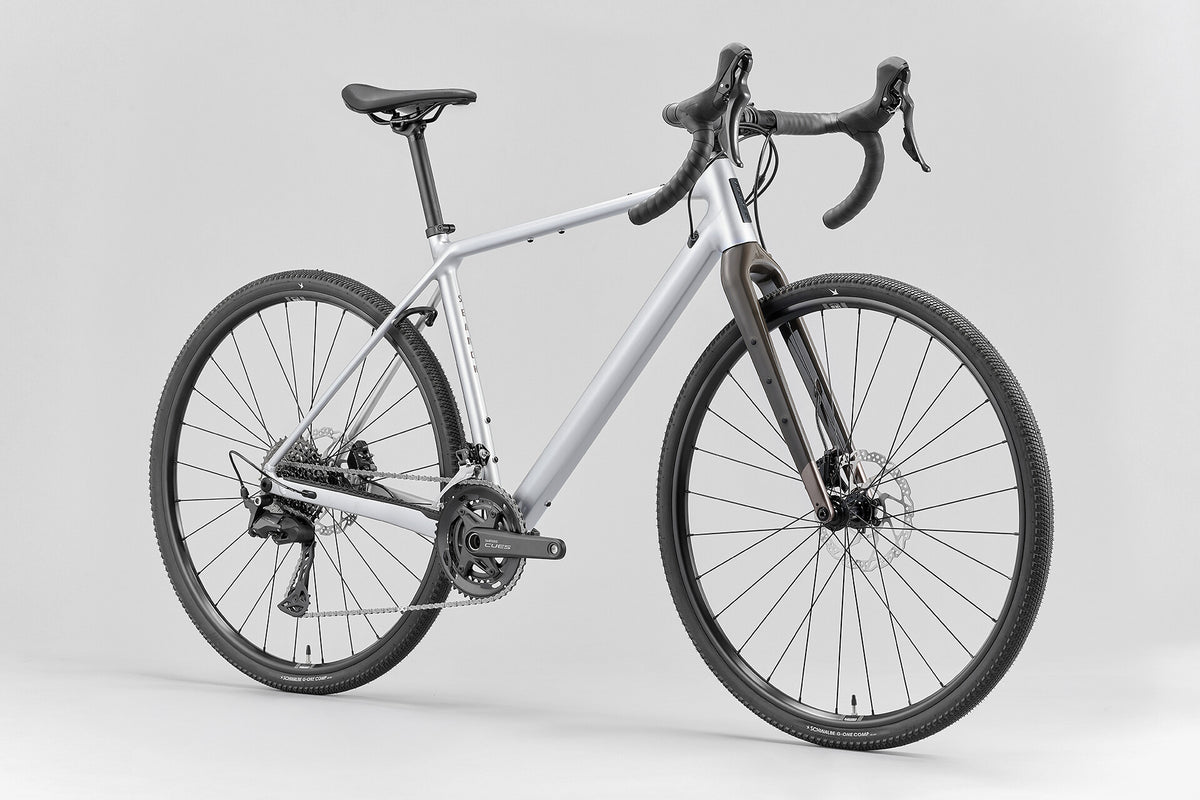

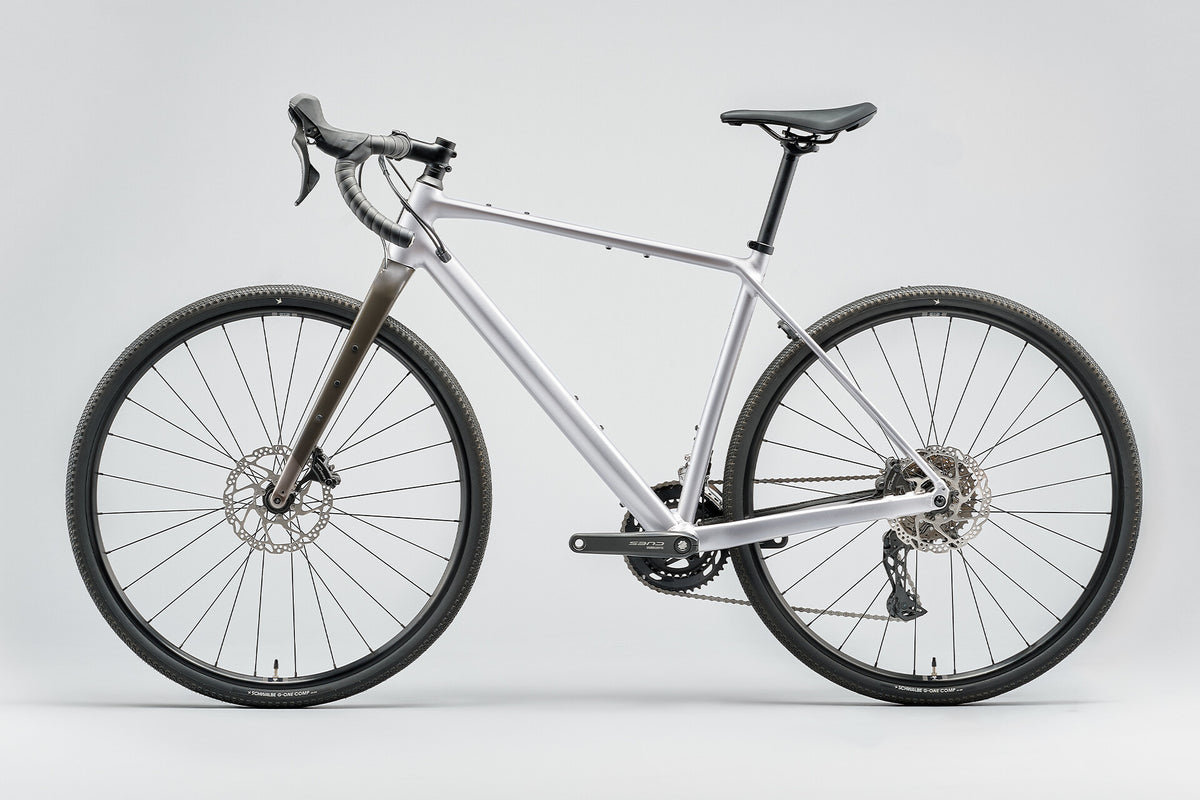

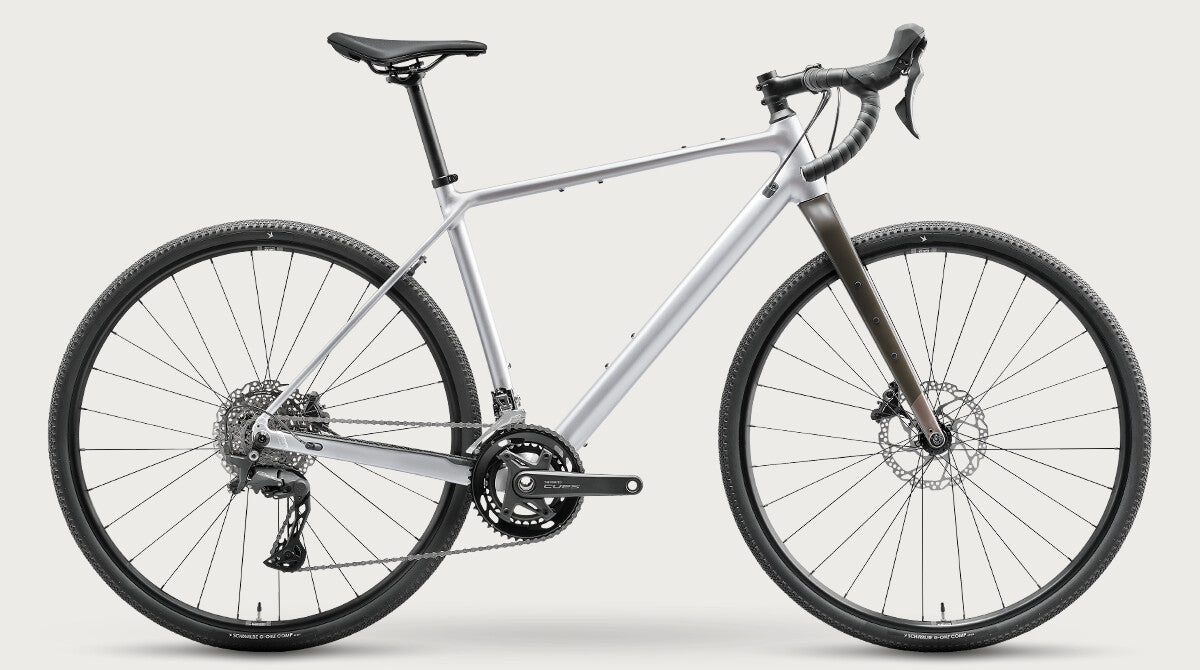

The Search Alloy is a progressive, modern gravel bike that's ready for whatever you point it at - dirt roads, singletrack, bike paths or a multi-day bikepacking trip. Norco redesigned it from the ground up to be lighter, with optimised sizing and geometry, plus all the mounts and tyre clearance you need for real adventures.
The Search A CUES runs a Shimano CUES 2x10 drivetrain and Shimano CUES disc brakes - a wide, close-ratio gear range that's great for mixed riding and loaded touring. Come and see it at Jetty Road Cycles in Rosebud - the team will help you nail the sizing and setup before you roll out the door.
Key Features

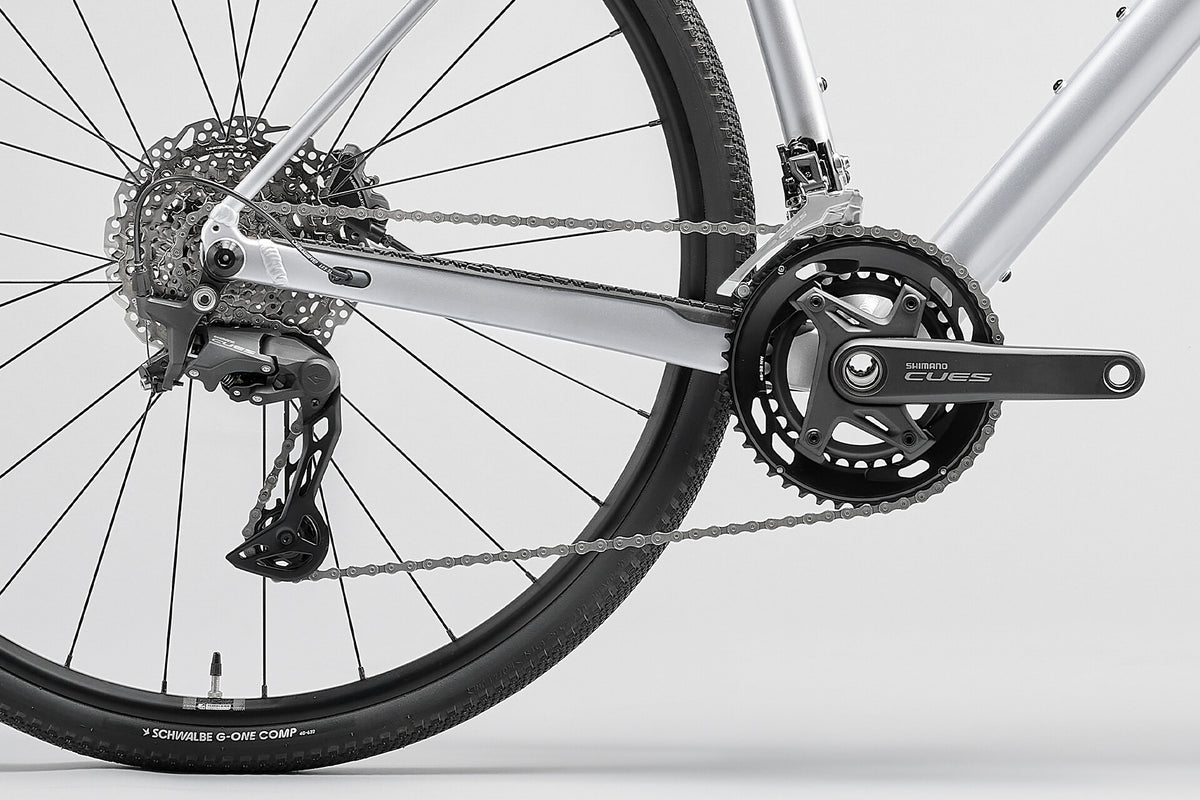

- Shimano CUES 2x10 drivetrain
- Shimano CUES disc brakes
- Norco Super Flare compact alloy bar
- Schwalbe G-One Comp 700 x 40c tyres
- Lightweight butted aluminium frame with smooth welds
- Full carbon fork with adventure mounts and 12mm thru-axle
- Modern gravel geometry: taller head tube, slacker head angle, longer reach for stability
- Clearance for up to 700 x 50c tyres
- Mounts for multiple bottles, front and rear fenders, top tube bag and rear rack
- Simplified maintenance with guided cable routing
- Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Search Butted Aluminum w/Smooth Welds
-

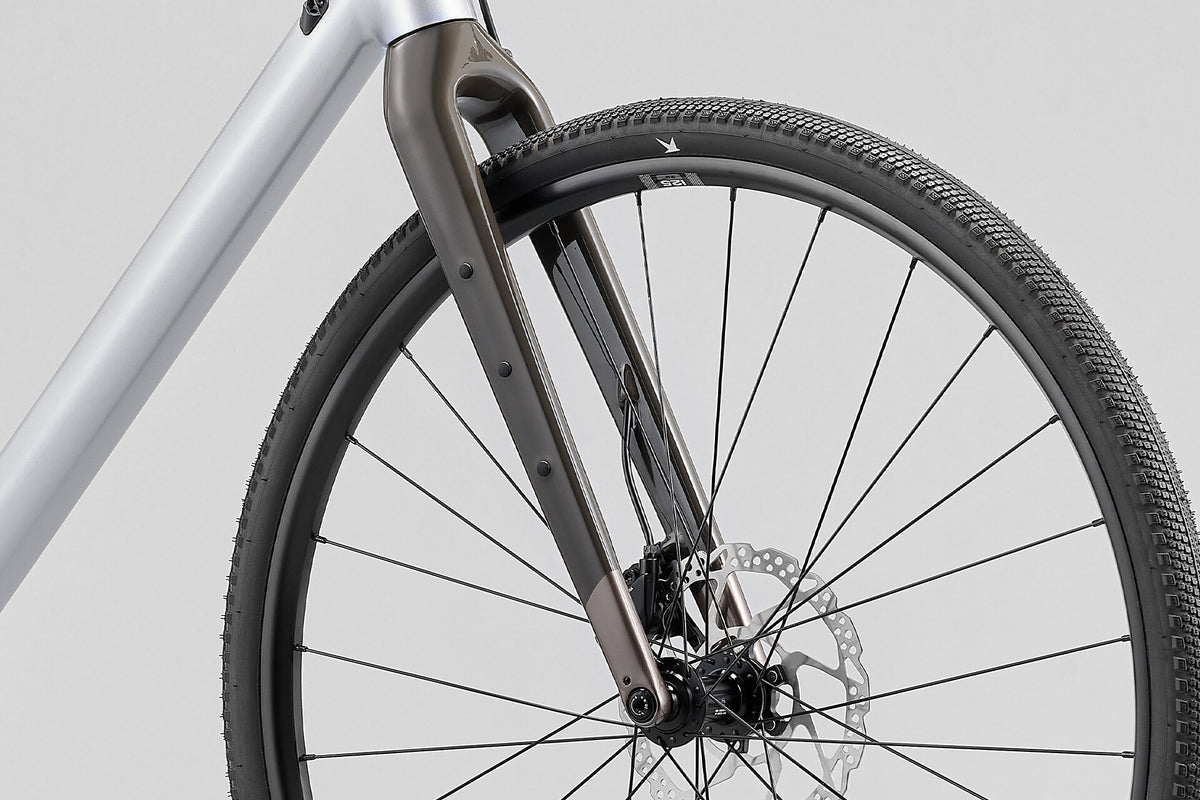

Fork: Search Carbon, 51mm Offset, 12x100mm TA
-
Rear Shifter: Shimano CUES ST-U6030, 11sp
-
Rear Derailleur: Shimano CUES RD-U6020, Shadow, 10sp
-
Front Shifter: Shimano CUES ST-U6030, 2sp
-
Front Derailleur: Shimano CUES FD-U6030, 9/10sp, Down Swing
-
Crankset: Shimano CUES FC-U6030, 46-32T, 170mm
-
Bottom Bracket: Shimano Cartridge Bearing, 68mm BSA
-
Cassette: Shimano LG-400, 11-39T, 10sp
-
Chain: KMC XGlide
-
Front Brake: Shimano CUES BR-U6030, Resin Pads
-
Front Brake Rotor: Shimano SM-RT54 - 160mm, C-lock
-
Rear Brake: Shimano CUES BR-U6030, Resin Pads
-
Rear Brake Rotor: Shimano SM-RT54 - 160mm, C-lock
-
Brake Levers: Shimano CUES ST-U6030
-

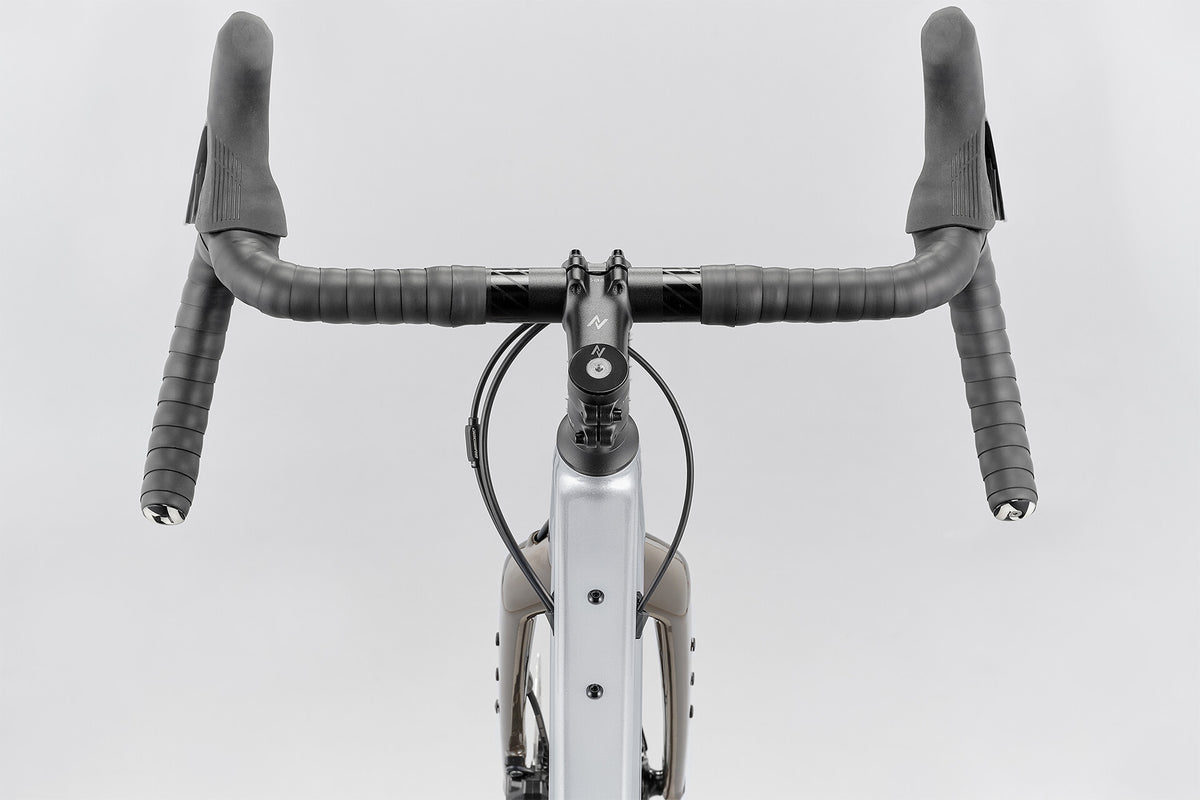

Handlebar: Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree
-
Stem: Norco SL Alloy 70mm Length, 31.8mm Clamp
-
Seatpost: Norco Alloy, 27.2mm, 12Deg Offset, 300mm length
-
Headset: FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
-
Saddle: Selle Royale SRX Gravel, 148mm
-
Grips: Griptacular Shockproof Tape 3mm
-
Seatpost Clamp: Norco Aluminum, 31.8mm ID
-
Front Hub: Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
-
Rear Hub: Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H
-
Rims: WTB ST i25 2.0, 28h, 25mm ID
-
Front Tyre: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
-
Rear Tyre: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
-
Spokes/Nipples: Sapim Leader 2.0mm - Black w/Black Brass Nipples
-
Valves: WTB TCS Tubeless Valve, Brass
-
Sealant: WTB TCS Tubeless Tire Sealant, 8oz/236ml
-
Rim Tape: WTB TCS 2.0 Solid Strip
