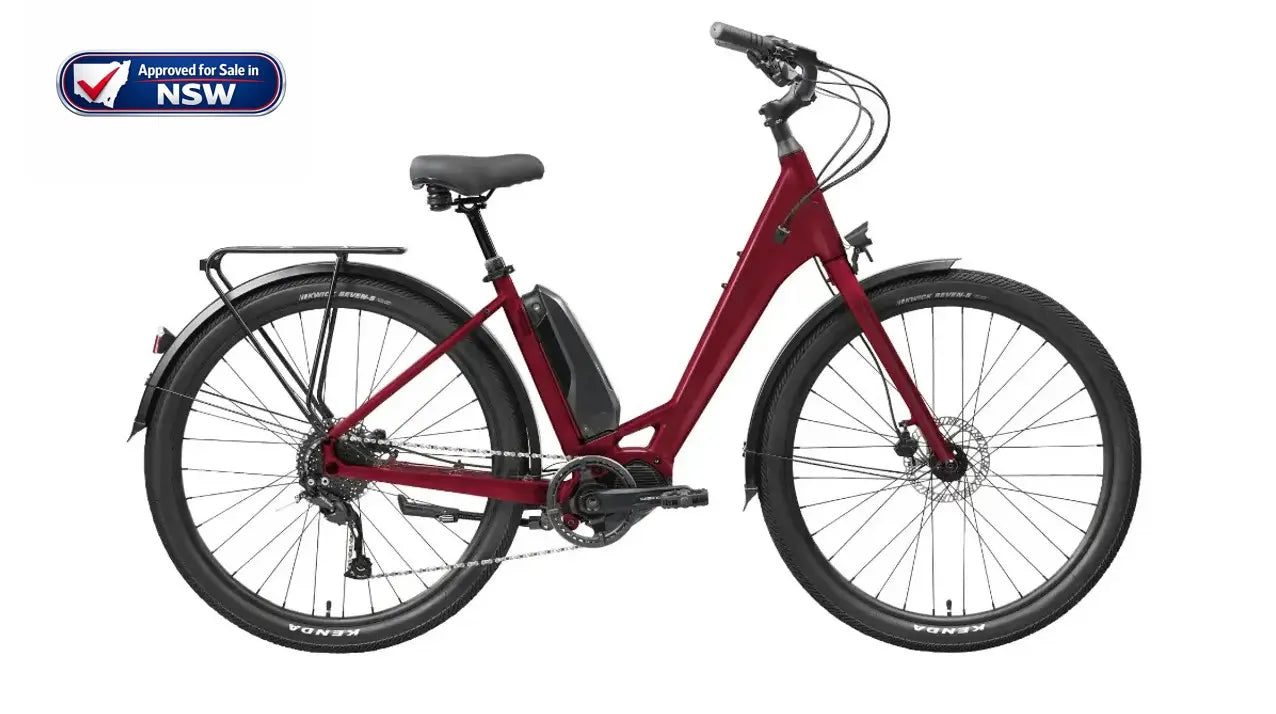

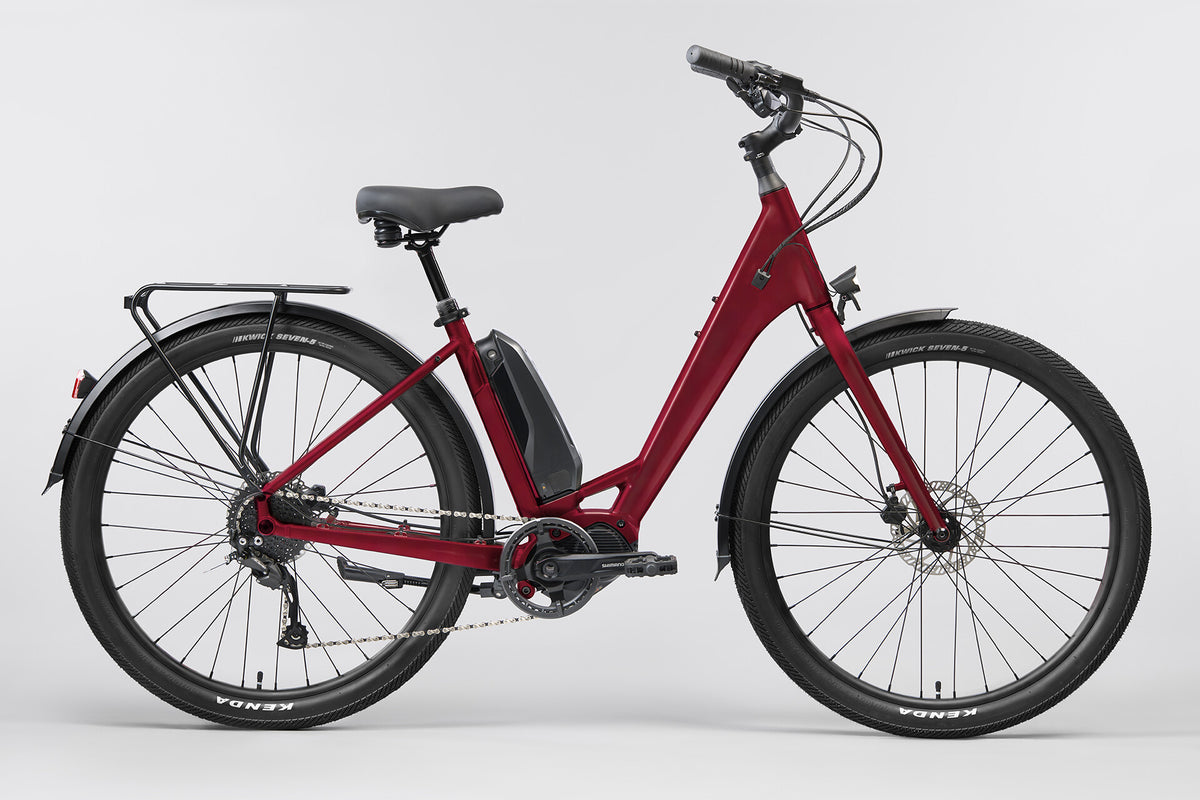

The Scene VLT is an award-winning, relaxed electric hybrid that makes getting around easy. With a flat bar and comfortable upright position, it can replace the car for most trips around town, and the Shimano STEPS motor makes even the hilliest rides no sweat.
The near-silent Shimano STEPS drive system is integrated into a sleek step-through aluminium frame with a low centre of gravity, so getting on and off is easy and handling is stable. A tidy cockpit with compact display, integrated lighting, an automatic dropper post, Shimano CUES 9-speed and hydraulic brakes round out a seriously practical e-bike. Come and see it at Jetty Road Cycles in Rosebud - the team will help you nail the sizing and setup before you roll out the door.
Key Features
- Shimano STEPS EP600 motor with 85Nm torque
- Shimano 504Wh battery - up to approx. 65km at an average 25km/h
- Sleek custom-formed aluminium step-through frame
- Automatic dropper post for instant, easy saddle height adjustment
- Integrated lighting and compact Shimano display
- Shimano CUES 9-speed drivetrain
- Tektro hydraulic disc brakes and high-volume tyres

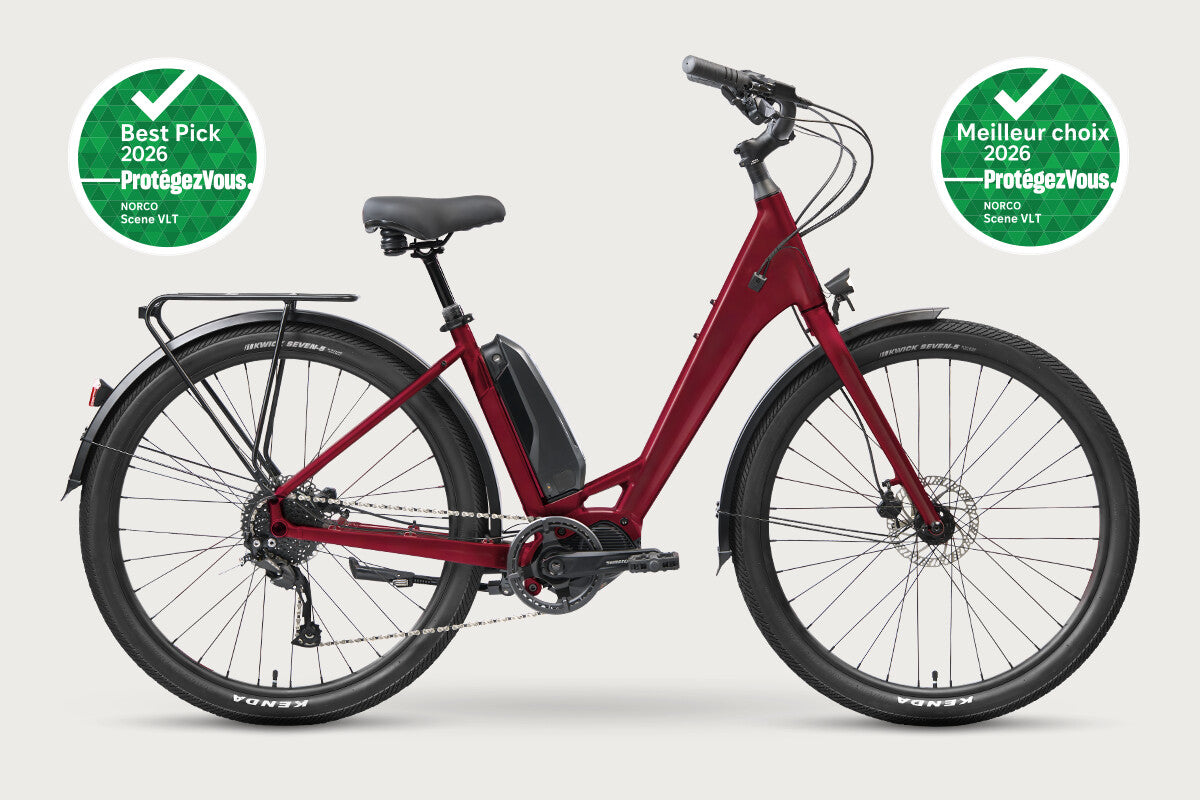

- Winner, Protegez-Vous consumer's choice award
- Marked by the manufacturer as EN 15194 compliant
- Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Double Butted Alloy E-Bike Frame, Internal Cables
-
Fork: Aluminum w/ Light Mount, 12x100 TA, PS
-
Rear Shifter: Shimano CUES SL-U4000-9R, 9sp
-
Rear Derailleur: Shimano CUES RD-U4020, 9sp, SGS
-
Crankset: Shimano FC-EM600, 38T, 165mm
-
Cassette: Shimano CUES CS-LG300-9, 11-36T, 9sp
-
Chain: KMC eGlide, 9sp
-
Front Brake: Tektro HD-M280 Auriga, 2-P, Resin Pads, Anti-Vibration
-
Front Brake Rotor: Tektro TR160-52, 160mm, 1.8mm Thickness, 6-bolt
-
Rear Brake: Tektro HD-M280 Auriga, 2-P, Resin Pads, Anti-Vibration
-
Rear Brake Rotor: Tektro TR160-52, 160mm, 1.8mm Thickness, 6-bolt
-
Brake Levers: Tektro HD-M280 Auriga
-
Handlebar: Norco Scene Aluminum, 660mm, 60mm Rise, 30Deg Backsweep
-
Stem: Norco Aluminum, 70mm (S/M) -80mm (M/L), 17deg Riser, 31.8 clamp
-
Seatpost: TranzX YSP18PLQ, 31.6mm, 100mm
-
Headset: Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
-
Saddle: Scene Comfort Saddle w/Elastomer Suspension, 225mm W x 269mm L
-
Grips: Dual Density Ergonomic Single Lock, 133mm Length
-
Seatpost Clamp: Norco Alloy QR, 31.8mm ID
-
Front Hub: Formula DC-221T, 15x100mm TA, 32h, 6-bolt
-
Rear Hub: Formula DC-142,12x142mm Boost, HG, 32h, 6-bolt
-
Rims: Alloy DW Disc w/27mm ID, 32h
-
Front Tyre: Kenda Kwick Seven5, 27.5 x 2.2", 30 TPI, Wire
-
Rear Tyre: Kenda Kwick Seven5, 27.5 x 2.2", 30 TPI, Wire
-
Spokes/Nipples: 13G Stainless Steel w/Brass Nipples 2.0MMX16MM - Black
-
Drive Unit: Shimano DU-EP600, 85 N.m
-
Battery: Shimano BT-EN605, 504 Wh
-
External Charging Adaptor: Shimano EC-E6002, 1.8A
-
Display: Shimano SC-EN500, 22.2mm Clamp Band
-
Sensor: Shimano EW-SS300 Sensor
