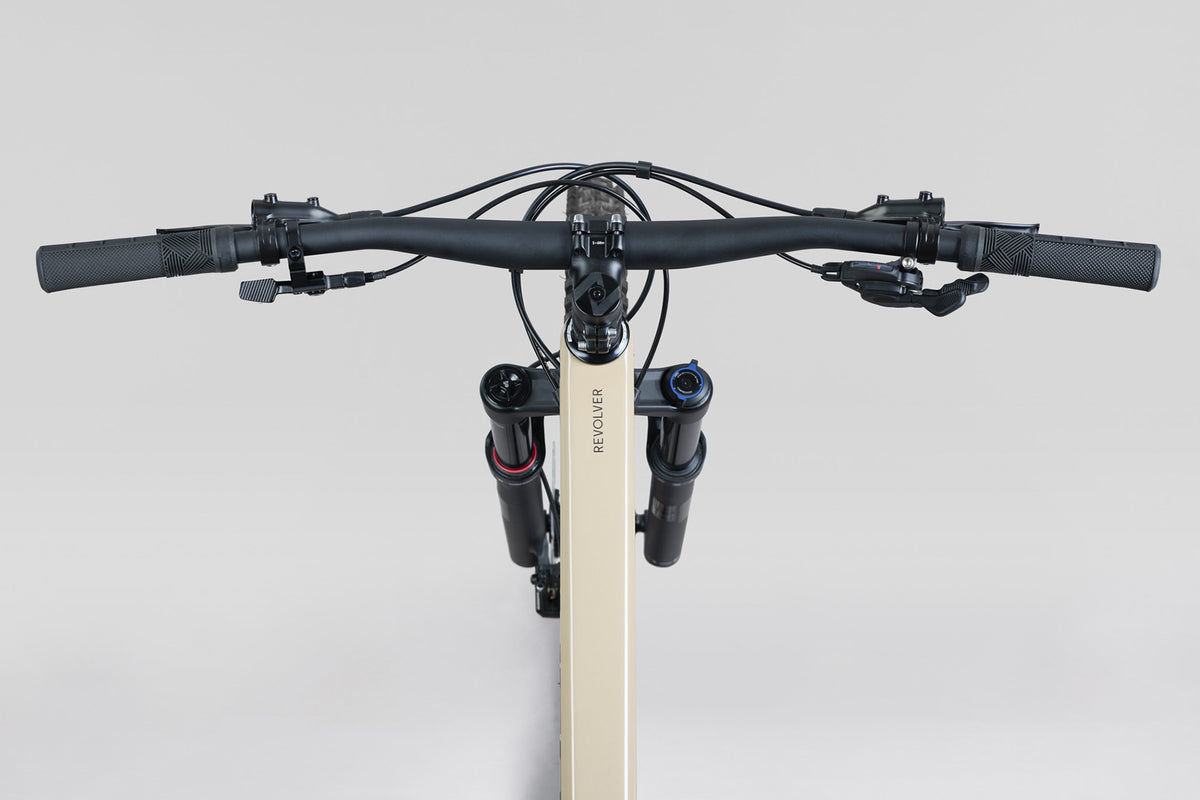

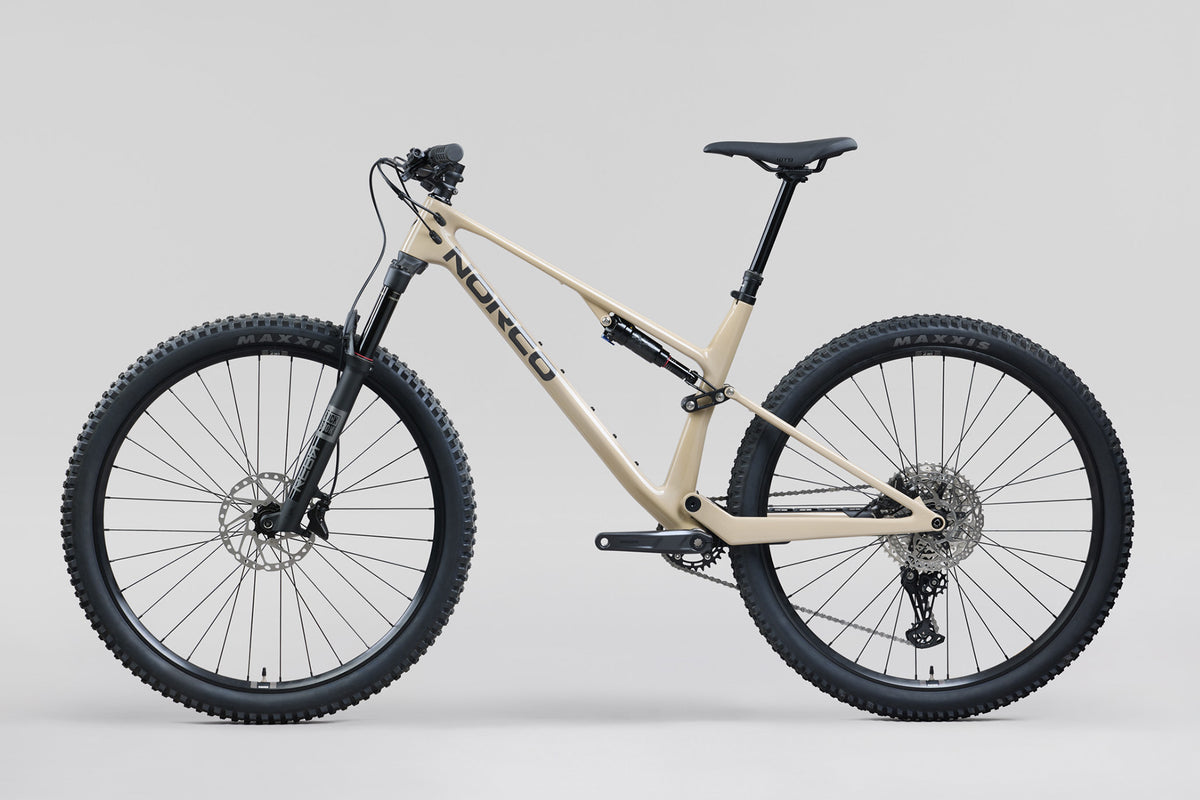

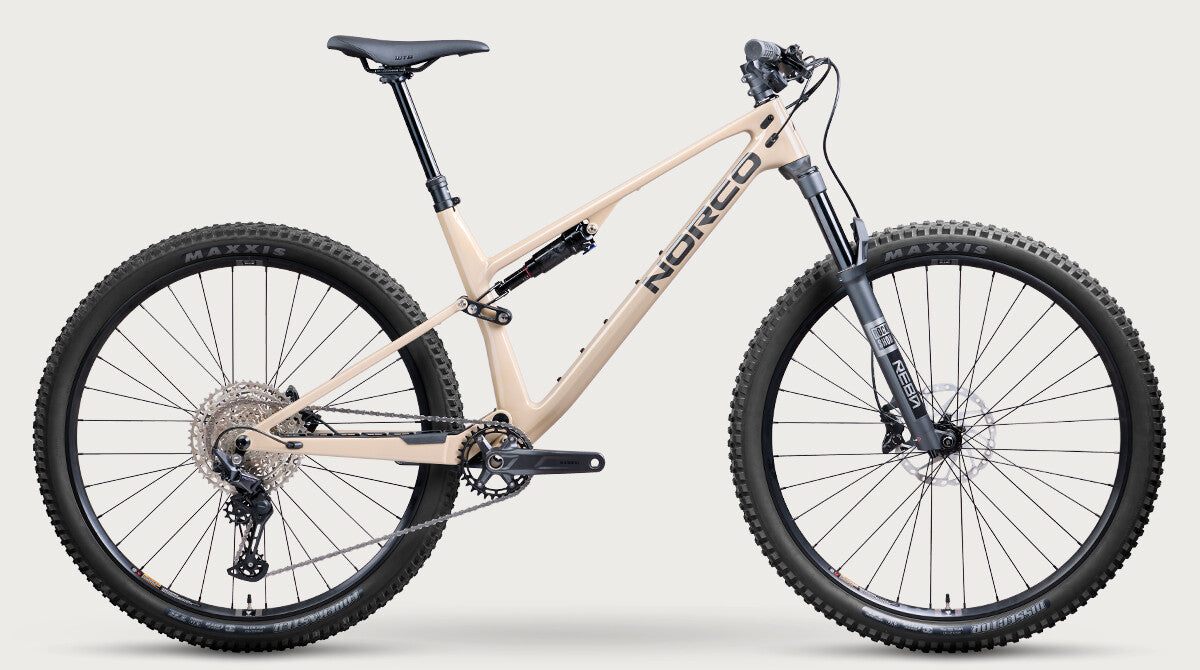

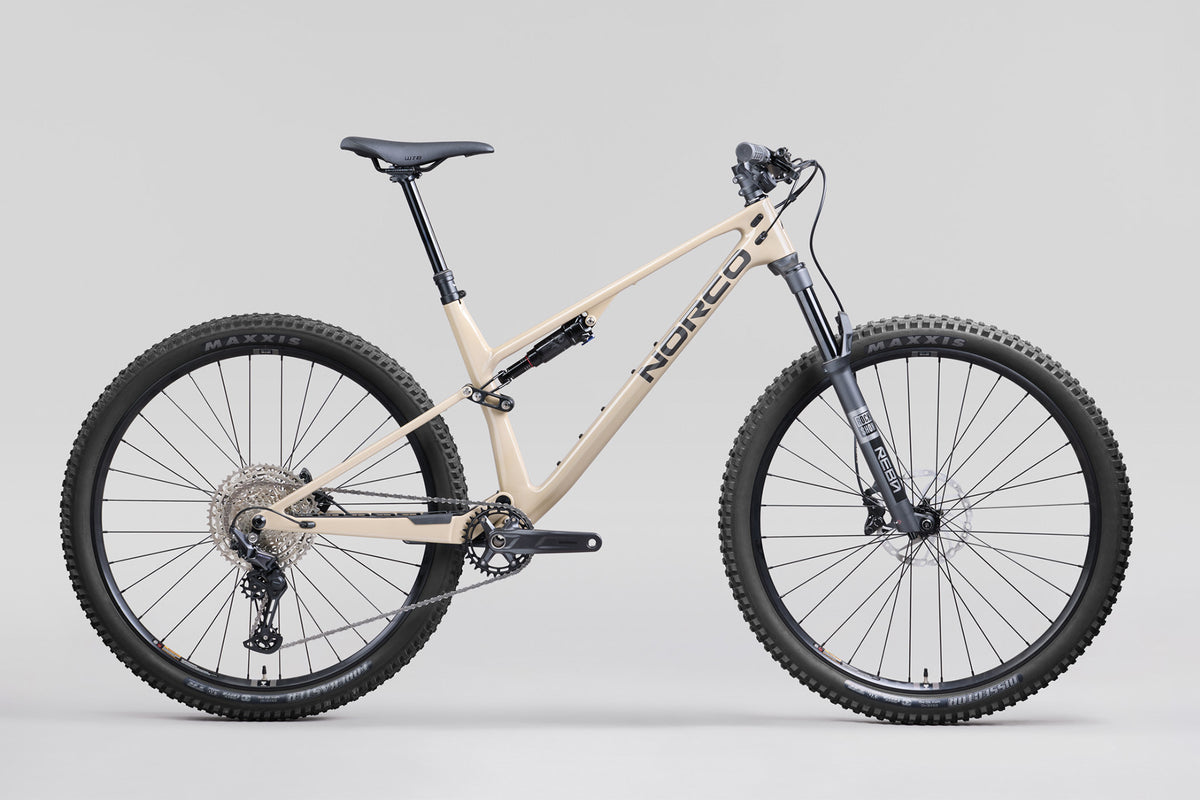

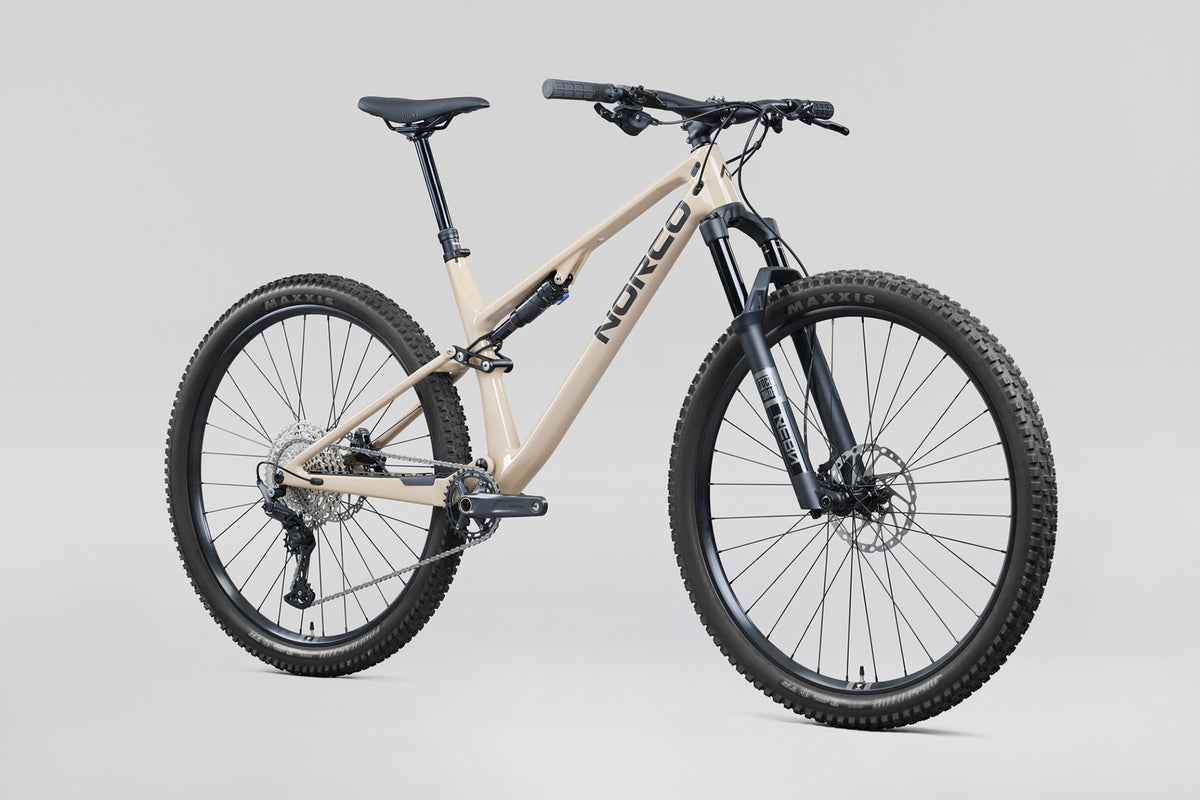

This Revolver gets 130mm of travel up front and 120mm out back, with a half-degree slacker head angle, so it goes double duty: spicy XC race days and fast, playful trail rides. It's built on the lightest full-suspension frame Norco has ever made, with Flex-Pivot suspension and a size-optimised carbon layup. If you love light, fast, all-day adventures, this is your bike.
The Revolver LT C3 gets you on the carbon frame for less, with a RockShox Reba RL fork, SIDLuxe Select+ shock, Shimano Deore 12-speed and Shimano hydraulic brakes, plus a long-travel TranzX dropper. Pop into the shop in Rosebud and chat to the team - we'll help you find the right size and get it set up just how you like it.
Key Features
- 130mm fork / 120mm rear travel
- RockShox Reba RL fork and SIDLuxe Select+ shock
- Shimano Deore 12-speed
- Shimano hydraulic disc brakes
- TranzX RAD+ dropper, up to 230mm travel
- Slacker XC geometry for light, fast and playful handling
- Norco's lightest full-suspension carbon frame
- Flex-Pivot suspension - big performance without the weight
- Balanced weight distribution across all sizes
- UDH and SRAM Eagle Transmission compatible
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-
Fork: RockShox Reba RL, Motion Control, 130mm, 44mm offset,
-
Rear Shock: RockShox SID LUX Select +, 190x45mm, Std eyelet
-
Rear Shifter: Shimano Deore SL-M6200-IR, 12sp
-
Rear Derailleur: Shimano Deore RD-M6200, SGS, 12sp
-
Crankset: Shimano Deore FC-MT520, 32T, CL55, 165mm (S1,S2) -170mm (S3,S4,S5)
-
Bottom Bracket: Shimano BB-MT501, BSA 73mm
-
Cassette: Shimano Deore CS-M6200-12, 10-51T, 12sp
-
Chain: Shimano Deore CN-M6100, 12sp
-
Front Brake: Shimano BR-MT420, Resin pads
-
Front Brake Rotor: Shimano SM-RT54, 180mm, C-lock
-
Rear Brake: Shimano BR-MT420, Resin pads
-
Rear Brake Rotor: Shimano SM-RT54, 180mm, C-lock
-
Brake Levers: Shimano BL-MT401
-
Handlebar: Norco 6061, 760mm (S1,S2,S3) 780mm (S4,S5), 20mm Rise
-
Stem: 6061 Alloy, 40mm Length, 35mm Clamp
-
Seatpost: TranzX YSI36 RAD+, 31.6mm, 150mm (S1, S2) -170mm (S3) -200mm (S4) - 230mm (S5)
-
Headset: FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
-
Saddle: WTB Silverado Medium
-
Grips: Norco Lock On, 130 length
-
Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID
-
Front Hub: Shimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
-
Rear Hub: Shimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
-
Rims: WTB ST TCS 2.0, 27mm ID, 32H
-
Front Tyre: Maxxis NEW Dissector, 3C MaxxTerra EXO, 29X2.4"
-
Rear Tyre: Maxxis NEW Forekaster, 3C MaxxTerra EXO, 29x2.4"
