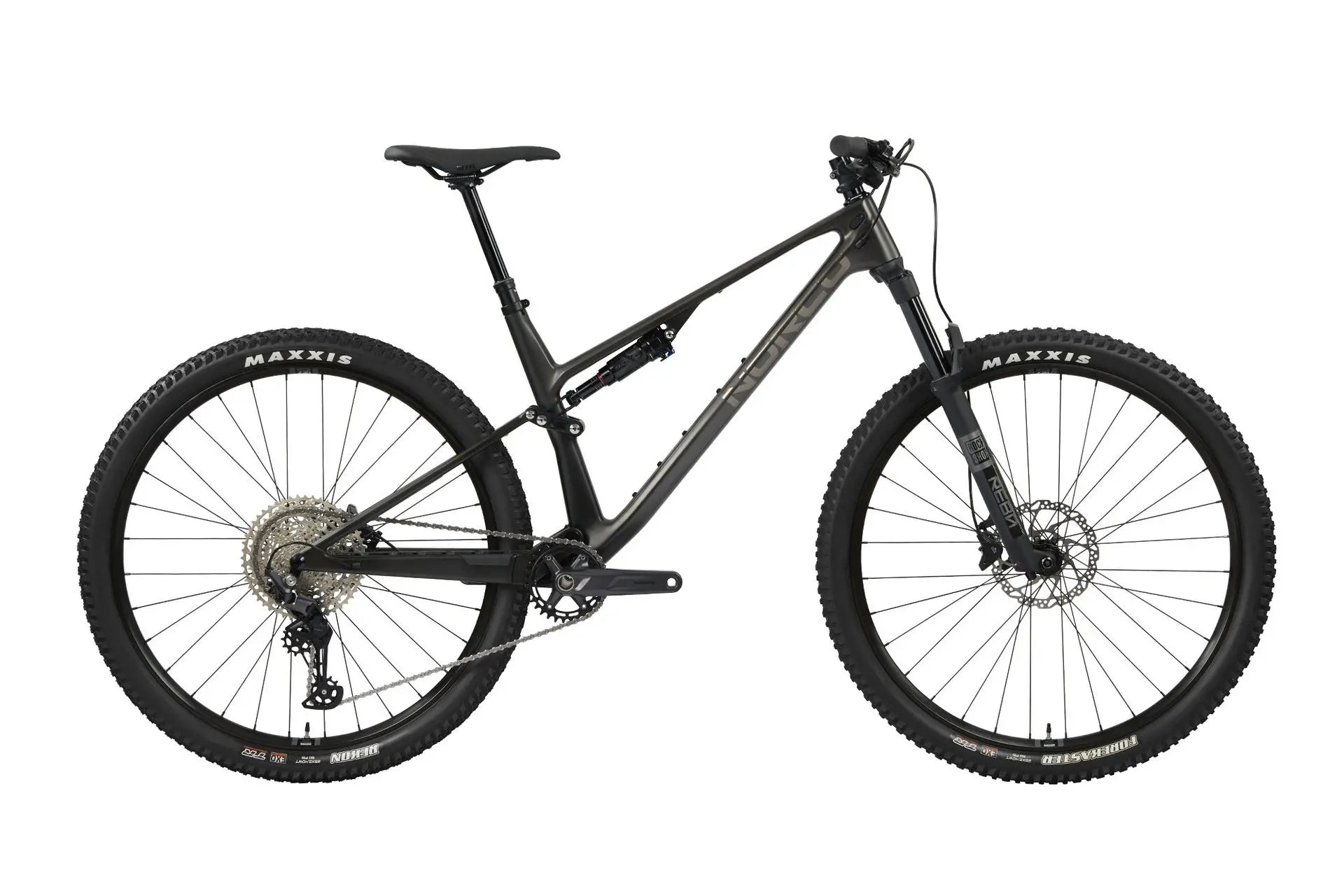

The Revolver 130 adds a little extra travel and a lot more versatility to NorcoÕs lightweight race platform. With 10mm more travel up front and 5mm more out back, plus a half-degree slacker head angle, the Revolver 130 blends cross-country speed with true trail capability. This bike is equally at home on fast XC race courses or long, adventurous trail rides. With 130mm of front travel and 120mm in the rear, it delivers a perfect balance of efficiency, control, and playful trail handling. If you're a racer at heart but love exploring big rides with technical sections along the way, the Revolver 130 is built for you.
Key Features
- Lightweight carbon frame with 120mm rear travel
- 130mm RockShox suspension for confident trail capability
- Modern geometry for stability without sacrificing climbing efficiency
- Shimano Deore 12-speed drivetrain for wide-range gearing
- 29" wheels with aggressive trail-ready tyres
- Ride Alignedª design for optimized fit and handling
Specifications
-
Frame:Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª
-
Fork:RockShox Reba RL, Motion Control, 130mm Travel, 44mm Offset
-
Rear Shock:RockShox SID LUX Select+, 190x45mm
-
Headset:FSA No.42/48ACB Integrated, Tapered 1-1/8" Ð 1.5"
-
Handlebar:Norco 6061 Alloy, 760mm (S1,S2,S3) / 780mm (S4,S5), 20mm Rise
-
Stem:Norco 6061 Alloy, 50mm Length, 35mm Clamp
-
Grips:WTB Wavelength
-
Seatpost:TranzX YSI36 Dropper Ñ 31.6mm, 120mm (S1,S2) / 150mm (S3) / 170mm (S4) / 200mm (S5)
-
Seatpost Clamp:Norco Bolted, 34.9mm ID
-
Saddle:WTB Silverado Medium
-
Front Brake:Shimano Deore MT520, 4-Piston, Resin Pads
-
Front Rotor:Shimano SM-RT64, 180mm, Centerlock
-
Rear Brake:Shimano Deore MT520, 4-Piston, Resin Pads
-
Rear Rotor:Shimano SM-RT64, 180mm, Centerlock
-
Shifter:Shimano Deore SL-M6100, 12 Speed
-
Rear Derailleur:Shimano Deore RD-M6100 SGS, 12 Speed
-
Cassette:Shimano Deore CS-M6100-12, 10-51T, 12 Speed
-
Chain:Shimano Deore CN-M6100, 12 Speed
-
Crankset:Shimano Deore FC-MT512, 32T Ñ 165mm (S1) / 170mm (S2,S3) / 175mm (S4,S5)
-
Bottom Bracket:Shimano BB-MT501, BSA 73mm
-
Front Hub:Shimano Deore HB-MT410, 15x110mm Boost, 32H, Centerlock
-
Rear Hub:Shimano Deore FH-MT510, 12x148mm Boost, Microspline, 32H, Centerlock
-
Rear Axle:148mm x 12mm Thru Axle, L174, TL13, M12x1.6
-
Rims:WTB ST i27 TCS, 27mm Internal Width, 32H, 29"
-
Front Tire:Maxxis Forekaster, EXO, TR, 29x2.40"
-
Rear Tire:Maxxis Rekon, EXO, TR, 29x2.40"
-
Spokes:Stainless Steel
-
Sealant:StanÕs Tubeless Sealant, 250ml
-
Valves:WTB Tubeless Valves
-
Weight:13.64 kg (30 lbs)
-
Weight Size:S3
