This Revolver gets 130mm of travel up front and 120mm out back, with a half-degree slacker head angle, so it goes double duty: spicy XC race days and fast, playful trail rides. It's built on the lightest full-suspension frame Norco has ever made, with Flex-Pivot suspension and a size-optimised carbon layup. If you love light, fast, all-day adventures, this is your bike.
The Revolver C3 130 gets you on the carbon frame for less, with a RockShox Reba RL fork, SIDLuxe Select+ shock, Shimano Deore 12-speed and Shimano hydraulic brakes. A great base to upgrade over time. Drop into Jetty Road Cycles in Rosebud to check one out in person, and our workshop will make sure it's dialled for you.
Key Features
- 130mm fork / 120mm rear travel
- RockShox Reba RL fork and SIDLuxe Select+ shock
- Shimano Deore 12-speed
- Shimano hydraulic disc brakes
- Weight: approx. 13.64kg
- Slacker XC geometry for light, fast and playful handling
- Norco's lightest full-suspension carbon frame
- Flex-Pivot suspension - big performance without the weight
- Balanced weight distribution across all sizes
- UDH and SRAM Eagle Transmission compatible
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-

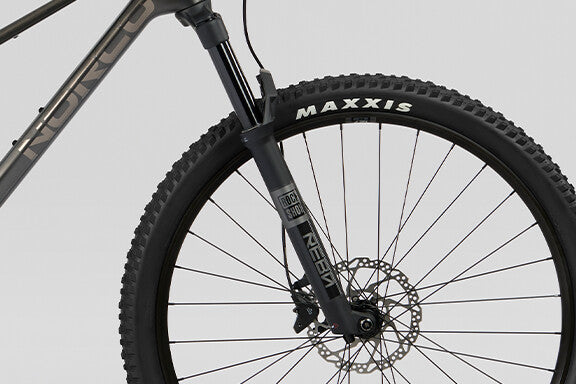

Fork: Rockshox Reba RL, Motion Control, 130mm, 44mm offset,
-

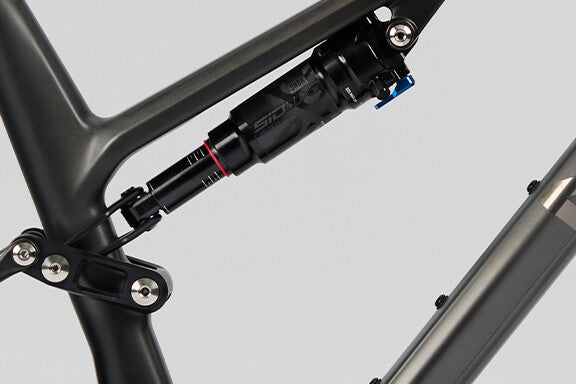

Rear Shock: Rockshox SID LUX Select +, 190x45mm, standard
-
Rear Shifter: Shimano Deore SL-M6100, 12sp
-

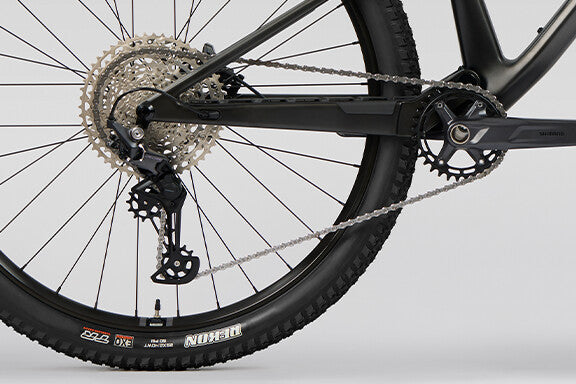

Rear Derailleur: Shimano Deore RD-M6100, 12sp, SGS
-
Crankset: Shimano Deore FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5)
-
Bottom Bracket: Shimano BB-MT501, BSA 73mm
-
Cassette: Shimano Deore CS-M6100-12, 10-51T, 12sp
-
Chain: Shimano Deore CN-M6100-12, 12sp
-
Front Brake: Shimano Deore BR-MT410, 2-Piston, Resin Pads
-
Front Brake Rotor: Shimano SM-RT64, 180mm, C-lock
-
Rear Brake: Shimano Deore BR-MT410, 2-Piston, Resin Pads
-
Rear Brake Rotor: Shimano SM-RT64, 180mm, C-lock
-
Brake Levers: Shimano Deore M4100
-

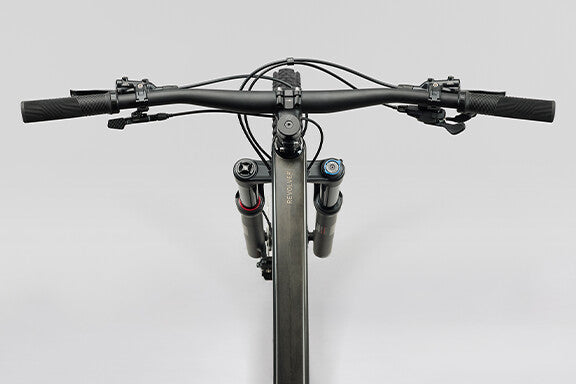

Handlebar: Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise
-
Stem: Norco 6061, 50mm, 35mm Clamp
-
Seatpost: TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
-
Headset: FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
-
Saddle: WTB Silverado Medium
-
Grips: WTB Wavelength
-
Seatpost Clamp: Norco bolted, 34.9mm ID
-
Front Hub: Shimano Deore HB-MT410, 15x110mm Boost, 32H, C-lock
-
Rear Hub: Shimano Deore FH-MT510, 12x148 Boost, Microspline, 32H, C-lock
-
Rims: WTB ST i27 TCS, 27mm ID, 32H, 29"
-
Front Tyre: Maxxis New Forekaster, EXO, TR 29x2.40"
-
Rear Tyre: Maxxis Rekon, EXO, TR 29x2.40"
-
Rear Hub Skewer: 148mm x 12mm TA, L174, TL13, M12x1.6
-
Spokes/Nipples: Stainless steel
-
Valves: WTB tubeless valves
-
Sealant: Stans 250ml sealant
-
Weight: 13.64 kg (30 lbs)
