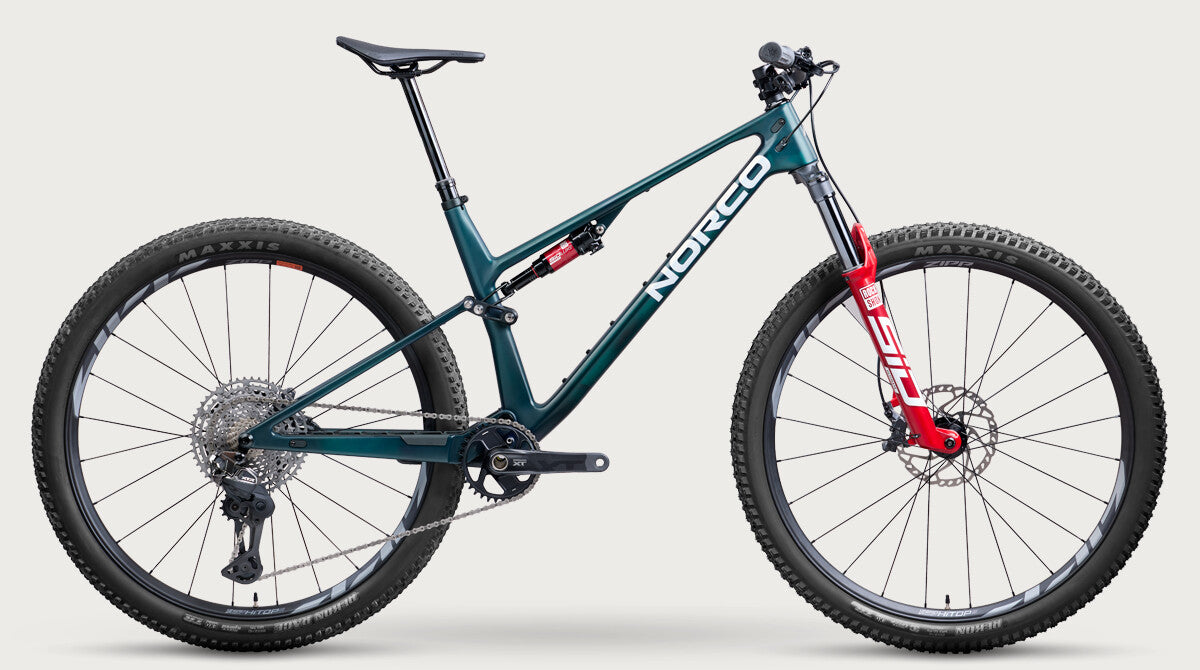

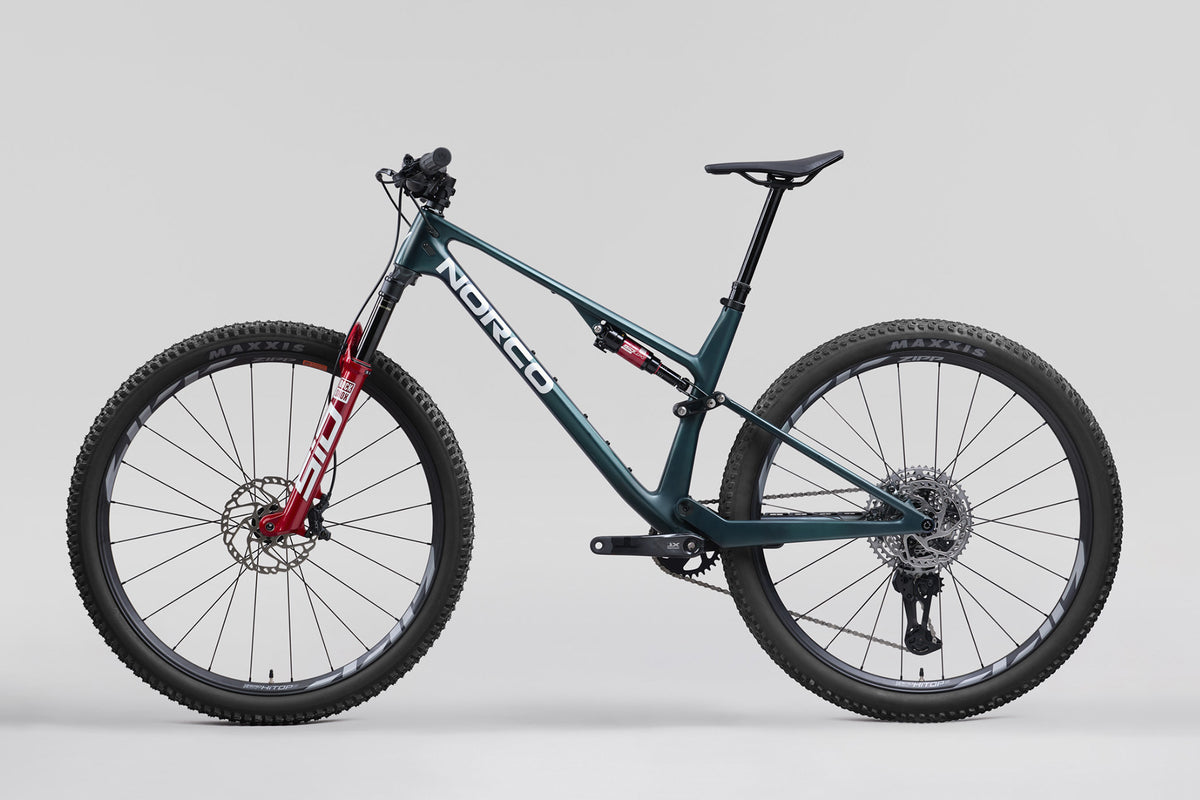

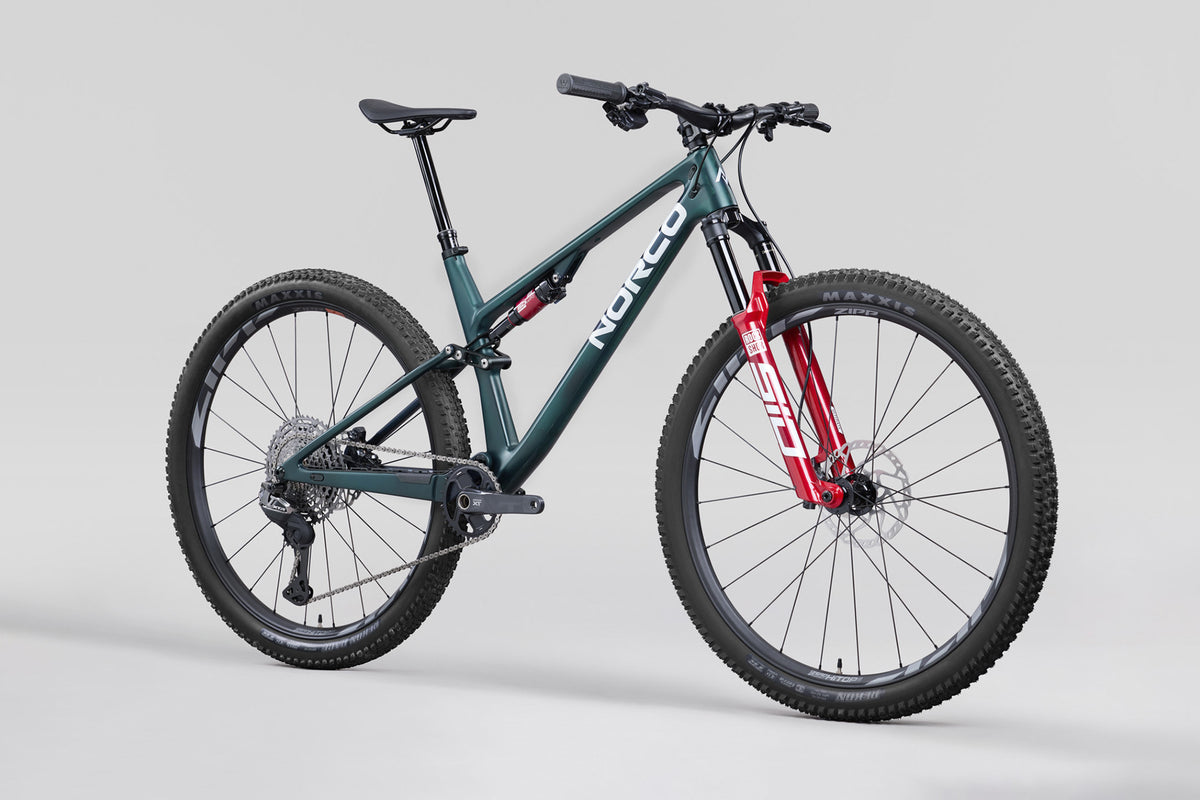

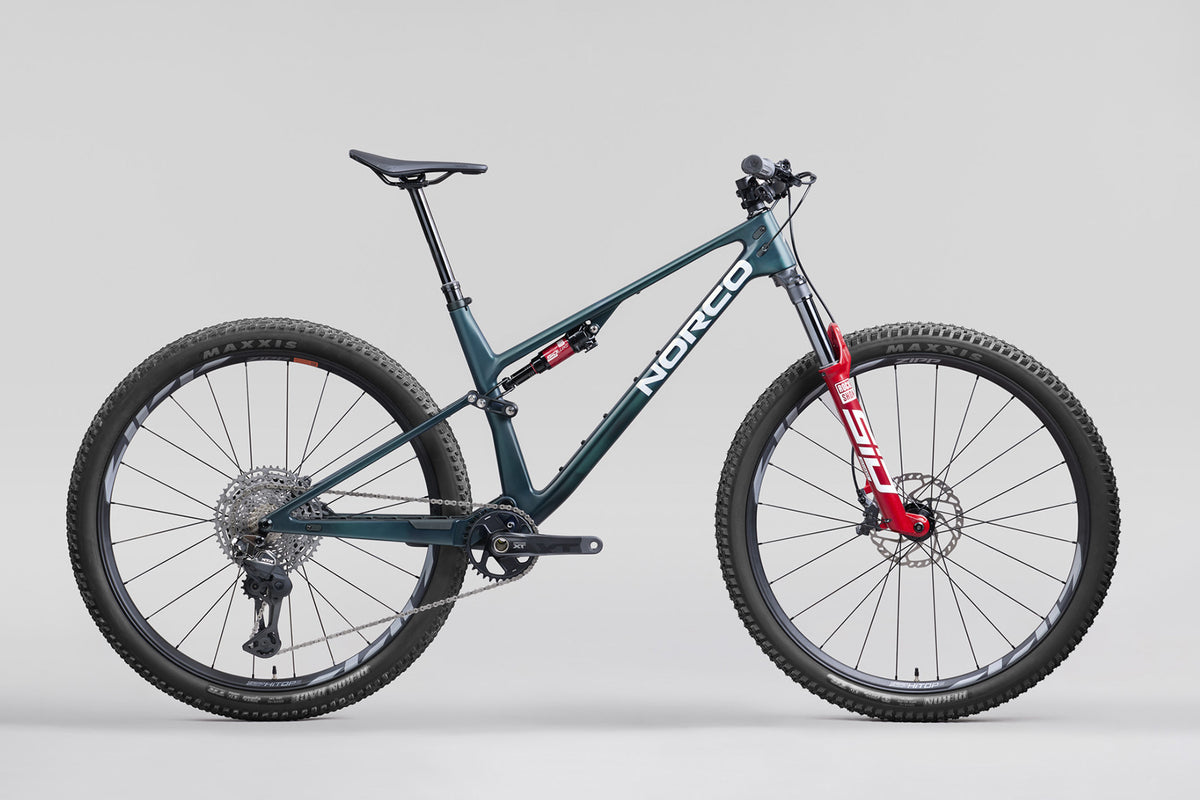

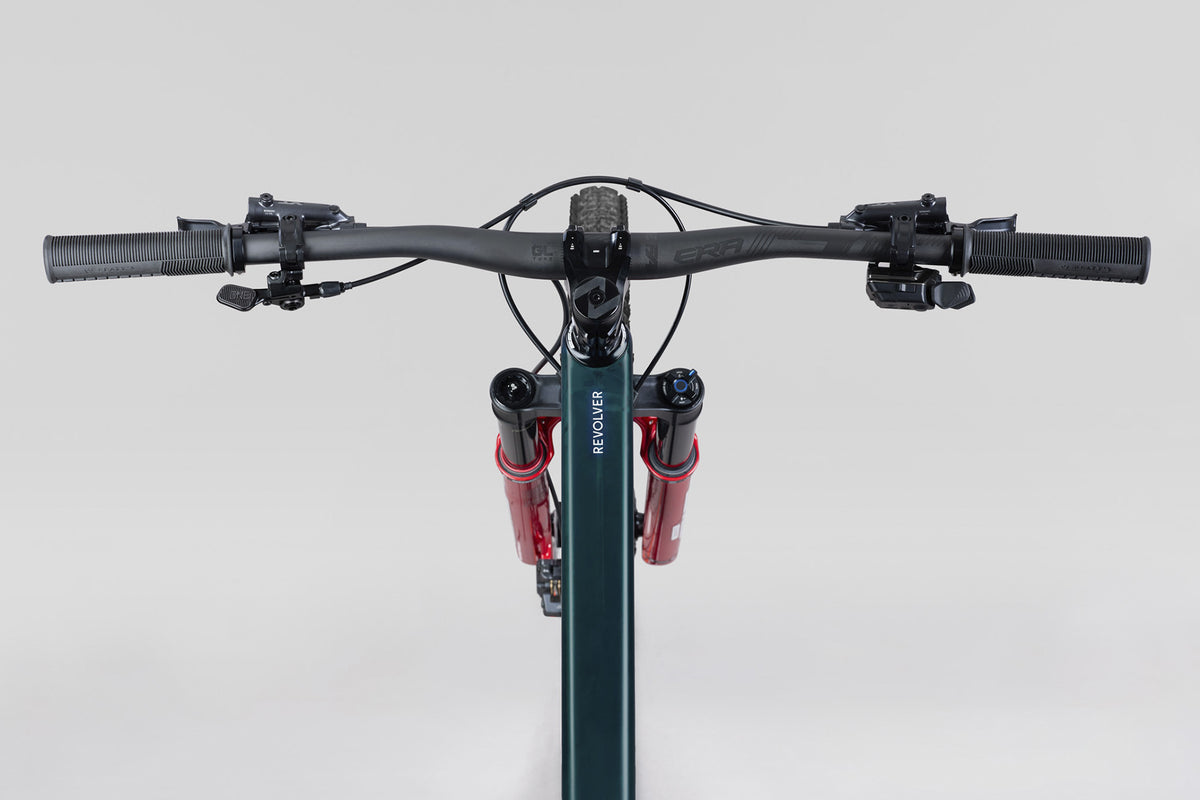

The Revolver is the lightest full-suspension frame Norco has ever built, and it's surprisingly capable. Its Flex-Pivot suspension gets more out of lightweight inline shocks, while aggressive modern XC geometry and a carbon layup optimised for each frame size give consistent weight distribution and ride feel whatever size you ride.
The 2027 Revolver C1 is a race-ready rocket: RockShox SID Ultimate fork and SIDLuxe Ultimate shock, Shimano XTR Di2 shifting, Shimano XT 4-piston brakes, a long-travel OneUp V3 dropper and Zipp 1Zero carbon wheels. Ideal for stage races, marathon events or big days on the bike. Pop into the shop in Rosebud and chat to the team - we'll help you find the right size and get it set up just how you like it.
Key Features
- 120mm fork / 115mm rear travel
- Norco's lightest full-suspension carbon frame
- RockShox SID Ultimate fork and SIDLuxe Ultimate shock
- Shimano XTR Di2 12-speed
- OneUp V3 dropper, up to 240mm travel
- Zipp 1Zero HiTop S carbon wheels
- Flex-Pivot suspension - big performance without the weight
- Aggressive modern XC geometry, 29" wheels in all sizes
- Size-optimised carbon layup for consistent stiffness and ride feel
- UDH and SRAM Eagle Transmission compatible
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Carbon Frame, 115mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-
Fork: RockShox Sid Ultimate 3P, 120mm, 44mm offset
-
Rear Shock: RockShox SIDLuxe Ultimate, 190x42.5mm, Std eyelet
-
Rear Shifter: Shimano XTR Di2 SW-M9250-IR, 12sp
-
Rear Derailleur: Shimano XTR RD-9250 Di2, 12sp, SGS
-
Crankset: Shimano Deore XT FC-M8200, 34T, CL55, 165mm (S1,S2), 170mm (S3,S4,S5)
-
Bottom Bracket: Shimano BB-MT501, BSA 73mm
-
Cassette: Shimano XTR CS-M900-12, 10-51T, 12sp
-
Chain: Shimano Deore CN-M9100-12, 12sp
-
Front Brake: Shimano Deore XT BR-M8220 4-P, Metallic pads
-
Front Brake Rotor: Shimano SM-RT66, 180mm, 6-bolt
-
Rear Brake: Shimano Deore XT BR-M8220 4-P, Metallic pads
-
Rear Brake Rotor: Shimano SM-RT66, 160mm, 6-bolt
-
Brake Levers: Shimano Deore XT BL-M8200
-
Handlebar: RaceFace ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm Rise
-
Stem: Norco CNC Alloy, 50mm Length, 35mm Clamp
-
Seatpost: OneUp V3 w/ One Up 1x lever, 31.6mm, 150mm (S1-S2) -180mm (S3) -210mm (S4) -240mm (S5)
-
Headset: FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
-
Saddle: Fizik Ridon, MG Rail
-
Grips: Peaty's Monarch, Mushroom, Thin
-
Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID
-
Front Hub: Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
-
Rear Hub: Zipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt
-
Rims: Zipp 1Zero Hitop S Carbon, 30mm ID, 29"
-
Front Tyre: Maxxis Rekon, 3C MaxxTerra EXO, 29x2.4"
-
Rear Tyre: Maxxis Rekon Race, NEW Maxx Speed EXO 29x2.4"
-
Feature 1: Zipp 1Zero HitOP B1
