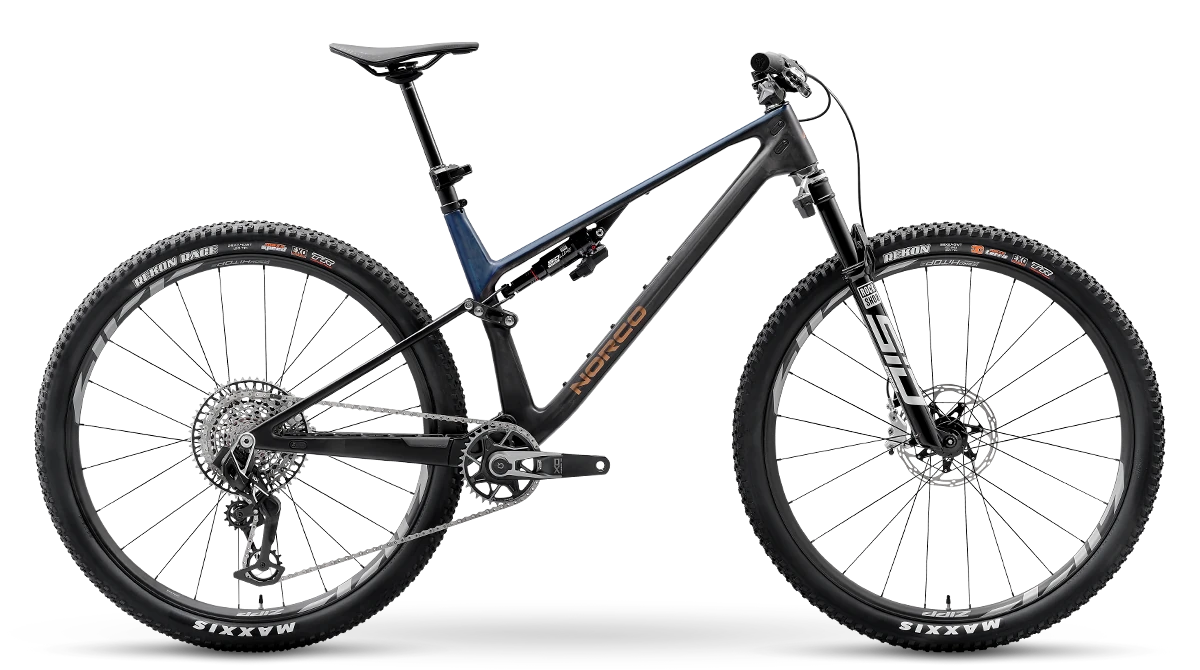

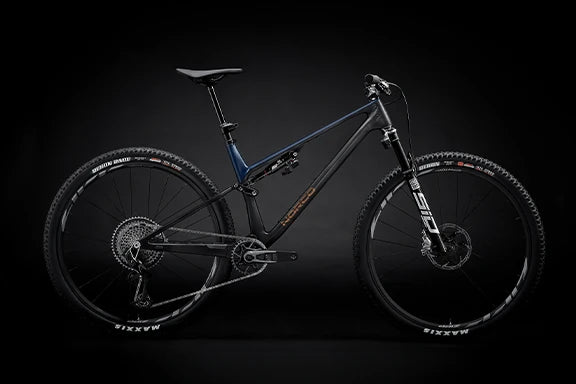

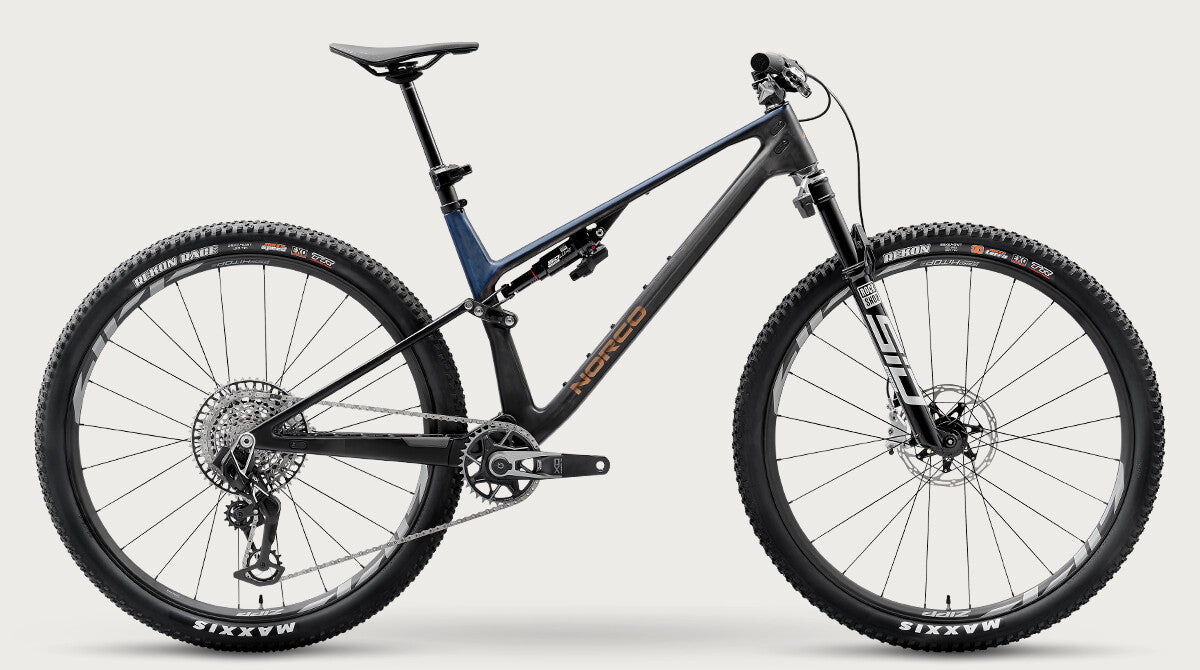

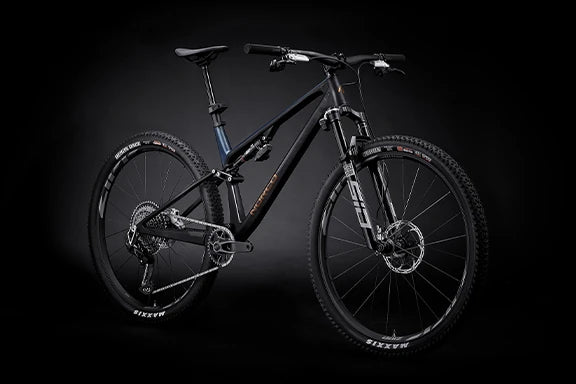

The Revolver is the lightest full-suspension frame Norco has ever built, and it's surprisingly capable. Its Flex-Pivot suspension gets more out of lightweight inline shocks, while aggressive modern XC geometry and a carbon layup optimised for each frame size give consistent weight distribution and ride feel whatever size you ride.

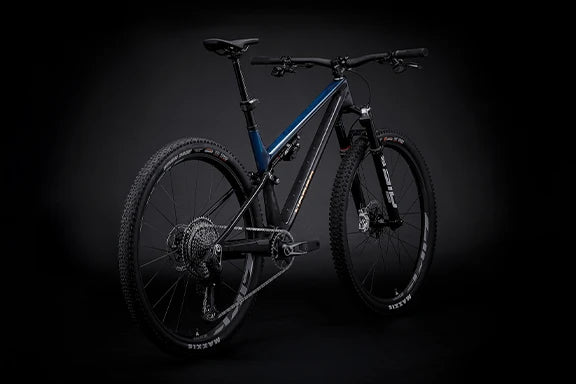

The Revolver C SE 120 is the special edition, dripping with top-shelf parts: RockShox SID Ultimate Flight Attendant fork and SIDLuxe shock, SRAM XX SL Eagle AXS T-Type, SRAM Motive Ultimate brakes, a Reverb AXS dropper and Zipp 1Zero carbon wheels. At around 10.8kg it's built for stage races and big days where every gram counts. Drop into Jetty Road Cycles in Rosebud to check one out in person, and our workshop will make sure it's dialled for you.
Key Features
- 120mm fork / 115mm rear travel
- Norco's lightest full-suspension carbon frame
- RockShox Flight Attendant automatic suspension (SID Ultimate fork / SIDLuxe shock)
- SRAM XX SL Eagle AXS T-Type 12-speed
- RockShox Reverb AXS wireless dropper
- Zipp 1Zero HiTop S carbon wheels
- Weight: approx. 10.8kg

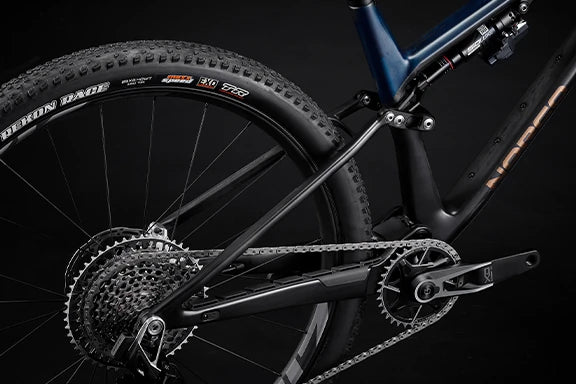

- Flex-Pivot suspension - big performance without the weight
- Aggressive modern XC geometry, 29" wheels in all sizes
- Size-optimised carbon layup for consistent stiffness and ride feel
- UDH and SRAM Eagle Transmission compatible
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Carbon Frame, 115mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-

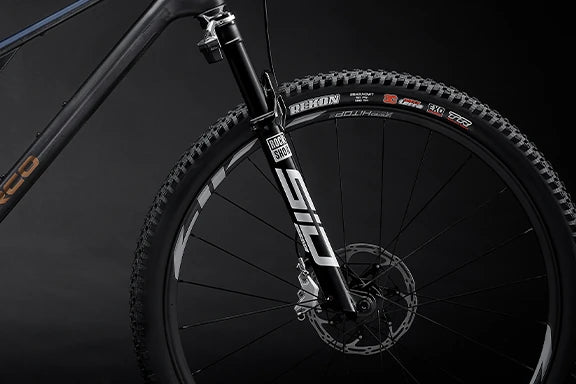

Fork: Rockshox SID Ultimate FA, 120mm, 44mm offset, Fender Included
-

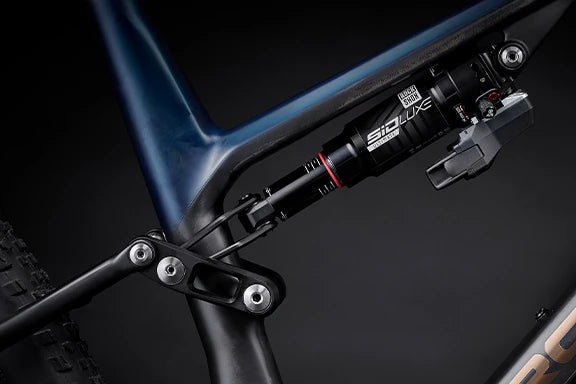

Rear Shock: Rockshox SIDLuxe FA, 190x42.5mm, standard
-
Rear Shifter: SRAM Pod Controller, MMX Bridge
-
Rear Derailleur: SRAM XX SL Eagle AXS T-Type, 12sp
-
Crankset: SRAM X0 Eagle, 34T, CL55, 170mm (S1,S2) -175mm (S3,S4,S5)
-
Bottom Bracket: SRAM DUB, BSA 73mm, MTB WIDE
-
Cassette: SRAM 1297 Eagle T-type, 10-52T, 12sp
-
Chain: SRAM XX Eagle T-Type Flat Top, 12sp
-
Front Brake: Sram Motive Ultimate, 4-Piston
-
Front Brake Rotor: SRAM Centerline X, 180mm, 1.85mm Thickness, 6-bolt
-
Rear Brake: Sram Motive Ultimate, 4-Piston
-
Rear Brake Rotor: SRAM Centerline X, 160mm, 1.85mm Thickness, 6-bolt
-

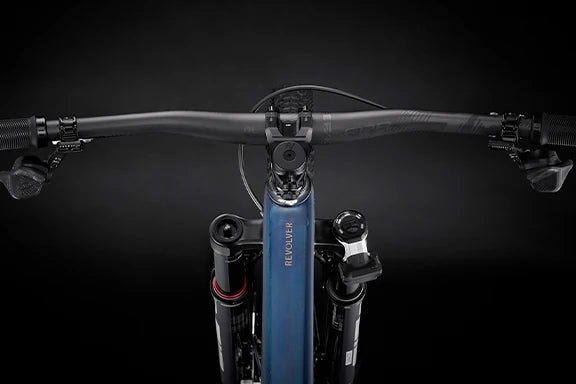

Handlebar: Race Face ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm rise
-
Stem: Alloy CNC, 50mm Length, 35mm Clamp
-
Seatpost: Rockshox Reverb AXS B1, 31.6.mm, 125mm (S1, S2) 150mm (S3) 175mm (S4) 200mm (S5)
-
Headset: FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
-
Saddle: Fizik Terra Ridon MG Rail
-
Grips: WTB Wavelength
-
Seatpost Clamp: Norco bolted, 34.9mm ID
-
Front Hub: Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
-
Rear Hub: Zipp 1Zero Hitop S, 12x148mm Boost, XD, 6-bolt
-
Rims: Zipp 1Zero Hitop S Carbon, 30mm ID, 29"
-
Front Tyre: Maxxis Rekon, 3C Maxx Terra EXO, 29x2.40"
-
Rear Tyre: Maxxis Rekon Race, 3C Maxx Speed EXO, 29x2.40"
-
Rear Hub Skewer: 148mm x 12mm TA, L174, TL13, M12x1.1
-
Spokes/Nipples: CX-Sprint
-
Valves: Zipp tubeless valves
-
Sealant: Stans 250ml sealant
-
Weight: 10.8 kg (24 lbs)
-
Weight (Size): S3
