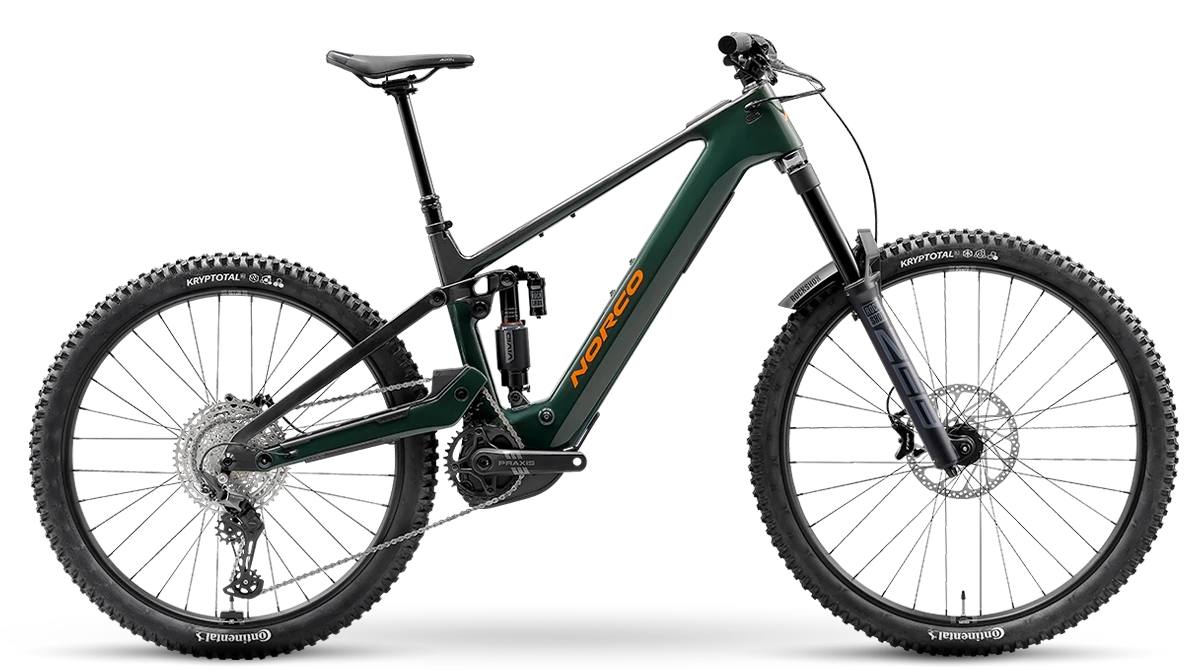

With 170mm of front travel and 160mm in the rear, the Range VLT CX is the big, burly brother to the SightÑbuilt for riders who want to charge the steepest and roughest trails without compromise. Powered by BoschÕs Performance Line CX motor and a large 800Wh battery, this full-power eMTB delivers huge torque, long range, and surprisingly lightweight performance. The innovative VPSHP high-pivot suspension layout increases rearward axle path to improve stability at speed through rough terrain. With an idler to manage chain growth and reduce pedal kickback, the Range VLT CX stays composed while climbing and absolutely comes alive on fast, technical descents. Enduro-focused geometry, size-specific rear centres, and a mixed wheel setup create exceptional balance and control across all frame sizes. Built for riders who want to pedal to the top and charge the descent again and again, the Range VLT CX is the ultimate anti-shuttle machine.
Key Features
- Carbon frame with 160mm rear travel and VPSHP high-pivot suspension
- 170mm RockShox Zeb fork built for aggressive enduro terrain
- Bosch Performance Line CX motor with 85Nm torque
- Large Bosch PowerTube 800Wh battery for extended range
- Mixed wheel setup (29" front / 27.5" rear) for stability and agility
- Enduro-ready geometry with size-specific rear centres
- Ride Alignedª design for optimized fit and handling
Specifications
-
Frame:Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Alignedª
-
Fork:RockShox Zeb Base, 170mm Travel, 44mm Offset, Fender Included
-
Rear Shock:RockShox Vivid Air Base, 205x65mm
-
Headset:FSA No.55 Sealed Bearing, Tapered 1-1/8" Ð 1.8" (ZS44/28.6 | ZS56/40)
-
Motor:Bosch Performance Line CX, 85Nm
-
Battery:Bosch PowerTube 800Wh
-
Bottom Bracket / Motor Mount:Bosch BDU38
-
Shifter:Shimano Deore SL-M6100-R, 12 Speed
-
Rear Derailleur:Shimano Deore RD-M6100, 12 Speed
-
Cassette:Shimano Deore CS-M6100-12, 10-51T, 12 Speed
-
Chain:Shimano Deore XT CN-M8100, 12 Speed
-
Crankset:Praxis HD Aluminum Bosch Cranks, 34T, 160mm
-
Front Brake:TRP Slate EVO, Organic Pads
-
Front Rotor:TRP 203mm, 2.3mm Thickness, 6-Bolt
-
Rear Brake:TRP Slate EVO, Organic Pads
-
Rear Rotor:TRP RS01E, 180mm, 2.3mm Thickness, 6-Bolt
-
Handlebar:Norco 6061 DB Alloy, 800mm Width, 25mm Rise
-
Stem:Norco Alloy, 40mm Length, 35mm Clamp
-
Grips:WTB Wavelength, 130mm
-
Saddle:Fizik Terra Aidon X5
-
Seatpost:TranzX YSP23KL Dropper Ñ 31.6mm, 150mm (S2) / 170mm (S3) / 200mm (S4,S5)
-
Front Hub:Bear Pawls BMB-003, 15x110mm Boost, 32H, 6-Bolt
-
Rear Hub:Bear Pawls BMB-007, 12x148mm Boost, HG, 32H, 6-Bolt
-
Rims:WTB ST i30, 30mm Internal Width, 32H, Mixed Wheel (29"/27.5")
-
Front Tire:Continental Kryptotal-F, Enduro Soft, 29 x 2.4", Folding
-
Rear Tire:Continental Kryptotal-R, Enduro Soft, 27.5 x 2.4", Folding
-
Spokes:Sapim Sprint Double Butted
