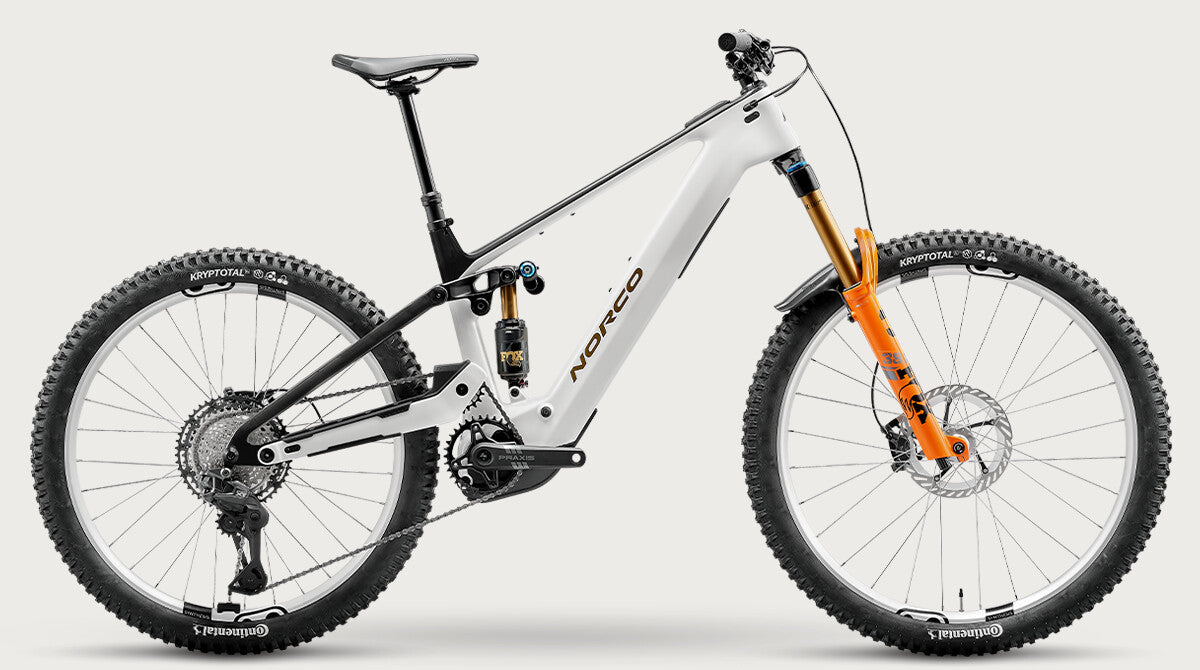

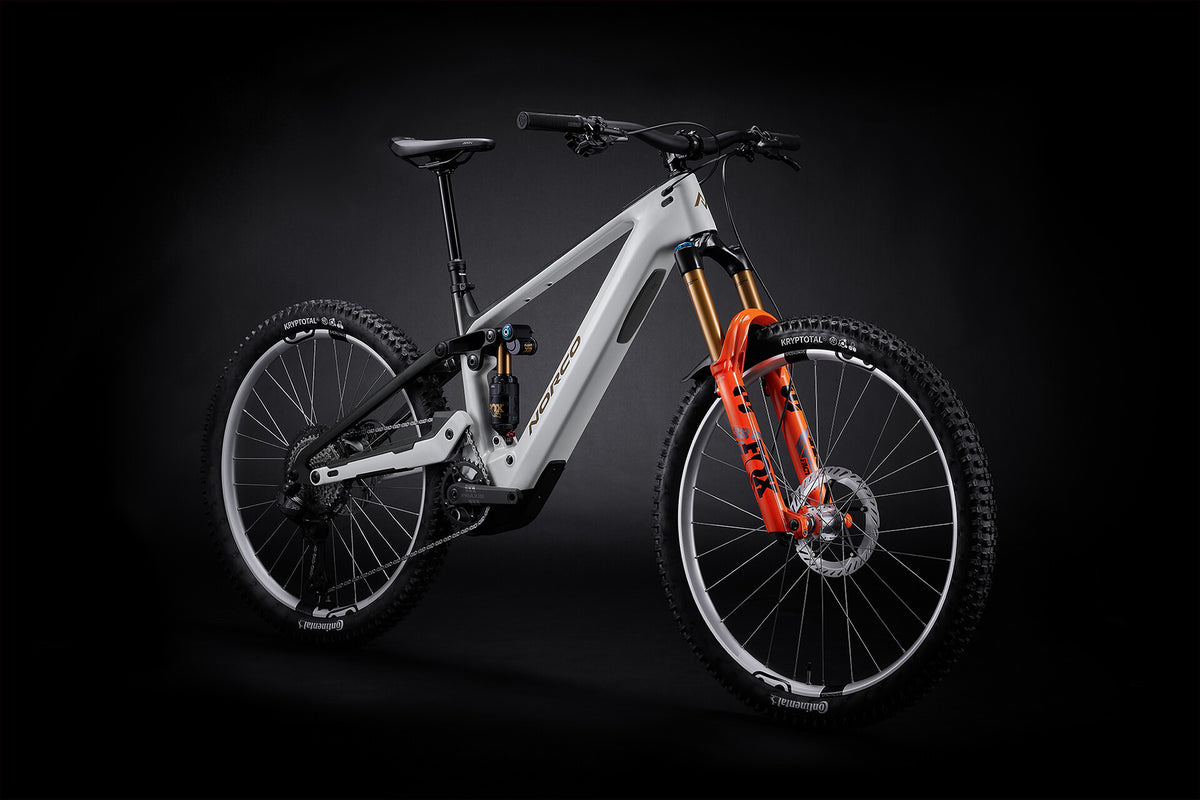

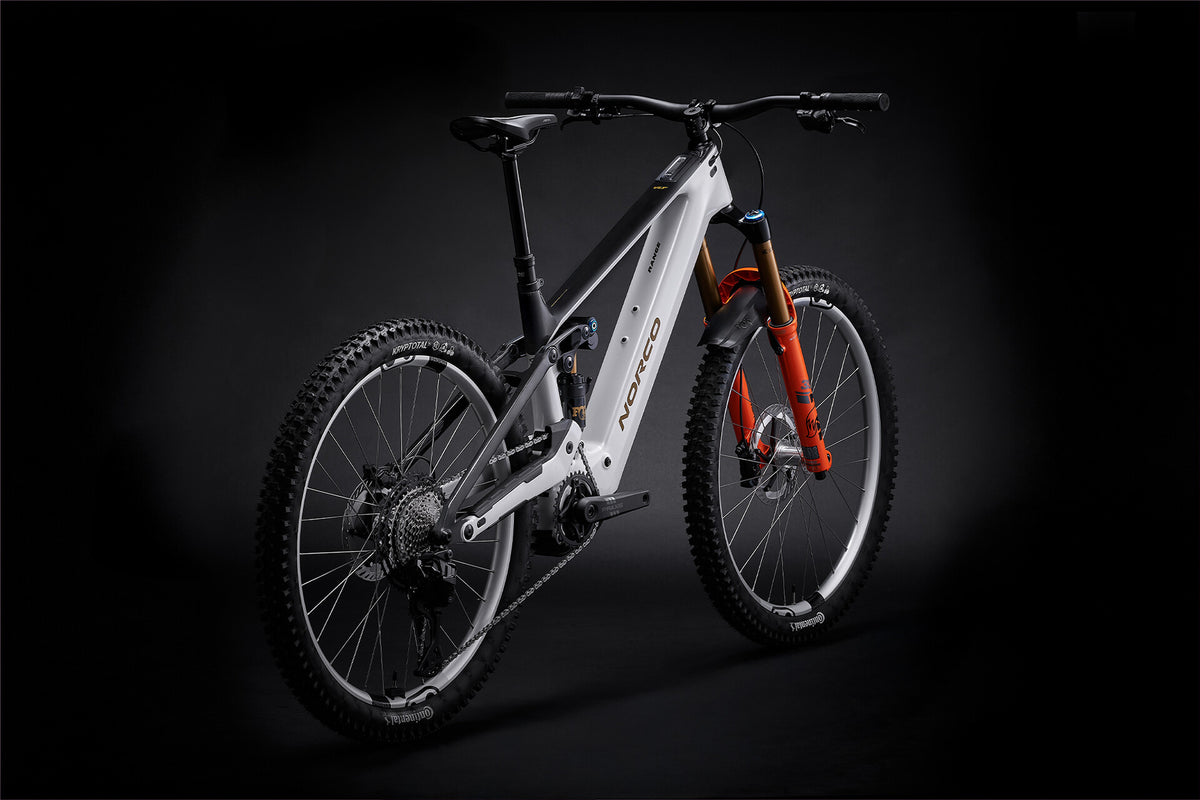

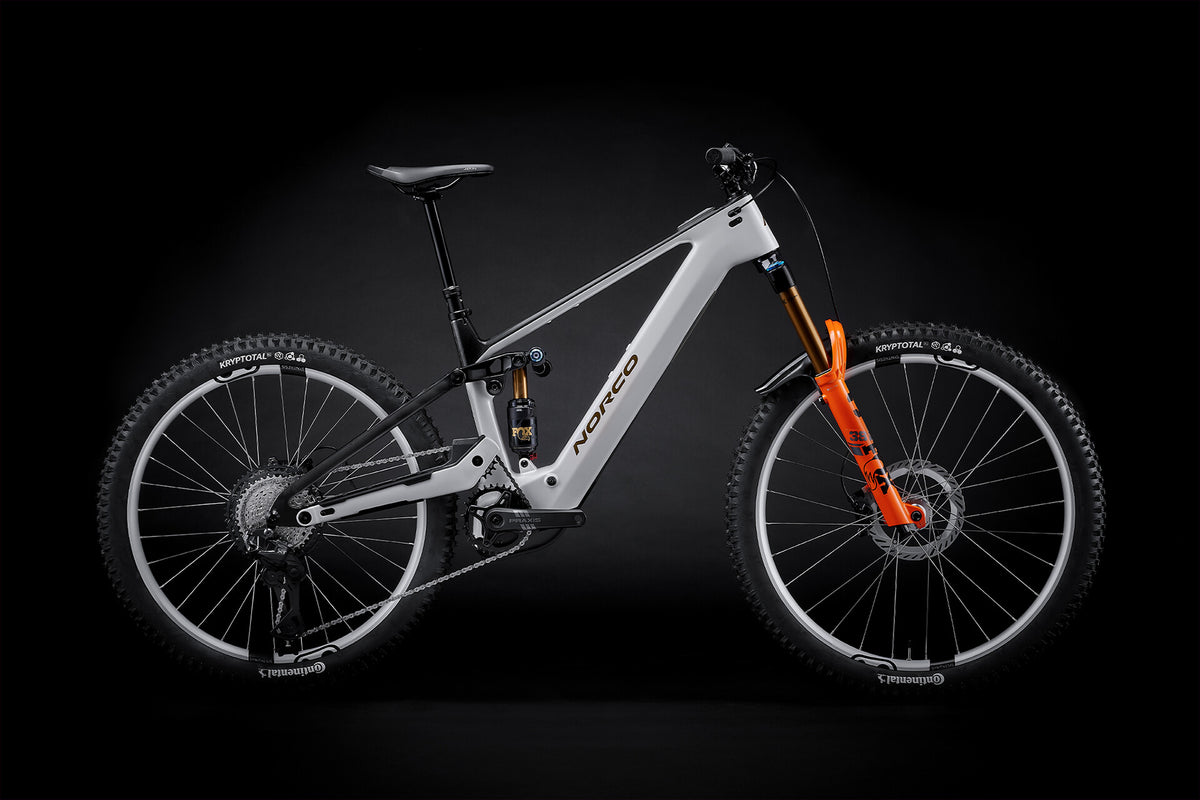

The Range VLT CX is the big, burly brother of the Sight, made to charge the steepest trails all day. With 170mm up front and 160mm out back, it's the anti-shuttle enduro rig for riders who live for the descents - and thanks to the latest Bosch Performance Line CX motor it packs full power into a much lighter package.
The Range VLT CX C1 is the flagship build: FOX 38 Factory and Float X2 Factory suspension, Shimano Deore XT Di2 shifting, Shimano XT 4-piston brakes and Crankbrothers Synthesis wheels. Big travel, big spec, and the power to get you back to the top for one more run. Drop into Jetty Road Cycles in Rosebud to check one out in person, and our workshop will make sure it's dialled for you.
Key Features
- 170mm fork / 160mm rear travel
- VPS HP high pivot suspension - eats square-edged hits and holds momentum
- FOX 38 Factory GRIP X2 fork and FOX Float X2 Factory shock
- Shimano Deore XT Di2 12-speed
- Shimano XT 4-piston brakes
- Continental Kryptotal Enduro Soft tyres
- Bosch Performance Line CX (Gen 5) motor: lighter, quieter and more natural feeling, up to 120Nm torque
- Bosch PowerTube 800Wh battery, compatible with the 250Wh range extender
- Bosch eBike Flow App to personalise your ride
- Carbon frame, UDH and SRAM Eagle Transmission compatible
- Mixed wheel setup (29" front / 27.5" rear)
- Marked by the manufacturer as EN 15194 compliant
- Ride Aligned™ setup and Norco No Other Way Limited Lifetime Warranty
Specifications
-
Frame: Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
-

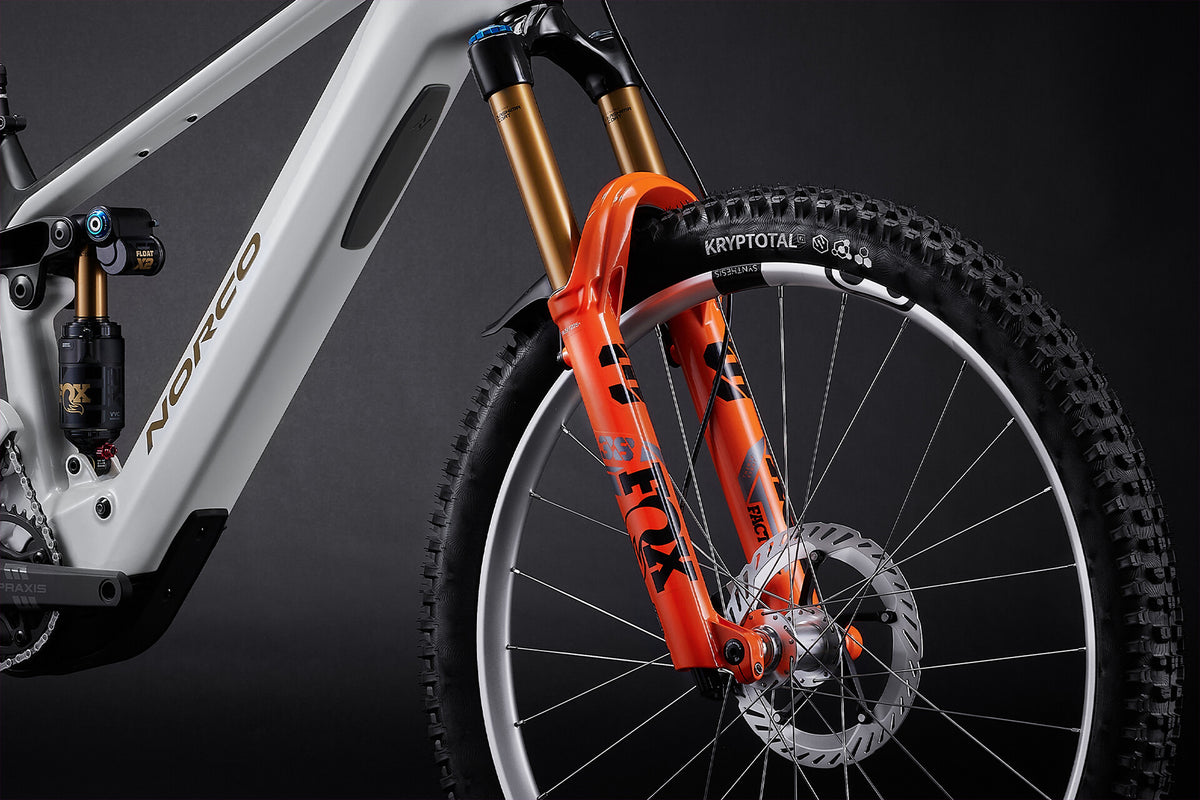

Fork: Fox 38 Factory Float, Grip X2, HSC / LSC / LSR, 170mm, 44mm Offest, Fender Included
-
Rear Shock: Fox Factory Float X2, 205x65mm TR,HSC/LSC, HSR/LSR 2 pos-Adj
-
Rear Shifter: Shimano Deore XT Di2 SW-M8250-IR, 12sp
-
Rear Derailleur: Shimano Deore XT Di2 RD-M8250, SGS, 12sp
-

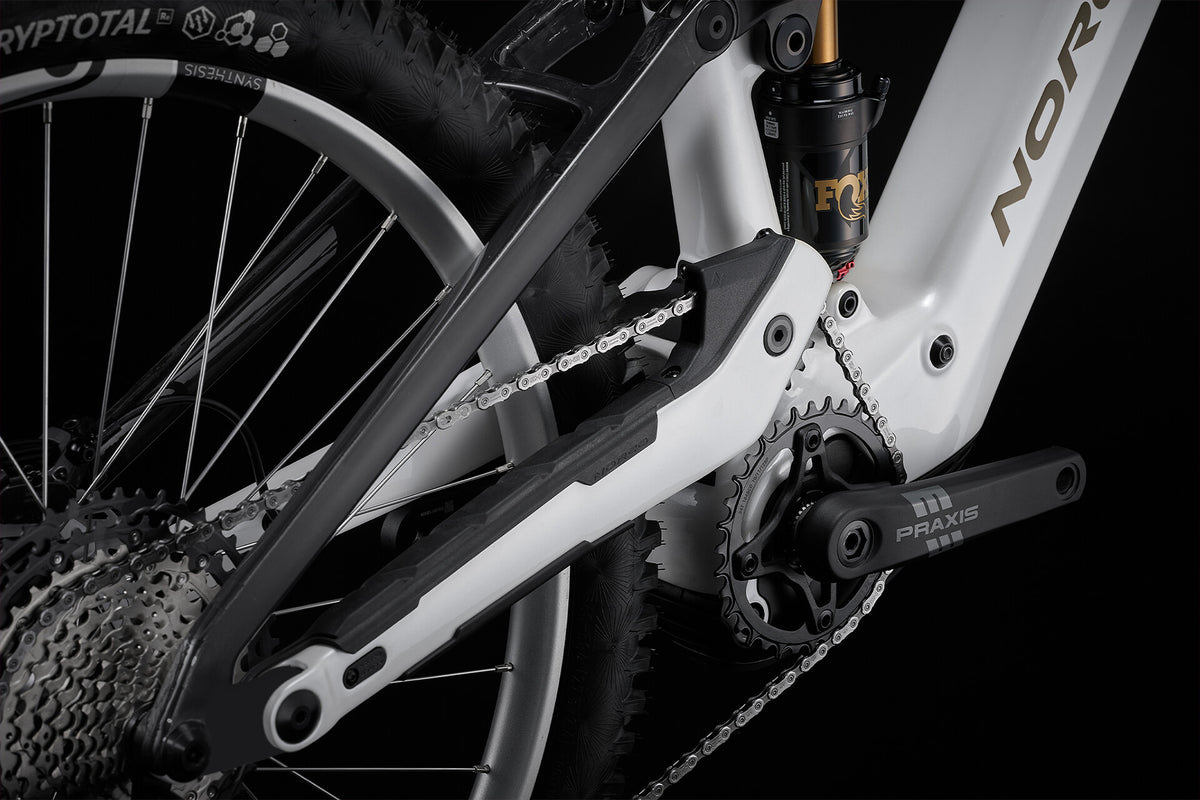

Crankset: Praxis HD Aluminum Bosch Cranks, 34T, 160mm
-
Bottom Bracket: Bosch BES3 DU
-
Cassette: Shimano Deore XT CS-M8200-12, 10-51T, 12sp
-
Chain: Shimano Deore XT CN-M8100, 12sp
-
Front Brake: Shimano XT M8220 4-P, Metallic pads
-
Front Brake Rotor: Shimano RT-MT905, 203mm, 6-Bolt
-
Rear Brake: Shimano XT M8220 4-P, Metallic pads
-
Rear Brake Rotor: Shimano RT-MT905, 180mm, 6-Bolt
-
Brake Levers: Shimano XT BL-M8200
-
Handlebar: Norco 6061 DB Alloy, 800mm, 25mm Rise
-
Stem: Norco Alloy, 40mm Length, 35mm Clamp
-
Seatpost: TranzX YSI08 RAD+ Travel Adjust Dropper, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
-
Headset: FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
-
Saddle: Fizik Terra Aidon X5
-
Grips: WTB Wavelength, 130mm Length
-
Front Hub: Crank Bros. Synthesis Enduro, 15x110mm Boost, 32h, 6-Bolt
-
Rear Hub: Crank Bros. Synthesis Enduro, 12x148mm Boost, Micro Spline, 32h, 6-Bolt
-
Rims: Crank Bros. Synthesis Alloy, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5 F/R
-
Front Tyre: Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable
-
Rear Tyre: Continental Kryptotal-R, Enduro, Soft, 27.5" x 2.4", Foldable
-
Spokes/Nipples: Sapim D-Light (front), Sapim Race (rear)
-

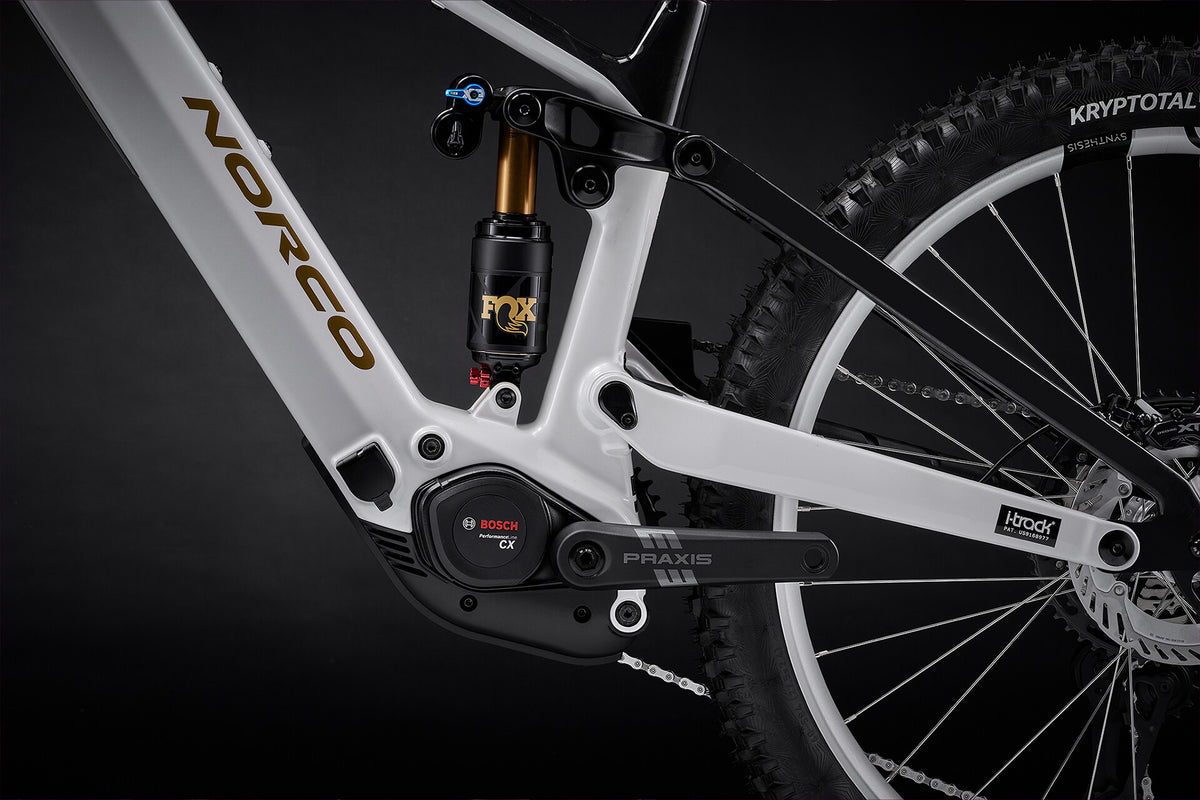

Drive Unit: Bosch Performance Line CX, 100 Nm / 750W
-
Battery: Bosh Power Tube 800 Wh
-
Weight (Size): S3
