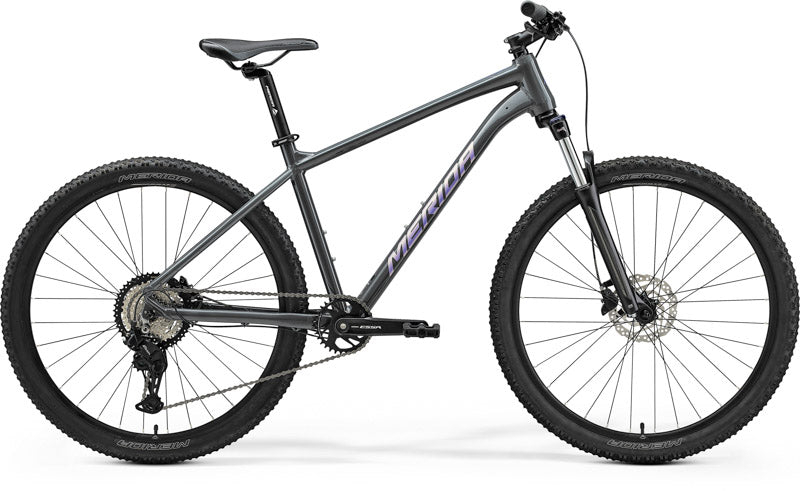

MERIDA BIG SEVEN 20 IV2 | DARK GREY(PURPLE)

$949.00

5

XS S
Thumbnail for MERIDA BIG SEVEN 20 IV2 | DARK GREY(PURPLE) Thumbnail for MERIDA BIG SEVEN 20 IV2 | DARK GREY(PURPLE)
MERIDA BIG SEVEN 20 IV2 | DARK GREY(PURPLE)
MERIDA BIG SEVEN 20 IV2 | DARK GREY(PURPLE)

MERIDA BIG SEVEN 20 IV2 | DARK GREY(PURPLE)

5

XS S
$949.00
Loading locations...
PRODUCT DESCRIPTION
















































































































































































































































































FRAME BIG.SEVEN TFS IV; MAT aluminium; 27.5x2.25" max. WHS; 135x9 AST; BSA BBR
SIZE XS-S-M-L
FORK SR Suntour XCT30 HLO; Coil; 100 STR; Lockout; 27.5x2.25" max. WHS
BRAKE LEVER
BRAKE FRONT Shimano BR-MT200; hydraulic brake
BRAKE REAR Shimano BR-MT200; hydraulic brake
ROTOR FRONT Shimano RT10; 160 mm
ROTOR REAR Shimano RT10; 160 mm
CHAIN KMC Z8.3
CHAINWHEEL Shimano ESSA FC-U2001 32 ATC; MAT Aluminium
CRANK/SIZE 170 mm-XS/S, 175 mm-M/L
BB SET Shimano BB-UN101 73-123
DERAILLEUR FRONT
DERAILLEUR REAR Shimano ESSA RD-U2000-8; GS
FREEWHEEL Shimano CS-HG400-8; 11-45 ATC; 8 GER
PEDAL VP VPE-891
GRIP MERIDA EC
HANDLEBAR MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
H-B STEM MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
H-STEM/SIZE 70 mm-XS/S, 90 mm-M/L,
HEAD SET MERIDA M2345
HUB FRONT Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
HUB REAR Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
RIM MERIDA CC; 17 IWR; MAT aluminium
SADDLE MERIDA Sport comfort
SEAT CLAMP MERIDA COMP QR
SEAT POST MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
SHIFTER FRONT
SHIFTER REAR Shimano ESSA SL-315-8R
INNER TUBE 27.5*2.2 A.V
TYRE FRONT MERIDA K1080; 27.5x2.2"; wire
TYRE REAR MERIDA K1080; 27.5x2.2"; wire
