KAOZ Raw Alloy

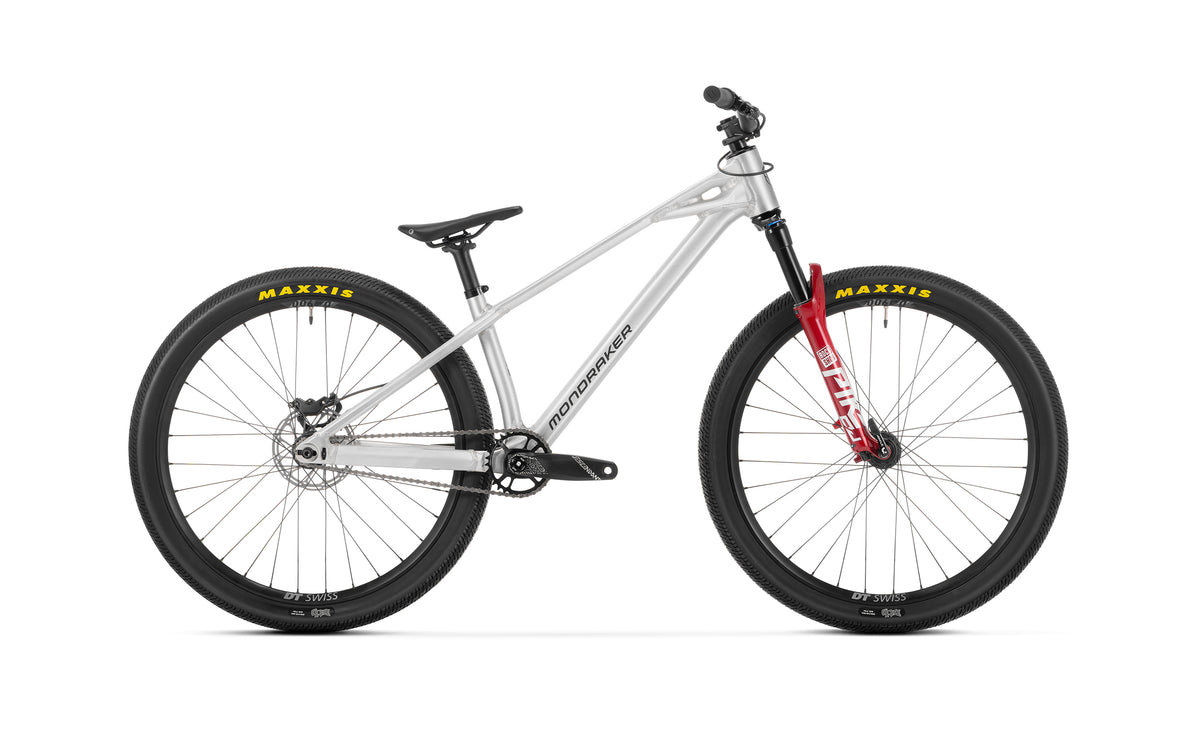

Mondraker KAOZ Raw Alloy - front three-quarter
Mondraker KAOZ Raw Alloy - rear three-quarter
Contact us for availability

KAOZ Raw Alloy

$3,999.00
Regular price $3,999.00
Taxes included.
Size M

Pickup and Shipping Availability

Jetty Road Cycles
No immediate pickup available
Out of Stock

Take on dirt jumps and pump-track sessions with the Mondraker KAOZ. This alloy-framed bike pairs a dirt-jump setup with 26-inch wheels. A RockShox PIKE DJ fork is part of the build.

The Kaoz is Mondraker's dirt jump and pump track hardtail - a stiff, strong alloy frame with simple, durable parts for the jumps line, skatepark and pump track. Drop into Jetty Road Cycles in Rosebud or get in touch to check availability and sizing - our workshop will have it dialled before you ride away.

Key Features

  • 100mm suspension fork
  • Frame: Kaoz 6061 Alloy Stealth Evo
  • Forward Geometry - longer front end paired with a short stem for stability and control at speed
  • Wheel size: 26
  • Fork: RockShox PIKE DJ
  • Claimed weight: 11.5 kg
  • Sizes: M, L

Specifications

  • Colour: Alloy
  • Wheel Diameter: 26
  • Frame: Kaoz 6061 Alloy Stealth Evo, 26" Forward Geometry, BSA73,10x135mm rear axle, Sliding Dropouts, Single Speed
  • Available Sizes: M: 415mm / L: 440mm
  • Fork: RockShox PIKE DJ, 26",, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset.
  • Headset: Onoff custom ZS56/ZS56, 1-1/8", 1.2" head tube
  • Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
  • Handlebar: Onoff S6 1.5 7050 alloy, rise:38mm , width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore
  • Grips: Onoff Desert Pro, CNC lock-on, 135mm.
  • Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
  • Saddle: Ergon SM10 DH Black
  • Rear Brake: Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Brake Lever: Sram DB8, tool reach adjust, lever pivot bushings
  • Rims: DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes
  • Spokes: DT J-bend spokes, DT competition®, black
  • Front Hub: DT Swiss 370, Boost 15x100mm, IS 6 bolts
  • Rear Hub: DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts
  • Front Tyre: Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable
  • Rear Tyre: Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable
  • Crankset: Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49´0
  • Rings: Sram Eagle 30T, steel, X-Sync 2
  • Bottom Bracket: Sram DUB BSA, sealed bearings, 73mm
  • Chain: Sram PC-1, Singlespeed, PowerLock 1s
  • Bike Weight: 11,5 kg
