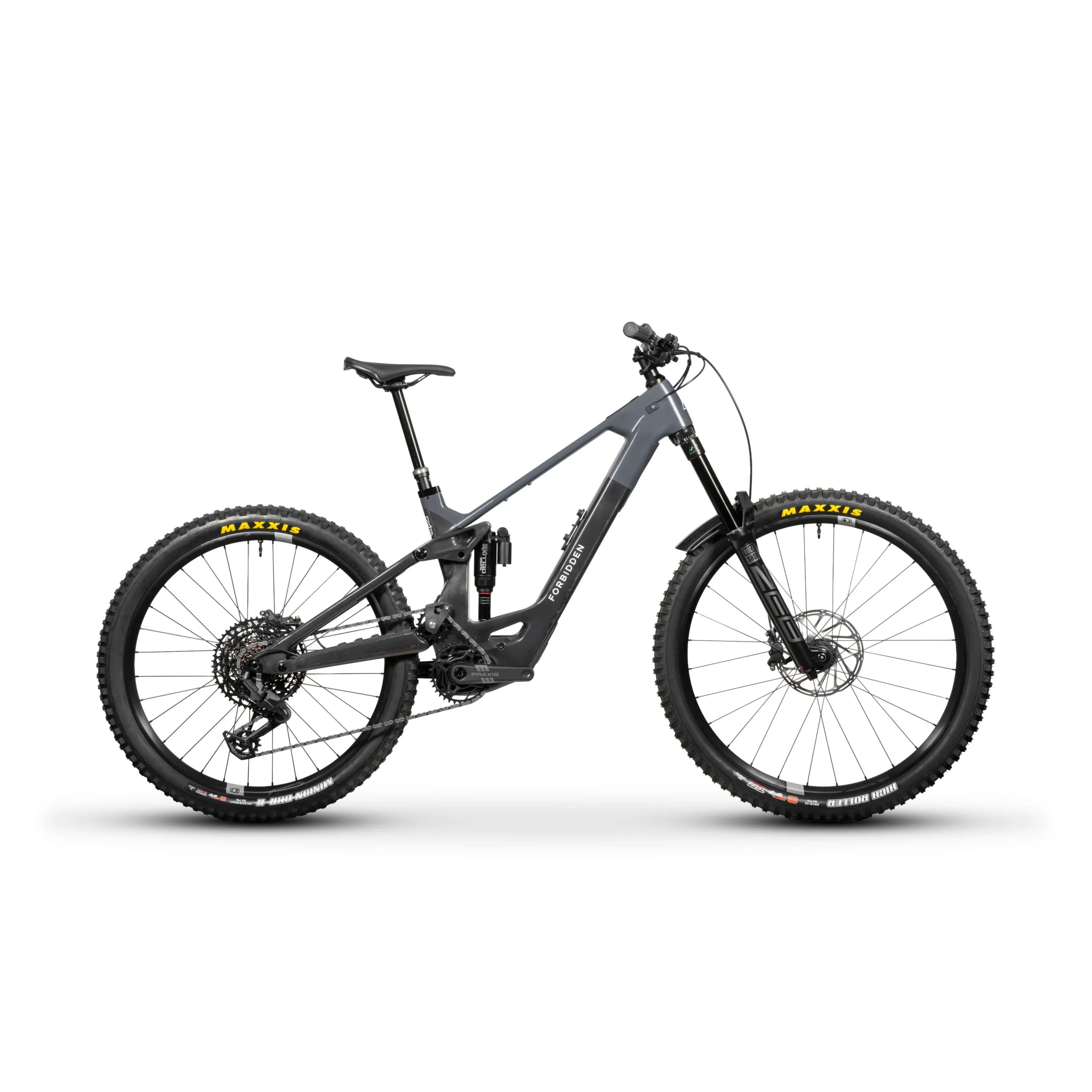

FORBIDDEN DREADNOUGHT E T4 E-BIKE CARBON COMPLETE MX 600W SUPERFUZZ

The Dreadnought E is Forbidden's big-hitting full-power e-MTB - 170mm out back and a 180mm fork, built for steep, rough and fast terrain, then shuttling yourself straight back up for another lap. The rearward-axle-path high-pivot suspension lets it plough through the chunder when you're off the brakes, but there's still enough support to pop off lips and pump for speed. Proportional One Ride geometry keeps the handling consistent across all four sizes.

The Dreadnought E T4 is the most affordable way into the platform: RockShox ZEB and Super Deluxe suspension, Avinox M2 drive, SRAM Eagle 70 T-Type shifting and SRAM DB4 4-piston brakes. This one runs the 600Wh battery - a lighter, more agile setup with plenty of range for most rides. Forbidden bikes are special order, so drop into Jetty Road Cycles in Rosebud or get in touch to check availability and sizing - our workshop will have it dialled before you ride away.

Key Features

• 170mm rear / 180mm front travel on mixed wheels (29in front / 27.5in rear)
• Trifecta high-pivot suspension with idler - rearward axle path lets it plough through rough lines while staying supportive
• Avinox M2 motor - 110Nm and 1100W peak
• 600Wh integrated Avinox battery
• 2-inch OLED colour display, wireless bar controls and Avinox app for tuning assist modes
• One Ride proportional geometry - chainstay length grows with each frame size for consistent handling
• Carbon rocker link for a light, stiff back end, with 8x30mm bearing shock hardware
• E-bike-specific 18T steel idler on Enduro bearings for longer life
• Custom frame protection preinstalled in high-wear areas
• Fits a full-size water bottle on every frame size

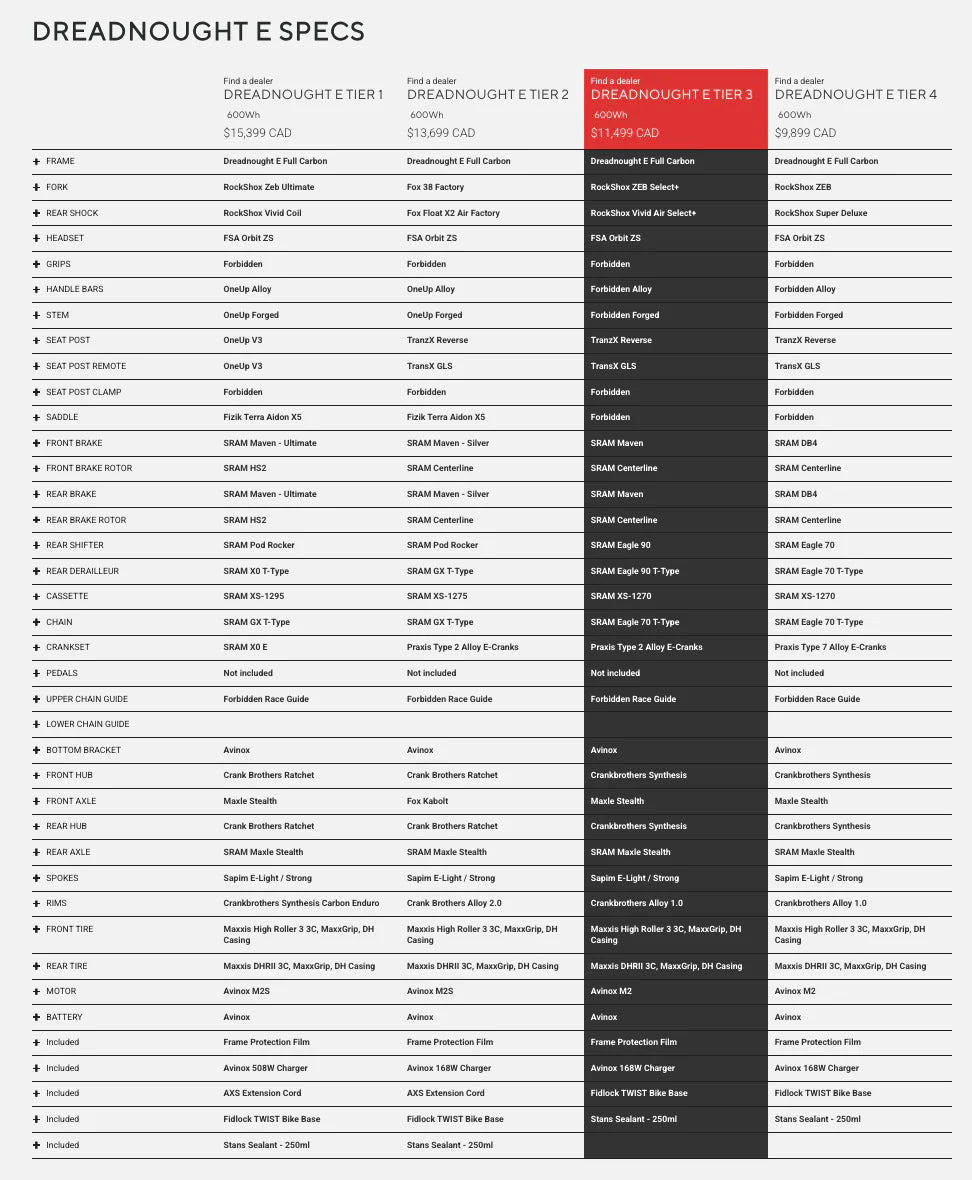

Specifications

• Frame: Dreadnought E full carbon, 170mm travel, Trifecta high-pivot 4-bar suspension, One Ride proportional geometry, Enduro Max bearings
• Fork: RockShox ZEB, 180mm, Delta RC, Debonair+, LSR/LSC adjust, 44mm offset
• Rear Shock: RockShox Super Deluxe, 230x65mm
• Motor: Avinox M2 - 110Nm, 1100W peak, 2-inch OLED display, wireless left and right controllers
• Battery: Avinox integrated 600Wh Li-ion
• Charger: Avinox 168W charger - approx. 4.75 hours to 100%
• Shifter: SRAM Eagle 70
• Rear Derailleur: SRAM Eagle 70 T-Type
• Cassette: SRAM XS-1270, 12-speed, 10-52T, HG
• Chain: SRAM Eagle 70 T-Type
• Crankset: Praxis Type 7 Alloy E-Cranks, 150mm, 34T
• Brakes: SRAM DB4 4-piston, SRAM Centerline rotors
• Hubs: Crankbrothers Synthesis hubs, 110x15mm front / 148x12mm rear, HG driver
• Rims: Crankbrothers Alloy 1.0, 31.5mm internal, tubeless ready
• Spokes: Sapim E-Light front / Sapim Strong rear
• Front Tyre: Maxxis High Roller 3, 29x2.4, 3C MaxxGrip
• Rear Tyre: Maxxis Minion DHR II, 27.5x2.5, 3C MaxxGrip, DH casing
• Handlebar: Forbidden Alloy, 800mm, 20mm rise (S1-S2) / 35mm rise (S3-S4)
• Stem: Forbidden Forged, 40mm, 35mm clamp
• Seatpost: TranzX Reverse dropper, 31.6mm - S1 160mm / S2 180mm / S3 210mm / S4 240mm
• Saddle: Forbidden, 143mm, Cro-Mo rails
• Headset: FSA Orbit ZS, ZS44/ZS56
• Grips: Forbidden lock-on, 128mm
• Chain Guide: Forbidden Race Guide (upper)
• Pedals: Not included
• Wheel Size: Mixed (MX) - 29in front / 27.5in rear

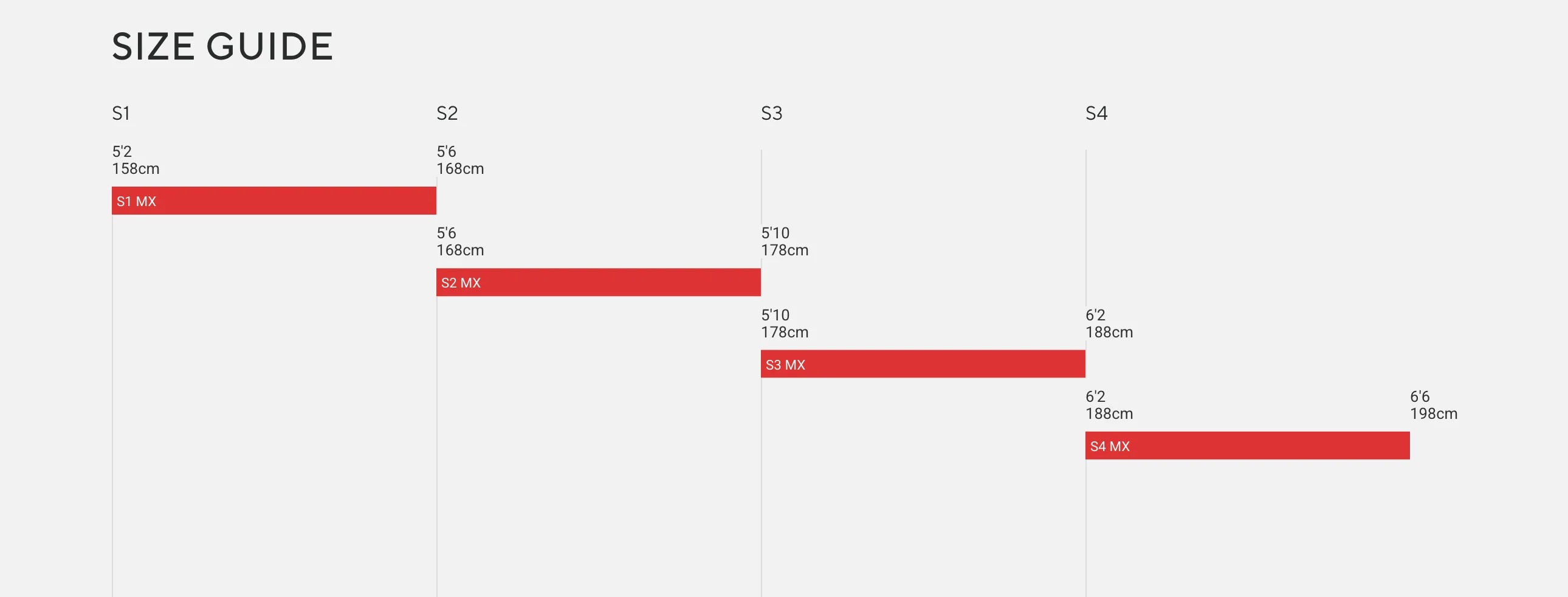

• Sizing: S1 158-168cm / S2 168-178cm / S3 178-188cm / S4 188-198cm rider height
• Geometry: 63 degree head angle, 76.75 degree effective seat angle, reach 425 / 445 / 461 / 481mm, size-specific chainstays 434 / 449 / 463 / 478mm (S1-S4)
