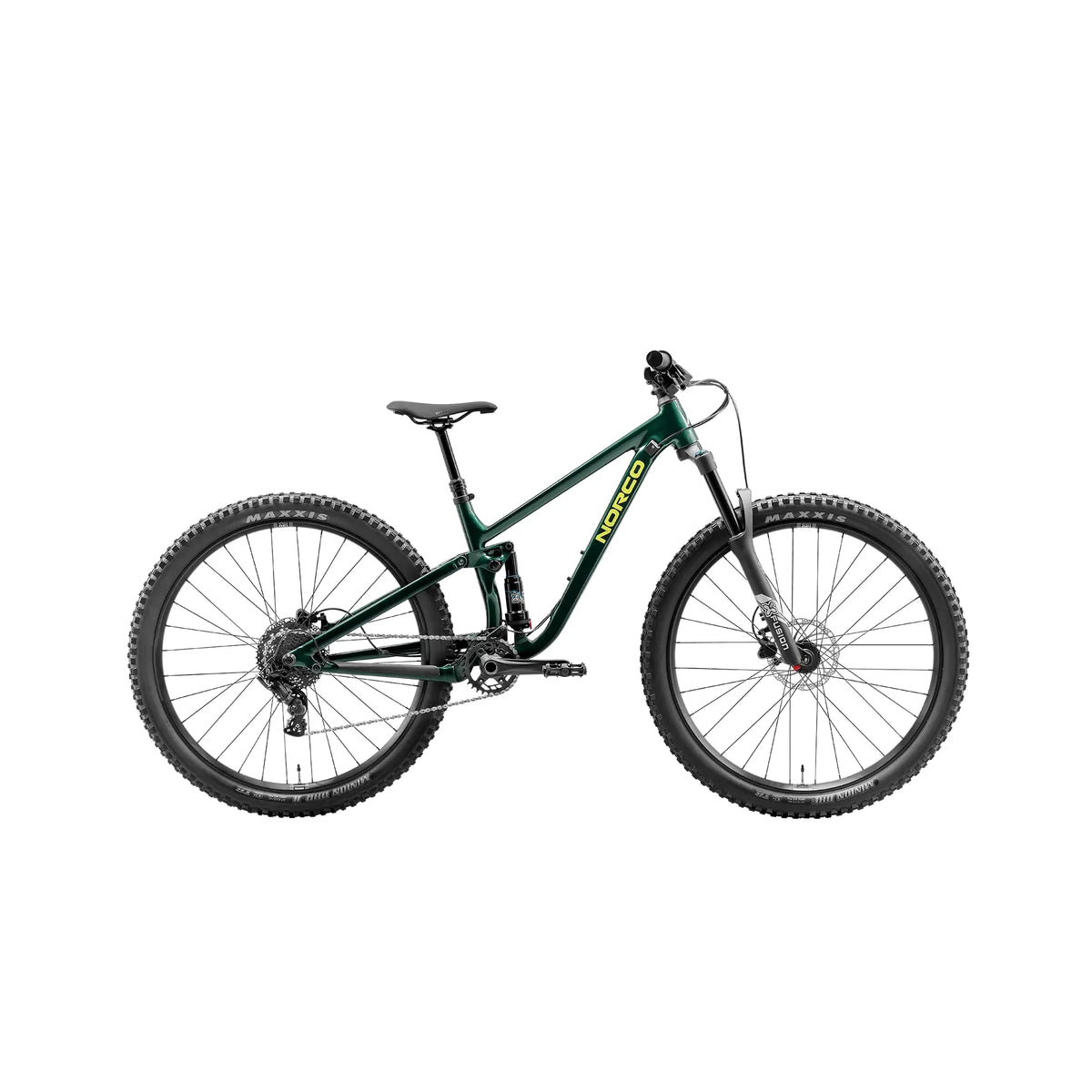

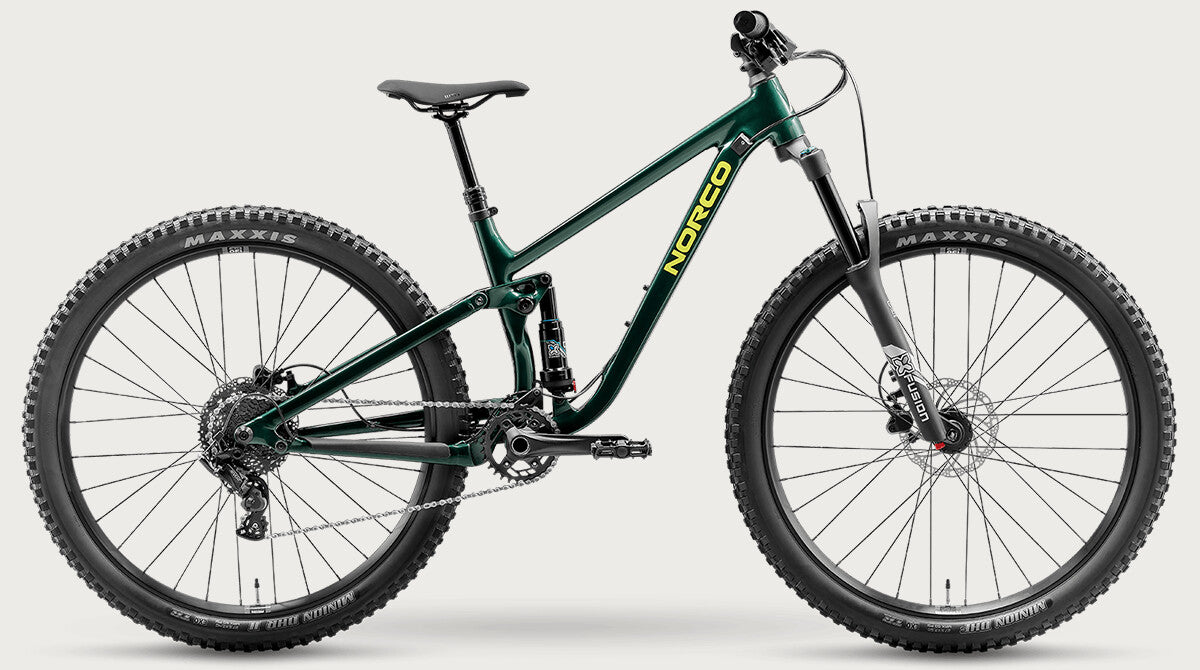

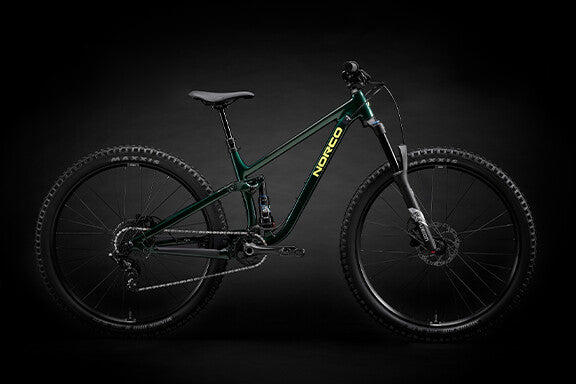

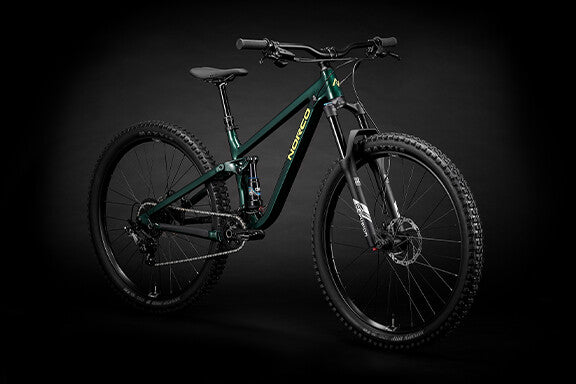

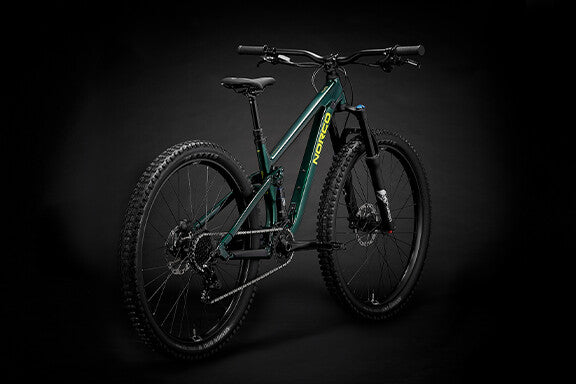

The Fluid FS Youth 27.5 takes small adult and teen riders to the next level on the trail. It's a premium, progressive full-suspension bike with a double-butted aluminium frame, tuned for lighter riders who want everything a grown-up trail bike offers in a size that actually fits.
An X-Fusion RC32 air fork with 130mm of travel pairs with 120mm out back via an X-Fusion O2 Pro R shock. Add a microSHIFT Advent 9-speed drivetrain with clutch derailleur, Tektro hydraulic brakes, a kids-tune dropper and Maxxis Minion DHF / DHR II tyres, and you've got a bike that rolls smooth and light on 27.5" wheels. Come and see it at Jetty Road Cycles in Rosebud - the team will help you nail the sizing and setup before you roll out the door.
Key Features
- 130mm fork / 120mm rear travel on 27.5" wheels
- Premium double-butted 6061 aluminium frame, UDH compatible
- X-Fusion RC32 air fork and X-Fusion O2 Pro R shock
- Kids-tune TranzX dropper post, 100mm

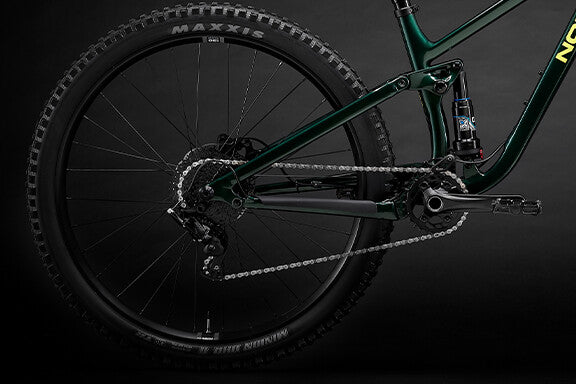

- microSHIFT Advent 9-speed with clutch derailleur
- Maxxis Minion DHF 2.5" / DHR II 2.4" tyres
- Holistic design for uncompromised trail performance
- Norco No Other Way Limited Lifetime Warranty
Specifications
-

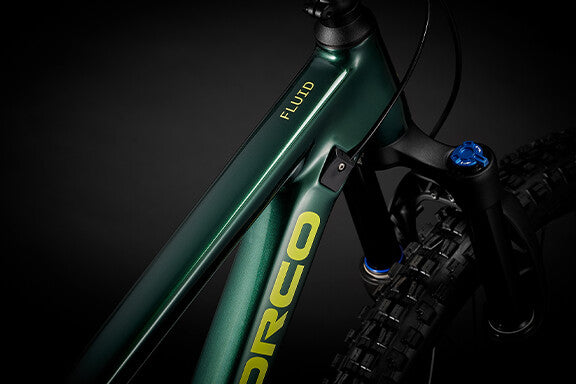

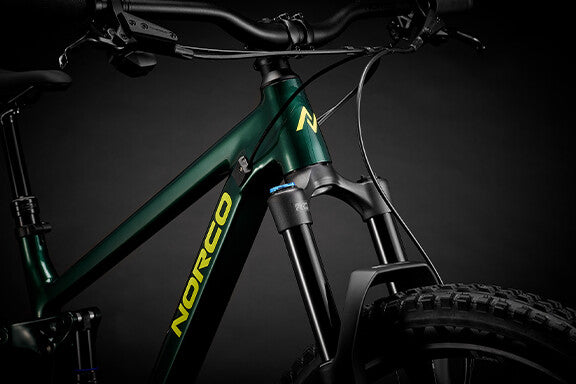

Frame: 6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible
-

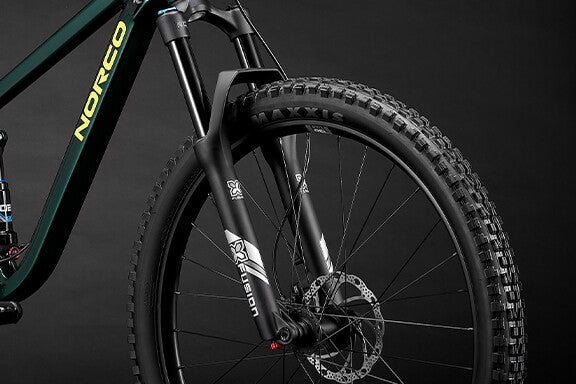

Fork: X-Fusion RC32 Air, 130mm, 46mm Offset, 15x110mm Boost
-
Rear Shock: X-Fusion 02 Pro R, 190x42.5mm Standard
-
Rear Shifter: microSHIFT Advent, 9spd
-
Rear Derailleur: microSHIFT Advent, 9spd, Short Cage Clutch
-
Crankset: Prowheel Junior Alloy, 30T, 155mm
-
Bottom Bracket: Prowheel Cartridge BB
-
Cassette: microSHIFT Advent, 11-38T, 9spd
-
Chain: KMC X9, 9spd
-
Front Brake: Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
-
Front Brake Rotor: Tektro TR160-22, 160mm, 6-bolt
-
Rear Brake: Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
-
Rear Brake Rotor: Tektro TR160-22, 160mm, 6-bolt
-
Brake Levers: Tektro HD-J285
-

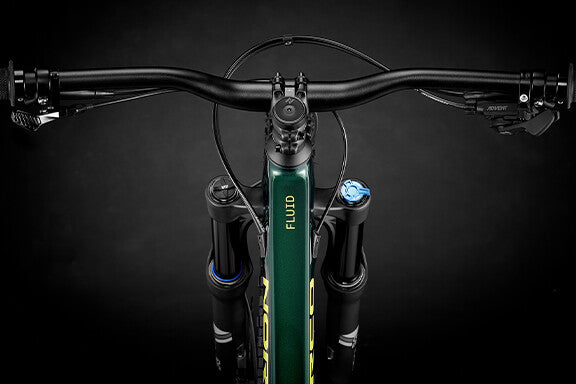

Handlebar: Norco 6061 Alloy DB, 750mm, 20mm rise
-
Stem: Norco 6061, 35mm Length, 31.8mm Clamp
-
Seatpost: TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
-
Headset: Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
-
Saddle: WTB Solano Med, 142x240 mm, Steel Rails
-
Grips: Norco Youth Lockon, 115mm Length
-
Seatpost Clamp: Norco Alloy Nutted Clamp, 34.9mm ID
-
Front Hub: Formula DC-511, 15x110mm Boost, 32h, 6-bolt
-
Rear Hub: Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
-
Rims: WTB ST, 27mm ID, 32H
-
Front Tyre: Maxxis Minion DHF, EXO, 27.5"x2.5", Folding
-
Rear Tyre: Maxxis Minion DHR II, EXO, 27.5" x 2.4", Folding
