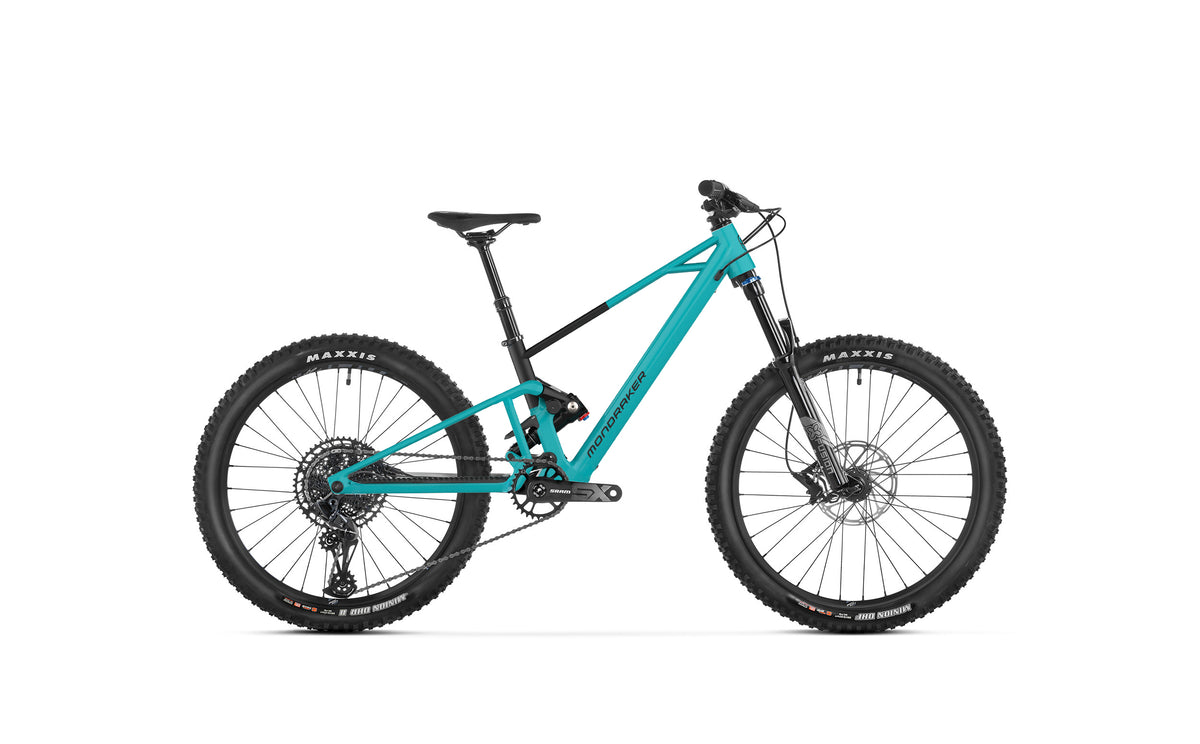

F-TRICK 24 Tokyo Blue

Take on young trail riders with the Mondraker F-TRICK 24. This alloy-framed bike pairs a dual-suspension setup with 24-inch wheels. A X-Fusion Slant RC 26 fork is part of the build, alongside Sram S200 Eagle shifting.

Specifications

• Category: KIDS
• Colour: Blue/Black
• Wheel Diameter: 24
• Frame: F-Trick 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, 12x148mm rear axle, UDH, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.
• Available Sizes: One size: 300mm
• Rear Shock: X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
• Shock Settings: A-Tune light compression
• Fork: X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
• Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
• Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips: Onoff Beehive, 1lock-on, 135mm
• Seatpost: X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm
• Saddle: SDG Fly JR
• Front Brake: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
• Rear Brake: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
• Brake Lever: Shimano MT501, servo wave, alloy lever
• Rims: MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
• Spokes: CN round stainless steel
• Front Hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
• Rear Hub: DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub
• Front Tyre: Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead
• Rear Tyre: Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO Protection, 60TPI, folding bead
• Crankset: Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm
• Rings: 30T, steel
• Bottom Bracket: Prowheel PW-MBB73 73mm
• Pedals: SDG Slater JR
• Chain: Sram S100 Eagle, 12s, PowerLock
• Rear Derailleur: Sram S200 Eagle,12s
• Shift Levers: Sram Trigger S100, 12s, X-Actuation
• Cassette: Sram PG-1210, 11-50T, 12s
• Derailleur Hanger: UDH
• Bike Weight: 13,8 kg
