CRAFTY CARBON S Overland Green

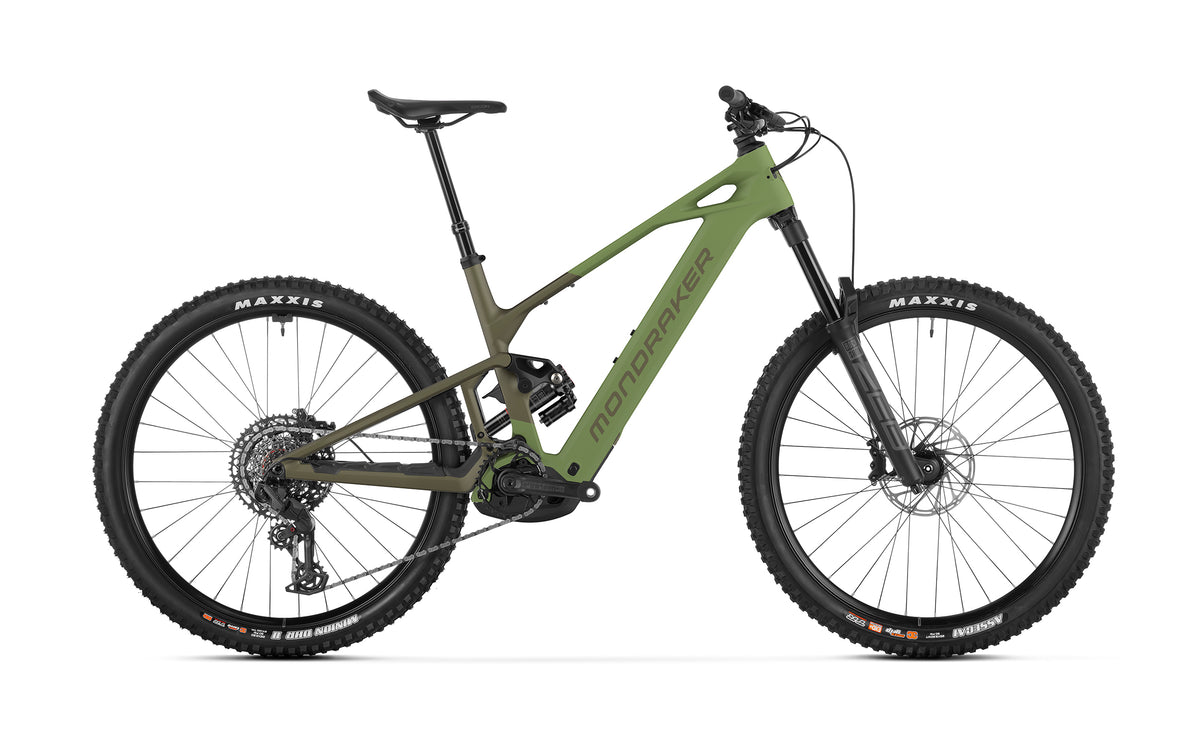

Mondraker CRAFTY CARBON S Overland Green - front three-quarter
Mondraker CRAFTY CARBON S Overland Green - rear three-quarter
Contact us for availability

CRAFTY CARBON S Overland Green

$10,999.00
Regular price $10,999.00
Taxes included.
Size S

Pickup and Shipping Availability

Jetty Road Cycles
No immediate pickup available
Out of Stock

Take on enduro riding with the Mondraker CRAFTY CARBON S. This carbon-framed bike pairs a dual-suspension setup with Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) motor assistance. A RockShox ZEB Base 29 fork is part of the build, alongside Sram 70 Eagle shifting.

The Crafty is Mondraker's reference full-power e-MTB - equally happy grinding up technical climbs and charging down rough descents, with Bosch's Smart System drive, 150mm of travel on 29in wheels and Forward Geometry. Drop into Jetty Road Cycles in Rosebud or get in touch to check availability and sizing - our workshop will have it dialled before you ride away.

Key Features

  • 150mm rear / 160mm front travel
  • Frame: Crafty Stealth Air Carbon front triangle
  • Mondraker Zero Suspension System for small-bump grip, support and pedalling efficiency
  • Forward Geometry - longer front end paired with a short stem for stability and control at speed
  • Wheel size: 29
  • Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
  • Battery: Bosch Powertube 800Wh
  • Fork: RockShox ZEB Base 29
  • Shock: RockShox Super Deluxe Base
  • Drivetrain: Sram 70 Eagle, T-Type
  • Brakes: Sram DB8, 4-piston caliper
  • Claimed weight: 24.8 kg
  • Sizes: S, M, ML, L, XL

Specifications

  • Category: ENDURO
  • Colour: Green
  • Wheel Diameter: 29
  • Frame: Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
  • Available Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
  • Rear Shock: RockShox Super Deluxe Base, 185x55mm. Settings: external bottom out, 15 cliks rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
  • Shock Settings: C34 compression R55 rebound. Token position 2, X25 lockout force
  • Fork: RockShox ZEB Base 29, Delta RC, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
  • Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
  • Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
  • Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
  • Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
  • Seatpost: X-Fusion Manic TA, Travel adjust, diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 532x200, XL size: 532x200
  • Saddle: Ergon SM-10
  • Front Brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Rear Brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Brake Lever: Sram DB8, tool reach adjust, lever pivot bushings
  • Rims: Mavic E-Access XR30, 29 Boost 30mm internal width, tubeless ready, 28 spokes
  • Spokes: Mavic Reinforced spokes lacing
  • Front Hub: Mavic, Boost 15x110mm, IS 6 bolts
  • Rear Hub: Mavic hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
  • Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
  • Rear Tyre: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
  • Crankset: E.13 Helix Core E*Spec Plus, All sizes: 155mm
  • Rings: Sram Eagle 34T T-Type, direct mount, steel, CL55
  • Chain: Sram 70 Eagle T-Type, 12s Flattop, PowerLock
  • Rear Derailleur: Sram 70 Eagle, T-Type, 12s
  • Shift Levers: Sram Trigger 70, 12s, T-Type Actuation
  • Cassette: Sram XS-1270, 10-52T, 12s
  • Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
  • Battery: Bosch Powertube 800Wh
  • Display: Kiox 400C / Bosch Mini Remote
  • Bike Weight: 24,8 kg
