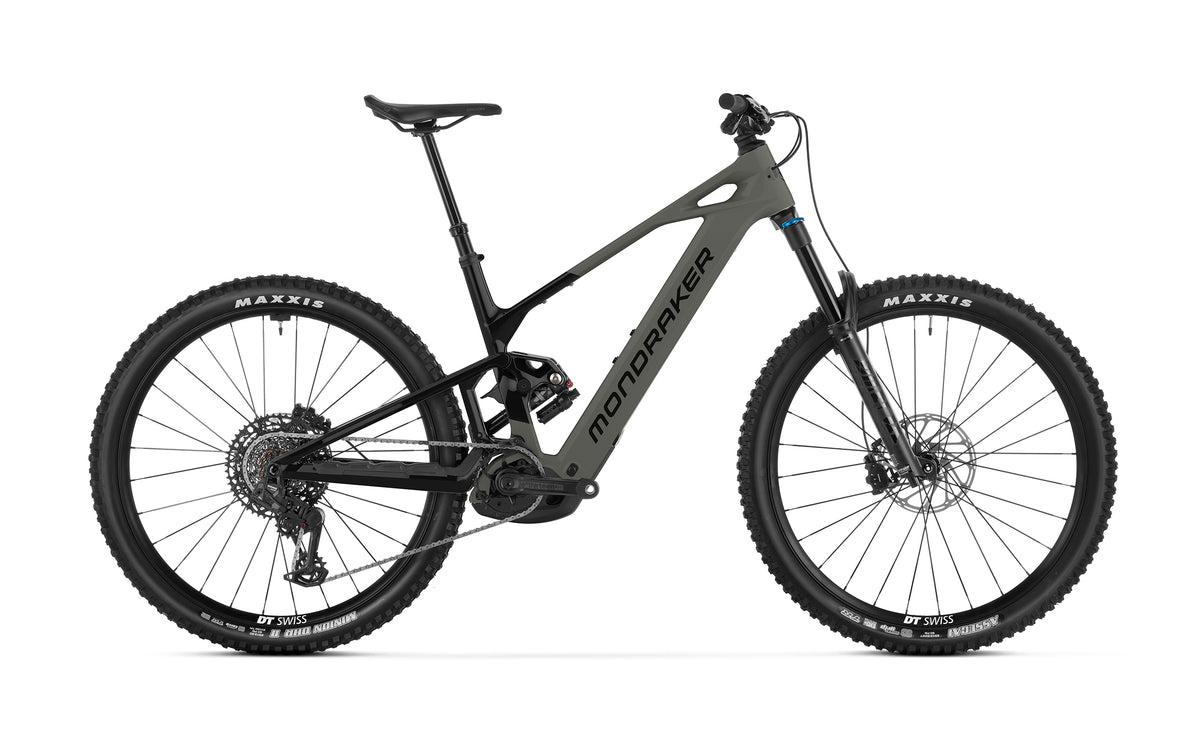

MONDRAKER CRAFTY CARBON R E-BIKE CARBON COMPLETE 29 800WH GREYHOUND GREY

The Crafty has grown into Mondraker's reference e-MTB - the most versatile bike in their range, equally happy grinding up technical climbs and charging down fast, rough descents. The Stealth Air Carbon frame runs 150mm of rear travel through the updated Zero Suspension System with a 160mm fork on full 29in wheels, and Forward Geometry with size-specific chainstays (455mm on S-ML, 465mm on L-XL) keeps the handling consistent whatever size you ride.

The Crafty Carbon R pairs a carbon front triangle with an alloy rear end and gets a Fox 38 Performance fork and Float X shock, the Bosch Performance Line CX Smart System motor with a removable 800Wh PowerTube, a top-tube Kiox 400C display, SRAM S1000 Eagle AXS T-Type wireless shifting and SRAM Maven Base brakes. It's a big-range, big-travel e-bike that's ready for full days in the hills. Drop into Jetty Road Cycles in Rosebud or get in touch to check availability and sizing - our workshop will have it dialled before you ride away.

Key Features

• 150mm rear / 160mm front travel on 29in wheels
• Stealth Air Carbon front triangle with a Stealth Alloy rear triangle
• Updated Zero Suspension System for better small-bump compliance, support and climbing grip
• Forward Geometry with size-specific chainstays - 455mm (S, M, ML) / 465mm (L, XL)
• Two-position flip chip on the lower shock mount to tweak BB height and head/seat angles
• Latest Bosch Performance Line CX Smart System motor - 85Nm and 600W peak, quieter and smaller, with lower drag above 25km/h
• Removable 800Wh Bosch PowerTube battery, plus PowerMore 250Wh range extender compatibility
• Kiox 400C display and Bosch Mini Remote
• HHG internal cable routing, UDH and oversized 15mm pivot axles with MAX capacity sealed bearings
• Five sizes from S to XL, including an ML

Specifications

• Frame: Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, removable internal battery, Boost 12x148mm, UDH, tapered head tube, one-piece Monoblock upper link
• Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, Boost 15x110mm, 44mm offset
• Rear Shock: Fox Float X LV Performance, 185x55mm, 2-position lever, trunnion mount
• Motor: Bosch Performance Line CX (25km/h), Smart System (BDU384Y)
• Battery: Bosch PowerTube 800Wh, removable
• Display: Bosch Kiox 400C / Bosch Mini Remote
• Shifter: SRAM Eagle AXS Pod MMX, 12-speed
• Rear Derailleur: SRAM S1000 Eagle AXS T-Type, 12-speed
• Cassette: SRAM XS-1270, T-Type, 12-speed, 10-52T
• Chain: SRAM GX Eagle T-Type, 12-speed Flattop
• Crankset: E.13 Helix Core E*Spec Plus, 155mm (all sizes), SRAM Eagle 34T T-Type steel ring
• Brakes: SRAM Maven Base 4-piston, 200mm Centerline rotors front and rear
• Hubs: DT Swiss 370, Boost 15x110mm front / 12x148mm rear with 18T Ratchet LN, HG freehub
• Rims: DT Swiss Hybrid H 1900 Spline, alloy, 30mm internal, tubeless ready, 28h
• Spokes: DT Swiss Hybrid I straightpull, black
• Front Tyre: Maxxis Assegai, 29x2.5 WT, 3C MaxxGrip, EXO+
• Rear Tyre: Maxxis Minion DHR II, 29x2.5 WT, 3C MaxxTerra, DoubleDown
• Handlebar: Onoff S6 1.0, 7050 alloy, 800mm, 25mm rise (S-ML) / 38mm rise (L-XL)
• Stem: Onoff S6, 30mm, 31.8mm clamp
• Seatpost: Onoff Pija dropper, 31.6mm - S 140mm / M 160mm / ML 180mm / L-XL 210mm (travel-adjustable)
• Saddle: Ergon SM-10
• Headset: Acros custom ZS56/ZS56
• Grips: Onoff Desert Pro lock-on, 135mm
• Wheel Size: 29in front and rear
• Weight: 24.5kg (claimed)
• Geometry: 64.5 degree head angle, 77.95 degree effective seat angle, reach 445 / 460 / 480 / 500 / 520mm, chainstays 455mm (S-ML) / 465mm (L-XL) (Standard flip chip)
