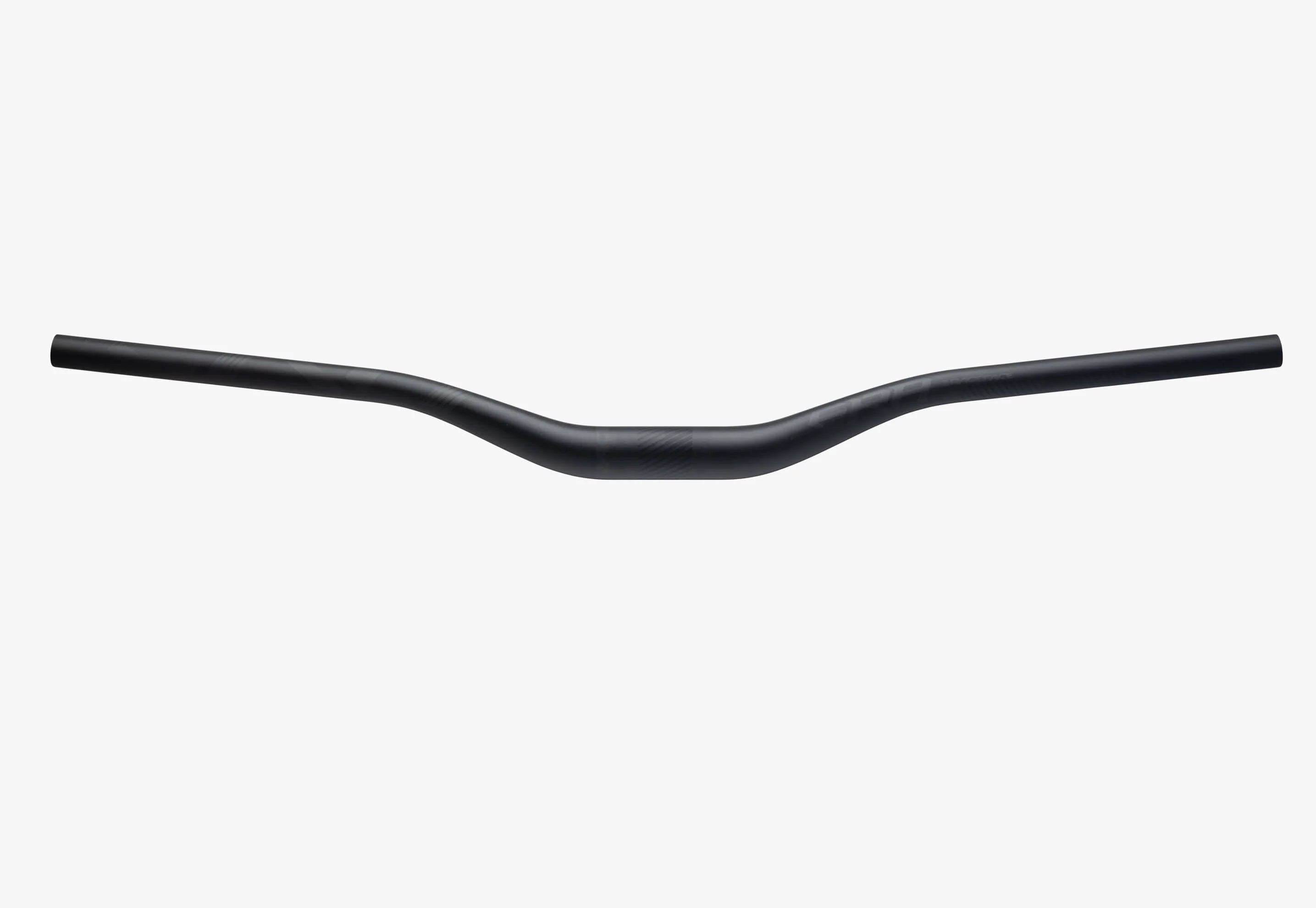

RACEFACE H/Bar ERA 35x800 40mm-Stealth

The Race Face Era Carbon Handlebar is engineered to enhance rider comfort and performance, particularly for enduro, trail, and eMTB disciplines. Developed over five years with extensive testing, the Era handlebar aims to reduce arm pump and hand fatigue through optimized compliance and strength. Design Innovations; Key Features & Specifications;

Key Features

• eMTB Ready: Rated for Category 4 use, suitable for enduro and eMTB applications

Specifications

• GL Tune Compliance: Race Face’s “Goldilocks” (GL) tune achieves an optimal balance between vertical compliance and lateral stiffness, reducing rider fatigue without compromising control

• Width-Specific Layups: Each handlebar width and rise combination features a specific carbon layup to maintain consistent compliance and ride feel, eliminating the need for trimming that can alter stiffness

• Optimized Taper and Rise: A narrowed stem clamp area allows for a quicker taper and earlier rise, contributing to the bar’s compliant characteristics

• Material: 96-piece unidirectional (UD) carbon fiber layup, bound with toughened epoxy resin for high strength-to-weight ratio

• Clamp Diameter: 35mm

• Widths: 760mm, 780mm, 800mm

• Rise Options: 10mm, 20mm, 40mm, 55mm (note: 55mm rise not available in 760mm width)

• Backsweep / Upsweep: 8° / 5°

• Weight: Approximately 220g for the 800mm width with 40mm rise

• Stem Clamp Compatibility: Maximum clamp width of 60mm; not compatible with wider stems like direct mount stems

• Colors: Six options including Stealth, Grey, Blue, Red, Orange, and Kash Money

• Warranty: Lifetime warranty, including crash replacement
