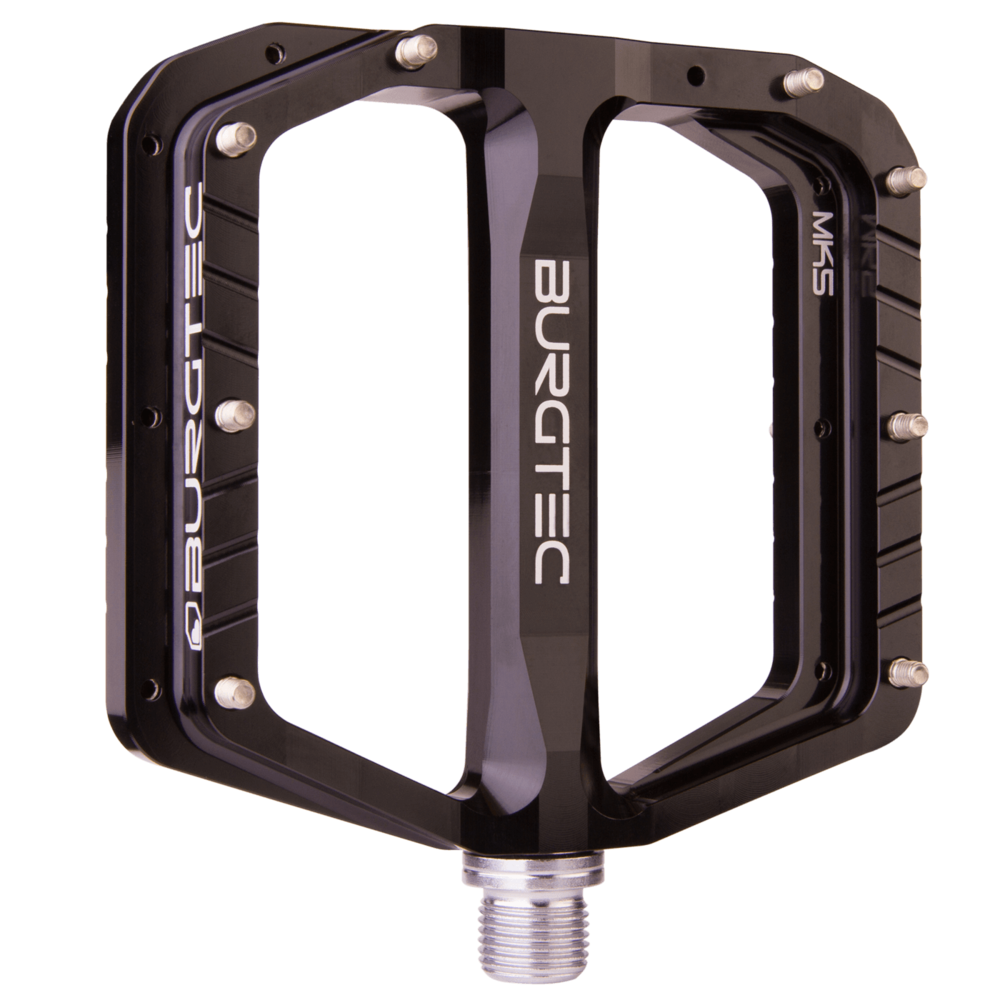

Burgtec Penthouse Flat MK5 Pedals

Seventeen years of flat pedal development distilled into one platform. The Penthouse Flat MK5 is Burgtec's lightest, grippiest pedal yet — 65g lighter per pair than the MK4 while adding a bigger, more concave platform and narrower pins that dig deeper into your shoe. Running Igus W300 "Endurance Runner" bushings — the most wear-resistant internals on the market — alongside a single sealed bearing and inboard rubber oil seal, the MK5 is built to handle whatever the trail throws at it. This is what two years of development looks like.

Design Features

• Larger platform footprint — 100mm × 102mm, 7% bigger than the MK4, for more confident foot placement and improved stability at speed
• Increased concavity — 2mm dish profile locks your foot in position under hard braking and through rough, square-edged hits
• Narrower 3.5mm stainless steel pins — reduced diameter for deeper shoe penetration and maximum grip without snagging on rock strikes
• Igus W300 "Endurance Runner" bushings — Burgtec's most wear-resistant internal spec ever, offering unrivalled resistance to mud and water ingress
• Single sealed bearing and inboard rubber oil seal for smooth, weather-protected rotation that holds up across seasons
• EN24T steel axle — high-tensile, aerospace-grade steel at the highest-load point on the pedal
• 65g lighter per pair than the MK4 at just 379g, with zero compromise to Burgtec's signature toughness

Specifications

• Weight: 379g (per pair)
• Platform material: 7075 aluminium alloy
• Platform dimensions: 100mm × 102mm
• Profile height: 15mm
• Dish: 2mm (concave)
• Pin material: Stainless steel | Pin width: 3.5mm | Pin height: 4.5mm
• Axle material: EN24T steel
• Internals: 2× Igus W300 bushings, single sealed bearing, inboard rubber oil seal

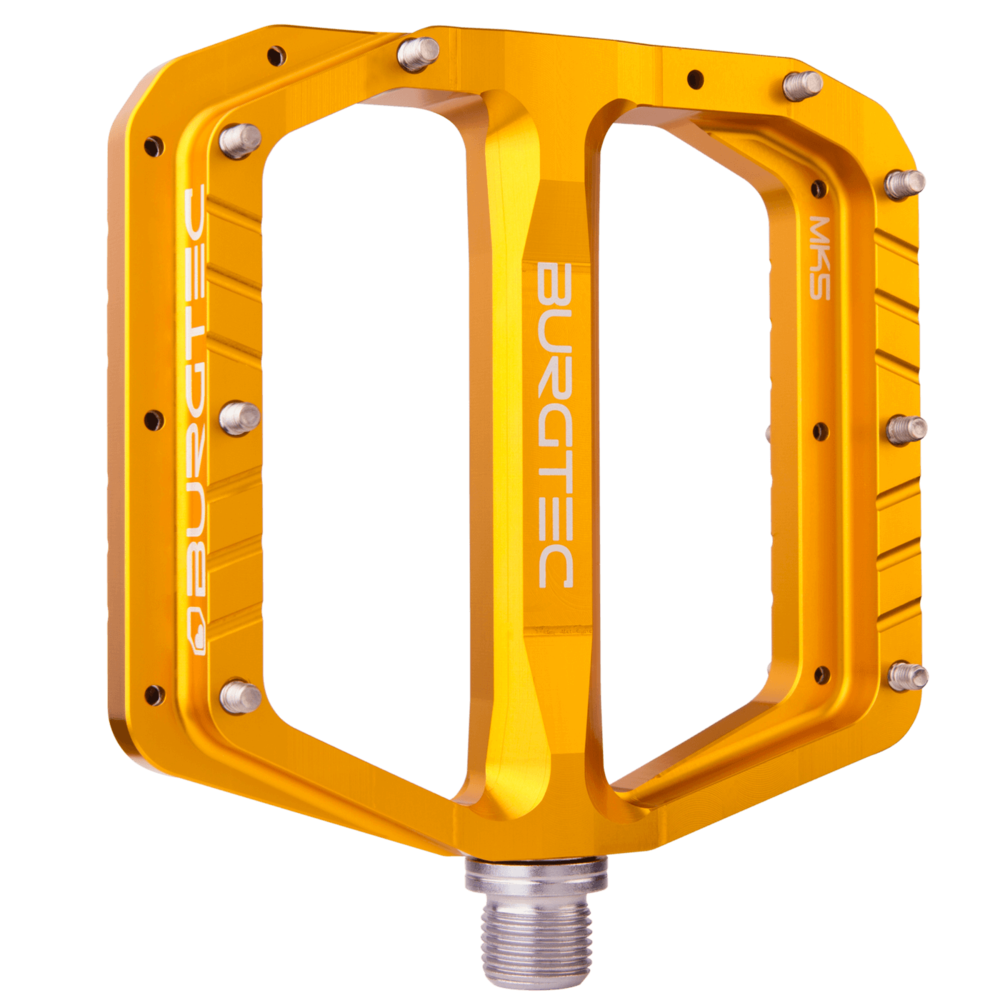

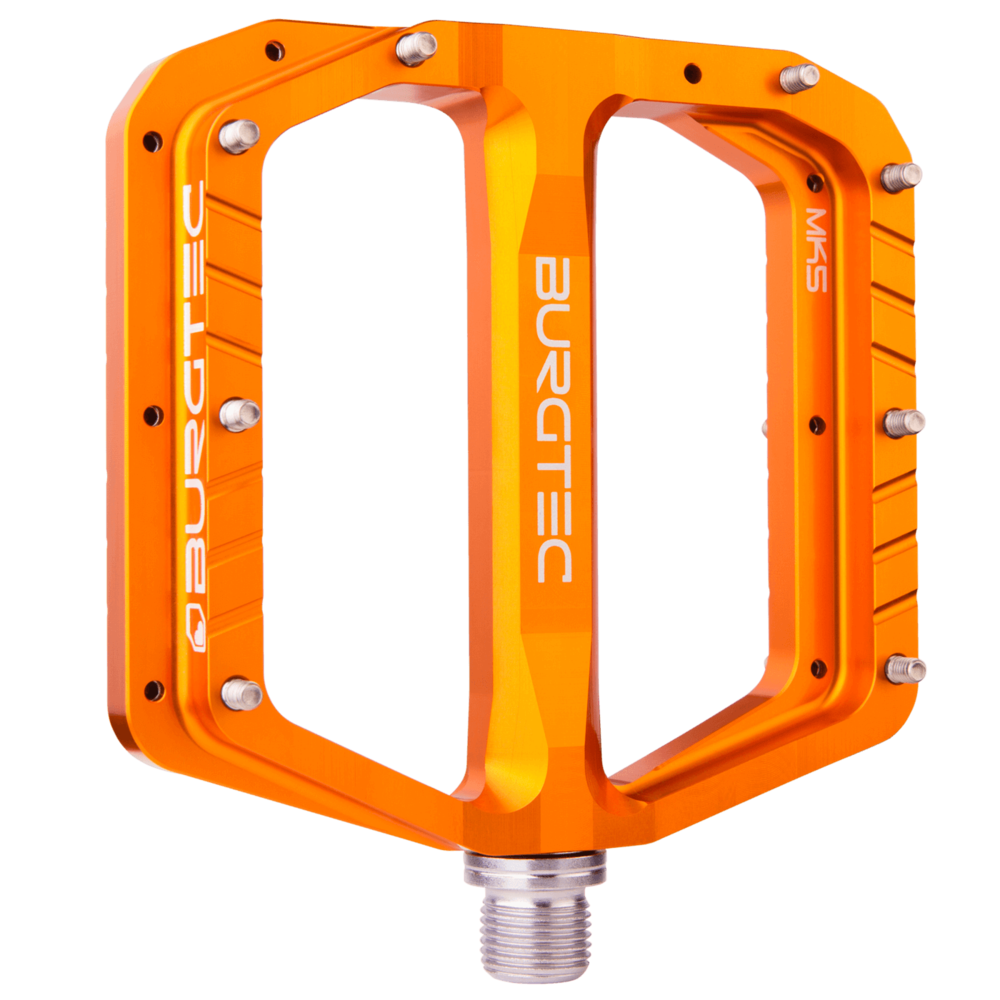

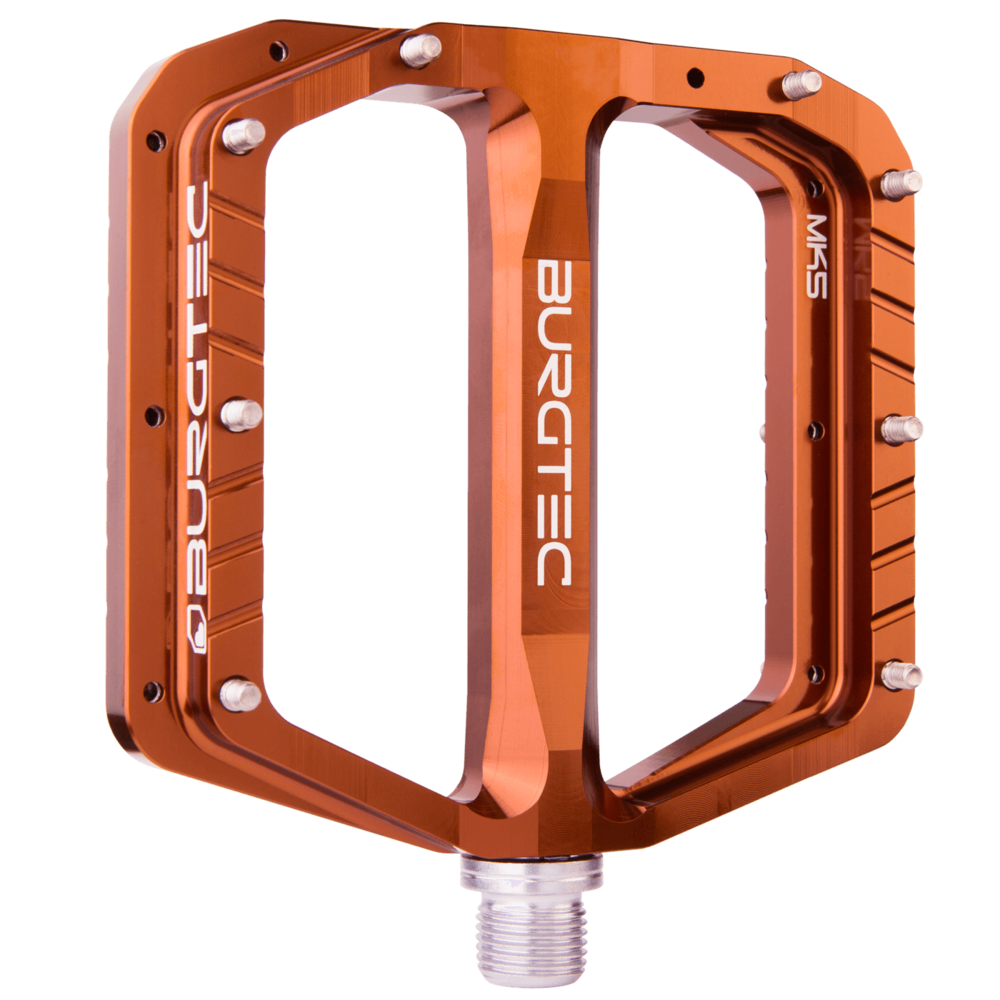

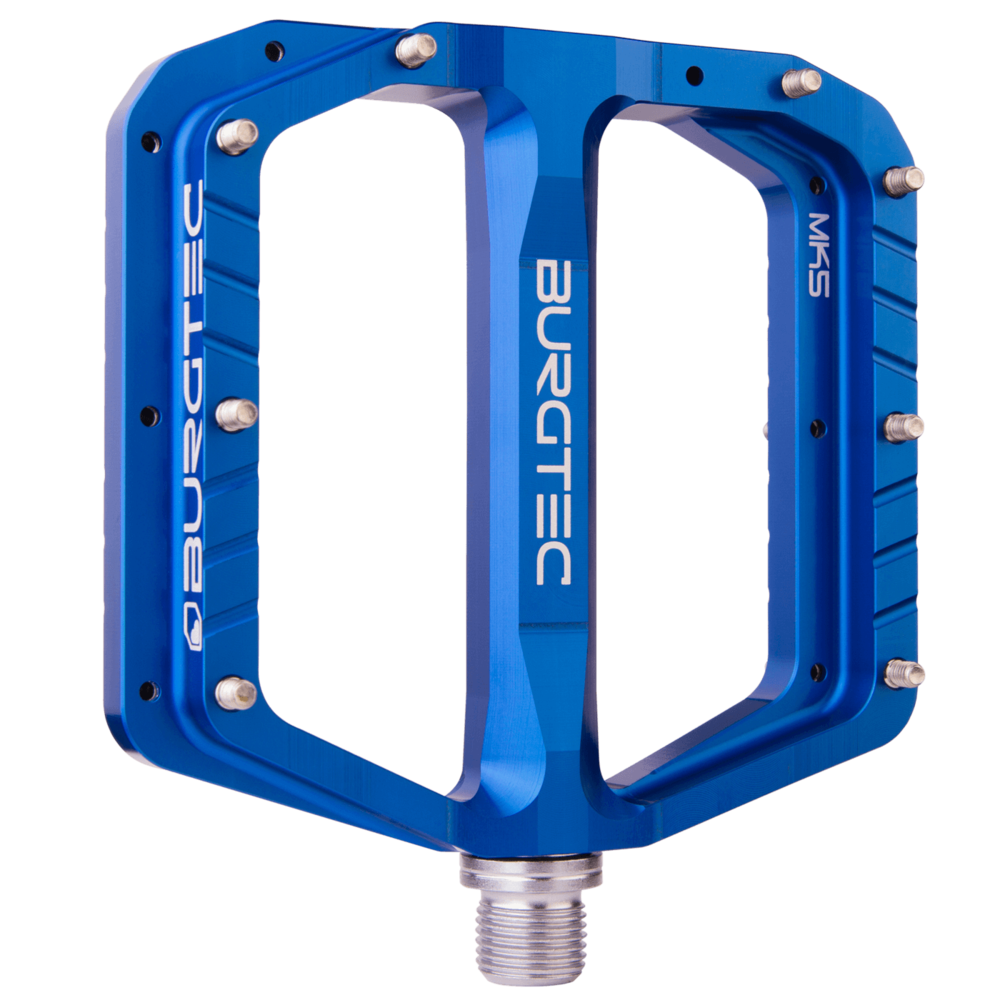

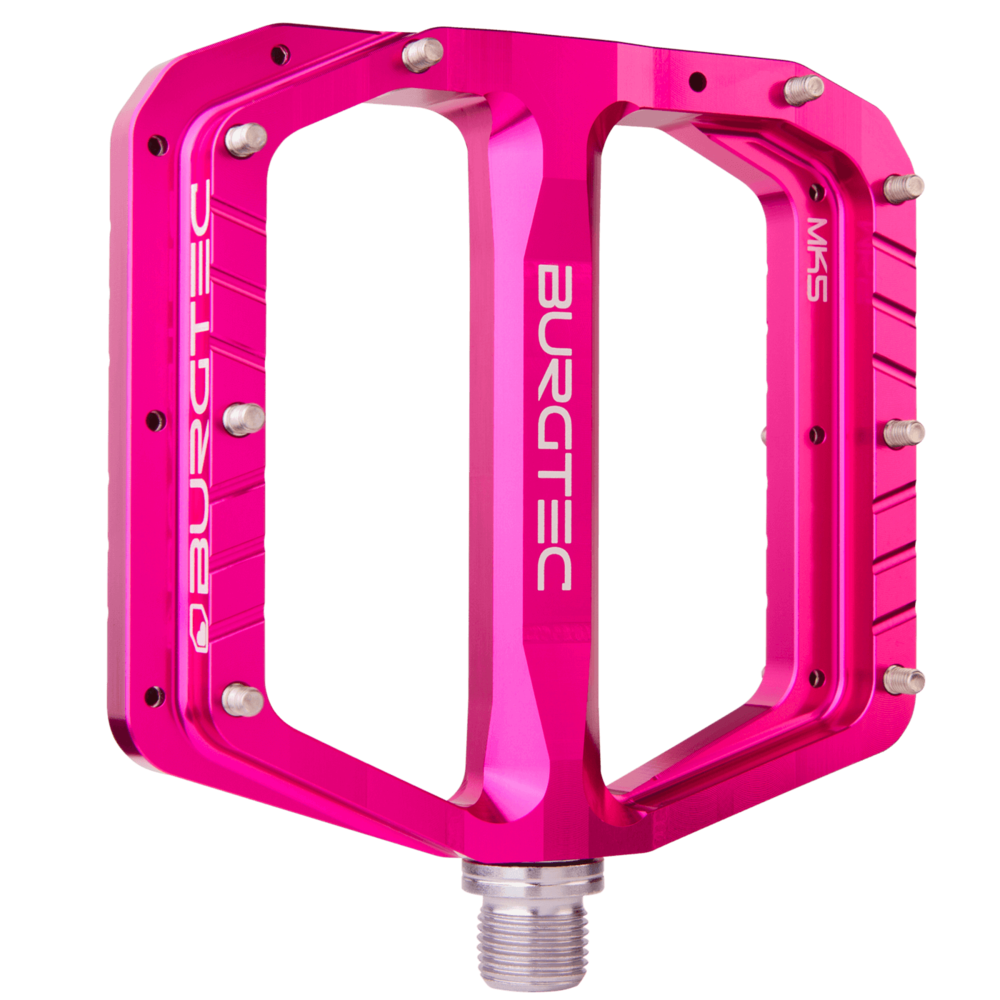

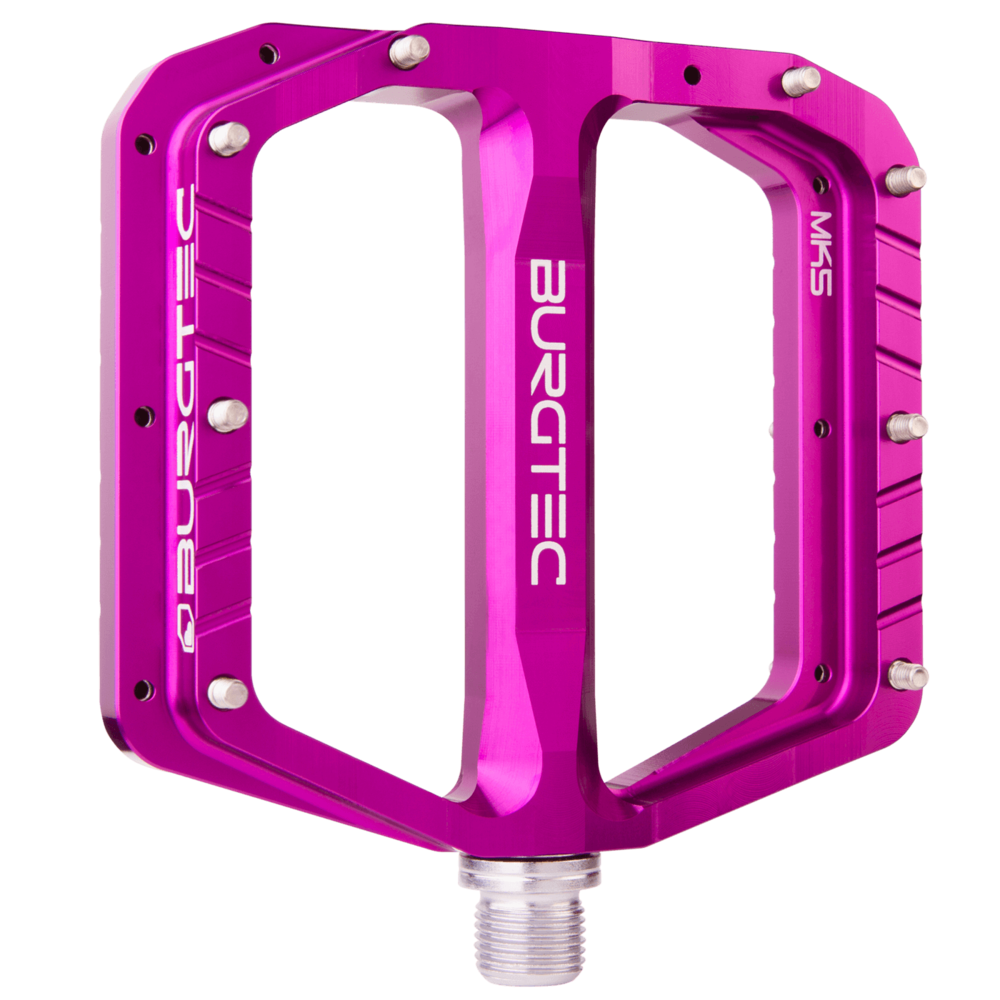

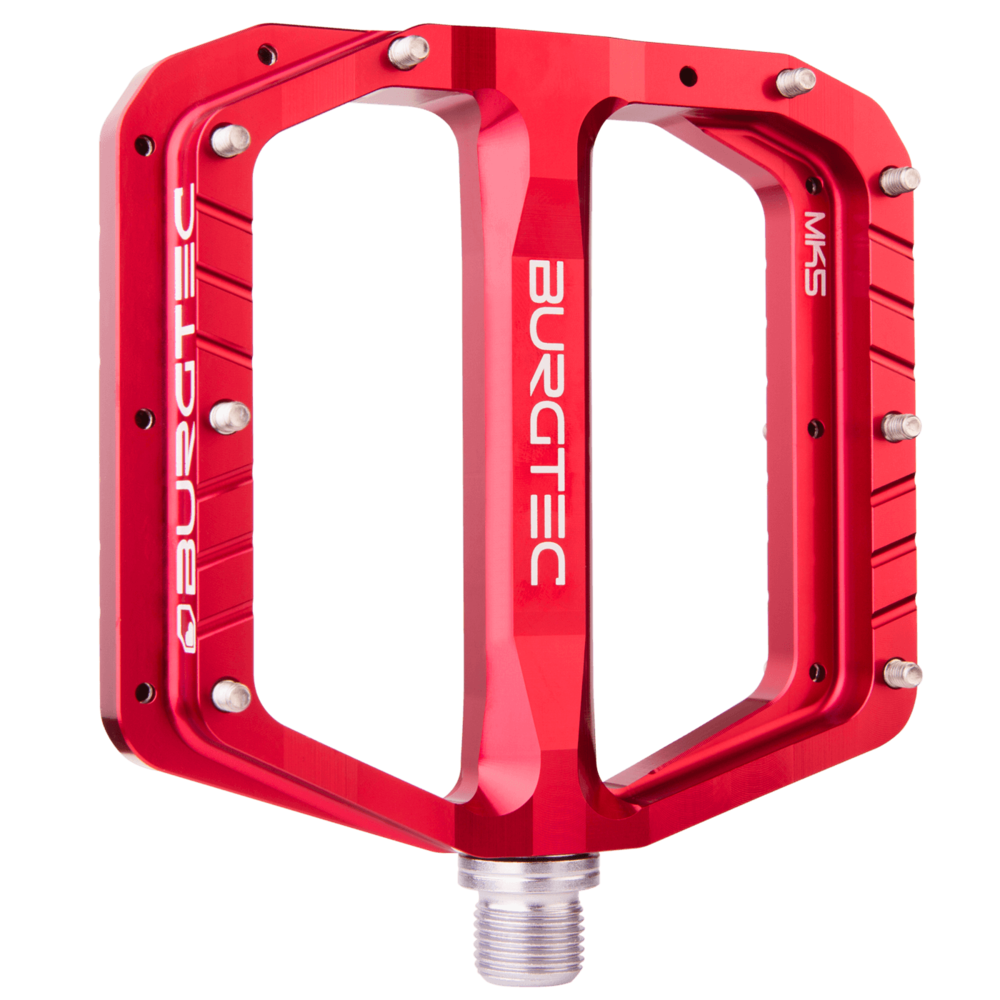

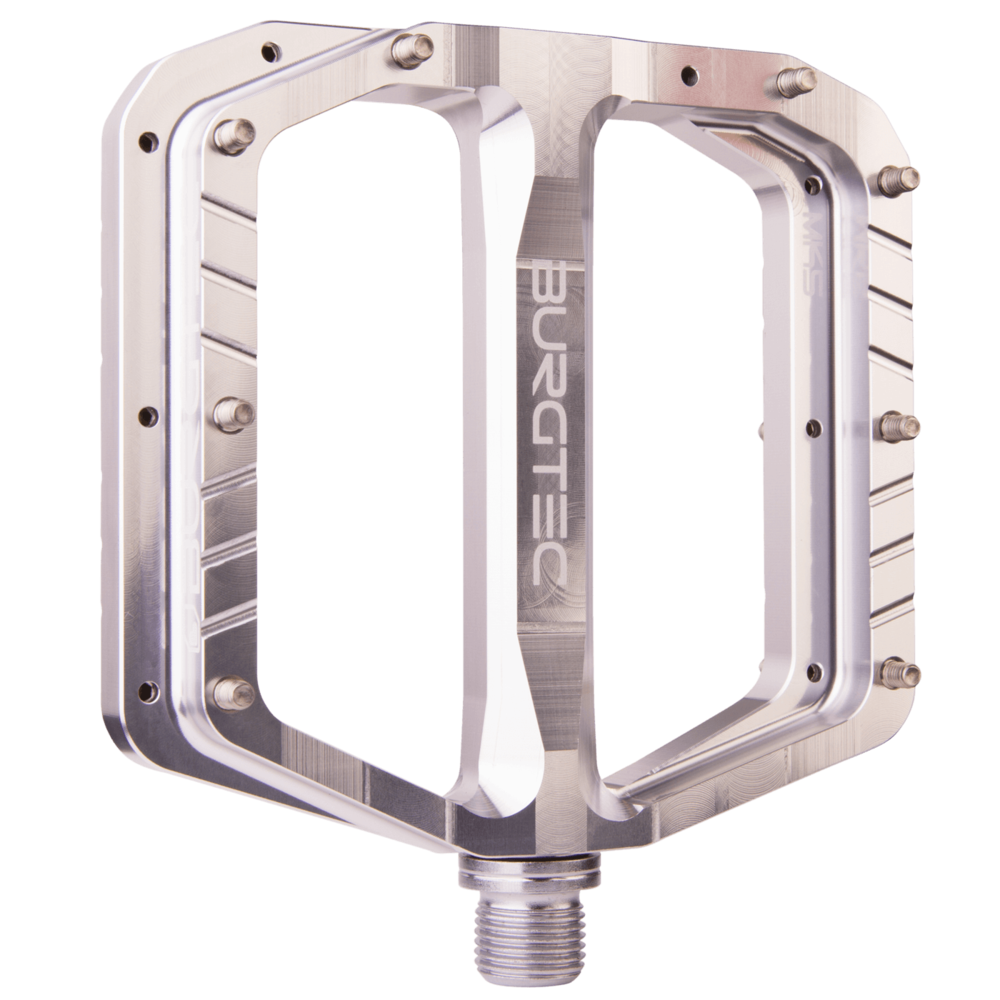

• Colours: Burgtec Black, Race Red, Deep Blue, Purple Rain, Kash Bronze, Iron Bro Orange, Rhodium Silver, Burgtec Bullion Gold, Toxic Barbie Pink
