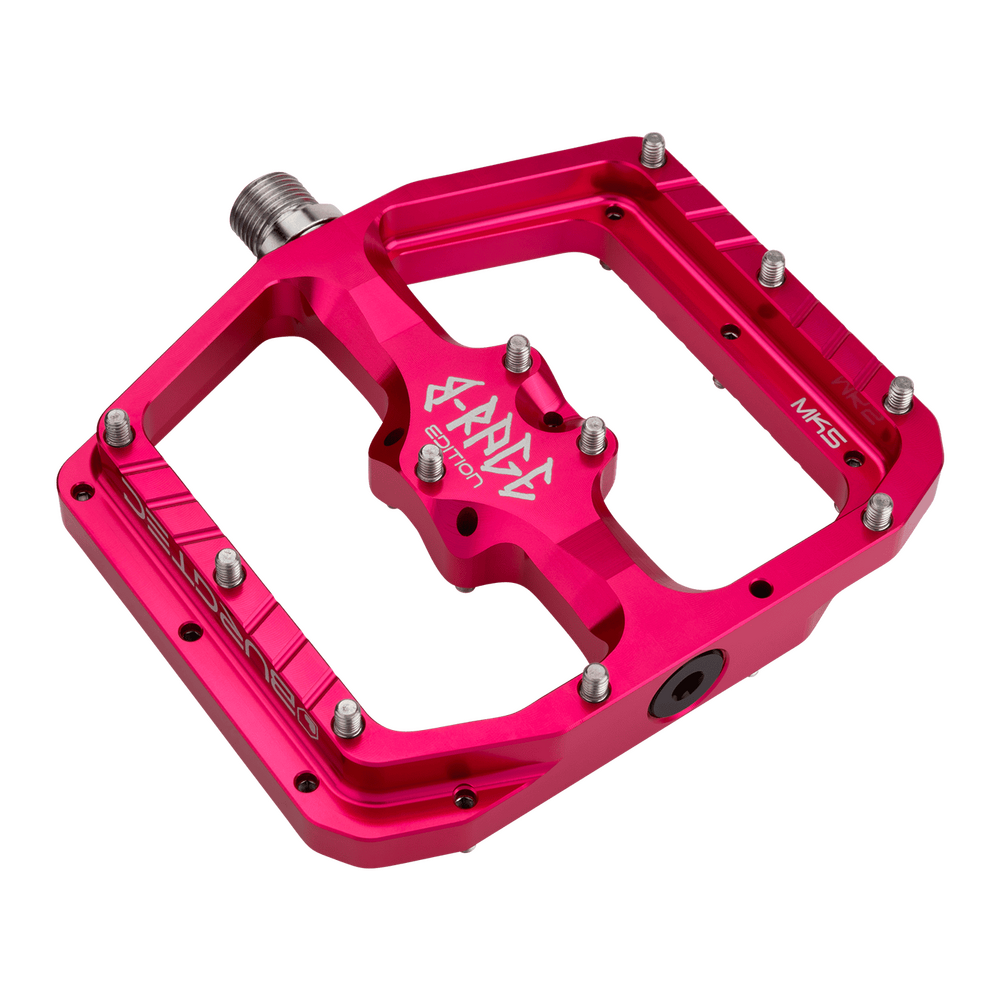

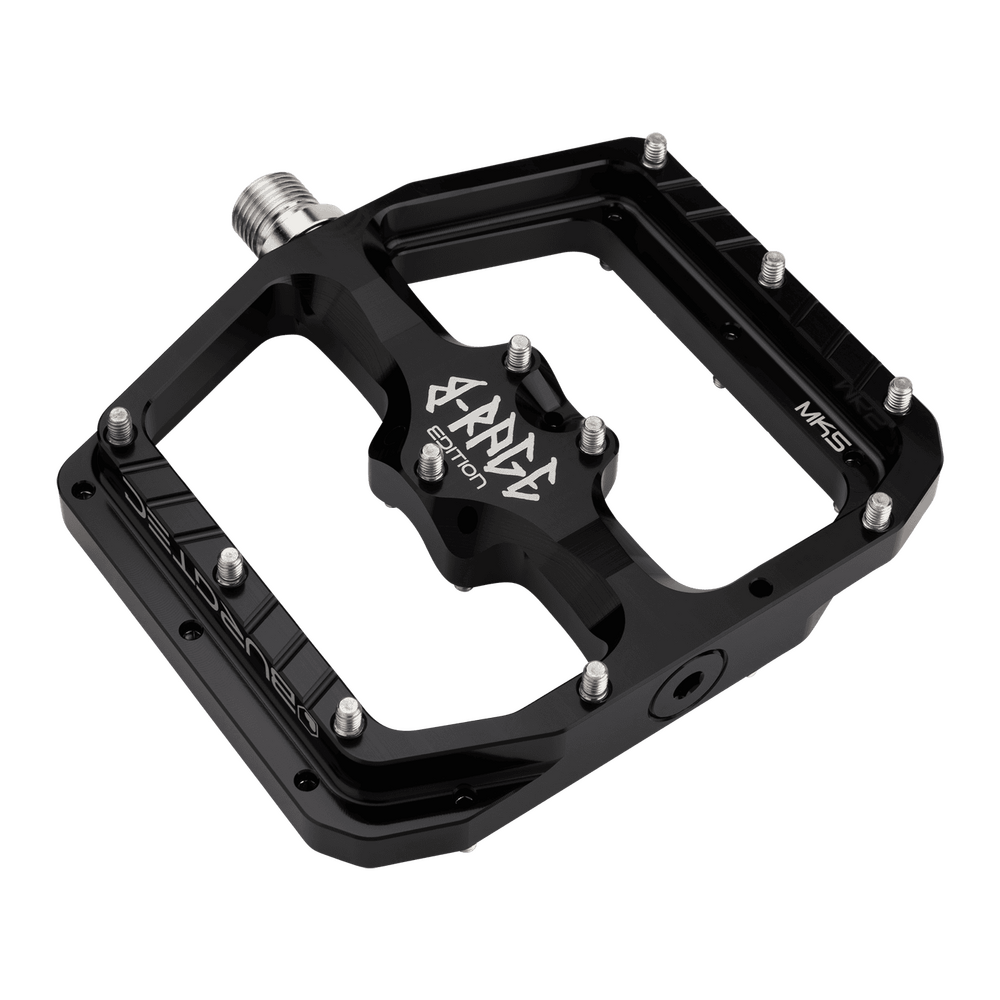

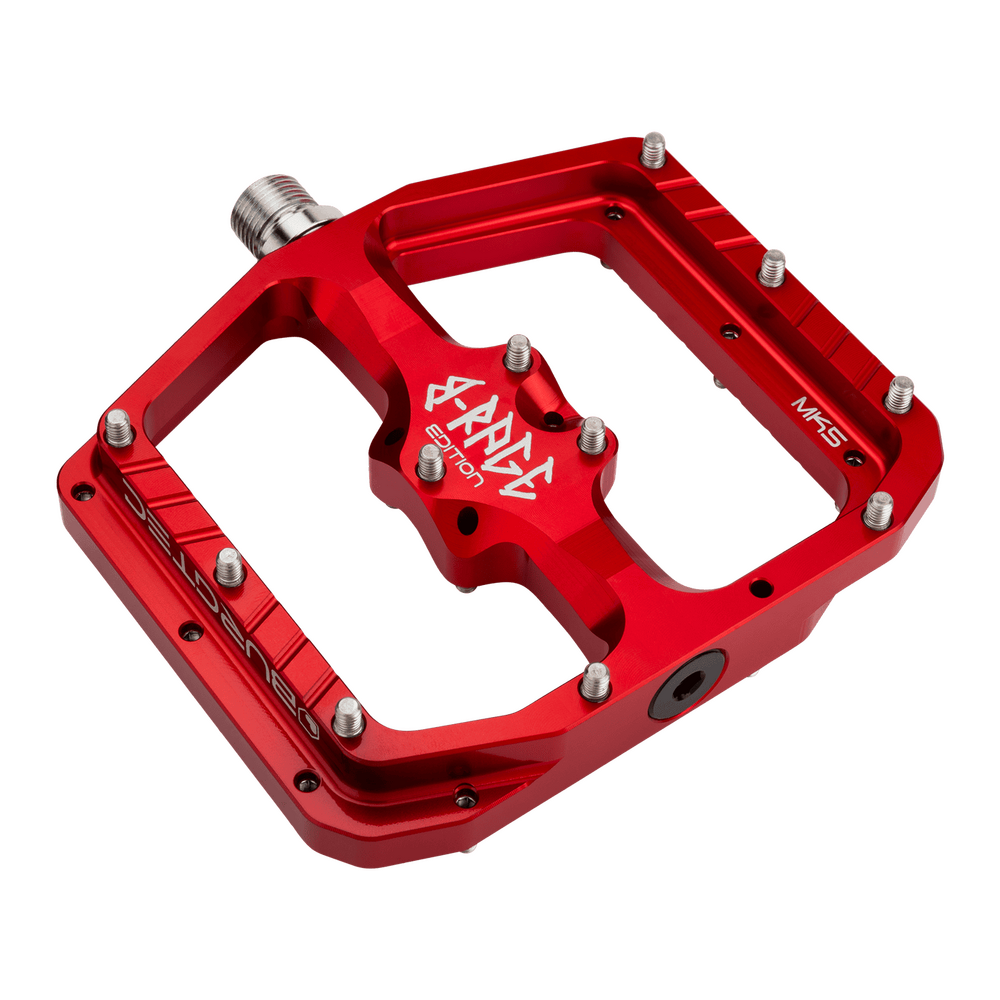

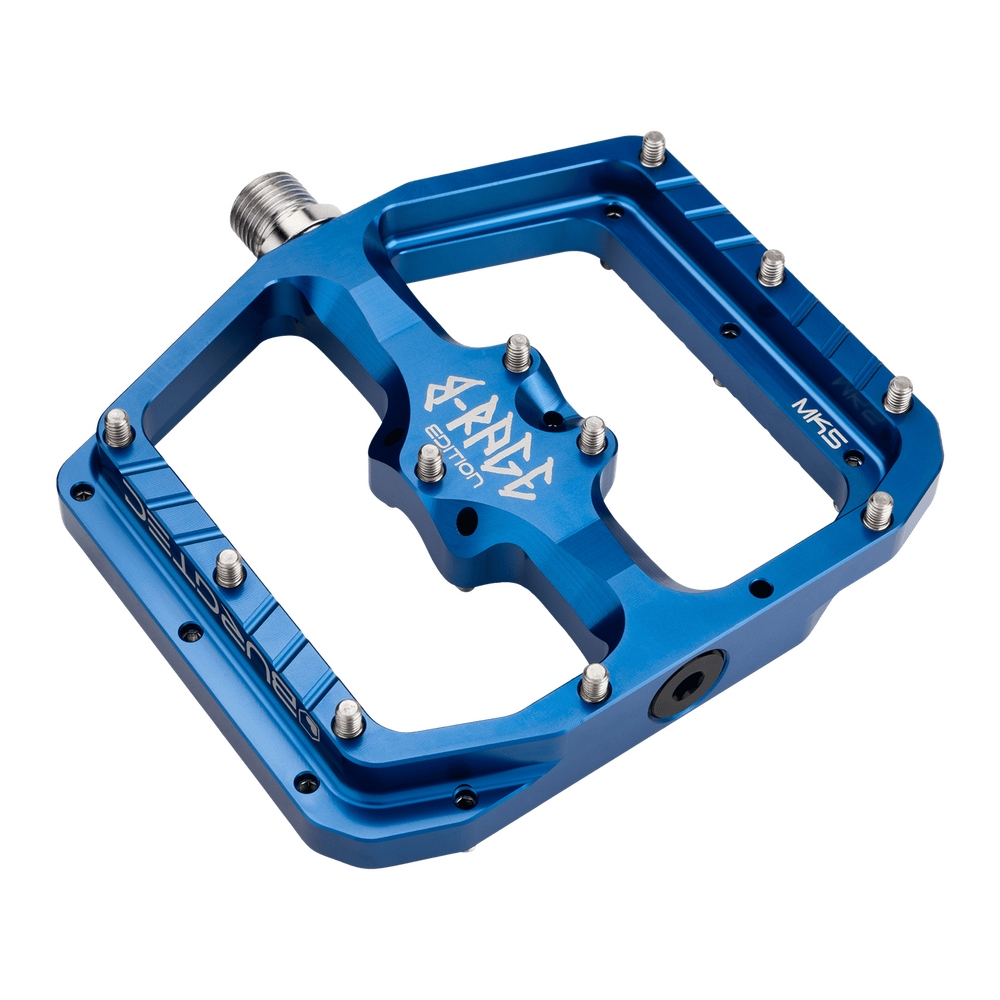

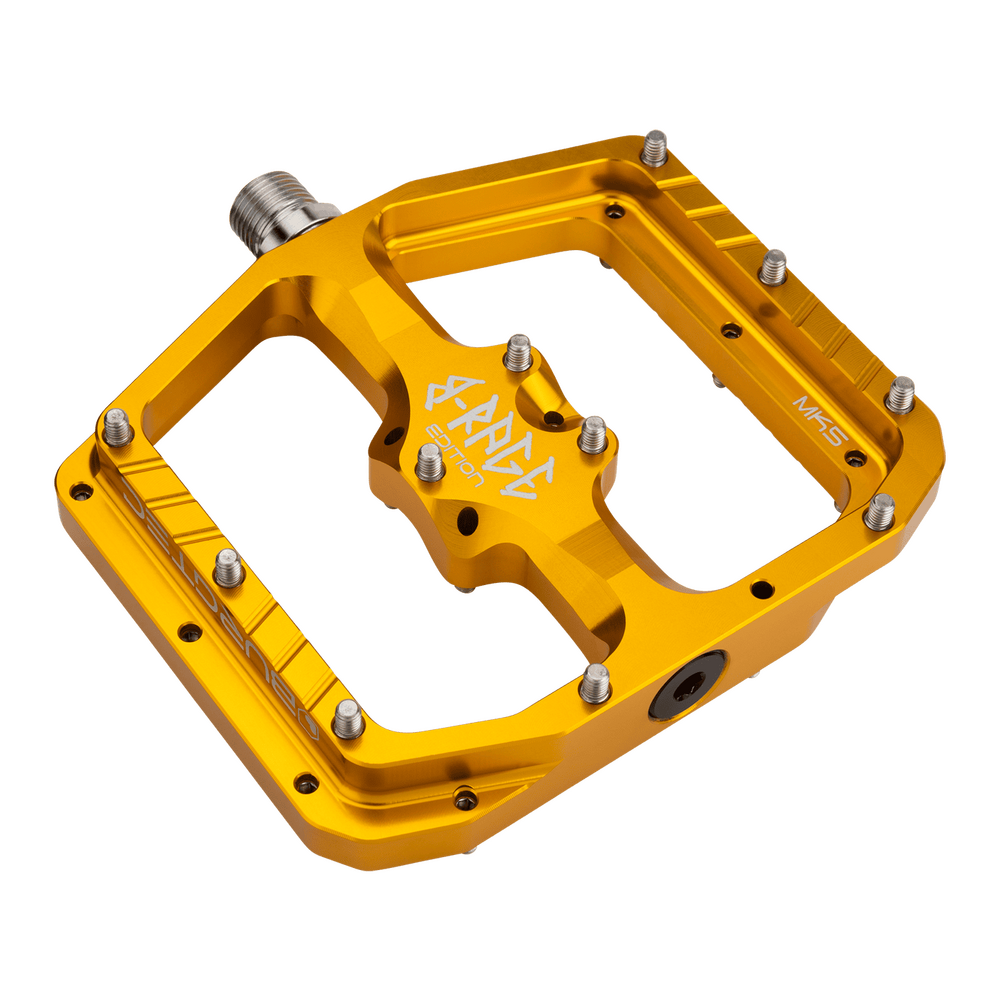

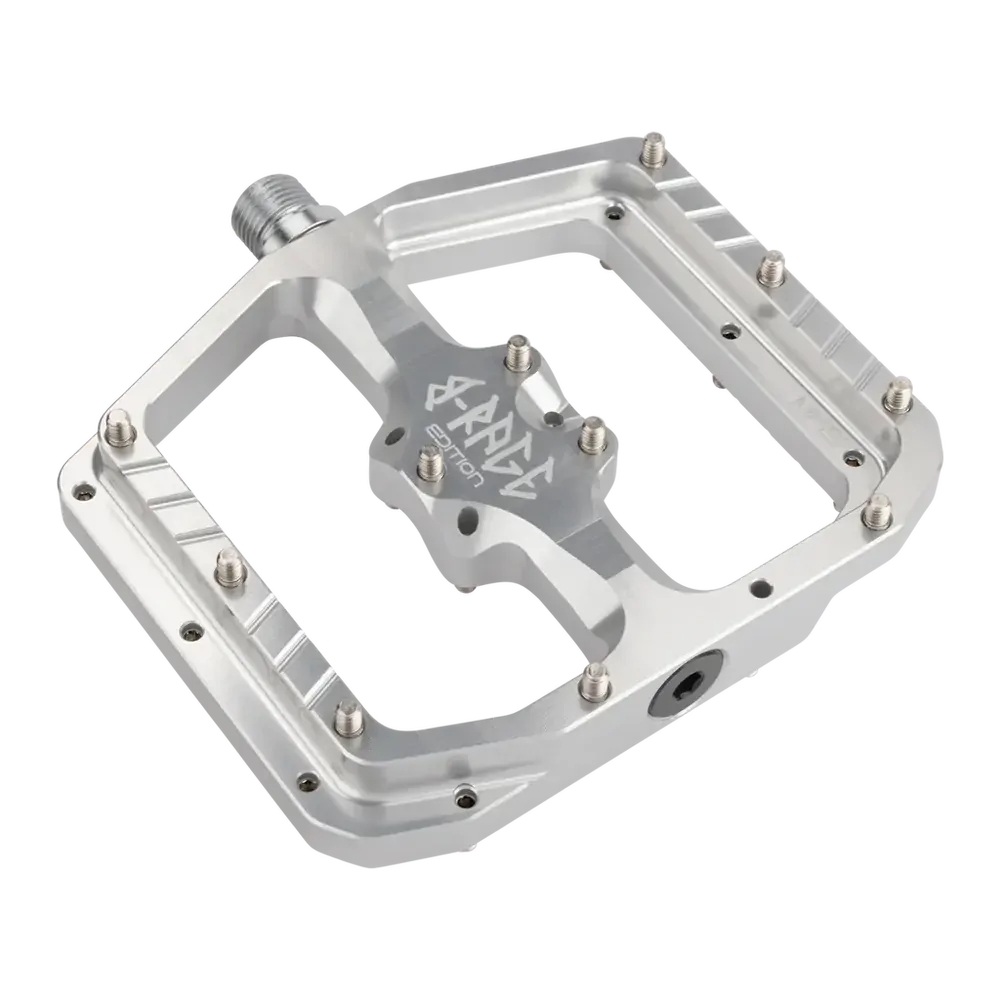

Burgtec Penthouse Flat MK5 B-Rage Edition Pedals

The Burgtec Penthouse Flat MK5 B-Rage Edition is a collaboration with big-mountain ripper Brage Vestavik — a pedal built for riders who demand no compromises on strength, grip and platform support. Starting from the proven MK5, Burgtec added 12mm of length front-to-back to create a stomping 112mm x 102mm platform that keeps your feet planted on the gnarliest terrain. Centre pins make a comeback for the first time since the original MK1, with a dedicated pad housing three extra pins in the middle of the platform for grip where you need it most. Two meetings, two sketches, one prototype — and a pedal good enough to earn a 55ft Jah Drop seal of approval from the man himself.

Design Features

• Enlarged 112mm x 102mm platform — 12mm longer front-to-back than the standard MK5 — delivers maximum foot support for big hits and committing moves
• Centre-pin pad with 3 additional stainless steel pins in the middle of the platform, a feature not seen on a Penthouse since the original MK1 over 20 years ago
• 11 stainless steel pins per side (4mm wide, 5mm tall) across the full platform for relentless traction in wet and dry conditions
• 7075 alloy platform body — the same premium aluminium alloy used in aerospace and high-end componentry — balances strength with a reasonable weight penalty for this size of platform
• 18mm profile keeps your foot low to the pedal axle for improved trail feel, stability and a natural pedalling position
• 3mm concave dish subtly cups the foot for secure, locked-in placement without feeling like a trap
• EN24T steel axle paired with dual Igus W300 bushings, a single sealed bearing and an inboard rubber oil seal for long-lasting, serviceable internals
• Width and Q-factor match the standard MK5 to avoid trail-side snagging on rocks and roots

Specifications

• Weight: 513g (pair)
• Platform: 112mm x 102mm
• Platform Material: 7075 Alloy
• Profile: 18mm
• Dish: 3mm (concave)
• Pin Material: Stainless Steel — 11 pins per side
• Pin Width: 4mm | Pin Height: 5mm
• Axle Material: EN24T Steel
• Internals: 2x Igus W300 bushes, single sealed bearing, inboard rubber oil seal
• Colours: Burgtec Black, Race Red, Deep Blue, Purple Rain, Kash Bronze, Iron Bro Orange, Rhodium Silver, Burgtec Bullion Gold, Toxic Barbie Pink
