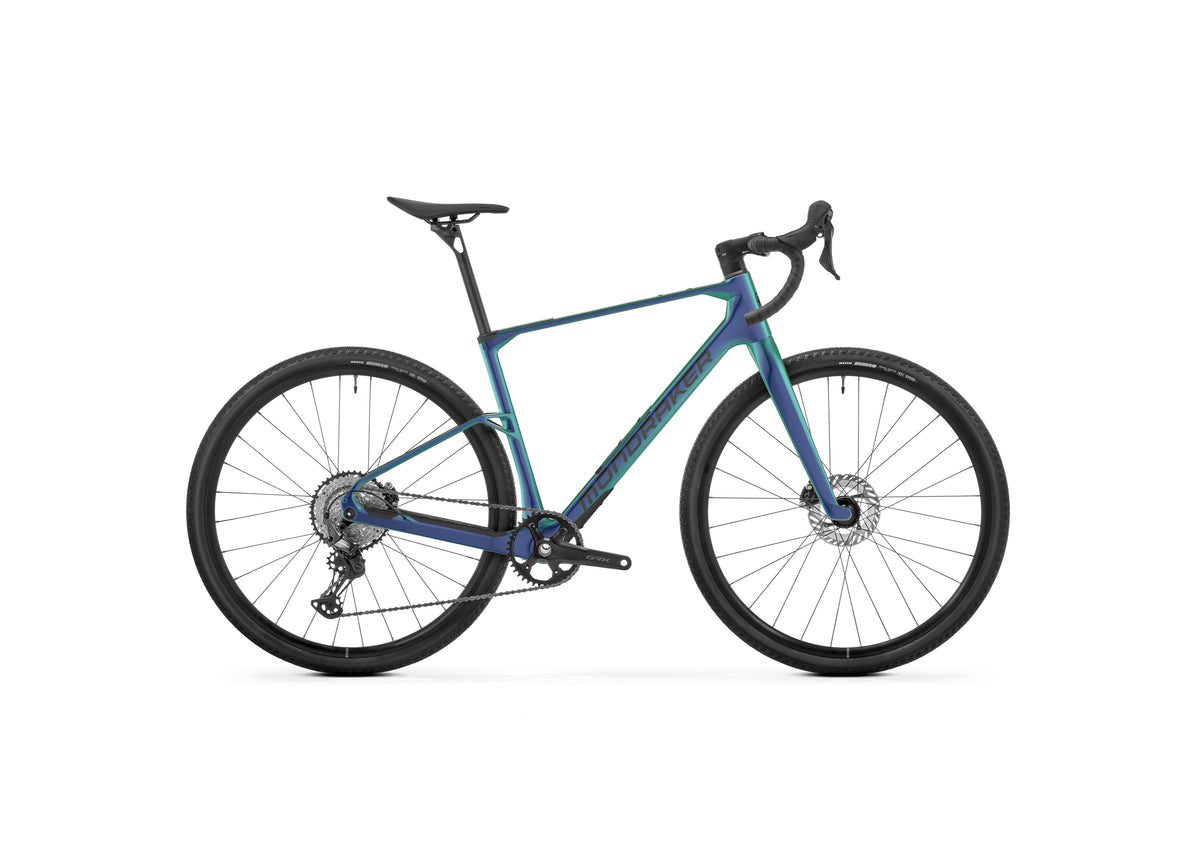

ARID CARBON S GRX Atmos

Take on gravel adventures with the Mondraker ARID CARBON S GRX. This carbon-framed bike pairs a gravel setup with 700c wheels. Shimano GRX RX822-SGS shifting rounds out a build ready for your next gravel ride.

Specifications

• Category: GRAVEL
• Colour: Atmos
• Wheel Diameter: 700
• Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
• Available Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
• Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
• Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
• Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
• Handlebar: Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
• Grips: Onoff HEX Bartape
• Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
• Saddle: Fizik Vento Argo X5 140mm
• Front Brake: Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
• Rear Brake: Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
• Brake Lever: Shimano GRX RX610, tooled reach adjust, aluminium lever.
• Rims: Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers
• Spokes: Mavic Steel J Bent spokes
• Front Hub: Mavic, 12x100mm, Centerlock
• Rear Hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub
• Front Tyre: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
• Rear Tyre: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
• Crankset: Shimano GRX RX610, S size: 165mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7
• Rings: Shimano 40T, direct mount, steel
• Bottom Bracket: Token T47 BSA sealed bearings, 85,5mm
• Chain: Shimano SLX CN-M7100, Quick-Link
• Rear Derailleur: Shimano GRX RX822-SGS, 12s
• Shift Levers: Shimano GRX RX610 dual control, alloy lever
• Cassette: Shimano SLX CS-M7100, Hyperglide+, 10-51, 12s
• Derailleur Hanger: Sram UDH
• Bike Weight: 10 kg
