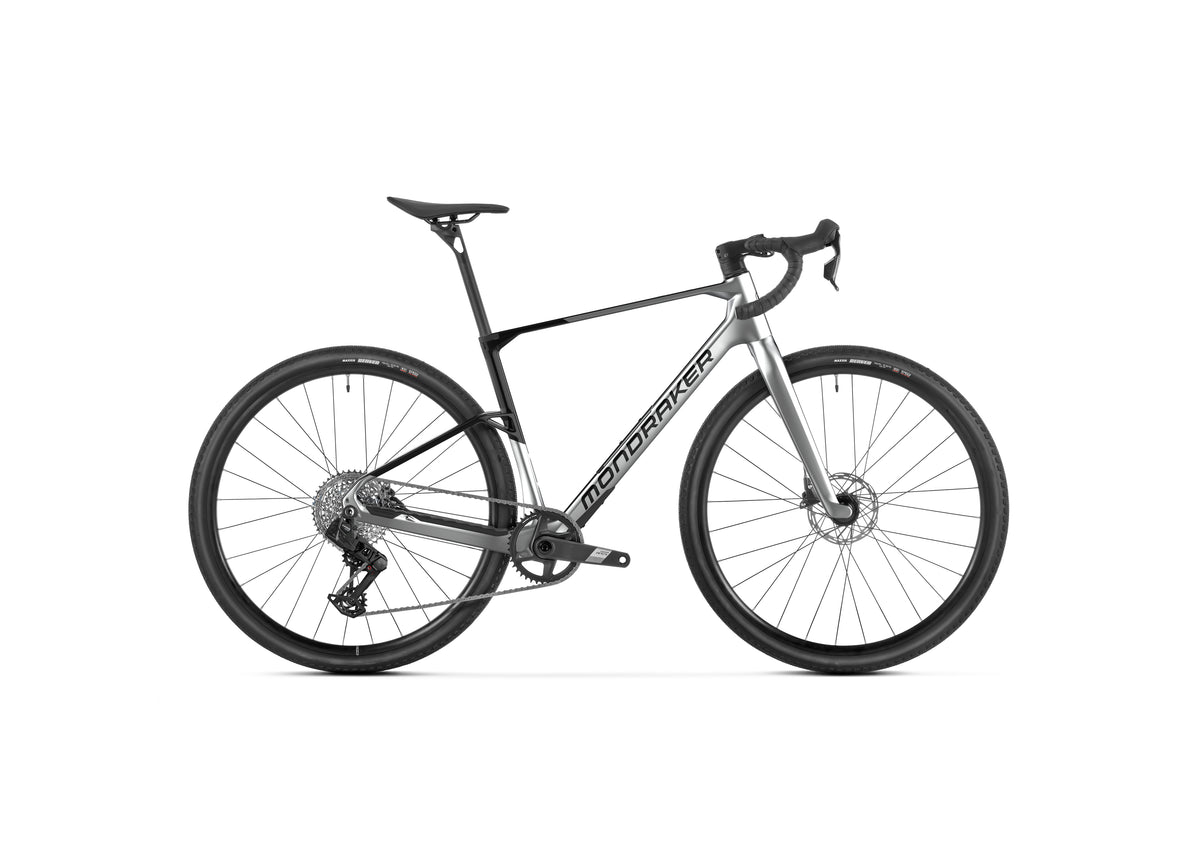

ARID CARBON S AXS Silverflash

Take on gravel adventures with the Mondraker ARID CARBON S AXS. This carbon-framed bike pairs a gravel setup with 700c wheels. Sram S1000 Eagle AXS T-Type shifting rounds out a build ready for your next gravel ride.

Specifications

• Category: GRAVEL
• Colour: Silver/Black
• Wheel Diameter: 700
• Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
• Available Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
• Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
• Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
• Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
• Handlebar: Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
• Grips: Onoff HEX Bartape
• Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
• Saddle: Fizik Vento Argo X5 140mm
• Front Brake: Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
• Rear Brake: Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
• Brake Lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
• Rims: Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers
• Spokes: Mavic Steel J Bent spokes
• Front Hub: Mavic, 12x100mm, Centerlock
• Rear Hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, HG Freehub
• Front Tyre: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
• Rear Tyre: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
• Crankset: Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
• Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
• Bottom Bracket: Sram DUB T47 BSA, sealed bearings, 85,5mm
• Chain: Sram GX Eagle T-Type, 12s Flattop, Powerlock
• Rear Derailleur: Sram S1000 Eagle AXS T-Type, 12s
• Shift Levers: Sram Apex AXS D1 12s,
• Cassette: Sram XS-1270, 10-52T, T-Type, 12s
• Bike Weight: 9,9 kg
