ANARK XR Raw Alloy

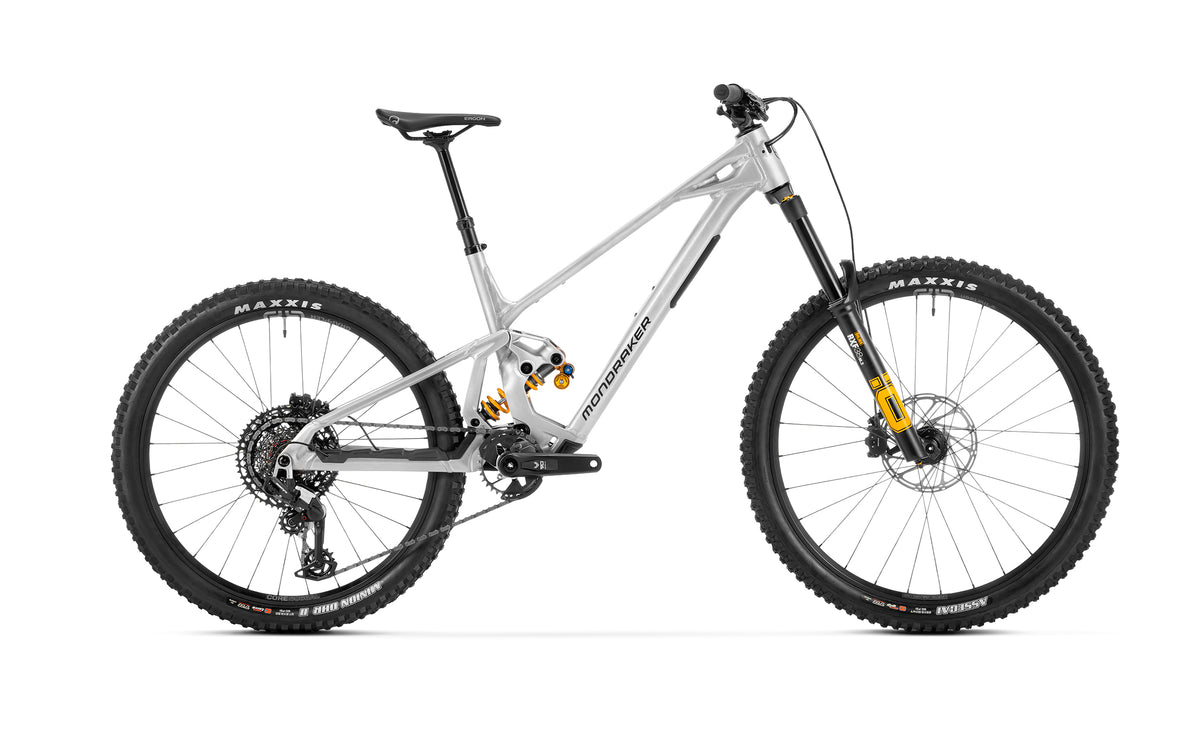

Mondraker ANARK XR Raw Alloy - front three-quarter
Mondraker ANARK XR Raw Alloy - rear three-quarter
Contact us for availability

ANARK XR Raw Alloy

$8,499.00
Regular price $8,499.00
Taxes included.
Size S

Pickup and Shipping Availability

Jetty Road Cycles
No immediate pickup available
Out of Stock

Take on bike-park laps with the Mondraker ANARK XR. This alloy-framed bike pairs a dual-suspension setup with a mixed-wheel configuration. A Öhlins RXF 38 M.3 29 fork is part of the build, alongside Sram 90 Eagle shifting.

The Anark is Mondraker's alloy bike park and freeride bike, running 170mm of rear travel on mullet wheels with a 180mm fork. It's built tough for uplift days and big hits, but still pedals back to the top when it needs to. Drop into Jetty Road Cycles in Rosebud or get in touch to check availability and sizing - our workshop will have it dialled before you ride away.

Key Features

  • 170mm rear / 180mm front travel
  • Frame: Anark 6061 Alloy Stealth Evo
  • Mondraker Zero Suspension System for small-bump grip, support and pedalling efficiency
  • Forward Geometry - longer front end paired with a short stem for stability and control at speed
  • Wheel size: Mullet
  • Fork: Öhlins RXF 38 M.3 29
  • Shock: Öhlins TTX 22M.2 Coil 205X65mm
  • Drivetrain: Sram 90 Eagle, T-Type
  • Brakes: Sram Maven Base, 18 millimeter 4-piston caliper
  • Claimed weight: 18.3 kg
  • Sizes: S, M, ML, L, XL

Specifications

  • Category: BIKE PARK
  • Colour: Alloy
  • Wheel Diameter: Mullet
  • Frame: Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, Max. capacity sealed bearings, ISCG 05
  • Available Sizes: S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm
  • Rear Shock: Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings
  • Shock Settings: C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs
  • Fork: Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
  • Headset: Onoff custom ZS56/ZS56, 1-1/8", 1.2" head tube
  • Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
  • Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
  • Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
  • Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
  • Saddle: Ergon Enduro SPS20
  • Front Brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Rear Brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
  • Brake Lever: Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
  • Rims: DT Swiss F 1900 Classic 29, 30mm internal width, welded aluminum, tubeless ready, 32 spokes
  • Spokes: J-bend spokes, DT competition, black
  • Front Hub: DT Swiss 370, Boost 15x110mm, IS 6 bolts
  • Rear Hub: DT Swiss 370 Classic with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
  • Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
  • Rear Tyre: Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
  • Crankset: Sram 90 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55
  • Rings: 32T, Alloy, T-type
  • Bottom Bracket: Sram DUB BSA, sealed bearings, 73mm
  • Chain: Sram 70 T-Type, 12s Flattop, PowerLock
  • Rear Derailleur: Sram 90 Eagle, T-Type, 12s
  • Shift Levers: Sram Trigger 70, 12s, T-Type Actuation
  • Cassette: Sram XS-1270, 10-52T, 12s
  • Bike Weight: 18,3 kg
Delivery & Returns
  • Flat rate shipping of $9.95
  • Free in store pick up
  • Call or email for tailored advice
