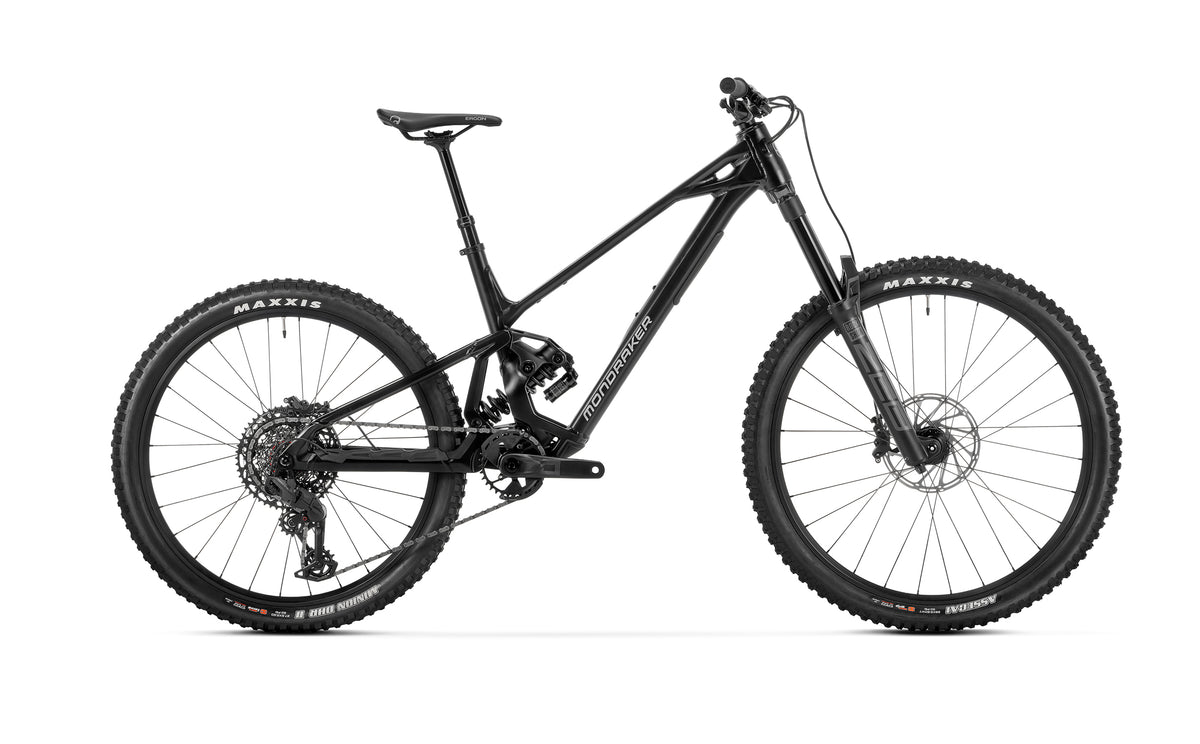

ANARK R Superblack

Take on bike-park laps with the Mondraker ANARK R. This alloy-framed bike pairs a dual-suspension setup with a mixed-wheel configuration. A RockShox ZEB Base 29 fork is part of the build, alongside Sram 70 Eagle shifting.

Specifications

• Category: BIKE PARK
• Colour: Black
• Wheel Diameter: Mullet
• Frame: Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, Max. capacity sealed bearings, ISCG 05
• Available Sizes: S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm
• Rear Shock: RockShox Vivid Coil Select+, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
• Shock Settings: C26 compression, R25 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs
• Fork: RockShox ZEB Base 29, Delta RC, 180mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
• Headset: Onoff custom ZS56/ZS56, 1-1/8", 1.2" head tube
• Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
• Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
• Seatpost: X-Fusion Manic TA, Travel adjust, diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 532x200, XL size: 532x200
• Saddle: Ergon Enduro SPS20
• Front Brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Rear Brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
• Brake Lever: Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
• Rims: WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
• Spokes: WTB Straight gauge spokes & black brass locking nipples
• Front Hub: WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts
• Rear Hub: WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
• Front Tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
• Rear Tyre: Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
• Crankset: Sram 70 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55
• Rings: 32T, Alloy, T-type
• Bottom Bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram 70 T-Type, 12s Flattop, PowerLock
• Rear Derailleur: Sram 70 Eagle, T-Type, 12s
• Shift Levers: Sram Trigger 70, 12s, T-Type Actuation
• Cassette: Sram XS-1270, 10-52T, 12s
• Bike Weight: 18,5 kg
