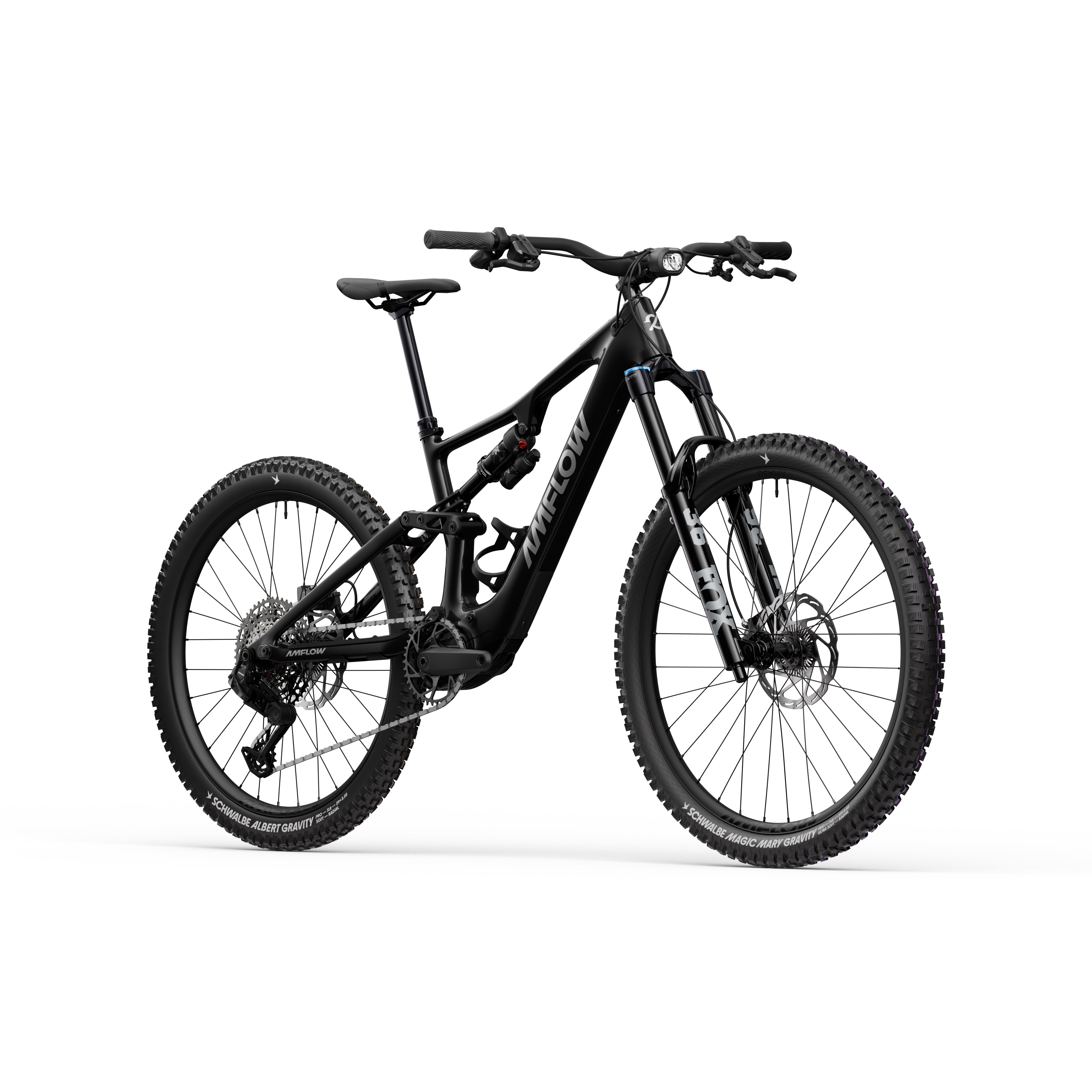

Amflow PX Carbon
1% off

Amflow PX Carbon

$9,999.00 $9,899.00
Taxes included.
Size Medium

Pickup and Shipping Availability

Jetty Road Cycles
Pickup immediately
Shipping within 1 business day
In Stock

Specifications

  • Frame: Amflow PX Carbon Frame
  • Colour: Phantom Black
  • Geometry: 40 adjustable geometry configurations
  • Rear wheel compatibility: 27.5" and 29"
  • Drive Unit: Avinox M2S Drive Unit, nominal 130N·m, peak 150N·m
  • Display: Avinox Screen, 2-inch OLED Control Display
  • Battery: Avinox Integrated Battery, 700Wh
  • Controllers: Avinox Wireless Controllers, right and left sides
  • Charger: Avinox Fast Charger, 12A/508W
  • Rear Shock: FOX Float X Performance (MY 2027), 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
  • Fork: FOX 36 Performance (MY 2027), 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
  • Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
  • Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
  • Shift Levers: SRAM AXS Pod Controller
  • Cassette: SRAM XS-1270 Eagle Transmission Cassette, 10-52T
  • Chain: SRAM Eagle 70 Transmission Flattop Chain
  • Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
  • Crankset: Avinox SL Crank, M/L 155mm, XL/XXL 160mm
  • Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
  • Rotors: Magura Sensor Rotor, 203mm, 2.5mm
  • Wheelset: Amflow XMA-30 Mullet Version
  • Front Rim: Alloy, 29", 30mm inner width, 32H, tubeless ready
  • Rear Rim: Alloy, 27.5", 30mm inner width, 32H, tubeless ready
  • Spokes: SAPIM E-Light
  • Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
  • Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
  • Front Tyre: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
  • Rear Tyre: Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
  • Handlebar: Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
  • Grips: Amflow Enduro Grip 2 Lock-on Grips
  • Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
  • Saddle: Amflow Mountain Saddle
  • Dropper Post: Amflow Dropper Post Shim, adjustable travel 0/5/10/15/20/25mm
  • Dropper Travel: M/L 190mm, XL 210mm, XXL 230mm
  • Accessories: Avinox Front Light, Amflow Bottle Cage, Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip), 5/10mm Dropper Post Travel Reducing Spacer, Rear Light, Torque Wrench, Clear Frame Protection Film, Shock Pump, Quick Start Guide



Geometry



M L XL XXL
A Reach 455mm 478mm 503mm 528mm
B Stack Height 622.1mm 632.2mm 645.9mm 659mm
C Standover Height 780mm 785mm 790mm 795mm
D Front Center 793.1mm 820.9mm 852mm 883.9mm
E Fork Length 570mm 570mm 570mm 570mm
F Wheelbase 1231.3mm 1259.1mm 1290.2mm 1322.1mm
G Chainstay Length 438/451mm 438/451mm 438/451mm 438/451mm
H Bottom Bracket Drop 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm 10.5/23.7mm
I Bottom Bracket Height 345.5mm 345.5mm 345.5mm 345.5mm
J Effective Top Tube Length 586.9mm 619.7mm 642.8mm 672.2mm
K Head Tube Angle 64.2° 64.2° 64.2° 64.2°
L Head Tube Length 109mm 120mm 135mm 150mm
M Actual Seat Tube Angle 72° 72° 72° 72°
N Effective Seat Tube Angle 78° 78° 78° 77.7°
O Seat Tube Height 415mm 427mm 447mm 466mm
