Specifications

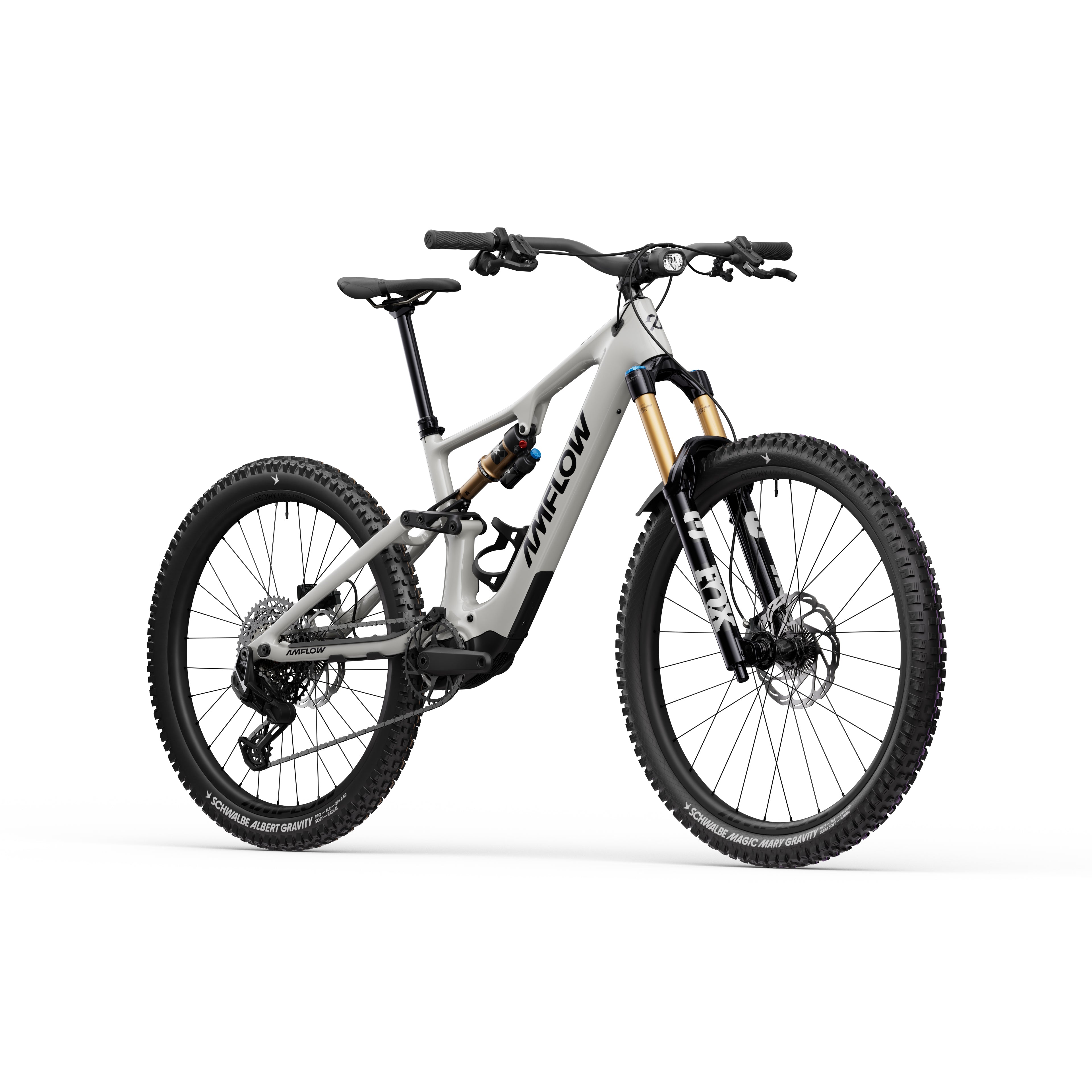

• Frame: Amflow PX Carbon Pro Frame
• Colour: Moonstone Gray
• Geometry: 40 adjustable geometry configurations
• Rear wheel compatibility: 27.5" and 29"
• Drive Unit: Avinox M2S Drive Unit, nominal 130N·m, peak 150N·m
• Display: Avinox Screen, 2-inch OLED Control Display
• Battery: Avinox Integrated Battery, 700Wh
• Controllers: Avinox Wireless Controllers, right and left sides
• Charger: Avinox Fast Charger, 12A/508W
• Rear Shock: FOX Float X Factory (MY 2027), 2-position lever, custom tune, LSC and LSR adjustment, 210×55mm, air shock
• Fork: FOX 36 Factory (MY 2027), 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
• Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
• Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
• Shift Levers: SRAM AXS Pod Rocker Controller
• Cassette: SRAM XS-1295 Eagle Transmission Cassette, 10-52T
• Chain: SRAM X0 Eagle Transmission Chain
• Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
• Crankset: Avinox SL Crank, M/L 155mm, XL/XXL 160mm
• Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
• Rotors: Magura Sensor Rotor, 203mm, 2.5mm
• Wheelset: Amflow XMC-30 Mullet Version
• Front Rim: Carbon, 29", 30mm inner width, 28H, tubeless ready
• Rear Rim: Carbon, 27.5", 30mm inner width, 32H, tubeless ready
• Spokes: SAPIM E-Light
• Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
• Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
• Front Tyre: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
• Rear Tyre: Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
• Handlebar: Amflow Enduro Carbon Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
• Grips: Amflow Enduro Grip 2 Lock-on Grips
• Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
• Saddle: Amflow Mountain Saddle Titanium
• Dropper Post: Amflow Dropper Post Shim, adjustable travel 0/5/10/15/20/25mm
• Dropper Travel: M/L 190mm, XL 210mm, XXL 230mm
• Accessories: Avinox Front Light, Amflow Bottle Cage, IoT Nano SIM Card, Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip), Schwalbe Clik Valve Conversion Set, FOX 36 Mud Guard (Short), 5/10mm Dropper Post Travel Reducing Spacer, Rear Light, Torque Wrench, Clear Frame Protection Film, Shock Pump, Quick Start Guide
