Amflow PR Carbon
1% off Contact us for availability

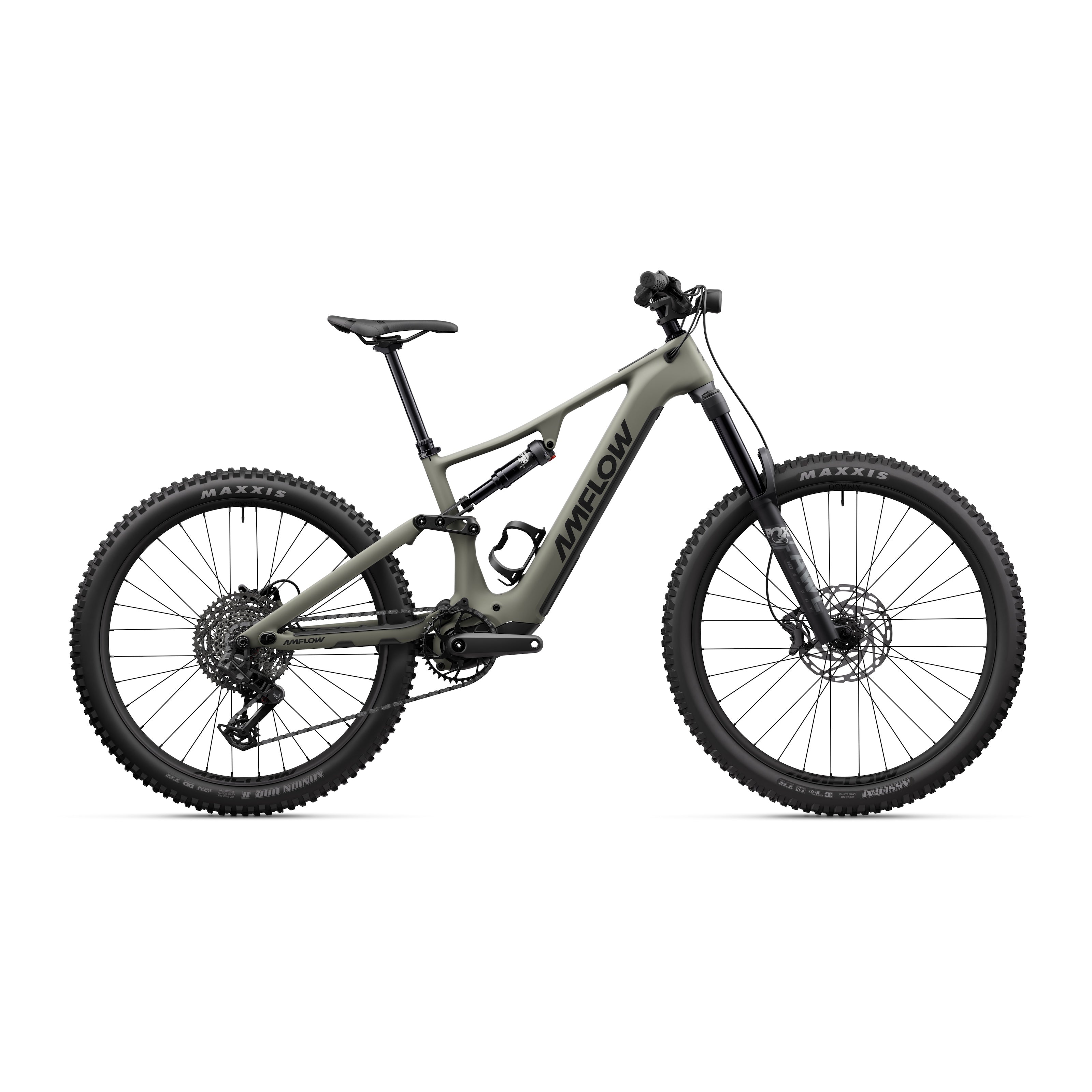

Amflow PR Carbon

$6,999.00 $6,899.00
Taxes included.
Size Large

Pickup and Shipping Availability

Jetty Road Cycles
No immediate pickup available
Out of Stock

The Amflow PR Carbon is a lightweight, full-power electric mountain bike built for riders who want serious climbing support without giving up confident, playful trail handling. Powered by the Avinox M2 drive system with up to 125Nm peak torque and a removable 800Wh battery, it delivers impressive assistance for long rides, steep climbs and big days in the saddle.

With 160mm front travel, a 150mm rear-travel carbon frame, mixed-wheel setup and adjustable geometry, the PR Carbon is ready for technical singletrack, fast descents and all-mountain adventures. SRAM Eagle Transmission, 4-piston hydraulic disc brakes and Maxxis tyres complete a capable package made to push further on every ride.

Why you'll love it

  • Lightweight carbon frame with adjustable geometry
  • Powerful Avinox M2 motor with up to 125Nm peak torque
  • Large removable 800Wh battery for extended range
  • 160mm FOX suspension up front with 150mm rear travel
  • Mixed 29" front and 27.5" rear wheel setup for control and agility
  • SRAM Eagle Transmission drivetrain for precise wireless shifting
  • 4-piston hydraulic disc brakes for confident stopping power

Specifications

Frame Amflow PR Carbon Frame, Moss Green, 40 adjustable geometry configurations, compatible with 27.5" and 29" rear wheels
Motor Avinox M2 Drive Unit, nominal 110N·m, peak 125N·m
Display Avinox 2-inch OLED Control Display
Battery Avinox Removable Battery, 800Wh
Controllers Avinox Wireless Controllers, right and left sides
Charger Avinox Charger, 4A/168W
Rear Shock FOX Float Rhythm, custom tune, LSR adjustment, 210x55mm, air shock
Fork FOX AWL HD Sport, 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15x110mm, 44mm offset
Rear Derailleur SRAM S1000 Eagle Transmission Derailleur
Chainring SRAM Eagle Transmission DM Chainring, 38T for Avinox
Shift Levers SRAM AXS Pod Controller
Cassette SRAM XS-1270 Eagle Transmission Cassette, 10-52T
Chain SRAM Eagle 70 Transmission Flattop Chain
Crankset Avinox SL Crank, 155mm (M/L), 160mm (XL/XXL)
Brakes Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom
Rotors Tektro Sensor Rotor, 203mm, 2.3mm
Wheels Amflow XMA-30 Mullet Version
Front Rim Alloy, 29", 30mm inner width, 32H, tubeless ready
Rear Rim Alloy, 27.5", 30mm inner width, 32H, tubeless ready
Spokes SAPIM E-Light
Front Hub Alloy, 2 sealed bearings, 15x110mm thru-axle, 32H, 6-bolt
Rear Hub Alloy, 4 sealed bearings, 12x148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Front Tyre Maxxis Assegai, 29.0x2.50 M356RU, 3C MaxxGrip/EXO+/TR
Rear Tyre Maxxis DHR II, 27.5x2.50 M327RU, New MaxxTerra/DD/TR
Handlebar Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Grips Amflow Enduro Grip 2 Lock-on Grips
Stem Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
Saddle Amflow Mountain Saddle
Dropper Post Amflow Dropper Post Shim, adjustable travel: 0/5/10/15/20mm; M: 190mm, L/XL: 210mm, XXL: 230mm

Geometry

Measurement M L XL XXL
Reach 452 mm 475 mm 500 mm 527 mm
Stack Height 626 mm 637 mm 649 mm 662 mm
Standover Height 782.5 mm 788.9 mm 791.5 mm 799.1 mm
Front Center 787.7 mm 816 mm 846.8 mm 879.9 mm
Fork Length 576 mm 576 mm 576 mm 576 mm
Wheelbase 1227.9 mm 1256.2 mm 1287 mm 1320.1 mm
Chainstay Length 440/452 mm 440/452 mm 440/452 mm 440/452 mm
Bottom Bracket Drop 10.4/24.5 mm 10.4/24.5 mm 10.4/24.5 mm 10.4/24.5 mm
Bottom Bracket Height 349.5 mm 349.5 mm 349.5 mm 349.5 mm
Effective Top Tube Length 596.5 mm 623.5 mm 652.9 mm 684.6 mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Head Tube Length 111.4 mm 123.6 mm 136.9 mm 151.3 mm
Actual Seat Tube Angle 70° 70° 70° 70°
Effective Seat Tube Angle 77° 76.9° 76.7° 76.6°
Seat Tube Height 405 mm 425.3 mm 445 mm 464 mm
